Tadano Faun TR-650EXL-3 Rough Terrain Crane Service Manual SN 545366 – PDF DOWNLOAD

Description

Tadano Faun TR-650EXL-3 Rough Terrain Crane Service Manual SN 545366 – PDF DOWNLOAD

FILE DETAILS:

Tadano Faun TR-650EXL-3 Rough Terrain Crane Service Manual SN 545366 – PDF DOWNLOAD

Language : English
Pages : 520
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Tadano Faun TR-650EXL-3 Rough Terrain Crane Service Manual SN 545366 – PDF DOWNLOAD

FOREWORD :

• This service manual describes the composition of the Model TR-600EXL-3 rough terrain crane, its repair, checks, adjustment methods and other relevant matters.
• This manual applies to the cranes with the Spee. No. given below. Check the spec. No. of your crane in the nameplate on the crane. Read the separate operation and maintenance manual and the parts catalog for additional indispensable information on the crane in conjunction with this manual.

GENERAL OF HYDRAULIC PRESSURE GENERATING SYSTEM

• FUNCTIONS OF UNITS
1. Hydraulic pump
The crane has a 2-section variable displacement pump and a 2-section gear pump. Pump Pl supplies oil to the winch circuits. Pump P2 supplies .oil to the boom elevation, telescoping and winch circuits. ·Pump P3 supplies oil to the outrigger, steering and swing circuits. Pump P4 gives pilot pressure to winch brake, swing brake, etc., and supplies. oil to the oil cooler circuit.
2. Solenoid control valve
This valve switches over the outrigger circuit between extension and retraction by electric signals. The circuit pressure is controlled by the built-in relief valve (RV3).
3. Manual control valve
This valve is for controlling the boom elevation, boom telescoping, main winch and the auxiliary winch. The hydraulic pressuer for the boom elevation and boom telescoping circuits is controlled by the relief
valve (RV2) incorporated in this control valve, and that for the winch circuits is determined by the relief valve (RVl) incorporated in this control valve.
4. Rotary joint
The rotary joint provides the swivelling connection for the hydraulic circuits, electric circuits, and air circuits between the upper swing structure and the lower traveling structure, and allows the respective circuits to maintain their integrity at all swing positions.
5. Flow control valve

This valve controls the flow rate and the pressure level of the pump P4 circuit.

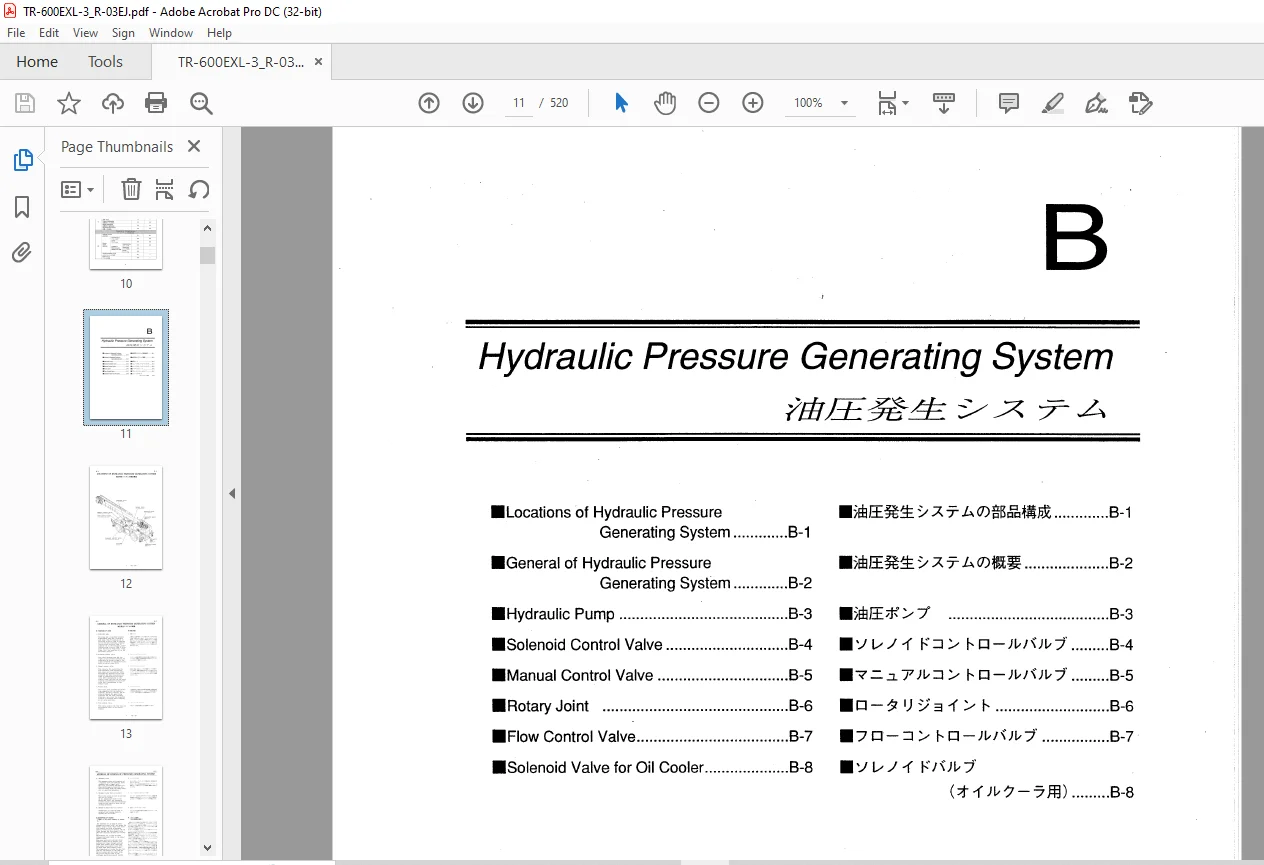

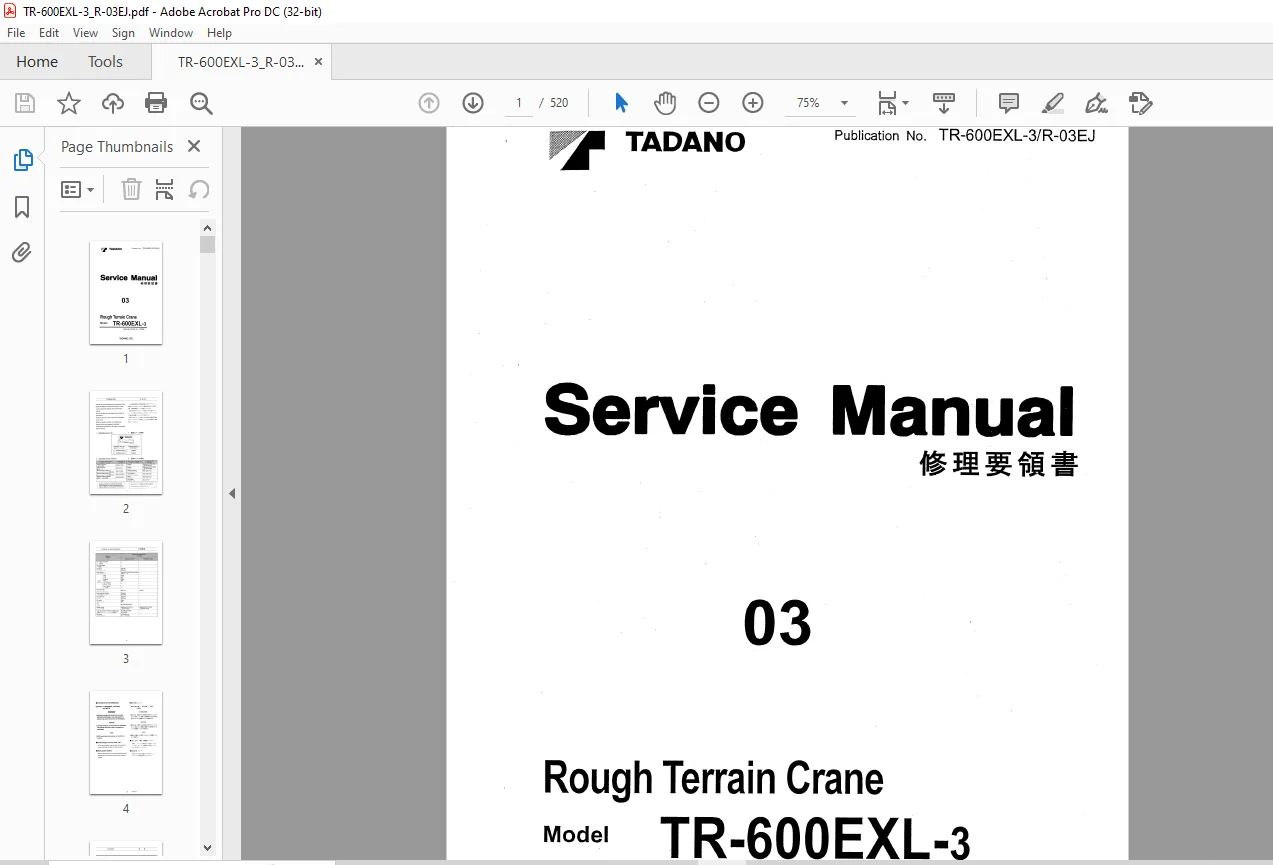

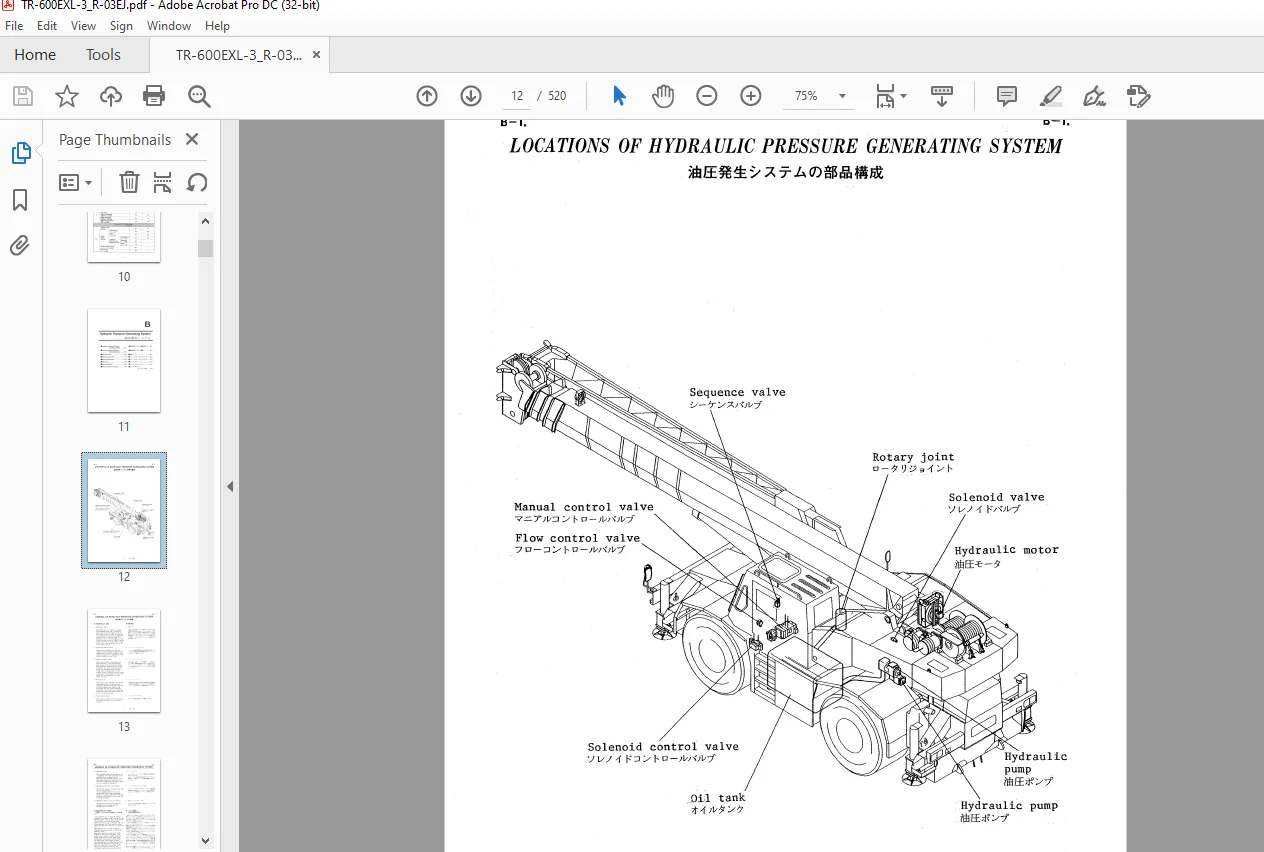

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Faun TR-650EXL-3 Rough Terrain Crane Service Manual SN 545366 – PDF DOWNLOAD

TR-600EXL-3/R-03EJ...........................................  1
	Forewoed.................................................  2
	Contents.................................................  5
	(B) Hydraulic Pressure Generating  System................ 11
		Location of hydraulic pressure generating  System.... 12
		General of hydraulic Pressure Generating System...... 13
		Hydraulic Pump....................................... 16
		Solenoid Control Valve............................... 23
		Manual Control Valve................................. 26
		Rotary Joint......................................... 33
		Flow Control Valve................................... 44
		Solenoid Valve....................................... 47
	(C) Outrigger System..................................... 49
		Location of Outrigger system......................... 50
		General of Outrigger system.......................... 51
		Jack Cylinder........................................ 53
		Solenoid Valve....................................... 55
		Pilot Check Valve.................................... 56
		Extension Cylinder................................... 58
	(D) Swing System......................................... 60
		Location of Swing System............................. 61
		General of Swing System.............................. 62
		Manual Control Valve................................. 63
		Swing Driving Unit................................... 67
		Solenoid Valve for Swing Brake....................... 72
		Swing Bearing........................................ 73
		Sequence Valve....................................... 78
	(E) Boom Elevation System................................ 81
		Location of Boom Elevation System.................... 82
		General of Boom Elevation System..................... 83
		Elevating Cylinder................................... 84
		Counterbalance Valve................................. 87
	(F) Winch System......................................... 90
		Location of Winch System............................. 91
		General of Winch System.............................. 92
		Hydraulic Motor...................................... 94
		Winch................................................102
		Counterbalance Valve.................................108
		Sequence Valve....................................... 78
		Hydraulic Valve......................................112
	(G) Boom Telescoping　System..............................114
		Location of Boom Telescoping System..................115
		General of Boom Telescoping System...................116
		Boom.................................................121
		Telescoping Cylinder.................................147
		Counterbalance Valve................................. 87
		Hose Reel............................................149
		Hydraulic Valve......................................154
	(H) Sefety Devices.......................................156
		Location of Safety Devices...........................157
		General of Safety Devices............................158
		Boom Length & Angle Detector.........................160
		Outrigger Extension Length Detector..................171
		Solenoid Valve.......................................176
		Moment Limiter (AML-LH)..............................178
	(L) Control Devices......................................180
		Location of Control Devices..........................181
		General of Control Devices...........................182
		Air Cylinder for Accelerator.........................183
		Throttle Valance for Accelerator.....................184
	(N) Electrical System....................................192
		Location of Electrical  System.......................193
		Error Numbers of Multiplex Data......................194
		Connector of Multiplex Data..........................204
		Multiplex Data Transmitter Operation Theory..........208
	(Q) Driving Power Generating System......................228
		Location of Driving Power Generating System..........229
	(R) Driving Power Transmission System....................230
		Location of Driving Power Transmission System........231
		General of Driving Power Transmission System.........232
		Torque Converter.....................................235
		Power Shift Transmission.............................238
		Front & Rear Axles...................................241
	(S) Steering System......................................243
		Location of Steering System..........................244
		General of Steering System...........................245
		Priority Valve.......................................247
		Orbitrol.............................................252
		Steering Cylinder....................................265
		Solenoid Valve for Changing Steer Modes..............267
	(T) Brake System.........................................269
		Location of Brake System.............................270
		General of  Brake System.............................271
		Service Brake........................................274
		Brake Valve..........................................283
		Booster..............................................296
		Air Dryer............................................315
		Pressure Regulator...................................325
		Solenoid Valves for Parking Brake....................330
		Brake Chamber........................................331
		Parking Brake........................................335
	(U) Suspension System....................................339
		Location of Suspension System........................340
		General of Suspension System.........................341
		Axle Lock Cylinder...................................343
		Pilot Check Valve....................................345
		Solenoid Valve for Axle Lock.........................347
	(W) Option...............................................348
		Hydraulic Pump for Emergency Steering................349
		Hydraulic Valve for Emergency Steering...............351
		Air conditioner......................................353
		Counter Weight Installation and Removal Device.......416
		Slenoid Control Valve................................417
		Pilot Check Valve....................................421
	(Y) Data, Adjustment & Check.............................422
		Specifications.......................................423
		Mass Table...........................................427
		Pressure Adjustment..................................428
		Electric Adjustment..................................446
		Adjustment and Checks................................458
	(Z) System Diagrams......................................486
		Hydraulic Circuit....................................487
		Electric Circuit (Superstructure)....................489
		Electric Circuit (Carrier)...........................493
		Location of Electrical Parts (Superstructure)........497
		Location of Electrical Parts (Relay Assy)............515
		Location of Electrical Parts (Carrier)...............516
		Torque Converter Circuit.............................517
		Brake Circuit........................................518
