Tadano Forklift Truck Crane TG-700E-3 Operation and Maintenance Manual
$26.95
Tadano Forklift Truck Crane TG-700E-3 Operation and Maintenance Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description

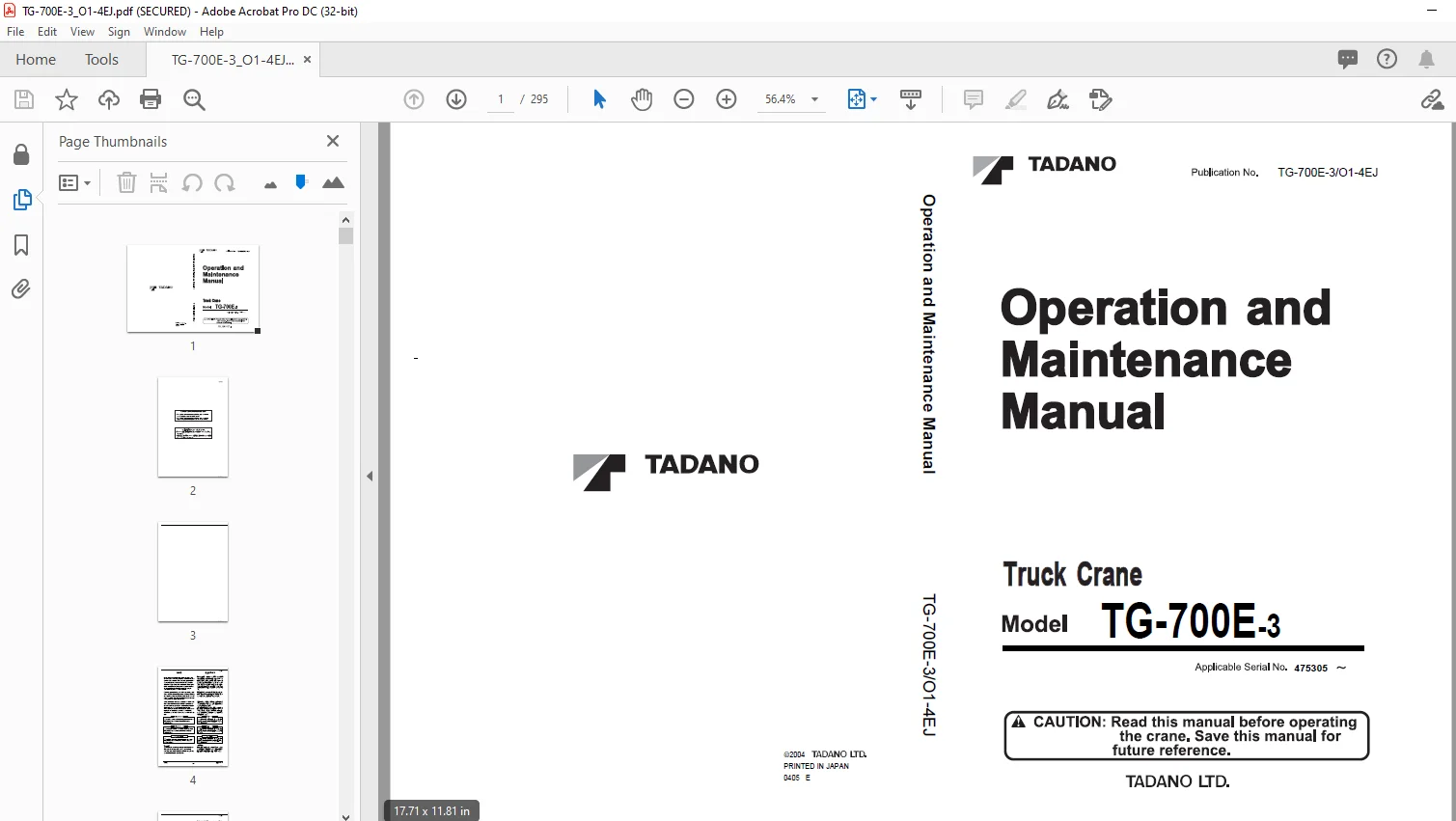

Tadano Forklift Truck Crane TG-700E-3 Operation and Maintenance Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Forklift Truck Crane TG-700E-3 Operation and Maintenance Manual – PDF DOWNLOAD
Language : Japanese,ENGLISH
Pages :295
Downloadable : Yes
File Type : PDF

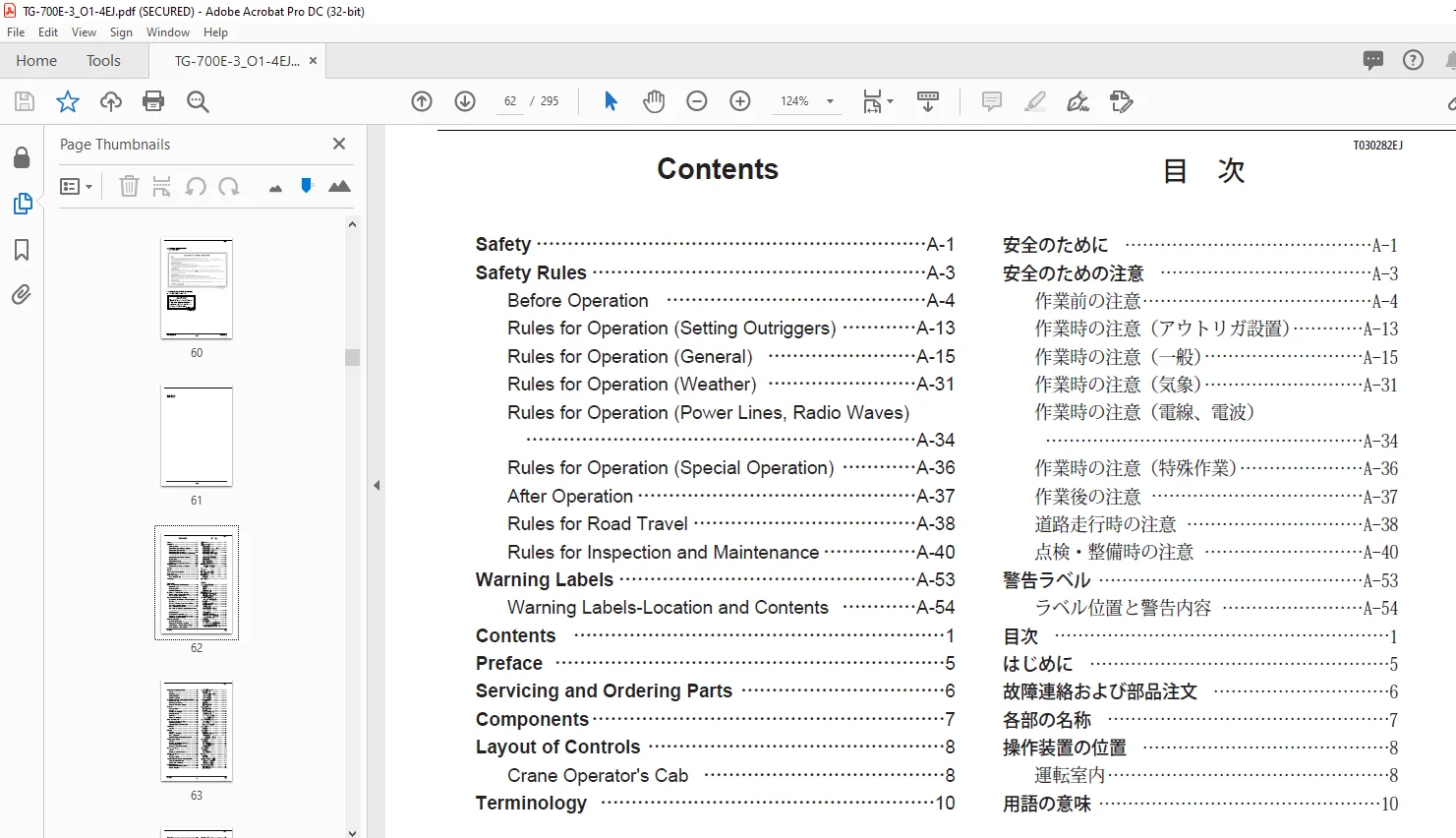

TABLE OF CONTENTS:
Tadano Forklift Truck Crane TG-700E-3 Operation and Maintenance Manual – PDF DOWNLOAD
Safety A-1
Safety Rules A-3 Before Operation โฆโฆA-4 Rules for Operation
(Setting Outriggers) โฆA-13 Rules for Operation (General) โฆโฆA-15 Rules for Operation
(Weather) โฆโฆA-31 Rules for Operation (Power Lines, Radio Waves)
A-34 Rules for Operation (Special Operation) โฆA-36 After Operation
A-37 Rules for Road Travel A-38 Rules for Inspection and Maintenance
โฆโฆA-40 Warning Labels โฆA-53 Warning Labels-Location and Contents โฆA-54
Contents โฆโฆ1
Preface 5
Servicing and Ordering Parts โฆโฆ6
Components โฆ7
Layout of Controls โฆ8
Crane Operator’s Cab โฆ8
Terminology 10
[OPERATION]
Crane Operation Procedure-Summary 15
Preparatory Steps โฆโฆ15
During Operation 17
At the End of Operation 18
How to Read Performance Data Plate โฆ19
Working Range & Lifting Height Chart 19
Rated Lifting Capacities Table 21
AML (Overload Prevention Device) โฆโฆ31
Configuration and Functions of the AML System โฆ34 Controls โฆ38
Names and Functions of AML Main Unit Parts โฆโฆ39
Registering Operational Status 46
AML Pre-operational Inspection โฆโฆ52
How to Use the Working Range Restricting Function
โฆ55
Display Alteration 59
Recovery from an Automatic Stopโฆโฆ60
Display and Disposition of Failure Messages 62
Disposition of System Troubles 66
Other Safety Devices โฆโฆ67
Overwind Cutout Device 67
Front Jack Overload Warning Device 69
Accumulator Low Pressure Warning Device 70
External Warning Lamps (Option) โฆโฆ71
Safety Rules A-3 Before Operation โฆโฆA-4 Rules for Operation
(Setting Outriggers) โฆA-13 Rules for Operation (General) โฆโฆA-15 Rules for Operation
(Weather) โฆโฆA-31 Rules for Operation (Power Lines, Radio Waves)
A-34 Rules for Operation (Special Operation) โฆA-36 After Operation
A-37 Rules for Road Travel A-38 Rules for Inspection and Maintenance
โฆโฆA-40 Warning Labels โฆA-53 Warning Labels-Location and Contents โฆA-54
Contents โฆโฆ1
Preface 5
Servicing and Ordering Parts โฆโฆ6
Components โฆ7
Layout of Controls โฆ8
Crane Operator’s Cab โฆ8
Terminology 10
[OPERATION]
Crane Operation Procedure-Summary 15
Preparatory Steps โฆโฆ15
During Operation 17
At the End of Operation 18
How to Read Performance Data Plate โฆ19
Working Range & Lifting Height Chart 19
Rated Lifting Capacities Table 21
AML (Overload Prevention Device) โฆโฆ31
Configuration and Functions of the AML System โฆ34 Controls โฆ38
Names and Functions of AML Main Unit Parts โฆโฆ39
Registering Operational Status 46
AML Pre-operational Inspection โฆโฆ52
How to Use the Working Range Restricting Function
โฆ55
Display Alteration 59
Recovery from an Automatic Stopโฆโฆ60
Display and Disposition of Failure Messages 62
Disposition of System Troubles 66
Other Safety Devices โฆโฆ67
Overwind Cutout Device 67
Front Jack Overload Warning Device 69
Accumulator Low Pressure Warning Device 70
External Warning Lamps (Option) โฆโฆ71
Starting and Stopping the Engine โฆโฆ72
Control โฆ72
Pre-starting Checks โฆโฆ72
Starting the Engine โฆโฆ73
Stopping the Engine โฆ75
Operating the PTO and Warming Up the Machine โฆ76 Operating the PTO โฆโฆ76
Warming Up the Machine โฆโฆ77
Checks to Make during Warmup โฆโฆ77
Outriggers โฆ78
Setting the Crane 78
Controls โฆ79
Extending the Outriggers โฆโฆ80
Level Adjustments โฆโฆ85
Front Jack 87
Stowing the Outriggers 88
Crane Operatorโs Cab โฆโฆ90
Opening and Closing the Door 90
Adjusting Seat Position 91
Adjusting Length of Control Levers โฆ92
Acceleration 93
Controls โฆ93
Hoisting โฆโฆ95
Controls โฆ95
Hoisting Up and Downโฆ96
Free Fall Operation โฆโฆ99
Other Winch-related Controls and Devices 101
Telescoping the Boom โฆ103
Controls 103
Extending and Retracting the Boom 103
Correcting Boom Length โฆโฆ107
Emergency Telescoping Procedure 109
Elevating the Boom โฆโฆ110
Control โฆ110
Raising and Lowering the Boom โฆโฆ110
Swinging the Boom โฆโฆ112
Controls 112
Swinging the Boom โฆ113
Taking Out and Stowing the Main Hook Block โฆโฆ116
Taking Out Main Hook Block 116
Stowing Main Hook Blockโฆโฆ118
Reeving Wire Rope120
Standard Number of Parts of Line โฆ120
Reeving Procedure โฆ122
Control โฆ72
Pre-starting Checks โฆโฆ72
Starting the Engine โฆโฆ73
Stopping the Engine โฆ75
Operating the PTO and Warming Up the Machine โฆ76 Operating the PTO โฆโฆ76
Warming Up the Machine โฆโฆ77
Checks to Make during Warmup โฆโฆ77
Outriggers โฆ78
Setting the Crane 78
Controls โฆ79
Extending the Outriggers โฆโฆ80
Level Adjustments โฆโฆ85
Front Jack 87
Stowing the Outriggers 88
Crane Operatorโs Cab โฆโฆ90
Opening and Closing the Door 90
Adjusting Seat Position 91
Adjusting Length of Control Levers โฆ92
Acceleration 93
Controls โฆ93
Hoisting โฆโฆ95
Controls โฆ95
Hoisting Up and Downโฆ96
Free Fall Operation โฆโฆ99
Other Winch-related Controls and Devices 101
Telescoping the Boom โฆ103
Controls 103
Extending and Retracting the Boom 103
Correcting Boom Length โฆโฆ107
Emergency Telescoping Procedure 109
Elevating the Boom โฆโฆ110
Control โฆ110
Raising and Lowering the Boom โฆโฆ110
Swinging the Boom โฆโฆ112
Controls 112
Swinging the Boom โฆ113
Taking Out and Stowing the Main Hook Block โฆโฆ116
Taking Out Main Hook Block 116
Stowing Main Hook Blockโฆโฆ118
Reeving Wire Rope120
Standard Number of Parts of Line โฆ120
Reeving Procedure โฆ122
Single Topโฆ125
Components โฆ125
Single Top Liftโฆ125
Mounting the Single Top โฆโฆ126
Stowing the Single Top 129
Jib โฆ132
Components โฆ132
Jib Lift โฆ133
Mounting the Jib134
Changing the Jib Offset Angle 140
Changing the Jib Length โฆโฆ142
Stowing the Jib 148
Removing and Mounting the Counterweight 154
Components โฆ154
Removing the Counterweight 155
Mounting the Counterweight 158
Equipment Inside the Cab โฆโฆ161
Heater (option) 161
Cooler (option) 163
Other Equipment Inside the Cab โฆโฆ165
Equipment Outside the Cabโฆโฆ169
Oil Cooler โฆโฆ169
Winch Drum Monitor Mirror (option) 170
[INSPECTION AND MAINTENANCE]
Inspection and Maintenance โฆ171
Pre-Operational and Periodic Inspectionโฆโฆ172
Safety Parts Requiring Regular Replacement โฆโฆ177
Greasing โฆ178
Maintenance Table โฆ179
Greasing Chart 180
Gear Oil โฆโฆ182
Maintenance Table โฆ182
Winch Speed Reducer Oil Level Check โฆโฆ183
Winch Speed Reducer Oil Replacement โฆ183
Swing Speed Reducer Oil Level Check โฆโฆ184
Swing Speed Reducer Oil Replacement โฆ184
Hydraulic System 186
Maintenance Table โฆ187
Oil Level Check (Hydraulic Oil Tank) 188
Oil Replacement (Hydraulic Oil Tank) โฆโฆ188
Oil Level Check (Oil Reservoir) โฆโฆ191
Oil Replacement (Oil Reservoir) โฆโฆ191
Return Filter (Hydraulic Oil Tank) โฆ192
Return Filter โฆ192
Air Breather (Hydraulic Oil Tank) โฆ193
Line Filter (Winch Clutch Circuit) โฆโฆ193
Components โฆ125
Single Top Liftโฆ125
Mounting the Single Top โฆโฆ126
Stowing the Single Top 129
Jib โฆ132
Components โฆ132
Jib Lift โฆ133
Mounting the Jib134
Changing the Jib Offset Angle 140
Changing the Jib Length โฆโฆ142
Stowing the Jib 148
Removing and Mounting the Counterweight 154
Components โฆ154
Removing the Counterweight 155
Mounting the Counterweight 158
Equipment Inside the Cab โฆโฆ161
Heater (option) 161
Cooler (option) 163
Other Equipment Inside the Cab โฆโฆ165
Equipment Outside the Cabโฆโฆ169
Oil Cooler โฆโฆ169
Winch Drum Monitor Mirror (option) 170
[INSPECTION AND MAINTENANCE]
Inspection and Maintenance โฆ171
Pre-Operational and Periodic Inspectionโฆโฆ172
Safety Parts Requiring Regular Replacement โฆโฆ177
Greasing โฆ178
Maintenance Table โฆ179
Greasing Chart 180
Gear Oil โฆโฆ182
Maintenance Table โฆ182
Winch Speed Reducer Oil Level Check โฆโฆ183
Winch Speed Reducer Oil Replacement โฆ183
Swing Speed Reducer Oil Level Check โฆโฆ184
Swing Speed Reducer Oil Replacement โฆ184
Hydraulic System 186
Maintenance Table โฆ187
Oil Level Check (Hydraulic Oil Tank) 188
Oil Replacement (Hydraulic Oil Tank) โฆโฆ188
Oil Level Check (Oil Reservoir) โฆโฆ191
Oil Replacement (Oil Reservoir) โฆโฆ191
Return Filter (Hydraulic Oil Tank) โฆ192
Return Filter โฆ192
Air Breather (Hydraulic Oil Tank) โฆ193
Line Filter (Winch Clutch Circuit) โฆโฆ193
Line Filter (Winch Brake Circuit) โฆโฆ194
Line Filter (Automatic Stop Circuit) โฆ194
Line Filter (Accumulator Circuit) โฆโฆ194
Swing System โฆโฆ195 ๆ
Maintenance Table โฆ195
Swing Bearing Mounting Bolt Check 195
Winch System โฆโฆ196 ใฆ
Maintenance Table โฆ196
Winch Brake for Wear Check 197
Winch Brake Adjustment โฆโฆ197
Automatic Brake Cylinder Bleeding 200
Foot Brake Cylinder Bleeding 201
Winch Clutch Circuit Bleeding 202
Winch Clutch Adjustment โฆโฆ203
Accelerator System โฆโฆ205 ใข
Maintenance Table โฆ205
Accelerator Circuit Bleedingโฆ205
Electrical System 207 ้ป
Maintenance Table โฆ207
Fuses Replacement โฆ207
Wire Ropes 208 ใฏ
Proper Handling of Wire Ropes โฆโฆ208
Wire Rope Replacement โฆโฆ210
Line Filter (Automatic Stop Circuit) โฆ194
Line Filter (Accumulator Circuit) โฆโฆ194
Swing System โฆโฆ195 ๆ
Maintenance Table โฆ195
Swing Bearing Mounting Bolt Check 195
Winch System โฆโฆ196 ใฆ
Maintenance Table โฆ196
Winch Brake for Wear Check 197
Winch Brake Adjustment โฆโฆ197
Automatic Brake Cylinder Bleeding 200
Foot Brake Cylinder Bleeding 201
Winch Clutch Circuit Bleeding 202
Winch Clutch Adjustment โฆโฆ203
Accelerator System โฆโฆ205 ใข
Maintenance Table โฆ205
Accelerator Circuit Bleedingโฆ205
Electrical System 207 ้ป
Maintenance Table โฆ207
Fuses Replacement โฆ207
Wire Ropes 208 ใฏ
Proper Handling of Wire Ropes โฆโฆ208
Wire Rope Replacement โฆโฆ210
INFORMATION AND DATA]
Conversion 217 ๆ
Major Specifications โฆโฆ218 ไธป
Crane Specifications โฆ218
Massโฆโฆ219
Relief Valve Pressure 219
Overall Dimensions โฆ220
Wire Rope Specifications โฆโฆ221
Other โฆ221
Oils and Greases 222 ็ตฆ
Oil and Grease Table 222
Recommended Oils and Greases โฆ224
Consumable Parts 226 ๆถ
Filters โฆ226
Fuses โฆ226
Conversion 217 ๆ
Major Specifications โฆโฆ218 ไธป
Crane Specifications โฆ218
Massโฆโฆ219
Relief Valve Pressure 219
Overall Dimensions โฆ220
Wire Rope Specifications โฆโฆ221
Other โฆ221
Oils and Greases 222 ็ตฆ
Oil and Grease Table 222
Recommended Oils and Greases โฆ224
Consumable Parts 226 ๆถ
Filters โฆ226
Fuses โฆ226
