Tadano Hydraulic Crane TR-200E-1-00301 3 BOOM + JIB, 2M2D Parts Manual – PDF DOWNLOAD

Description

Tadano Hydraulic Crane TR-200E-1-00301 3 BOOM + JIB, 2M2D Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Hydraulic Crane TR-200E-1-00301 3 BOOM + JIB, 2M2D Parts Manual – PDF DOWNLOAD

Language : English
Pages : 496
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Hydraulic Crane TR-200E-1-00301 3 BOOM + JIB, 2M2D Parts Manual – PDF DOWNLOAD

TR-200E-1-00301 3 BOOM + JIB, 2M2D
000000
PB1000093-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000073-00 OUTRIGGER SYSTEM
PD1000092-00 SWING SYSTEM
PE1000087-00 ELEVATING SYSTEM
PF1000079-01 WINCH SYSTEM
PG1000088-01 TELESCOPING SYSTEM
PH1000087-01 SAFETY DEVICES
PI1000092-01 HYDRAULIC DEVICES
PK1000094-01 FRAME
PL1000091-00 CRANE CONTROLS
PM1000022-00 LUBRICATION DEVICES
PN1000088-00 ELECTRIC EQUIPMENT
PO1000090-00 INDICATION PLATES
PQ1000029-01 DRIVING POWER GENERATING SYSTEM
PR1000020-00 DRIVING POWER TRANSMISSION SYSTEM
PS1000030-01 STEERING SYSTEM
PT1000021-00 BRAKE SYSTEM
PU1000017-01 SUSPENSION
PW1000078-00 ACCESSORIES & TOOLS
PX1000092-00 MOUNTING PARTS
PY1000079-01 OPTIONS
ASSEMBLY

TR-200E-1-00301 3 BOOM + JIB, 2M2D
000022
PB1100017-00 PUMP,HYDRAULIC
PB1130112-03 TANK,OIL
PB1200029-00 PIPING,SUCTION
PB1220030-00 PIPING,DELIVERY
PB1240170-01 PIPING,LOWER RETURN
PB1260025-00 PIPING,UPPER RETURN
PB1270012-01 PIPING,DRAIN
PB1280018-01 PIPING,GAUGE
PB1300150-01 JOINT,ROTARY
PB1320048-02 VALVE,MANUAL CONTROL
PB1350010-00 VALVE,PILOT OPERATED CONTROL
PC1010038-02 OUTRIGGER
PC1030172-03 CYLINDER,JACK
PC1050100-02 CYLINDER,EXTENSION
PC1200050-00 PIPING,OUTRIGGER
PD1030013-01 GEAR,DRIVE
PD1030080-01 GEAR,DRIVE
PD1070001-02 DRIVING UNIT,SWING
PD1100009-00 OPERATION SYSTEM, SWING BRAKE
PD1140004-00 LOCK,SWING FRAME
PD1200016-00 PIPING,SWING
PE1010042-01 CYLINDER,ELEVATING
PE1200016-00 PIPING,ELEVATING
PF1010231-00 WINCH
PF1050051-00 HOOK (MAIN)
PF1050271-01 HOOK (AUXILIARY)
PF1070005-00 ROPE,WIRE
PF1070005-00 ROPE,WIRE
PF1090016-03 SOCKET,ROPE
PF1120100-00 BAND,WINCH BRAKE
PF1180002-00 DETECTOR,DISODERLY WINDING
PF1180005-01 DETECTOR,DISORDERLY WIND (MAIN,OPTION)
PF1180006-01 DETECTOR,DISORDERLY WIND (AUX.OPTION)
PF1180012-00 DETECTOR,DISORDERLY WIND (OPTION)
PF1200031-00 PIPING,WINCH
PF1220012-01 PIPING,WINCH BRAKE
PF1250010-02 DETECTOR,DRUM ROTATION (OPTION)
PF1400280-03 MOUNT,WINCH
PG1010081-02 BOOM
PG1040028-00 JIB
PG1050251-02 CYLINDER,TELESCOPING
PG1070180-04 REEL,HOSE
PG1070180-04 REEL,HOSE
PG1070190-00 REEL,HOSE
PG1120017-00 DETECTOR SYSTEM, BOOM LNGTH
PG1130070-01 DETECTOR,BOOM LENGTH
PG1200023-02 PIPING,TELESCOPING
PH1060019-00 DETECTOR,OVER WINDING (BOOM)
PH1060610-01 DETECTOR,OVER WINDING (JIB)
PH1070001-02 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070002-02 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1070029-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070030-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070040-01 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1100130-01 DETECTOR,OVER FRONT AREA
PH1170002-01 DETECTOR,CONTROL VALVE ACTUATION
PH1190000-03 CONNECTION,WCI SYSTEM
PH1240000-02 WORKING CONDITION INDICATOR
PI1010014-01 MOTOR,HYDRAULIC
PI1030060-00 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1040020-00 CYLINDER,AIR
PI1100011-00 VALVE,RELIEF
PI1120019-00 VALVE,SOLENOID
TR-200E-1-00301 3 BOOM + JIB, 2M2D
000022
PI1120041-01 VALVE,SOLENOID
PI1120070-05 VALVE,SOLENOID
PI1120260-01 VALVE,SOLENOID
PI1130029-00 VALVE,HYDRAULIC
PI1140007-01 VALVE,CHECK
PI1140008-00 VALVE,CHECK
PI1140020-00 VALVE,CHECK
PI1140031-00 VALVE,CHECK
PI1140033-00 VALVE,CHECK
PI1140040-00 VALVE,CHECK
PI1140055-01 VALVE,CHECK
PI1140057-00 VALVE,CHECK
PI1140062-01 VALVE,CHECK
PI1140120-01 VALVE,CHECK
PI1160040-01 VALVE,FLOW CONTROL
PI1240011-00 VALVE,CONTROL
PI1250005-01 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1280130-00 VALVE,PILOT CHECK
PI1300100-00 FILTER,OIL
PI1300110-02 FILTER,OIL
PI1300130-00 FILTER,OIL (CONVERTER)
PI1420002-00 GAUGE,PRESSURE
PI1420003-02 GAUGE,PRESSURE
PI1420003-02 GAUGE,PRESSURE
PK1011218-00 FRAME
PK1100029-01 SWING FRAME
PK1120047-00 SWING TABLE
PK1140015-02 CAB,OPERATOR
PK1140085-00 CAB,OPERATOR
PK1150004-00 SEAT,OPERATOR (AUXILIARY,OPTION)
PK1200031-01 COVER,SWING FRAME
PK1220220-02 WEIGHT, COUNTERBALANCE
PL1010059-01 OPERATION SYSTEM, CONTROL VALVE
PL1030025-01 OPERATION SYSTEM, ACCELERATOR
PL1030370-01 OPE.ASSY,ACCELERATOR (UPPER)
PM1010050-00 PARTS,GREASING
PN1010096-03 ELEC.ASSY (LOWER)
PN1010147-05 ELEC.ASSY (UPPER)
PN1170010-02 WASHER,WINDOW
PN1370030-01 BATTERY INSTALLATION
PN1370121-00 BATTERY (YUASA,170F51)
PN1370122-00 BATTERY (YUASA,115F51)
PN1370124-00 BATTERY (PANASONIC,130F51)
PN1400011-00 WIRING,MATERIALS
PO1010157-01 PLATE ASSY,NAME (OIL)
PO1010168-02 PLATE ASSY,NAME (UPPER)
PO1010176-01 PLATE,INDICATION
PP5450003-00 PUMP,GREASE (240CC)
PQ1010001-01 ENGINE
PQ1020008-01 RADIATOR INSTALLATION
PQ1030031-00 RADIATOR
PQ1070020-01 CLEANER,AIR
PQ1090010-01 TANK,FUEL INSTALLATION
PQ1090012-02 TANK,FUEL INSTALLATION (WITH FILTER)
PQ1100010-03 TANK,FUEL
PQ1110000-02 SEPARATOR,WATER (WITH PRE-FILTER)
PQ1140013-02 POWER TRAIN
PR1010002-00 OPE.ASSY,TRANSMISSION (LOWER)
PR1010050-01 OPE.ASSY,TRANSMISSION(UPPER)
PR1030030-00 OPERATION SYSTEM, DRIVING SELECT
PR1100004-02 TORQUE CONVERTER
PR1110021-01 HOUSING,TORQUE CONVERTER
PR1120021-00 CIRCUIT,TORQUE CONVERTER
TR-200E-1-00301 3 BOOM + JIB, 2M2D
000022
PR1140020-01 P.T.O.CLUTCH,TORQUE CONVERTER
PR1160020-01 OUTPUT SHAFT,TORQUE CONVERTER
PR1180020-01 CHARGING PUMP INSTALLATION,T/C
PR1240010-00 VALVE,REGULATOR (TORQUE CONVERTER)
PR1400004-01 TRANSMISSION
PR1410002-00 HOUSING,TRANSMISSION
PR1420002-00 R.CLUTCH PACK, TRANSMISSION
PR1450001-00 F1.CLUTCH PACK, TRANSMISSION
PR1470001-01 F2 F3.CLUTCH PACK, TRANSMISSION
PR1480005-00 OUTPUT SHAFT, TRANSMISSION
PR1490001-00 INPUT SHAFT, TRANSMISSION
PR1560002-00 VALVE,CONTROL (TRANSMISSION)
PR1570001-00 VALVE,FLOW CONTROL (TRANSMISSION)
PR1580001-00 PIPING,TRANSMISSION
PR1590001-00 VALVE,MODULATING (TRANSMISSION)
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1620016-01 AXLE,DRIVING (FRONT)
PR1620021-02 AXLE,DRIVING (NON SPIN DIFF.REAR)
PR1620040-01 AXLE,DRIVING (REAR)
PR1700010-00 PIPING,CONVERTER
PR1740014-00 SPEED METER SYSTEM
PR1800012-00 TIRE (W/O WHEEL)
PR1800012-00 TIRE (W/O WHEEL)
PR1820000-01 WHEEL,TIRE
PR1820000-01 WHEEL,TIRE
PR1820000-01 WHEEL,TIRE
PR1820010-01 WHEEL,TIRE
PS1010002-01 OPERATION SYSTEM, STEERING
PS1200022-01 PIPING,STEERING
PS1200070-04 PIPING,STEERING (LOWER)
PS1300011-00 HYDRAULIC PUMP, STEERING
PS1340020-01 ORBITROL
PS1350020-00 CYLINDER,STEERING INSTALLATION
PS1360030-01 CYLINDER,STEERING
PT1010009-02 OPERATION SYSTEM, SERVICE BRAKE
PT1200021-02 PIPING,BRAKE
PT1260002-00 TANK,BRAKE FLUID
PT1380010-01 COCK,DRAIN
PT1400011-00 CYLINDER,SAFETY (REAR)
PT1400021-00 CYLINDER,SAFETY (FRONT)
PT1410010-01 AIR MASTER
PT5110001-02 TANK,FUEL
PU1050008-01 CYLINDER,SPRING LOCK(FRONT-R,REAR-L)
PU1050008-01 CYLINDER,SPRING LOCK(FRONT-R,REAR-L)
PU1050009-01 CYLINDER,SPRING LOCK(FRONT-L,REAR-R)
PU1050009-01 CYLINDER,SPRING LOCK(FRONT-L,REAR-R)
PU1100021-03 MOUNT,SUSPENSION
PW1010033-01 ACCESSORIES
PW1030003-00 TOOLS
PX1030004-03 FENDER (FOR 16.00X25 TIRE)
PX1030046-02 FENDER (FOR 20.50X25 TIRE)
PX1050040-02 ROOM,ENGINE
PX1100150-00 TANK SUPPORT INSTLLATION
PX1160010-00 ATTACHMENT PARTS, SWING BEARING
PX1160050-00 ATTACHMENT PARTS, SWING BEARING
PX1180162-01 MOUNT,HOOK (MAIN)
PX1180172-00 MOUNT,HOOK (AUX.)
PY1030150-01 SINGLE TOP
PY1180244-00 LAMP,PILOT (FAMOTH)
PY1360030-00 FAN INSTLLATION
TR-200E-1-00301 3 BOOM + JIB, 2M2D
000022
PY1810001-01 MOUNT,NON-SLIP PLATE
PY1860000-00 COVER,BATTERY
PY1870000-00 COVER,HOSE

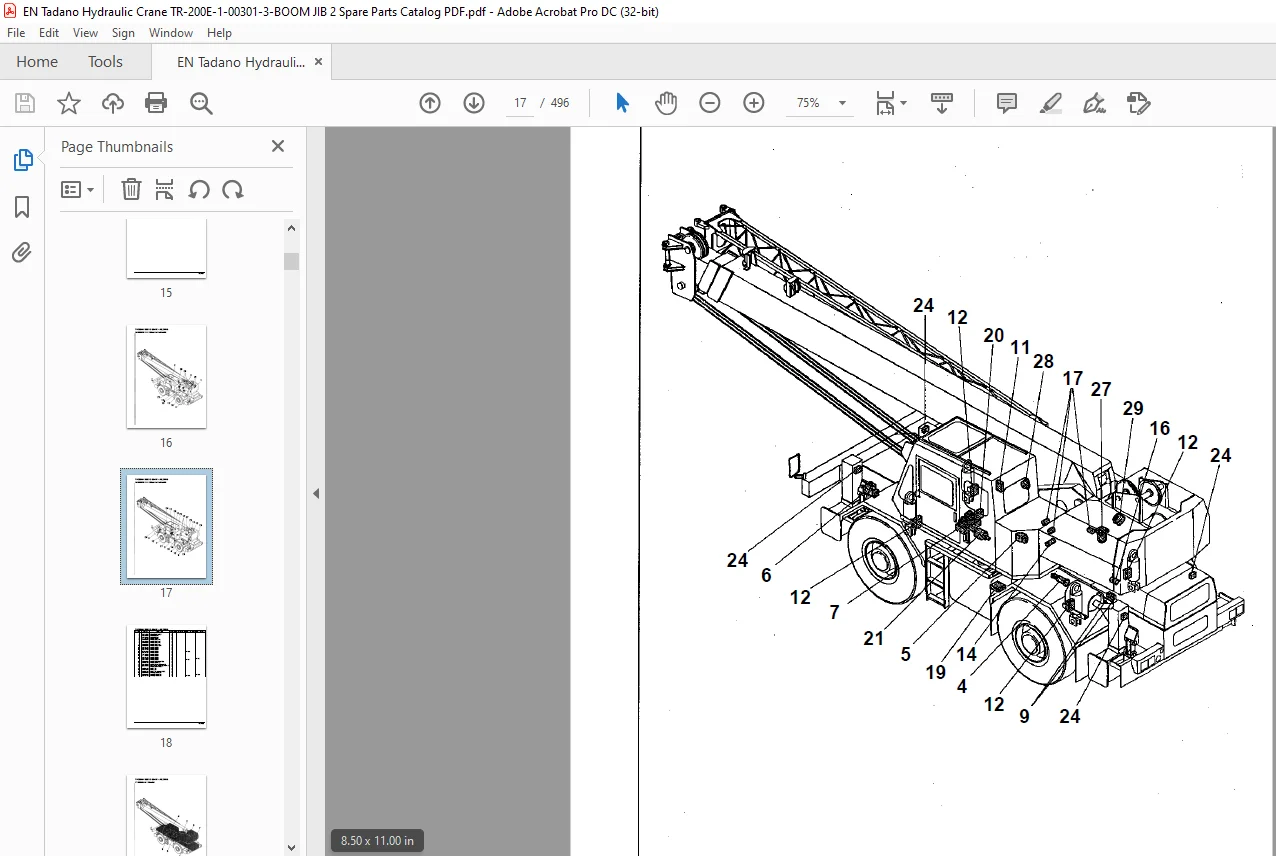

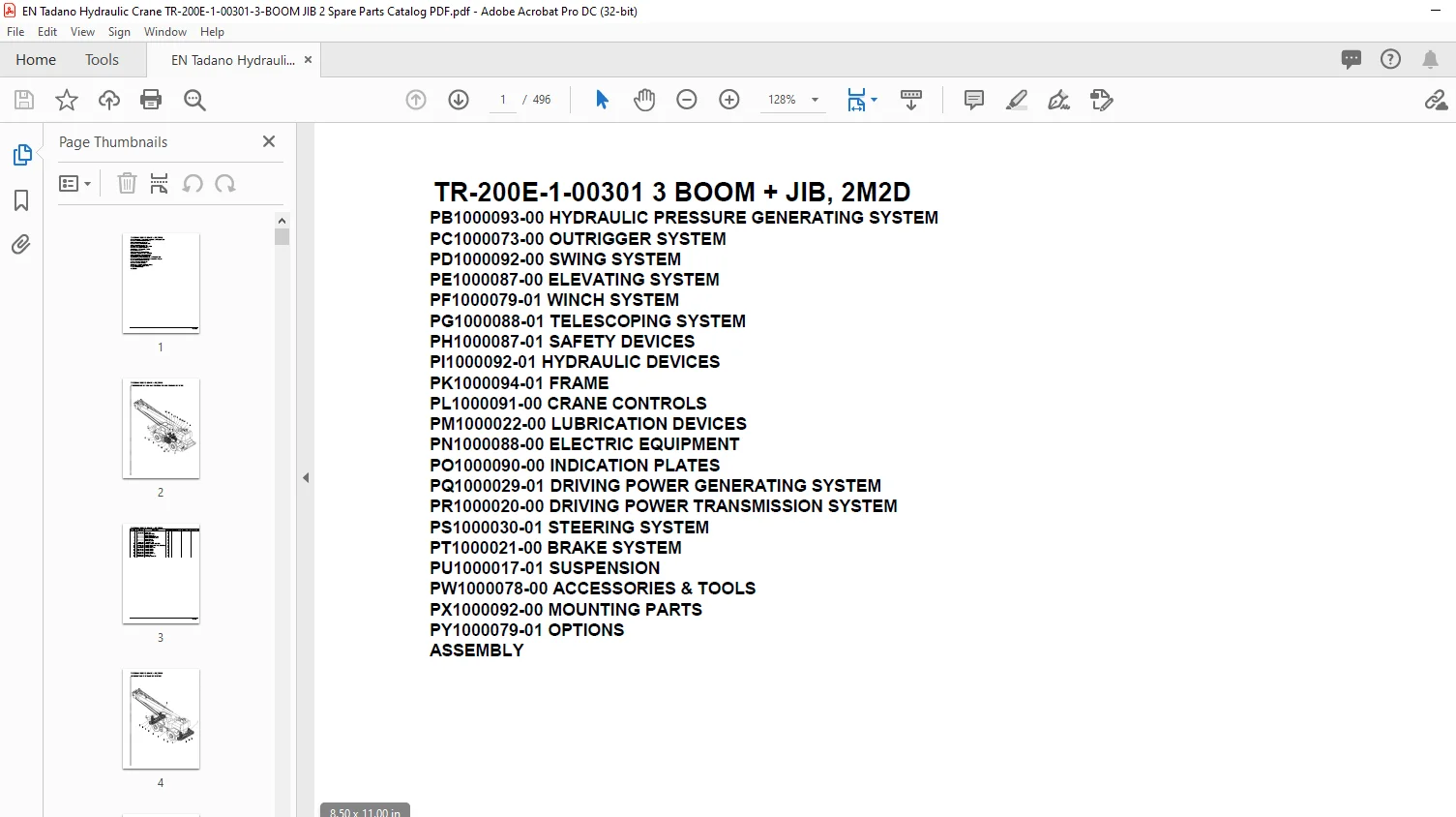

IMAGES PREVIEW OF THE MANUAL:
