Tadano Hydraulic Crane TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D Parts Manual

Description

Tadano Hydraulic Crane TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D Parts Manual –  PDF DOWNLOAD

FILE DETAILS:

Tadano Hydraulic Crane TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D Parts Manual –  PDF DOWNLOAD

Language : English
Pages :689
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Hydraulic Crane TR-300E-2-00201 4 BOOM + 2 JIB  2M2D Parts Manual –  PDF DOWNLOAD

TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D
000000
PB1000233-01 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000176-01 OUTRIGGER SYSTEM
PD1000217-01 SWING SYSTEM
PE1000216-01 ELEVATING SYSTEM
PF1000204-02 WINCH SYSTEM
PG1000213-01 TELESCOPING SYSTEM
PH1000199-01 SAFETY DEVICES
PK1000226-02 FRAME
PL1000222-01 CONTROL DEVICES
PM1000035-00 LUBRICATION DEVICES
PN1000186-02 ELECTRIC EQUIPMENT
PO1000144-01 INDICATION PLATES
PQ1000065-02 DRIVING POWER GENERATING SYSTEM
PR1000041-03 DRIVING POWER TRANSMISSION SYSTEM
PS1000059-01 STEERING SYSTEM
PT1000048-02 BRAKE SYSTEM
PU1000040-01 SUSPENSION
PW1000109-01 ACCESSORIES & TOOLS
PX1000229-00 MOUNTING PARTS
PY1000199-01 OPTIONS
ASSEMBLY

TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D
000021
PB1100020-00 PUMP,HYDRAULIC (EMERGENCY STEERING)
PB1100022-03 PUMP,HYDRAULIC
PB1100076-02 PUMP,HYDRAULIC
PB1130194-02 TANK,OIL
PB1200081-01 PIPING,SUCTION
PB1220091-01 PIPING,DELIVERY
PB1240083-01 PIPING,LOWER RETURN
PB1260131-01 PIPING,UPPER RETURN
PB1270063-03 PIPING,DRAIN (MAIN)
PB1270064-01 PIPING,DRAIN (AUXILIARY)
PB1280064-01 PIPING,GAUGE
PB1300113-02 JOINT,ROTARY
PB1320137-01 VALVE,MANUAL CONTROL (2M2D,SPR. CENTER)
PB1340047-00 VALVE,SOLENOID CONTROL (SWING)
PC1010171-00 OUTRIGGER (COVER.OPTION)
PC1010211-00 OUTRIGGER
PC1030085-02 CYLINDER,JACK
PC1050075-01 CYLINDER,EXTENSION
PC1100113-02 OPE.ASSY,OUTRIGGER (OPTION)
PC1200152-00 PIPING,OUTRIGGER
PD1030035-04 GEAR,DRIVE
PD1070009-04 DRIVING UNIT,SWING
PD1070038-01 DRIVING UNIT,SWING
PD1100034-01 OPERATION SYSTEM, SWING BRAKE
PD1120015-00 OPERATION SYSTEM, SWING LOCK
PD1200052-00 PIPING,SWING
PE1010185-02 CYLINDER,ELEVATING
PE1200058-00 PIPING,ELEVATING
PF1010087-00 WINCH
PF1010087-00 WINCH
PF1050017-00 HOOK (SHEAVE 5 PC’S, WITH COVER)
PF1050064-00 HOOK (MAIN)
PF1050271-01 HOOK (AUXILIARY)
PF1070031-00 ROPE,WIRE (TESAC)
PF1070031-00 ROPE,WIRE (TESAC)
PF1070032-00 ROPE,WIRE (TSK)
PF1070032-00 ROPE,WIRE (TSK)
PF1090016-03 SOCKET,ROPE
PF1180034-03 DETECTOR,DISORDERLY WIND (MAIN)
PF1180035-03 DETECTOR,DISORDERLY WIND (AUX.)
PF1190025-02 DETECTOR,OVER UNWIND (MAIN)
PF1190026-01 DETECTOR,OVER UNWIND (AUX.)
PF1200125-01 PIPING,WINCH (AUXILIARY)
PF1200142-00 PIPING,WINCH (MAIN)
PF1220056-00 PIPING,WINCH BRAKE (AUXILIARY)
PF1220058-00 PIPING,WINCH BRAKE (MAIN)
PF1250048-00 DETECTOR,DRUM ROTATION (MAIN)
PF1250049-00 DETECTOR,DRUM ROTATION (AUX.,OPTION)
PF1400143-01 MOUNT,WINCH (MAIN)
PF1400144-01 MOUNT,WINCH (AUXILIARY)
PG1010260-03 BOOM
PG1040143-02 JIB
PG1050159-06 CYLINDER,TELESCOPING
PG1070075-00 REEL,HOSE (MOUNT)
PG1070180-04 REEL,HOSE
PG1120066-00 DETECTOR SYSTEM, BOOM LENGTH
PG1130036-01 DETECTOR,BOOM LENGTH
PG1130108-00 DETECTOR,BOOM LENGTH
PG1130151-00 DETECTOR,BOOM LENGTH
PG1200073-00 PIPING,TELESCOPING
PG1360087-00 WIRE GUIDE (AUXILIARY)
PG1360113-00 WIRE GUIDE (MAIN)
PG1360150-00 WIRE GUIDE (AUXILIARY)
PG1360158-01 WIRE GUIDE (MAIN)
TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D
000021
PH1060091-00 DETECTOR,OVER WINDING (WEIGHT,AUX.)
PH1060156-00 DETECTOR,OVER WINDING (BOOM)
PH1060191-00 DETECTOR,OVER WIND (JIB)
PH1070001-02 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070002-02 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1070029-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070034-01 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1090012-01 DETECTOR,OVER REAR AREA (OPTION)
PH1100032-02 DETECTOR,OVER FRONT AREA
PH1170034-00 DETECTOR,CONTROL VALVE (MAIN)
PH1170035-00 DETECTOR,CONTROL VALVE (AUX.)
PH1250008-01 MOMENT LIMITER (AML-M1)
PH1250008-01 MOMENT LIMITER (AML-M1)
PH1450005-01 CONNECTION,LOAD MOMENT INDICATOR
PH1450007-00 CONNECTION,LOAD MOMENT INDICATOR
PH1470000-00 LAMP,LOAD MOMENT INDICATOR (OPTION)
PI1010034-03 MOTOR,HYDRAULIC (SANWA)
PI1010034-03 MOTOR,HYDRAULIC (SANWA)
PI1010111-00 MOTOR,HYDRAULIC (SANWA)
PI1010121-01 MOTOR,HYDRAULIC (SWING)
PI1010124-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1010138-00 MOTOR,HYDRAULIC
PI1030040-00 CYLINDER,MASTER
PI1040002-02 CYLINDER,AIR
PI1100019-00 VALVE,RELIEF
PI1120021-04 VALVE,SOLENOID
PI1120025-01 VALVE,SOLENOID
PI1120050-03 VALVE,SOLENOID
PI1120052-01 VALVE,SOLENOID
PI1120070-05 VALVE,SOLENOID
PI1120085-02 VALVE,SOLENOID
PI1120086-02 VALVE,SOLENOID
PI1120107-01 VALVE,SOLENOID
PI1120131-02 VALVE,SOLENOID
PI1120135-05 VALVE,SOLENOID (NACHI)
PI1120210-02 VALVE,SOLENOID
PI1120217-03 VALVE,SOLENOID
PI1120260-01 VALVE,SOLENOID
PI1120283-00 VALVE,SOLENOID
PI1130003-00 VALVE,HYDRAULIC
PI1130006-00 VALVE,HYDRAULIC
PI1130029-00 VALVE,HYDRAULIC
PI1140007-01 VALVE,CHECK
PI1140008-00 VALVE,CHECK
PI1140040-00 VALVE,CHECK
PI1140042-00 VALVE,CHECK
PI1140043-00 VALVE,CHECK
PI1140055-01 VALVE,CHECK
PI1140151-01 VALVE,CHECK
PI1140169-00 VALVE,CHECK
PI1160002-01 VALVE,FLOW CONTROL
PI1230000-00 VALVE,SHUTTLE
PI1230016-00 VALVE,SHUTTLE
PI1250066-00 VALVE,COUNTERBALANCE (SANWA)
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1300002-01 FILTER,OIL
PI1300012-03 FILTER,OIL (TANK,OIL)
PI1300013-03 FILTER,OIL (TORQUE CONVERTER)
PI1340060-01 ACCUMULATOR
PI1420002-00 GAUGE,PRESSURE
PI1420003-02 GAUGE,PRESSURE
PI5140001-00 INFLATOR,AIR
PK1011217-00 FRAME
PK1100127-03 SWING FRAME
TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D
000021
PK1120116-01 SWING TABLE
PK1140109-02 CAB,OPERATOR
PK1140157-00 CAB,OPERATOR (MOUNT)
PK1140160-00 CAB,OPERATOR
PK1150013-00 SEAT,OPERATOR
PK1150016-00 SEAT,OPERATOR
PK1150027-00 SEAT,OPERATOR
PK1170000-00 BELT,SEAT
PK1200168-04 COVER,SWING FRAME
PK1220102-01 WEIGHT, COUNTERBALANCE
PL1010345-01 OPE.ASSY,CONT.VALVE (TDN)
PL1030224-02 OPE.ASSY,ACCELERATOR (LOWER)
PL1030299-01 OPE.ASSY,ACCELERATOR (UPPER)
PL1120002-00 OPERATION SYSTEM, VENTILATOR
PL1290001-00 VALVE,ACCELERATOR
PM1010012-00 PARTS,GREASING
PN1010914-05 ELEC.ASSY (UPPER)
PN1010915-02 ELEC.ASSY (LOWER)
PN1012101-00 ELEC.ASSY (LOWER)
PN1110076-03 RELAY
PN1110191-00 RELAY ASSY (YONKEI)
PN1110214-00 RELAY ASSY (FAMOTH)
PN1200005-00 TRANSMITTER,MULTI. DATA (UPPER)
PN1200006-01 TRANSMITTER,MULTI. DATA (LOWER)
PN1200024-00 TRANSMITTER,MULTI. DATA (UPPER)
PN1200025-00 TRANSMITTER,MULTI. DATA (LOWER)
PN1370049-02 BATTERY INSTALLATION
PN1370121-00 BATTERY (YUASA,170F51)
PN1370122-00 BATTERY (YUASA,115F51)
PN1370124-00 BATTERY (PANASONIC,130F51)
PO1010833-00 PLATE ASSY,NAME (OIL)
PO1011663-01 PLATE ASSY,NAME (UPPER,DIN)
PO1011664-01 PLATE ASSY,NAME (UPPER,NEN)
PO1011665-01 PLATE ASSY,NAME (LOWER)
PO1012548-01 PLATE ASSY,NAME (LOWER)
PO1012779-00 PLATE ASSY,NAME (MARKING,OUTRRIGER)
PO1030005-00 TADANO (CAB,BLUE/BLACK)
PO1030006-00 TADANO (CAB,WHITE/WHITE)
PO1030007-00 TADANO (CAB,BLUE/WHITE)
PO1050050-00 MARKING (BOOM)
PP5450003-00 PUMP,GREASE (240CC)
PQ1010001-01 ENGINE
PQ1020028-00 RADIATOR INSTALLATION
PQ1030023-00 RADIATOR
PQ1040008-00 EXHAUST INSTALLATION
PQ1040018-01 EXHAUST INSTALLATION
PQ1060003-01 AIR INTAKE INSTALLATION
PQ1070021-02 CLEANER,AIR
PQ1090043-03 TANK,FUEL INSTALLATION (WITH PRE-FILTER)
PQ1100005-00 TANK,FUEL (300L)
PQ1100033-02 TANK,FUEL (300L)
PQ1110000-02 SEPARATOR,WATER (WITH PRE-FILTER)
PQ1140039-02 POWER TRAIN
PR1010012-01 OPERATION SYSTEM, TRANSMISSION
PR1100016-02 TORQUE CONVERTER
PR1400014-01 TRANSMISSION
PR1410012-01 HOUSING,TRANSMISSION
PR1440006-02 CLUTCH PACK, TRANSMISSION (F2&R)
PR1440007-01 CLUTCH PACK, TRANSMISSION (F3&F1)
PR1480009-01 OUTPUT SHAFT, TRANSMISSION
PR1490011-00 INPUT SHAFT, TRANSMISSION
PR1490012-00 COUNTER SHAFT, TRANSMISSION
PR1500009-01 PRESSURE REGULATOR VALVE,TRANSMISSION
PR1520004-00 SPEEDOMETER, TRANSMISSION
TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D
000021
PR1520005-00 VALVE,SOLENOID (TRANSMISSION)
PR1520005-00 VALVE,SOLENOID (TRANSMISSION)
PR1540003-00 VALVE,RELIEF (LUBRICATING OIL,T/M)
PR1590005-00 VALVE,LOCK UP (TRANSMISSION)
PR1600001-01 PROPELLER SHAFT, DRIVING
PR1600002-00 PROPELLER SHAFT, DRIVING
PR1600002-00 PROPELLER SHAFT, DRIVING
PR1600061-00 SHAFT,PROPELLER (KOYOSEIKIO)
PR1620038-02 AXLE,DRIVING (FRONT)
PR1620042-00 AXLE,DRIVING (FRONT)
PR1620042-00 AXLE,DRIVING (FRONT)
PR1620043-03 AXLE,DRIVING (REAR)
PR1620043-03 AXLE,DRIVING (REAR)
PR1620051-00 AXLE,DRIVING (FRONT)
PR1700037-01 PIPING,CONVERTER
PR1740032-01 SPEED METER SYSTEM
PR1800001-00 TIRE
PR1800001-00 TIRE
PR1800004-00 TIRE (WITH VALVE)
PR1800010-00 TIRE
PR1800011-00 TIRE (BS.)
PR1800012-00 TIRE (W/O WHEEL)
PR1820000-01 WHEEL,TIRE
PR1820010-01 WHEEL,TIRE
PR1820010-01 WHEEL,TIRE
PR1820031-00 WHEEL,TIRE
PS1010003-00 OPERATION SYSTEM, STEERING
PS1200062-00 PIPING,STEERING (CAB)
PS1200069-00 PIPING,STEERING (SPRING LOCK)
PS1200071-01 PIPING,STEERING (UPPER)
PS1200072-02 PIPING,STEERING (EMERGENCY.OPTION)
PS1200113-01 PIPING,STEERING (CAB)
PS1220007-02 PIPING,REVERSE STEERING (OPTION)
PS1340003-01 ORBITROL
PS1350017-00 CYLINDER,STEERING INSTALLATION
PS1360018-02 CYLINDER,STEERING
PS1360018-02 CYLINDER,STEERING
PS1400000-01 VALVE,PRIORITY
PT1010026-01 OPERATION SYSTEM, SERVICE BRAKE
PT1200051-00 PIPING,BRAKE (UPPER)
PT1200057-01 PUPING,BRAKE (LOWER)
PT1220026-02 PIPING,AIR
PT1240002-00 VALVE,BRAKE
PT1280001-02 VALVE,REDUCING
PT1280001-02 VALVE,REDUCING
PT1280002-00 VALVE,REDUCING
PT1420003-02 BOOSTER
PT1430004-02 DRIER,AIR
PU1050029-03 CYLINDER,SPRING LOCK
PU1050031-05 CYLINDER,SPRING LOCK
PU1100050-01 MOUNT,SUSPENSION
PW1010104-01 ACCESSORIES
PW1030003-00 TOOLS
PW1030043-01 TOOLS
PX1030169-00 FENDER
PX1050043-00 ROOM,ENGINE (UNDER COVER)
PX1050054-01 ROOM,ENGINE
PX1100042-02 TANK SUPPORT INSTALLATION
PX1160011-02 ATTACHMENT PARTS, SWING BEARING
PX1180141-01 MOUNT,HOOK (MAIN)
PX1180143-00 MOUNT,HOOK (AUX.)
PY1030067-01 SINGLE TOP
PY1100072-03 HEATER SYSTEM
PY1100083-02 HEATER SYSTEM
TR-300E-2-00201 4 BOOM + 2 JIB, 2M2D
000021
PY1120008-01 HEATER (DIESEL FUEL)
PY1180225-00 LAMP (PILOT,SIC)
PY1180244-00 LAMP,PILOT (FAMOTH)
PY1200043-01 PIPING,COOLER (OIL)
PY1300002-04 COOLER,OIL (MOUNT)
PY1300003-00 COOLER,OIL
PY1350009-00 RADIO INSTALLATION
PY1360008-02 FAN INSTALLATION
PY1360016-00 FAN,DEFROSTER

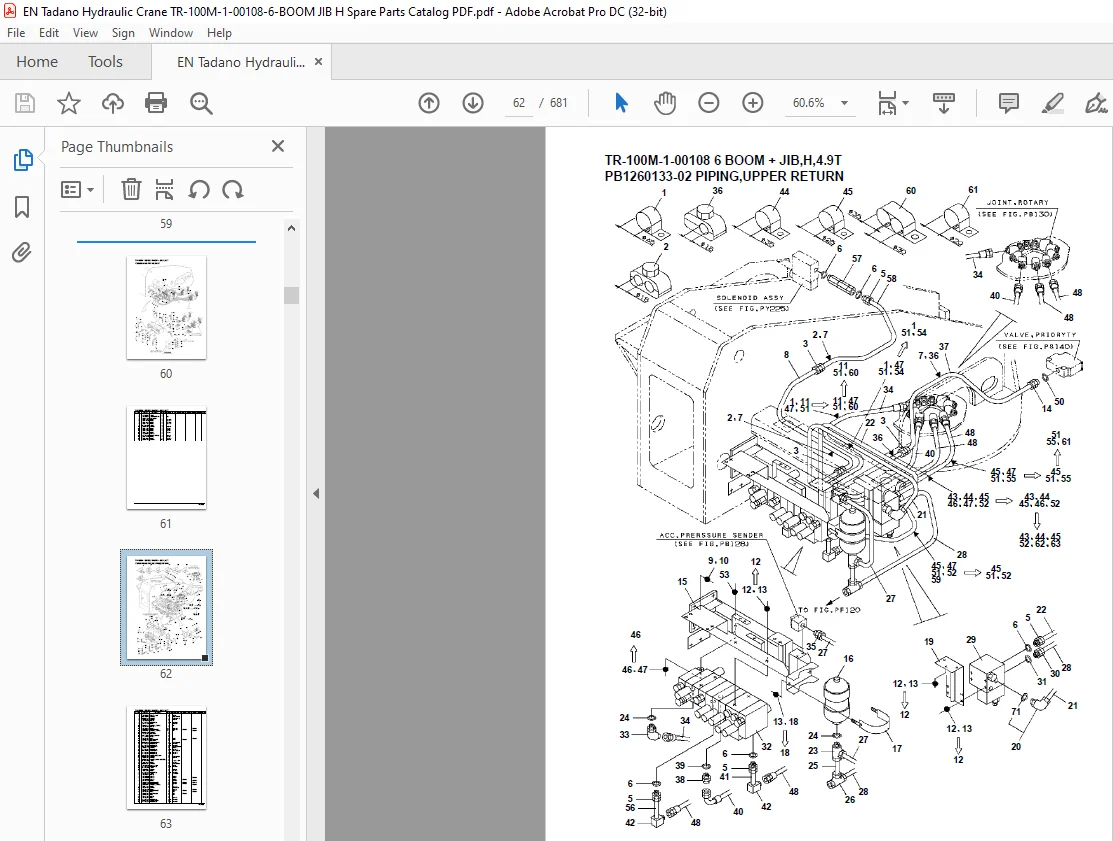

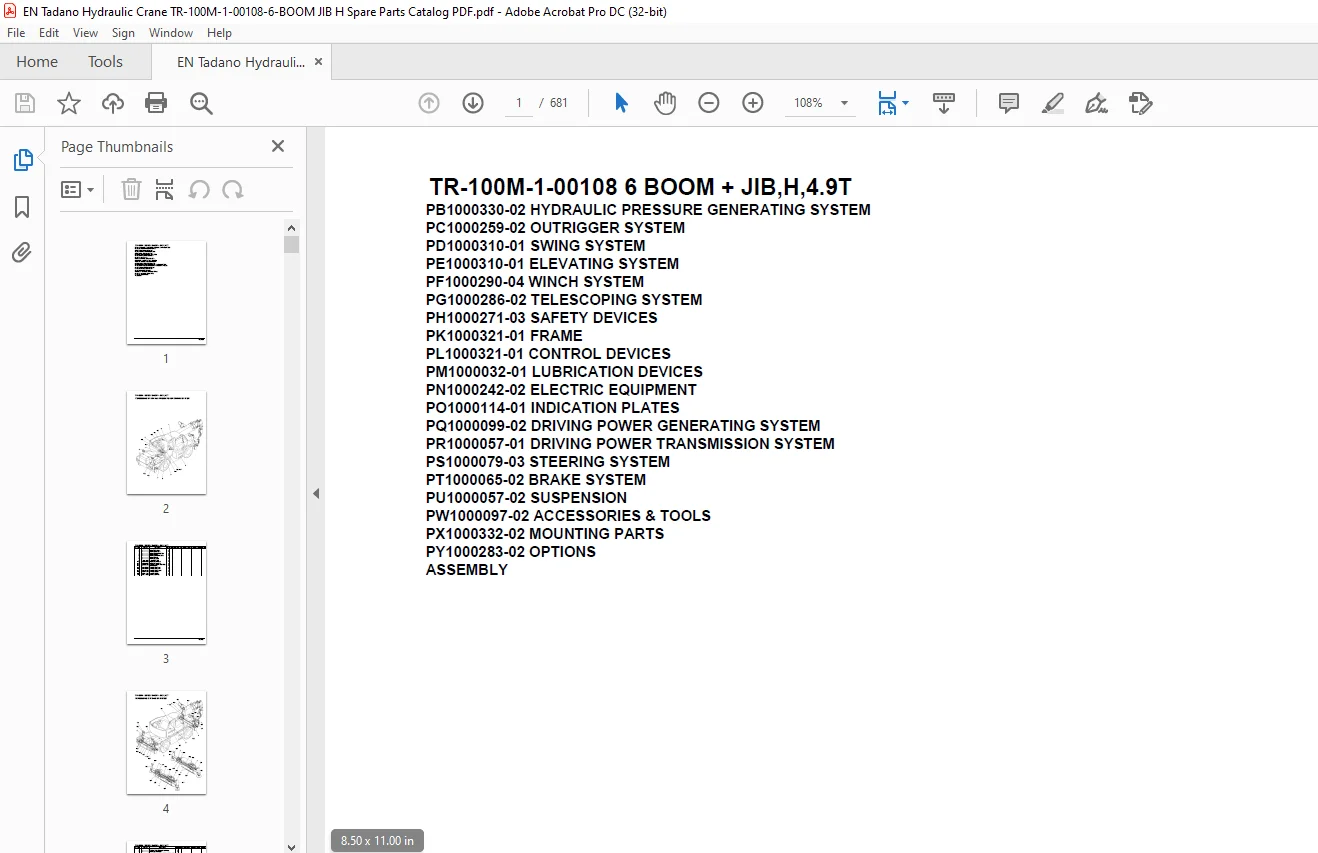

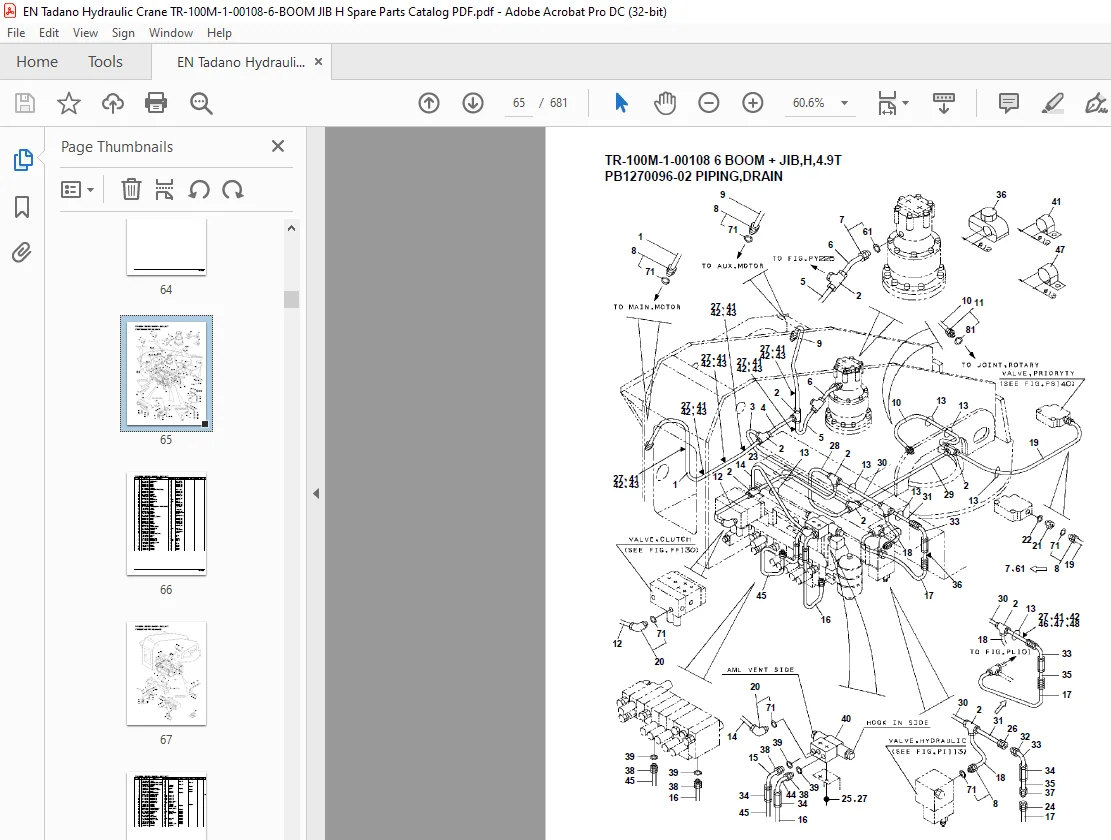

IMAGES PREVIEW OF THE MANUAL:
