Tadano Hydraulic Crane TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D Parts Manual

Description

Tadano Hydraulic Crane TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D Parts Manual –  PDF DOWNLOAD

FILE DETAILS:

Tadano Hydraulic Crane TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D Parts Manual –  PDF DOWNLOAD

Language : English
Pages :647
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Hydraulic Crane TR-500E-2-00202 4 BOOM + 2 JIB 2M2D Parts Manual –  PDF DOWNLOAD

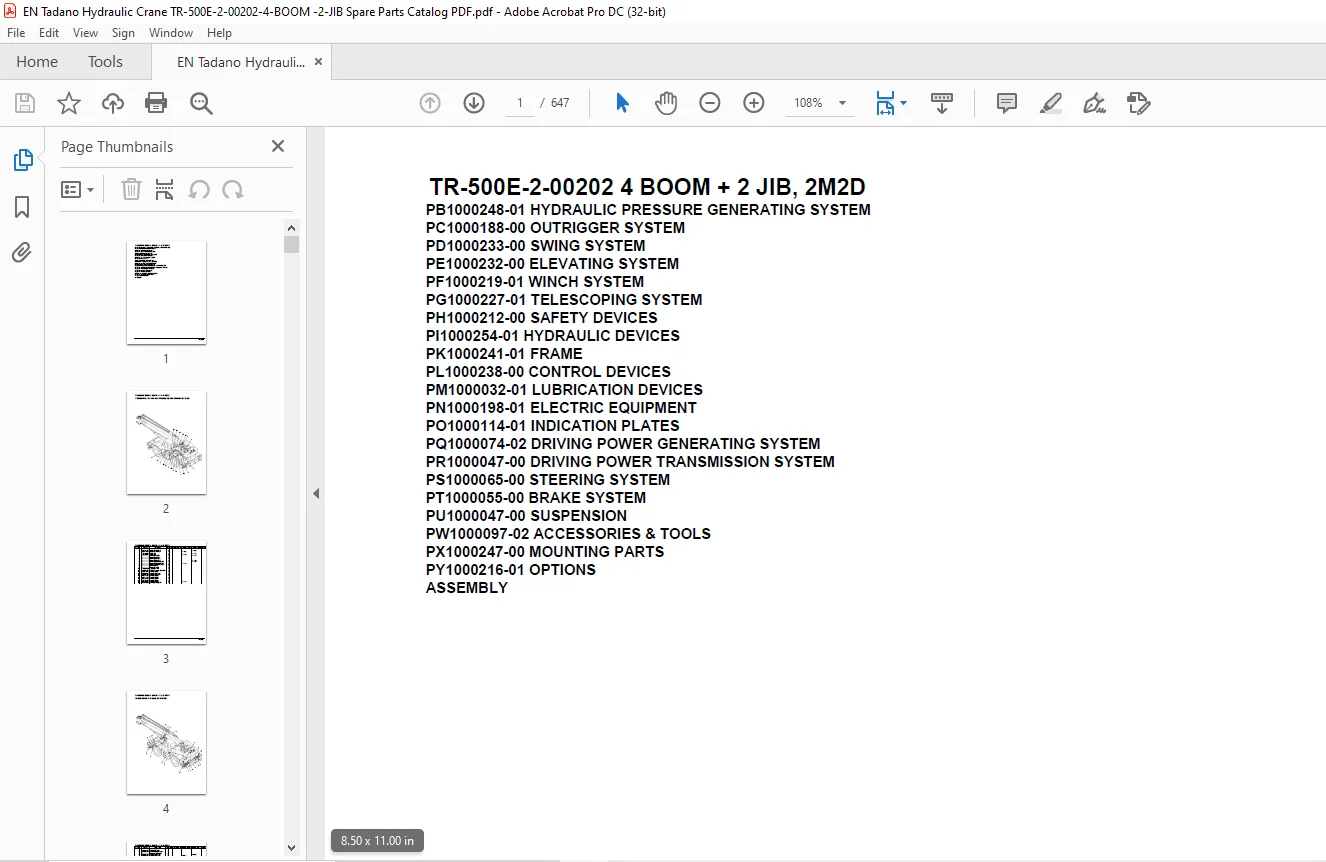

TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D
000000
PB1000248-01 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000188-00 OUTRIGGER SYSTEM
PD1000233-00 SWING SYSTEM
PE1000232-00 ELEVATING SYSTEM
PF1000219-01 WINCH SYSTEM
PG1000227-01 TELESCOPING SYSTEM
PH1000212-00 SAFETY DEVICES
PI1000254-01 HYDRAULIC DEVICES
PK1000241-01 FRAME
PL1000238-00 CONTROL DEVICES
PM1000032-01 LUBRICATION DEVICES
PN1000198-01 ELECTRIC EQUIPMENT
PO1000114-01 INDICATION PLATES
PQ1000074-02 DRIVING POWER GENERATING SYSTEM
PR1000047-00 DRIVING POWER TRANSMISSION SYSTEM
PS1000065-00 STEERING SYSTEM
PT1000055-00 BRAKE SYSTEM
PU1000047-00 SUSPENSION
PW1000097-02 ACCESSORIES & TOOLS
PX1000247-00 MOUNTING PARTS
PY1000216-01 OPTIONS
ASSEMBLY

R-500E-2-00202 4 BOOM + 2 JIB, 2M2D
000022
PB1100000-01 PUMP,HYDRAULIC
PB1100005-02 PUMP,HYDRAULIC
PB1100174-00 PUMP,HYDRAULIC
PB1100236-01 PUMP,HYDRAULIC
PB1100237-00 PUMP,HYDRAULIC
PB1130005-04 TANK,OIL
PB1130098-02 TANK,OIL
PB1200015-02 PIPING,SUCTION
PB1200179-00 PIPING,SUCTION
PB1220004-02 PIPING,DELIVERY
PB1220214-00 PIPING,DELIVERY
PB1240007-01 PIPING,LOWER RETURN
PB1240106-00 PIPING,LOWER RETURN
PB1260015-01 PIPING,UPPER RETURN
PB1270005-00 PIPING,DRAIN
PB1280005-00 PIPING,GAUGE
PB1300042-00 JOINT,ROTARY
PB1320461-00 VALVE,MANUAL CONTROL
PC1010340-02 OUTRIGGER
PC1030429-01 CYLINDER,JACK
PC1050009-00 CYLINDER,EXTENSION
PC1200341-00 PIPING,OUTRIGGER
PD1030002-03 GEAR,DRIVE
PD1070002-02 DRIVING UNIT,SWING
PD1100008-00 OPERATION SYSTEM, SWING BRAKE
PD1120004-00 OPERATION SYSTEM, SWING LOCK
PD1200003-02 PIPING,SWING
PE1010048-02 CYLINDER,ELEVATING
PE1010049-04 CYLINDER,ELEVATING
PE1200022-00 PIPING,ELEVATING
PF1010014-00 WINCH
PF1010014-00 WINCH
PF1050070-01 HOOK (SHEAVE 5PC’S)
PF1050461-01 HOOK (SHEAVE 2PC’S)
PF1050471-04 HOOK (AUX.,5.6TON)
PF1070005-00 ROPE,WIRE
PF1070005-00 ROPE,WIRE
PF1070024-00 ROPE,WIRE (MAIN HOOK STOWING)
PF1090016-03 SOCKET,ROPE
PF1110005-02 OPERATION SYSTEM, WINCH BRAKE
PF1130000-01 BRAKE,WINCH
PF1130003-01 BRAKE,WINCH (DISK)
PF1130004-00 BRAKE,WINCH (DISK)
PF1140003-03 OPE.ASSY,DRUM LOCK (OPTION)
PF1160008-00 OPERATION SYSTEM, CLUTCH
PF1200023-02 PIPING,WINCH
PF1220006-01 PIPING,WINCH BRAKE
PF1250053-00 DETECTOR,DRUM ROTATION (MAIN.OPTION)
PF1250054-00 DETECTOR,DRUM ROTATION (AUX.OPTION)
PF1300040-00 VALVE,CLUTCH
PF1320005-00 JOINT,WINCH ROTARY
PF1400019-02 MOUNT,WINCH
PG1010552-04 BOOM
PG1040007-02 JIB
PG1050046-02 CYLINDER,TELESCOPING
PG1070054-02 REEL,HOSE
PG1070291-02 REEL,HOSE
PG1070340-03 REEL,HOSE
PG1070340-03 REEL,HOSE
PG1120008-00 DETECTOR SYSTEM, BOOM LENGTH
PG1130070-01 DETECTOR,BOOM LENGTH
PG1130101-00 DETECTOR,BOOM LENGTH
PG1200261-02 PIPING,TELESCOPING
PG1280003-00 VALVE,CONTROL (TELESCOPING)
TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D
000022
PG1360089-01 WIRE GUIDE (JIB)
PG1360145-00 GUIDE,WIRE
PH1060002-01 DETECTOR,OVER WIND (BOOM)
PH1060004-01 DETECTOR,OVER WIND (JIB)
PH1070001-02 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070002-02 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1070029-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1100003-02 DETECTOR,OVER FRONT AREA
PH1120004-00 DETECTOR,BOOM ANGLE & SWING ANGLE
PH1120005-01 DETECTOR,BOOM ANGLE (OPTION)
PH1120011-00 DETECTOR,BOOM ANGLE (OPTION)
PH1180123-02 CONNECTION,MOMENT LIMITER SYSTEM
PH1250008-01 MOMENT LIMITER (AML-M1)
PH1470001-00 LAMP,LOAD MOMENT INDICATOR (OPTION)
PI1010000-00 MOTOR,HYDRAULIC
PI1010008-01 MOTOR,HYDRAULIC
PI1010124-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1040004-01 CYLINDER,AIR
PI1040011-00 CYLINDER,AIR
PI1040020-00 CYLINDER,AIR
PI1100003-01 VALVE,RELIEF
PI1100060-01 VALVE,RELIEF
PI1120002-01 VALVE,SOLENOID
PI1120008-00 VALVE,SOLENOID
PI1120009-02 VALVE,SOLENOID
PI1120025-01 VALVE,SOLENOID
PI1120041-01 VALVE,SOLENOID
PI1120070-05 VALVE,SOLENOID
PI1120110-01 VALVE,SOLENOID
PI1120135-05 VALVE,SOLENOID (NACHI)
PI1120218-00 VALVE,SOLENOID
PI1120260-01 VALVE,SOLENOID
PI1130029-00 VALVE,HYDRAULIC
PI1140005-00 VALVE,CHECK
PI1140006-00 VALVE,CHECK
PI1140007-01 VALVE,CHECK
PI1140012-00 VALVE,CHECK
PI1140017-00 VALVE,CHECK
PI1140031-00 VALVE,CHECK
PI1140062-01 VALVE,CHECK
PI1140084-00 VALVE,CHECK
PI1140180-02 VALVE,CHECK
PI1140228-00 VALVE,CHECK
PI1160000-00 VALVE,FLOW CONTROL
PI1160040-01 VALVE,FLOW CONTROL
PI1180000-00 VALVE,PRESSURE CONTROL
PI1210000-01 VALVE,PRESSURE PROTECTION
PI1220012-00 FLOW DIVIDER
PI1230030-01 VALVE,SHUTTLE (OPTION)
PI1250000-02 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1280001-00 VALVE,PILOT CHECK
PI1280050-01 VALVE,PILOT CHECK
PI1280065-00 VALVE,PILOT CHECK
PI1300001-01 FILTER,OIL
PI1300009-02 FILTER,OIL
PI1340060-01 ACCUMULATOR
PI1420000-01 GAUGE,PRESSURE
PI1420001-01 GAUGE,PRESSURE
PI1420002-00 GAUGE,PRESSURE
PK1010007-00 FRAME
PK1100020-02 SWING FRAME
PK1120124-02 SWING TABLE
PK1140073-00 CAB,OPERATOR
TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D
000022
PK1140076-03 CAB,OPERATOR
PK1150014-01 SEAT,OPERATOR
PK1170000-00 BELT,SEAT
PK1200020-00 COVER,SWING FRAME
PL1010421-01 OPERATION SYSTEM, CONTROL VALVE
PL1030319-01 OPERATION SYSTEM, ACCELERATOR
PL1040003-00 OPERATION SYSTEM, GOVERNOR
PL1290000-00 VALVE,ACCELERATOR
PL1300000-01 VALVE,THROTTLE
PM1010002-00 PARTS,GREASING
PN1010824-00 ELEC.ASSY (BOOM)
PN1010959-00 ELEC.ASSY (LOWER)
PN1010967-00 ELEC.ASSY (SWING)
PN1011013-02 ELEC.ASSY (UPPER)
PN1110059-00 RELAY ASSY (CAB,HEATER)
PN1110082-00 RELAY ASSY (BOX,LOWER)
PN1110085-01 RELAY
PN1110214-00 RELAY ASSY (FAMOTH)
PN1170010-02 WASHER,WINDOW
PN1200005-00 TRANSMITTER,MULTI. DATA (UPPER)
PN1200006-01 TRANSMITTER,MULTI. DATA (LOWER)
PN1370052-00 BATTERY INSTALLATION
PN1370121-00 BATTERY (YUASA,170F51)
PN1370123-00 BATTERY (YUASA,145F51)
PN1400011-00 WIRING,MATERIALS
PO1010147-00 PLATE ASSY,NAME (OIL)
PO1011136-02 PLATE ASSY,NAME (ENGLISH&FRENCH/LOWER)
PO1011192-00 PLATE ASSY,NAME (HOOK.OPTION)
PO1011262-01 PLATE ASSY,NAME (UPPER)
PO1011785-01 PLATE ASSY,NAME (ENGLISH&CHINESE,UPPER)
PO1011786-01 PLATE ASSY,NAME (ENGLISH&CHINESE,LOWER)
PO1011788-00 PLATE ASSY,NAME (INDICATOR)
PO1030005-00 TADANO (CAB,BLUE/BLACK)
PO1030006-00 TADANO (CAB,WHITE/WHITE)
PO1030007-00 TADANO (CAB,BLUE/WHITE)
PP5450003-00 PUMP,GREASE (240CC)
PQ1010001-01 ENGINE
PQ1020003-01 RADIATOR INSTALLATION
PQ1030001-00 RADIATOR
PQ1090002-01 TANK,FUEL INSTALLATION (250L)
PQ1090003-01 TANK,FUEL INSTALLATION (300L)
PQ1100004-00 TANK,FUEL (250L)
PQ1100005-00 TANK,FUEL (300L)
PQ1100012-03 TANK,FUEL
PQ1100033-02 TANK,FUEL (300L)
PQ1120010-00 FILTER,FUEL (OPTION)
PQ1140047-01 POWER TRAIN
PR1010001-02 OPERATION SYSTEM, TRANSMISION
PR1030002-03 OPERATION SYSTEM, DRIVING SELECT
PR1100015-00 TORQUE CONVERTER
PR1400007-00 TRANSMISSION
PR1410008-00 HOUSING,TRANSMISSION
PR1420001-02 R.CLUTCH PACK, TRANSMISSION
PR1430000-02 3RD.CLUTCH PACK, TRANSMISSION
PR1440001-02 F.CLUTCH PACK, TRANSMISSION
PR1480004-00 OUTPUT SHAFT, TRANSMISSION
PR1490006-00 INPUT SHAFT, TRANSMISSION
PR1500006-00 PRESSURE REGULATOR VALVE,TRANSMISSION
PR1540000-02 VALVE,RELIEF (LUBRICATING OIL,T/M)
PR1560001-02 VALVE,CONTROL (T/M,DRIVING SELECT)
PR1600015-00 PROPELLER SHAFT,DRIVING
PR1600015-00 PROPELLER SHAFT,DRIVING
PR1600015-00 PROPELLER SHAFT,DRIVING
PR1600020-02 PROPELLER SHAFT, DRIVING
TR-500E-2-00202 4 BOOM + 2 JIB, 2M2D
000022
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1600020-02 PROPELLER SHAFT, DRIVING
PR1620005-06 AXLE,DRIVING (REAR)
PR1620067-00 AXLE,DRIVING (FRONT)
PR1620068-00 AXLE,DRIVING (REAR)
PR1700002-00 PIPING,CONVERTER (UPPER)
PR1700034-00 PIPING,CONVERTER (LOWER)
PR1740033-00 SPEED METER SYSTEM
PR1740041-00 SPEED METER SYSTEM (TACOMETER)
PR1800004-00 TIRE (WITH VALVE)
PR1800004-00 TIRE (WITH VALVE)
PR1820032-00 WHEEL,TIRE
PR1820033-00 WHEEL,TIRE
PR5060013-00 REEL ASSY,HOSE
PR5150033-00 ROLLER ASSY
PS1010002-01 OPERATION SYSTEM, STEERING
PS1050002-00 DETECTOR,STEERING CENTER (OPTION)
PS1200004-01 PIPING,STEERING (UPPER)
PS1200005-00 PIPING,STEERING (LOWER)
PS1200013-00 PIPING,STEERING (UPPER)
PS1210005-00 PIPING,EMERGENCY STEERING (OPTION)
PS1320001-00 MOTOR & PUMP UNIT
PS1340020-01 ORBITROL
PS1360003-05 CYLINDER,STEERING
PS5340040-03 STEERING ASSY
PT1010005-00 OPERATION SYSTEM, SERVICE BRAKE
PT1020001-01 OPERATION SYSTEM, PARKING BRAKE
PT1200015-03 PIPING,BRAKE
PT1200060-00 PIPING,BRAKE (UPPER)
PT1240000-00 VALVE,BRAKE
PT1240001-01 VALVE,BRAKE (WINCH BRAKE)
PT1250000-00 VALVE,PARKING BRAKE
PT1280001-02 VALVE,REDUCING
PT1420002-02 BOOSTER
PT1420003-02 BOOSTER
PT1420004-00 BOOSTER (WINCH BRAKE)
PT1430000-00 DRIER,AIR
PU1050010-01 CYLINDER,SPRING LOCK
PU1050026-03 CYLINDER,SPRING LOCK
PU1100002-01 MOUNT,SUSPENSION
PU1200000-01 PIPING,SUSPENSION LOCK
PW1010108-00 ACCESSORIES
PW1030003-00 TOOLS
PW5110007-00 WEDGE
PX1030192-01 FENDER
PX1050056-00 ROOM,ENGINE
PX1100008-02 TANK SUPPORT INSTALLATION
PX1140003-00 OUTRIGGER SUPPORT INSTALLATION
PX1160004-00 ATTACHMENT PARTS, SWING BEARING
PX1180410-00 MOUNT,HOOK (MAIN)
PX1180420-00 MOUNT,HOOK (AUX.)
PX1250053-00 COVER (HEATER,OPTION)
PX1260008-00 STEP INSTALLATION
PY1030003-02 SINGLE TOP
PY1100075-02 HEATER SYSTEM
PY1100099-01 HEATER SYSTEM
PY1120008-01 HEATER (DIESEL FUEL)
PY1180228-00 LAMP (INDICATOR,DRUM)
PY1200021-02 PIPING,COOLER
PY1300002-04 COOLER,OIL (MOUNT)
PY1300003-00 COOLER,OIL
PY1350002-02 RADIO INSTALLATION
PY1360001-01 FAN INSTALLATION
PY1360016-00 FAN,DEFROSTER

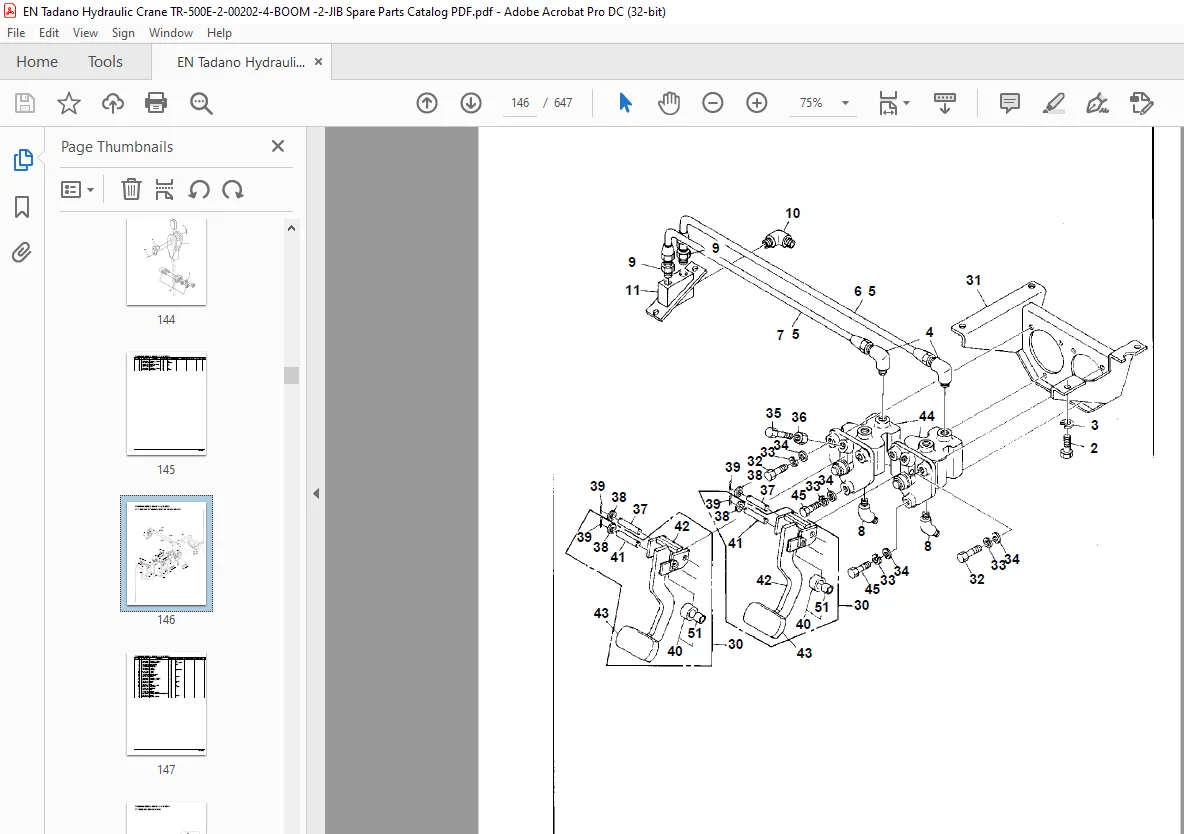

IMAGES PREVIEW OF THE MANUAL:
