Tadano Telescopic Truck Crane TS-75M-1-10700 LOWER,NISSAN U-CP88E Parts Manual

Description

Tadano Telescopic Truck Crane TS-75M-1-10700 LOWER,NISSAN U-CP88E Parts Manual   – PDF DOWNLOAD

FILE DETAILS:

Tadano Telescopic Truck Crane TS-75M-1-10700 LOWER NISSAN U-CP88E Parts Manual   – PDF DOWNLOAD

Language : English
Pages :80
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Telescopic Truck Crane TS-75M-1-10700 LOWER NISSAN U-CP88E Parts Manual   – PDF DOWNLOAD

TS-75M-1-10700 LOWER,NISSAN U-CP88E
000000
PX1000669-01 MOUNTING PARTS
PY1000896-00 OPTIONS
ASSEMBLY

TS-75M-1-10700 LOWER,NISSAN U-CP88E
000003
PB1050210-01 OPE.ASSY,P.T.O. (COUPLING)
PB1070223-00 PROPELLER SHAFT,PUMP
PB1100049-00 PUMP,HYDRAULIC
PB1130057-02 TANK,OIL
PB1410650-00 PIPING,HYDRAULIC LOWER
PB1410652-00 PIPING,LOWER (OPTION)
PC1220091-00 PIPING,FRONT JACK
PC1250074-00 FRONT JACK INSTALLATION
PC1290017-01 FRONT JACK,HYDRAULIC
PI1140192-00 VALVE,CHECK
PI1280042-01 VALVE,PILOT CHECK
PL1030503-00 OPERATION SYSTEM, ACCELERATOR
PN1010436-00 ELEC.ASSY (FOR FRONT JACK)
PN1011517-00 ELECTRICAL ACCESSORIES
PN1011518-00 ELEC.ASSY (POWER TRAIN)
PN1011519-00 ELEC.ASSY (TURN LAMP)
PN1011521-00 ELEC.ASSY (POWER SUPPLY)
PO1010517-01 PLATE,INDICATION
PO1011813-00 PLATE ASSY,NAME (OPTION,POWER TRAIN)
PW1010041-02 ACCESSORIES
PW1010046-02 ACCESSORIES
PW1030057-01 TOOLS
PX1030263-00 FENDER
PX1100174-00 TANK SUPPORT INSTALLATION
PX1120239-00 BOOM REST INSTALLATION
PX1170223-00 ATTACHMENT PARTS, CRANE FRAME
PX1170225-00 ATTACHMENT PARTS, CRANE FRAME
PX1180193-00 MOUNT,HOOK
PX1200218-00 SIDE GUARD INSTALLATION
PX1220238-00 PUMP INSTALLATION
PX1220239-01 PUMP INSTALLATION (OPTION,POWER TRAIN)
PX1300029-00 REINFORCEMENT, CHASSIS (FRONT JACK,OP.)
PX1350182-00 TOOL BOX INSTALLATION
PX1370120-00 CAB GUARD INSTALLATION
PX1410114-00 MOUNT,TIRE
PY1460010-00 ELECTRICAL PARTS,POWER SUPPLY(OPTIN)

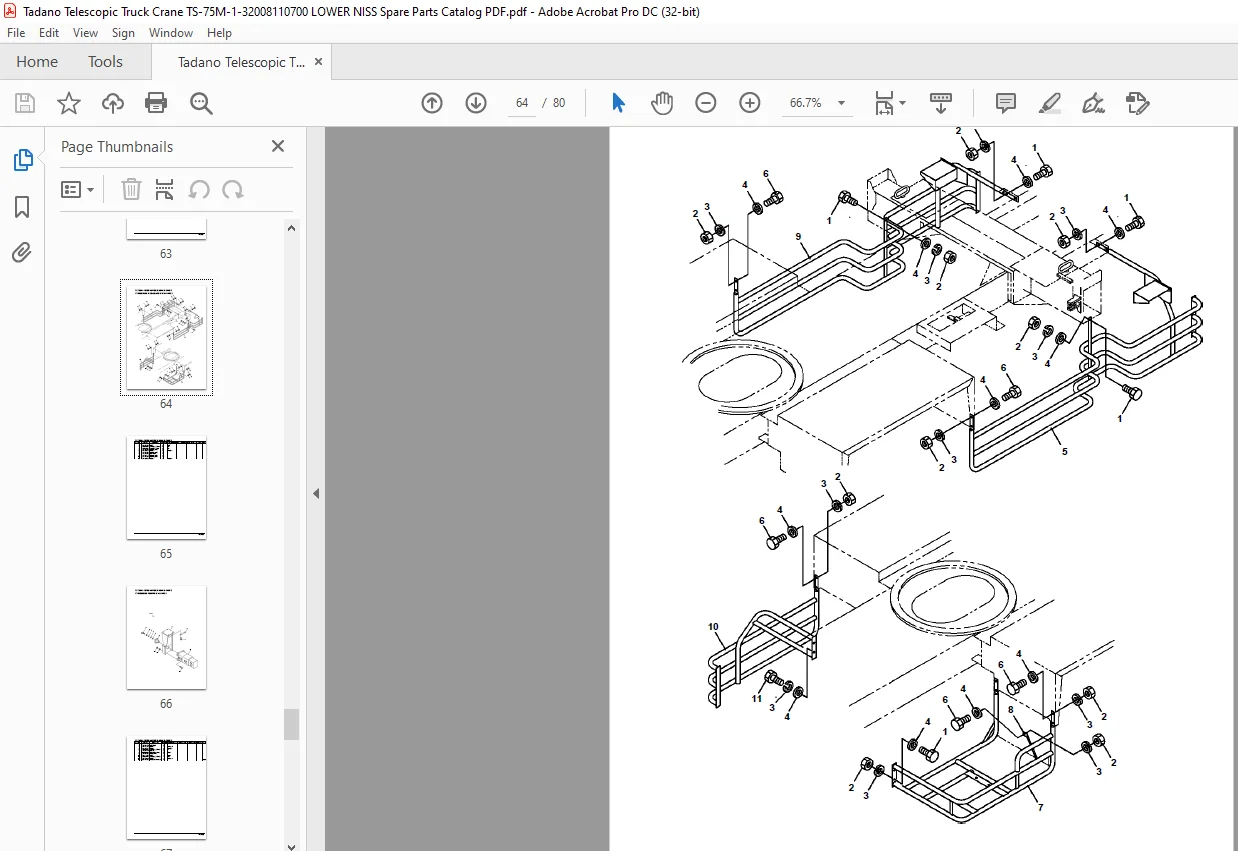

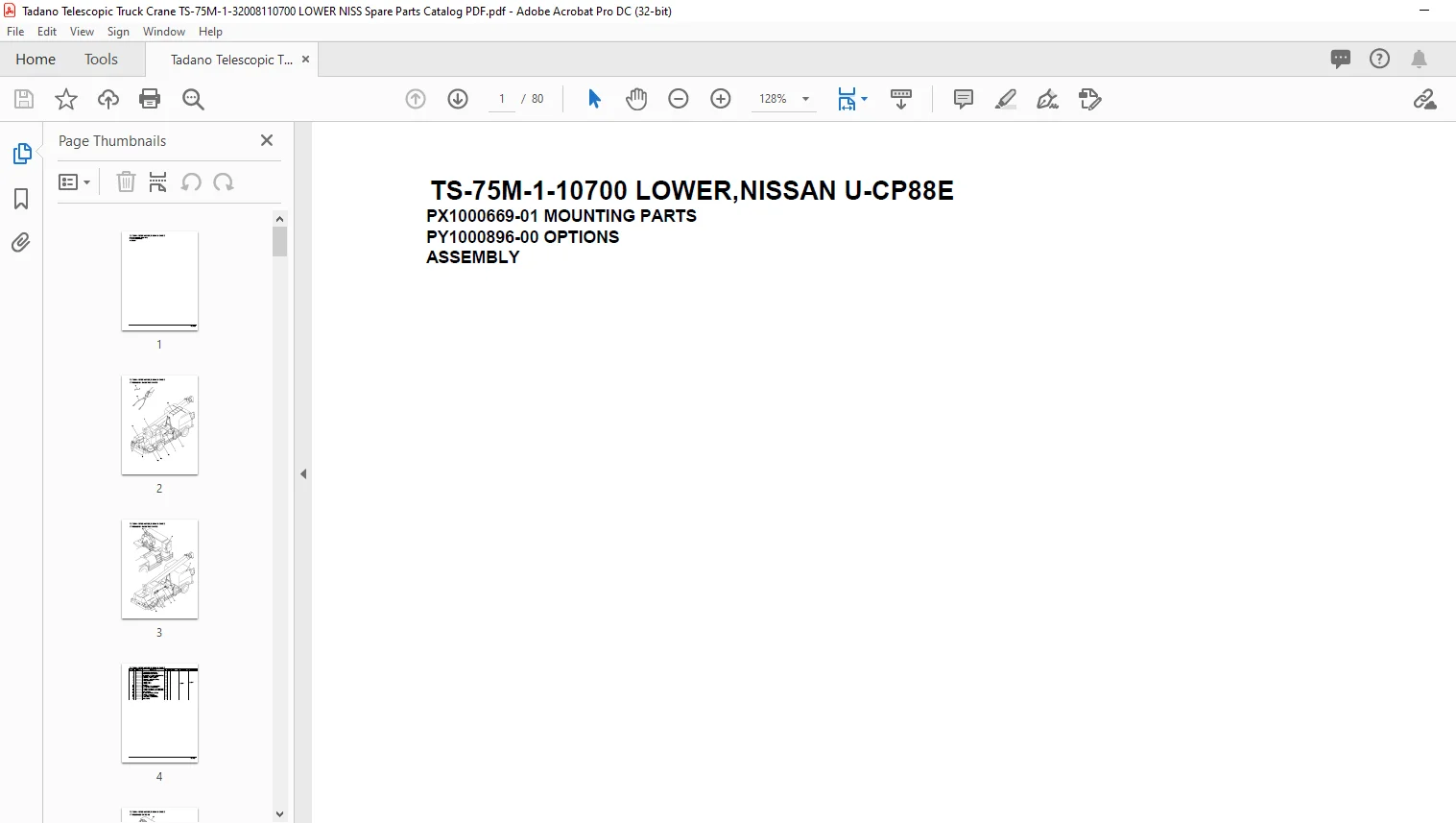

IMAGES PREVIEW OF THE MANUAL:
