Tadano Telescopic Truck Crane TS-75M-1-42300 LOWER,ISUZU PJ-FSR34J4SRXNWR Parts Manual

Description

Tadano Telescopic Truck Crane TS-75M-1-42300 LOWER,ISUZU PJ-FSR34J4SRXNWR Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Telescopic Truck Crane TS-75M-1-42300 LOWER ISUZU PJ-FSR34J4SRXNWR Parts Manual – PDF DOWNLOAD

Language : English
Pages :71
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Telescopic Truck Crane TS-75M-1-42300 LOWER ISUZU PJ-FSR34J4SRXNWR Parts Manual – PDF DOWNLOAD

TS-75M-1-42300 LOWER,ISUZU PJ-FSR34J4SRXNWR
000000
PX1000881-00 MOUNTING PARTS
PY1001058-01 OPTIONS
ASSEMBLY
TS-75M-1-42300 LOWER,ISUZU PJ-FSR34J4SRXNWR
000003
PB1070343-00 PROPELLER SHAFT,PUMP
PB1070344-00 PROPELLER SHAFT,PUMP
PB1100332-00 PUMP,HYDRAULIC
PB1110045-00 MOUNT,PUMP
PB1130169-01 TANK,OIL
PB1400252-02 PIPING,UPPER (OPTION)
PB1411820-00 PIPING,LOWER
PC1220140-00 PIPING,FRONT JACK
PC1250104-01 FRONT JACK
PC1290005-03 FRONT JACK,HYDRAULIC
PD1120039-00 OPE.ASSY,SWING LOCK (ELECTRICAL CONTROL)
PI1120265-01 VALVE,SOLENOID
PI1230000-00 VALVE,SHUTTLE
PI1280042-01 VALVE,PILOT CHECK
PL1031123-00 OPE.ASSY,ACCELERATOR
PM5150193-00 MODIFICATION ASSY
PN1011515-00 ELEC.ASSY (FRONT JACK)
PN1014299-00 ELEC.ASSY (POWER SUPPLY)
PO1012507-02 PLATE ASSY,NAME (LOWER)
PW1010046-02 ACCESSORIES
PX1030670-00 FENDER
PX1100214-00 TANK SUPPORT INSTALLATION
PX1120399-00 BOOM REST
PX1170713-00 ATTACHMENT PARTS,CRANE FRAME
PX1180088-00 MOUNT,HOOK
PX1200393-00 GUARD,SIDE
PX1310117-00 MOUNT,LAMP
PX1370290-00 GUARD,CAB
PX1390860-00 MODIFICATION PARTS
PY2340010-01 PLATE (500X500,H=90)

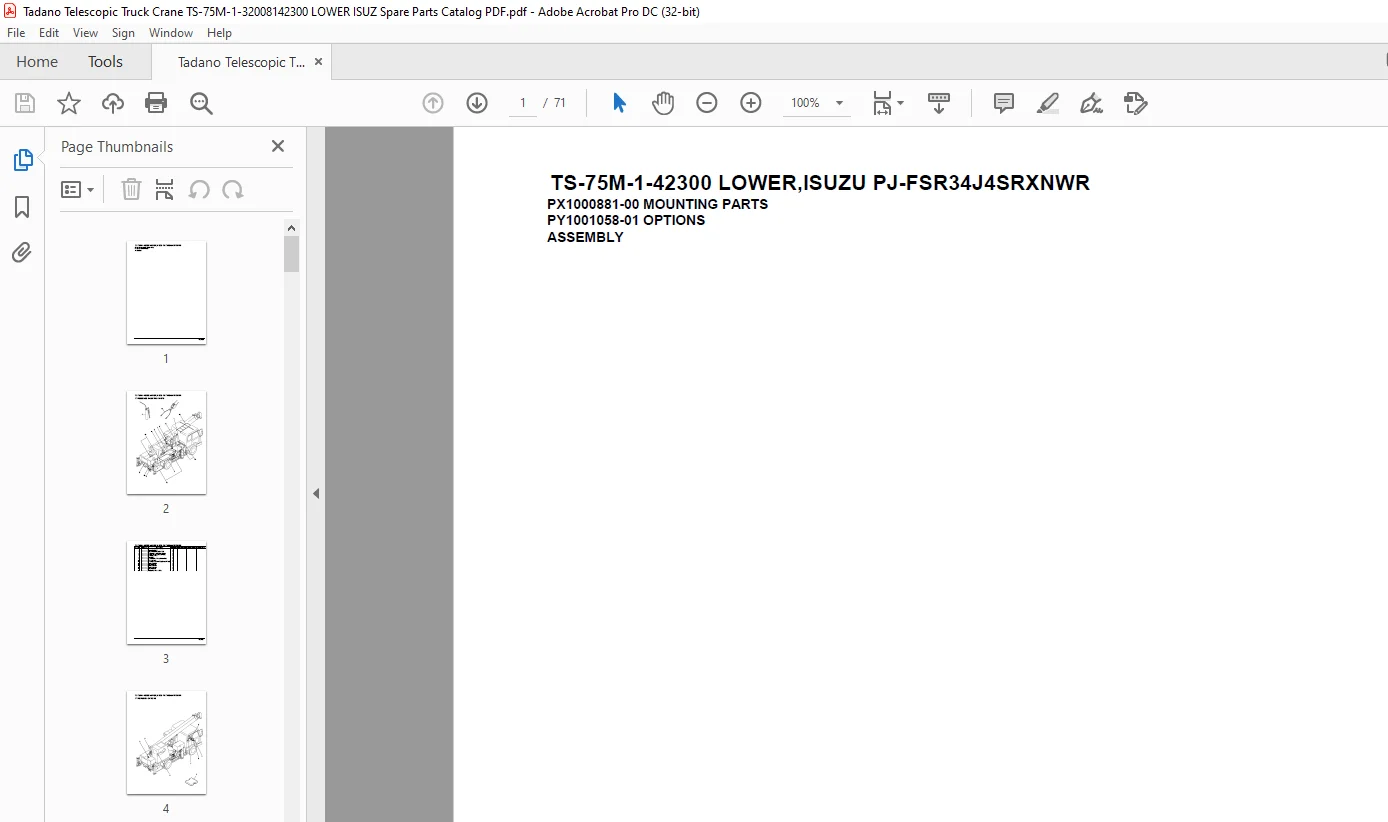

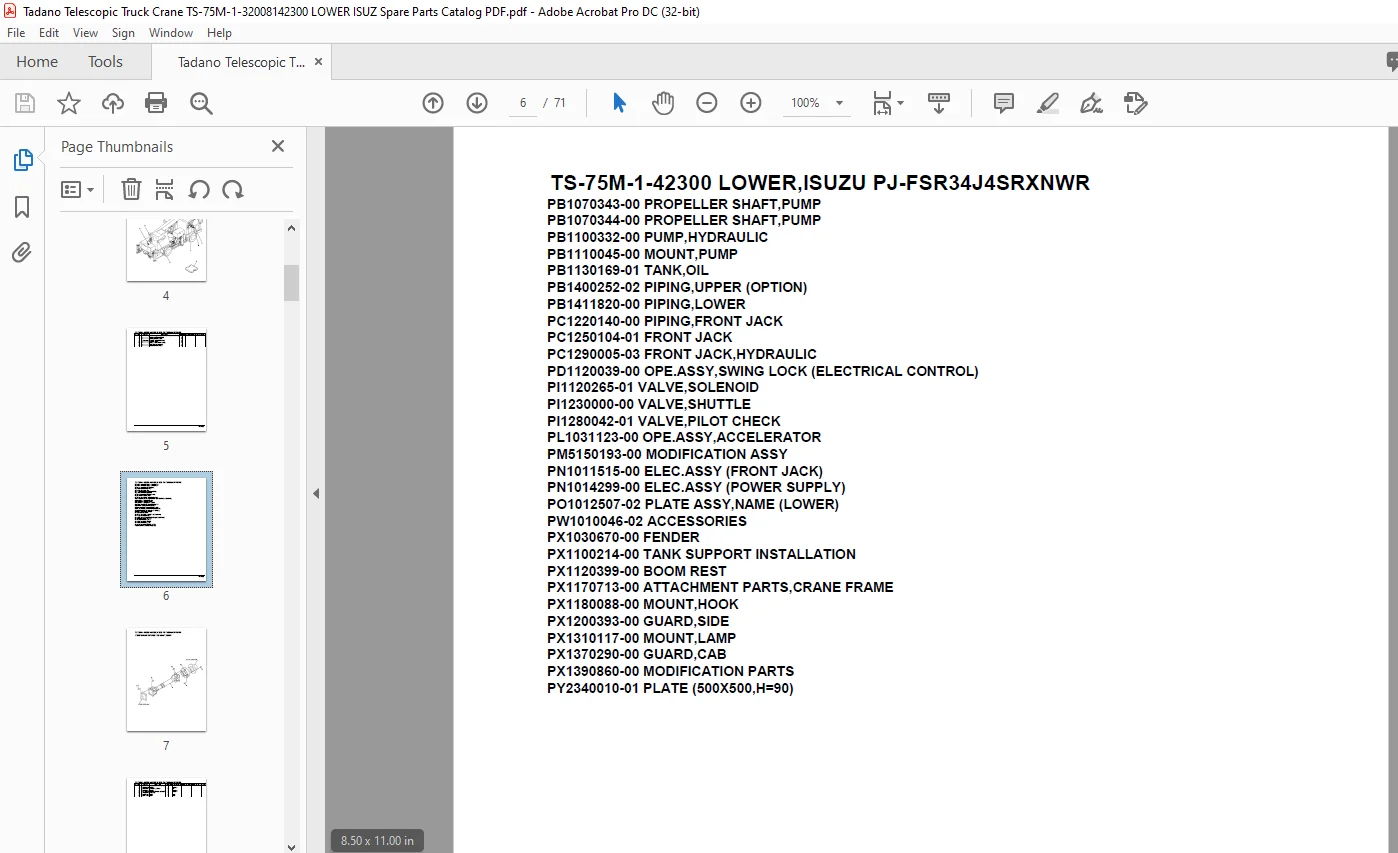

IMAGES PREVIEW OF THE MANUAL:
