Tadano Telescopic Truck Crane TS-80R-1-00001 UPPER Parts Manual – PDF DOWNLOAD

Description

Tadano Telescopic Truck Crane TS-80R-1-00001 UPPER Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Telescopic Truck Crane TS-80R-1-00001 UPPER Parts Manual – PDF DOWNLOAD

Language : English
Pages :240
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Telescopic Truck Crane TS-80R-1-00001 UPPER Parts Manual – PDF DOWNLOAD

TS-80R-1-00001 UPPER
000000
PB1000202-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000152-00 OUTRIGGER SYSTEM
PD1000187-00 SWING SYSTEM
PE1000185-00 ELEVATING SYSTEM
PF1000176-02 WINCH SYSTEM
PG1000181-00 TELESCOPING SYSTEM
PH1000173-00 SAFETY DEVICES
PI1000204-00 HYDRAULIC DEVICES
PK1000195-01 FRAME
PL1000192-00 CONTROL DEVICES
PM1000032-01 LUBRICATION DEVICES
PN1000002-00 ELECTRIC EQUIPMENT
PO1000114-01 INDICATION PLATES
PY1000173-00 OPTIONS
ASSEMBLY
TS-80R-1-00001 UPPER
000015
PB1300108-00 JOINT,ROTARY
PB1320129-03 VALVE,MANUAL CONTROL
PB1320131-03 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320612-00 VALVE,MANUAL CONTROL
PB1400082-00 PIPING,UPPER (MAIN)
PB1400122-04 PIPING,UPPER (CLUTCH&GAUGE)
PC1010122-00 OUTRIGGER (FRONT)
PC1010123-01 OUTRIGGER (REAR)
PC1030065-01 CYLINDER,JACK
PC1030066-01 CYLINDER,JACK (REAR)
PC1030266-02 CYLINDER,JACK
PC1050048-01 CYLINDER,EXTENSION
PC1050049-01 CYLINDER,EXTENSION (REAR)
PC1100067-02 OPERATION SYSTEM, OUTRIGGER
PC1200151-00 PIPING,OUTRIGGER
PD1010038-01 REDUCER,SWING SPEED
PD1010051-00 REDUCER,SWING SPEED (MOUNT)
PD5080037-00 DETECTOR ASSY,LENGTH (BOOM)
PE1010151-03 CYLINDER,ELEVATING
PF1010012-00 WINCH
PF1030001-01 CLUTCH,WINCH
PF1030006-00 CLUTCH,WINCH
PF1050119-02 HOOK (AUXILIARY)
PF1050155-00 HOOK (MAIN)
PF1070031-00 ROPE,WIRE (TESAC)
PF1070031-00 ROPE,WIRE (TESAC)
PF1090009-01 SOCKET,ROPE
PF1110033-01 OPERATION SYSTEM, WINCH BRAKE
PF1110042-01 OPERATION SYSTEM, WINCH BRAKE
PF1120008-00 BAND,WINCH BRAKE
PF1160037-00 OPERATION SYSTEM, CLUTCH
PF1300009-00 VALVE,CLUTCH
PF1320005-00 JOINT,WINCH ROTARY
PF1400083-04 MOUNT,WINCH
PF1430000-00 MOUNT,ROLLER
PG1010251-05 BOOM
PG1050116-03 CYLINDER,TELESCOPING
PG1130061-00 DETECTOR,BOOM LENGTH
PG1130099-00 DETECTOR,BOOM LENGTH
PH1060109-01 DETECTOR,OVER WINDING
PH1070005-01 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070007-01 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1100019-00 DETECTOR,OVER FRONT AREA
PH1180096-00 CONNECTION,MOMENT LIMITER SYSTEM
PH1200028-02 PIPING,VENT
PH1250009-02 MOMENT LIMITER (AML-M2)
PH1330014-00 LAMP,AML SIGNAL (OPTION)
PH1360004-00 INDICATOR,RETRACT
PI1010045-00 MOTOR,HYDRAULIC (WINCH)
PI1010143-01 MOTOR,HYDRAULIC (SWING)
PI1120085-02 VALVE,SOLENOID
PI1120086-02 VALVE,SOLENOID
PI1120316-00 VALVE,SOLENOID
PI1130014-00 VALVE,HYDRAULIC
PI1140019-03 VALVE,CHECK
PI1250058-00 VALVE,COUNTERBALANCE (WINCH)
PI1250063-00 VALVE,COUNTERBALANCE
PI1250067-00 VALVE,COUNTERBALANCE
PI1280008-01 VALVE,PILOT CHECK (REAR)
PI1280008-01 VALVE,PILOT CHECK (REAR)
PI1280110-01 VALVE,PILOT CHECK
PI1280110-01 VALVE,PILOT CHECK
PI1340060-01 ACCUMULATOR
PI1420001-01 GAUGE,PRESSURE
TS-80R-1-00001 UPPER
000015
PK1010189-01 FRAME
PK1100122-00 SWING FRAME
PK1120105-01 SWING TABLE
PK1140067-00 CAB,OPERATOR (MOUNT)
PK1140086-04 CAB,OPERATOR
PK1150023-00 SEAT,OPERATOR
PK1150028-00 SEAT,OPERATOR
PK1200092-01 COVER,SWING FRAME
PL1010215-01 OPE.ASSY,CONT.VALVE (TDN)
PL1030150-00 OPERATION SYSTEM,ACCELERATOR
PM1010007-01 PARTS,GREASING
PN1010765-01 ELECTRICAL ACCESSORIES
PN1050076-02 ELECTRICAL PARTS,CAB
PN1050114-01 ELECTRICAL PARTS,CAB
PN1050175-00 ELECTRICAL PARTS,CAB
PN1050181-01 ELECTRICAL PARTS,CAB
PN1400011-00 WIRING,MATERIALS
PO1010163-01 PLATE ASSY,NAME (OIL,EUROPA)
PO1010853-01 PLATE,INDICATION
PO1012579-01 PLATE ASSY,NAME (OIL)
PO1020001-00 PLATE,NAME (AML)
PY1030049-01 SINGLE TOP
PY1100045-01 HEATER SYSTEM
PY1120006-01 HEATER (M22H)

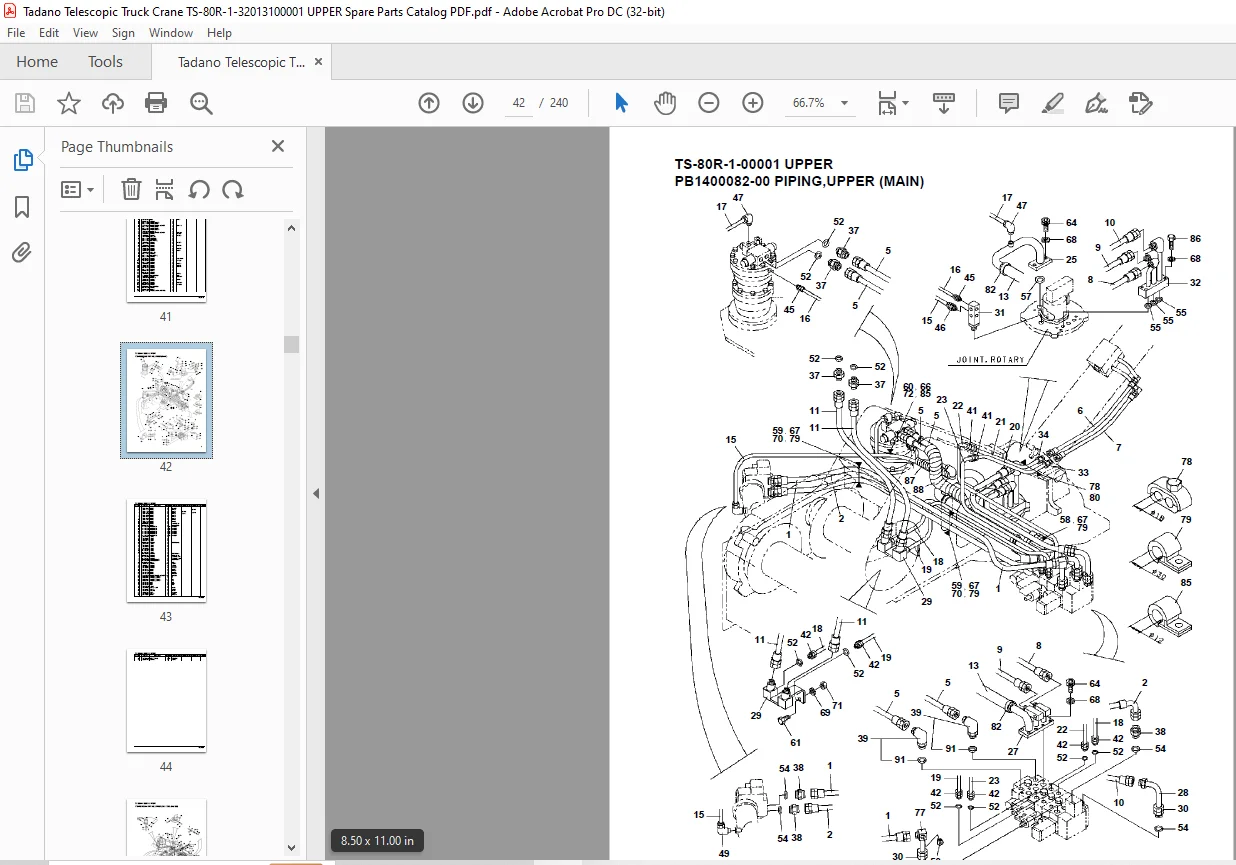

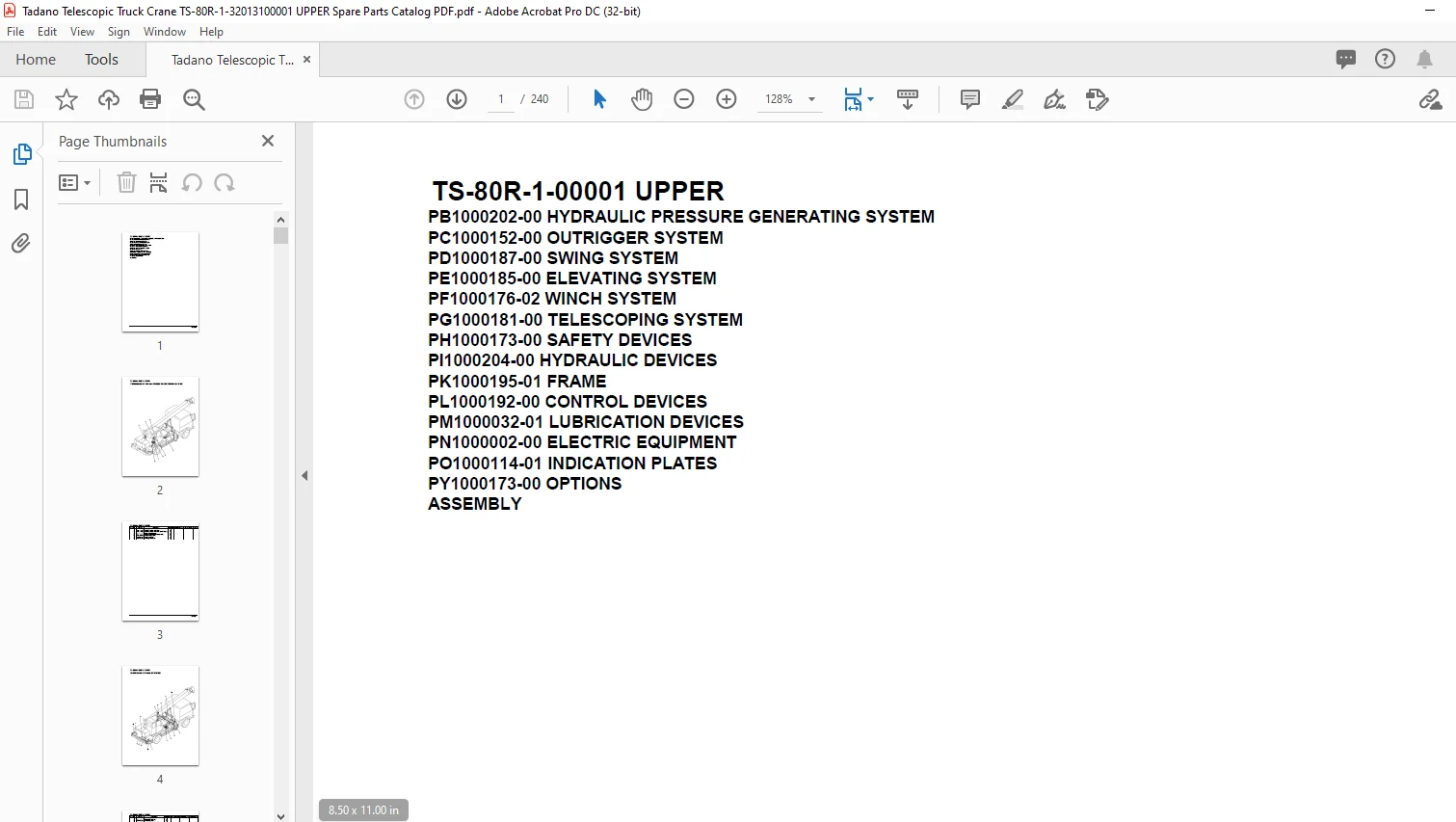

IMAGES PREVIEW OF THE MANUAL:
