Tadano TM-Z290 31112010090A FRAME/STD,REMOTE-RADIO CONT. Parts Manual PDF

Description

Tadano Crane TM-Z290 31112010090A FRAME STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-Z290 31112010090A FRAME STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

Language : English
Pages : 282
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

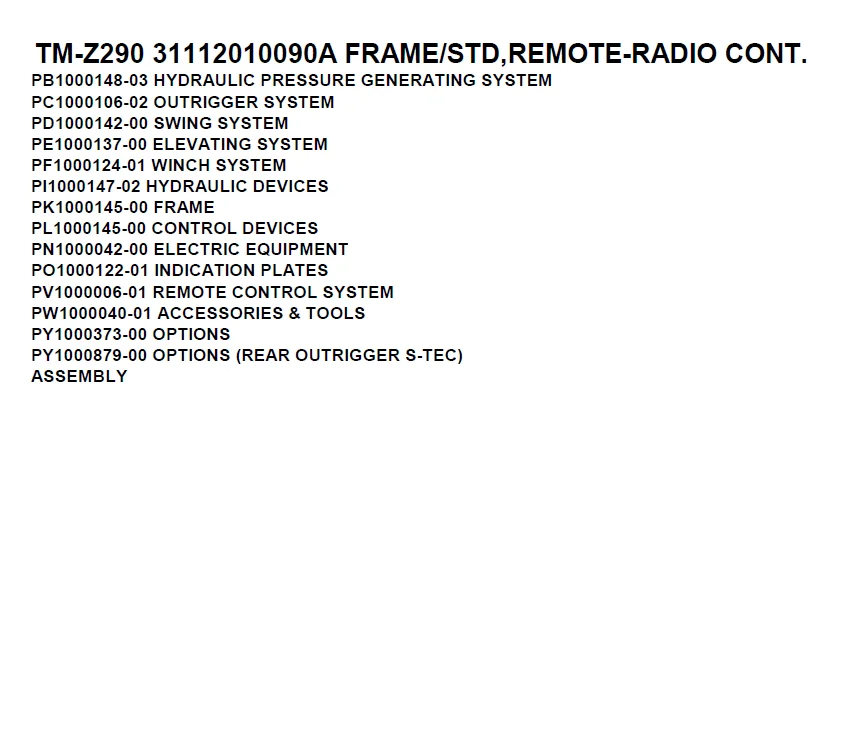

TABLE OF CONTENTS:

Tadano Crane TM-Z290 31112010090A FRAME STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

TM-Z290 31112010090A FRAME/STD,REMOTE-RADIO CONT.
000015

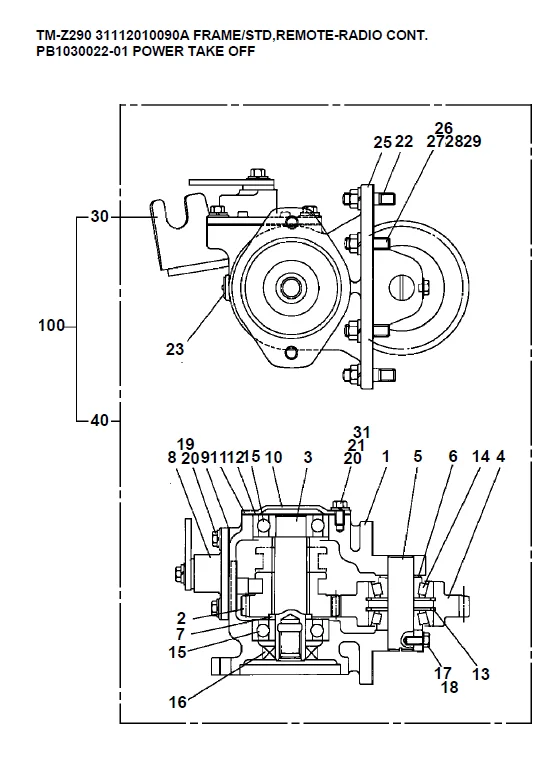

PB1030014-01 POWER TAKE OFF
PB1030017-00 POWER TAKE OFF
PB1030018-00 POWER TAKE OFF (WITH TURBO)
PB1030019-00 POWER TAKE OFF
PB1030021-00 POWER TAKE OFF
PB1030022-01 POWER TAKE OFF
PB1030023-01 POWER TAKE OFF
PB1030040-00 POWER TAKE OFF
PB1030054-01 POWER TAKE OFF
PB1030055-01 POWER TAKE OFF
PB1030063-02 POWER TAKE OFF
PB1030064-00 POWER TAKE OFF
PB1030070-01 POWER TAKE OFF
PB1030080-00 POWER TAKE OFF
PB1030082-01 POWER TAKE OFF
PB1030098-01 POWER TAKE OFF
PB1030099-01 POWER TAKE OFF
PB1030101-03 POWER TAKE OFF (WITH TURBO)
PB1030110-00 POWER TAKE OFF
PB1030120-00 POWER TAKE OFF
PB1030130-00 POWER TAKE OFF
PB1030148-01 POWER TAKE OFF
PB1030149-01 POWER TAKE OFF
PB1030150-00 POWER TAKE OFF
PB1030160-00 POWER TAKE OFF
PB1030165-01 POWER TAKE OFF
PB1030181-01 POWER TAKE OFF
PB1030183-01 POWER TAKE OFF
PB1030184-01 POWER TAKE OFF
PB1030185-01 POWER TAKE OFF
PB1030201-02 POWER TAKE OFF
PB1030202-02 POWER TAKE OFF
PB1030206-00 POWER TAKE OFF
PB1030207-01 POWER TAKE OFF
PB1030209-01 POWER TAKE OFF
PB1030211-01 POWER TAKE OFF
PB1030212-00 POWER TAKE OFF
PB1030214-00 POWER TAKE OFF
PB1030215-00 POWER TAKE OFF
PB1030224-00 POWER TAKE OFF
PB1030270-00 POWER TAKE OFF
PB1030290-00 POWER TAKE OFF
PB1030300-02 POWER TAKE OFF
PB1030310-00 POWER TAKE OFF
PB1100092-00 PUMP,HYDRAULIC
PB1100130-03 PUMP,HYDRAULIC (CCW VIEW FROM SHAFT END)
PB1130285-00 TANK,OIL
PB1300074-00 JOINT,ROTARY
PB1320213-00 VALVE,MANUAL CONTROL (HYDRAULIC OUTLET)
PB1320390-02 VALVE,MANUAL CONTROL
PB1400106-00 PIPING,UPPER (DRUM FREE)
PB1400175-00 PIPING,UPPER (DRUM FREE)
PB1410124-00 PIPING,LOWER (PREVENT. CHASS)
PB1410256-00 PIPING,HYDRAULIC LOWER
PC1010110-00 OUTRIGGER (REAR)
PC1010175-01 OUTRIGGER (REAR)
PC1020058-00 OUTRIGGER,REAR (S-TEC,MANUAL TYPE)
PC1020084-00 OUTRIGGER,REAR
PC1030059-02 CYLINDER,JACK
PC1030061-02 CYLINDER,JACK (REAR)
PC1030089-02 CYLINDER,JACK (REAR)
PC1030148-02 CYLINDER,JACK
PC1030192-00 CYLINDER,JACK
PC1030387-00 CYLINDER,JACK (REAR,S-TEC)
TM-Z290 31112010090A FRAME/STD,REMOTE-RADIO CONT.
000015
PC1100059-01 OPE.ASSY,OUTRIGGER (REAR)
PC1200139-00 PIPING,OUTRIGGER
PC1230003-00 PIPING,REAR JACK
PC1230006-01 PIPING,REAR JACK
PC1230034-00 PIPING,REAR JACK (S-TEC,MANUAL TYPE)
PC1230035-00 PIPING,REAR JACK (S-TEC,MANUAL TYPE)
PD1010033-00 REDUCER,SWING SPEED
PD1010035-01 REDUCER,SWING SPEED
PE1010114-03 CYLINDER,ELEVATING
PF1010034-01 WINCH
PF1020000-02 DRUM,WINCH (MINI)
PF1180036-00 DETECTOR,DISORDERLY WIND (OPTION)
PF1400073-00 MOUNT,WINCH
PF1400195-01 MOUNT,WINCH
PI1010029-01 MOTOR,HYDRAULIC
PI1010037-01 MOTOR,HYDRAULIC (SWING)
PI1010087-00 MOTOR,HYDRAULIC (WINCH)
PI1100080-01 VALVE,RELIEF (CHASSIS PROTECTION)
PI1250040-02 VALVE,COUNTERBALANCE
PI1280021-01 VALVE,PILOT CHECK
PI1280060-03 VALVE,PILOT CHECK
PI1280160-01 VALVE,PILOT CHECK
PI1300006-00 FILTER,OIL
PK1010169-03 FRAME
PK1100076-02 SWING FRAME
PK1200060-00 COVER,SWING FRAME
PL1010191-00 OPE.ASSY,CONT,VALVE (PREVENTING CHASSIS)
PL1010307-02 OPERATION SYSTEM, CONTROL VALVE
PL1030132-00 OPERATION SYSTEM, ACCELERATOR
PN1010706-00 ELECTRICAL ACCESSORIES
PN1350070-02 REEL,CORD
PN1400011-00 WIRING,MATERIALS
PO1010382-01 PLATE ASSY,NAME (PREVENTING CHASSIS)
PO1010438-02 PLATE ASSY,NAME (STD)
PO1010448-00 PLATE ASSY,NAME (REAR JACK)
PO1010448-00 PLATE ASSY,NAME (REAR JACK)
PO1010740-01 PLATE ASSY,NAME (OUTRIGGER,REAR)
PO1010755-01 PLATE ASSY,NAME (REAR JACK)
PV1020005-01 VALVE,REMOTE CONTROL(RADIO CONTROL,T)
PV1030006-00 SWITCH BOX (RADIO CONTROL,T TYPE)
PV1030006-00 SWITCH BOX (RADIO CONTROL,T TYPE)
PV1040003-00 CONTROL BOX (RADIO CONTROL,T TYPE)
PV1040005-00 CONTROL BOX (RADIO CONTROL,T TYPE)
PV1050001-03 CYLINDER,ACCELERATOR(RADIO CONTROL,T)
PV1400003-00 ANTENNA (FOR RADIO CONTROL)
PV1400004-00 ANTENNA (FOR RADIO CONTROL)
PV1400005-01 ANTENNA (FOR RADIO CONTROL)
PV1400006-01 ANTENNA (RADIO CONTROL,T)
PV1400007-02 ANTENNA (RADIO CONTROL,T)
PW1010020-00 ACCESSORIES (PUMP,GREASE)
PX1100061-00 TANK SUPPORT INSTALLATION
PX1940258-00 MOUNT (PREVENTING CHASSIS)
PY1180053-01 LAMP (POST)
PY1180085-01 LAMP (BOOM)
PY1210038-01 PIPING,HYDRAULIC OUTLET
