Tadano TM-Z300 31012010030B FRAME/STD,REMOTE-RADIO CONT. Parts Manual PDF

Description

Tadano TM-Z300 31012010030B FRAME/STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano TM-Z300 31012010030B FRAME/STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

Language : English
Pages : 380
Downloadable : Yes
File Type : PDF

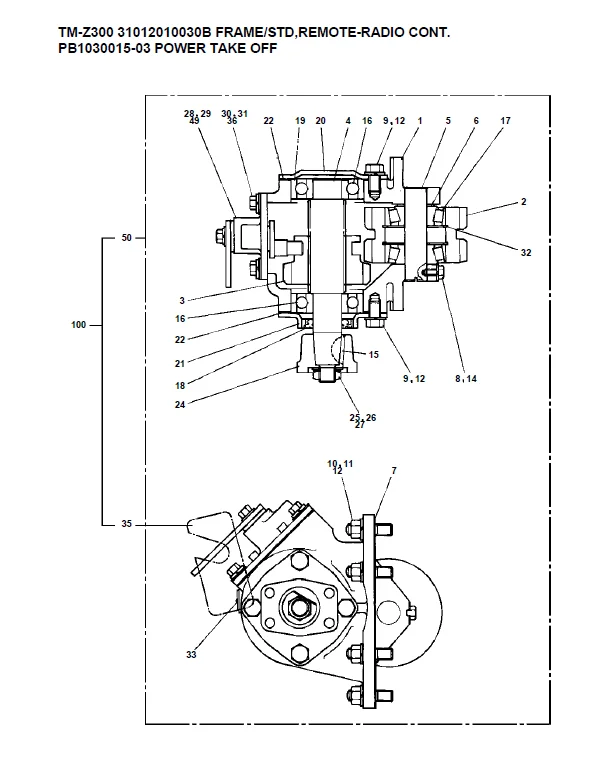

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano TM-Z300 31012010030B FRAME/STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

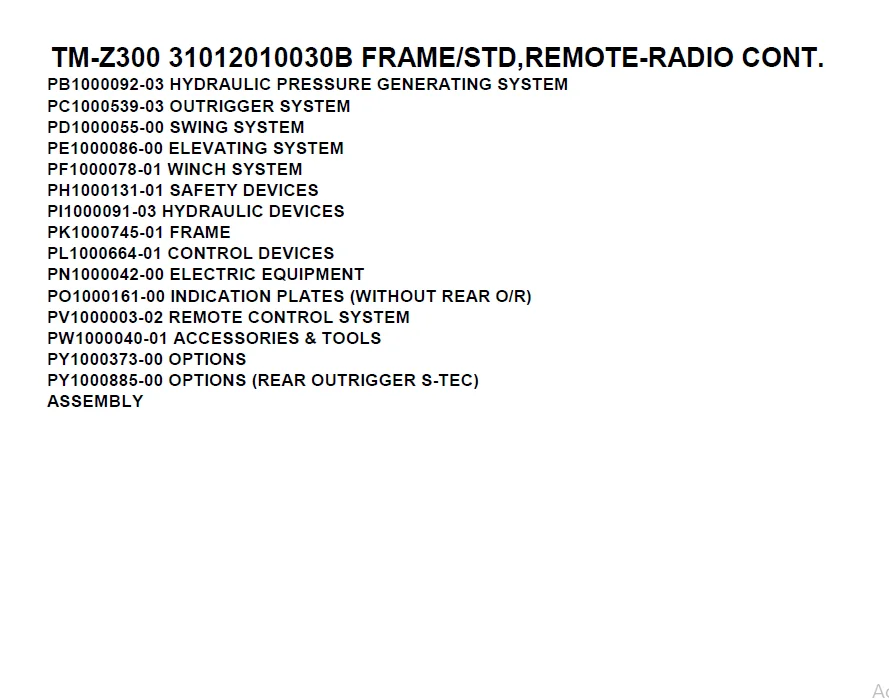

TM-Z300 31012010030B FRAME/STD,REMOTE-RADIO CONT.
000016
PB1030003-00 POWER TAKE OFF
PB1030004-00 POWER TAKE OFF
PB1030004-00 POWER TAKE OFF
PB1030005-01 POWER TAKE OFF
PB1030010-00 POWER TAKE OFF
PB1030011-01 POWER TAKE OFF
PB1030012-02 POWER TAKE OFF
PB1030013-02 POWER TAKE OFF
PB1030015-03 POWER TAKE OFF
PB1030020-00 POWER TAKE OFF
PB1030024-01 POWER TAKE OFF
PB1030025-01 POWER TAKE OFF
PB1030027-01 POWER TAKE OFF
PB1030028-00 POWER TAKE OFF
PB1030029-01 POWER TAKE OFF
PB1030030-00 POWER TAKE OFF
PB1030031-00 POWER TAKE OFF
PB1030035-01 POWER TAKE OFF
PB1030036-02 POWER TAKE OFF
PB1030037-01 POWER TAKE OFF
PB1030040-00 POWER TAKE OFF
PB1030040-00 POWER TAKE OFF
PB1030049-00 POWER TAKE OFF
PB1030050-00 POWER TAKE OFF
PB1030051-00 POWER TAKE OFF
PB1030052-01 POWER TAKE OFF
PB1030053-01 POWER TAKE OFF
PB1030057-01 POWER TAKE OFF
PB1030058-01 POWER TAKE OFF
PB1030059-01 POWER TAKE OFF
PB1030060-00 POWER TAKE OFF
PB1030061-01 POWER TAKE OFF
PB1030062-02 POWER TAKE OFF
PB1030063-02 POWER TAKE OFF
PB1030066-02 POWER TAKE OFF
PB1030067-01 POWER TAKE OFF
PB1030068-02 POWER TAKE OFF
PB1030074-01 POWER TAKE OFF
PB1030083-02 POWER TAKE OFF
PB1030084-02 POWER TAKE OFF
PB1030085-01 POWER TAKE OFF
PB1030086-02 POWER TAKE OFF
PB1030087-01 POWER TAKE OFF
PB1030088-01 POWER TAKE OFF
PB1030089-01 POWER TAKE OFF
PB1030091-02 POWER TAKE OFF
PB1030092-01 POWER TAKE OFF
PB1030093-02 POWER TAKE OFF
PB1030103-04 POWER TAKE OFF
PB1030104-02 POWER TAKE OFF
PB1030105-01 POWER TAKE OFF
PB1030106-01 POWER TAKE OFF
PB1030107-02 POWER TAKE OFF
PB1030108-02 POWER TAKE OFF
PB1030109-02 POWER TAKE OFF
PB1030111-00 POWER TAKE OFF
PB1030112-00 POWER TAKE OFF
PB1030113-02 POWER TAKE OFF
PB1030114-03 POWER TAKE OFF
PB1030115-00 POWER TAKE OFF
PB1030118-02 POWER TAKE OFF
PB1030122-02 POWER TAKE OFF
PB1030123-01 POWER TAKE OFF
PB1030124-01 POWER TAKE OFF
TM-Z300 31012010030B FRAME/STD,REMOTE-RADIO CONT.
000016
PB1030125-02 POWER TAKE OFF
PB1030126-01 POWER TAKE OFF
PB1030127-02 POWER TAKE OFF
PB1030128-02 POWER TAKE OFF
PB1030155-01 POWER TAKE OFF
PB1030156-01 POWER TAKE OFF
PB1030157-02 POWER TAKE OFF
PB1030158-01 POWER TAKE OFF
PB1030159-02 POWER TAKE OFF
PB1030166-01 POWER TAKE OFF
PB1030180-00 POWER TAKE OFF
PB1030180-00 POWER TAKE OFF
PB1030190-00 POWER TAKE OFF
PB1030208-01 POWER TAKE OFF
PB1030213-01 POWER TAKE OFF
PB1030320-00 POWER TAKE OFF
PB1100130-03 PUMP,HYDRAULIC (CCW VIEW FROM SHAFT END)
PB1100140-02 PUMP,HYDRAULIC (CW VIEW FROM SHAFT END)
PB1130036-02 TANK,OIL
PB1300057-02 JOINT,ROTARY
PB1320213-00 VALVE,MANUAL CONTROL (HYDRAULIC OUTLET)
PB1320283-00 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320390-02 VALVE,MANUAL CONTROL
PB1400057-01 PIPING,HYDRAULIC UPPER
PB1410111-00 PIPING,HYDRAULIC LOWER
PB1410124-00 PIPING,LOWER (PREVENT. CHASS)
PC1010276-04 OUTRIGGER (REAR)
PC1010329-00 OUTRIGGER (REAR)
PC1020059-00 OUTRIGGER,REAR (S-TEC,MANUAL TYPE)
PC1020087-00 OUTRIGGER,REAR (ELECTRIC MOTOR)
PC1020088-00 OUTRIGGER,REAR (MANUAL)
PC1030042-07 CYLINDER,JACK (WITH FLOAT)
PC1030043-06 CYLINDER,JACK (WITHOUT FLOAT)
PC1030099-04 CYLINDER,JACK (WITH FLOAT)
PC1030137-01 CYLINDER,JACK (REAR OUTRIGGER)
PC1030388-00 CYLINDER,JACK (REAR,S-TEC)
PC1100059-01 OPE.ASSY,OUTRIGGER (REAR)
PC1100119-01 OPERATION SYSTEM,OUTRIGGER (REAR)
PC1200178-03 PIPING,OUTRIGGER (REAR)
PC1230029-00 PIPING,REAR JACK (2)
PC1230034-00 PIPING,REAR JACK (S-TEC,MANUAL TYPE)
PC1230036-00 PIPING,REAR JACK (S-TEC,MANUAL TYPE)
PD1010022-00 REDUCER,SWING SPEED (MOUNT)
PD1010023-01 REDUCER,SWING SPEED
PE1010069-06 CYLINDER,ELEVATING
PF1010034-01 WINCH
PF1020000-02 DRUM,WINCH (MINI)
PF1180016-02 DETECTOR,DISORDERLY WINDING
PF1400058-00 MOUNT,WINCH
PG1130016-02 DETECTOR,BOOM LENGTH
PH1350004-00 WORKING AREA LIMITER (AWL-J)
PH1380019-00 CONNECTION,WORKING AREA LIMITER
PH1380020-02 CONNECTION,WORKING AREA LIMITER
PI1010029-01 MOTOR,HYDRAULIC
PI1100080-01 VALVE,RELIEF (CHASSIS PROTECTION)
PI1250040-02 VALVE,COUNTERBALANCE
PI1280021-01 VALVE,PILOT CHECK
PI1280060-03 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PK1010073-02 FRAME
PK1010181-03 FRAME
PK1010209-01 FRAME
PK1100058-02 SWING FRAME
PK1200060-00 COVER,SWING FRAME
