Tadano TM-Z500 31042010110B FRAME/STD,REMOTE-RADIO CONT Parts Manual PDF

Description

Tadano Crane TM-Z500 31042010110B FRAME/STD,REMOTE-RADIO CONT Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-Z500 31042010110B FRAME/STD,REMOTE-RADIO CONT Parts Manual – PDF DOWNLOAD

Language : English
Pages : 239
Downloadable : Yes
File Type : PDF

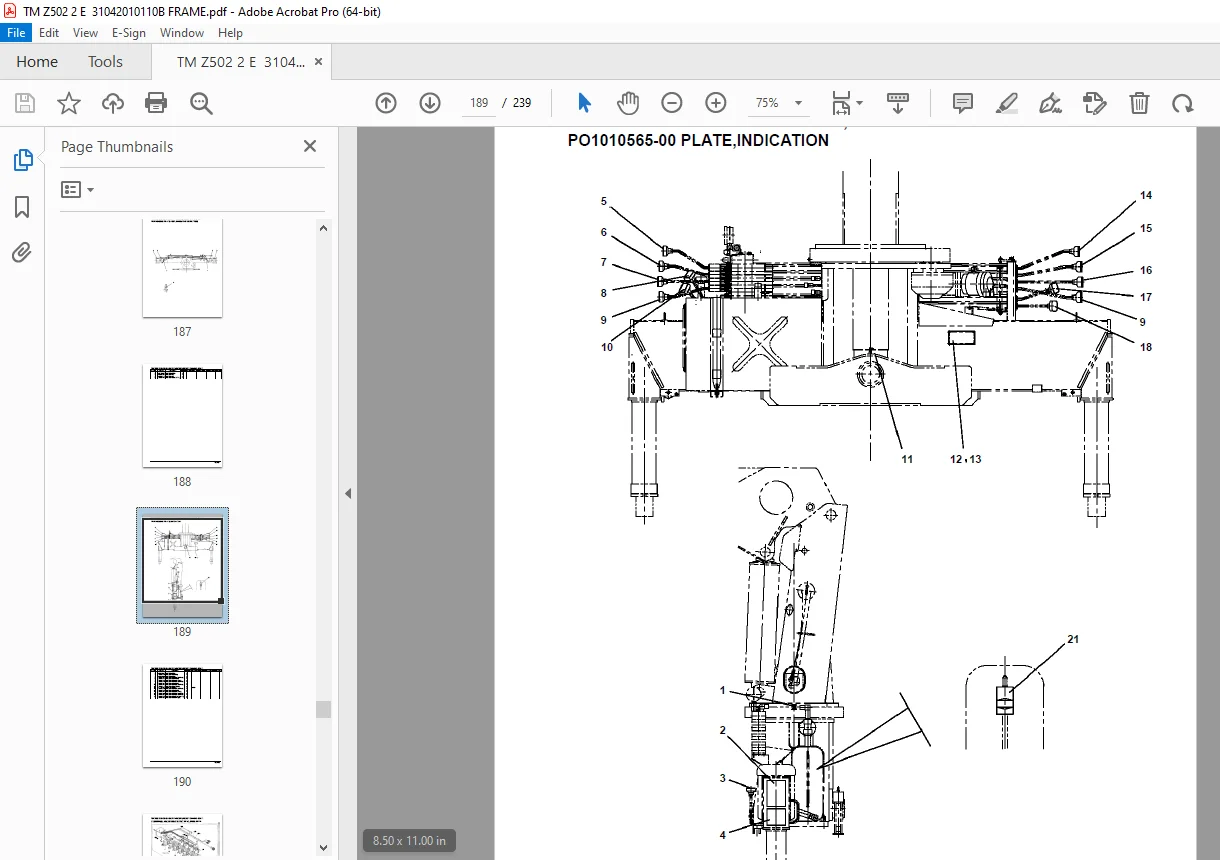

IMAGES PREVIEW OF THE MANUAL:

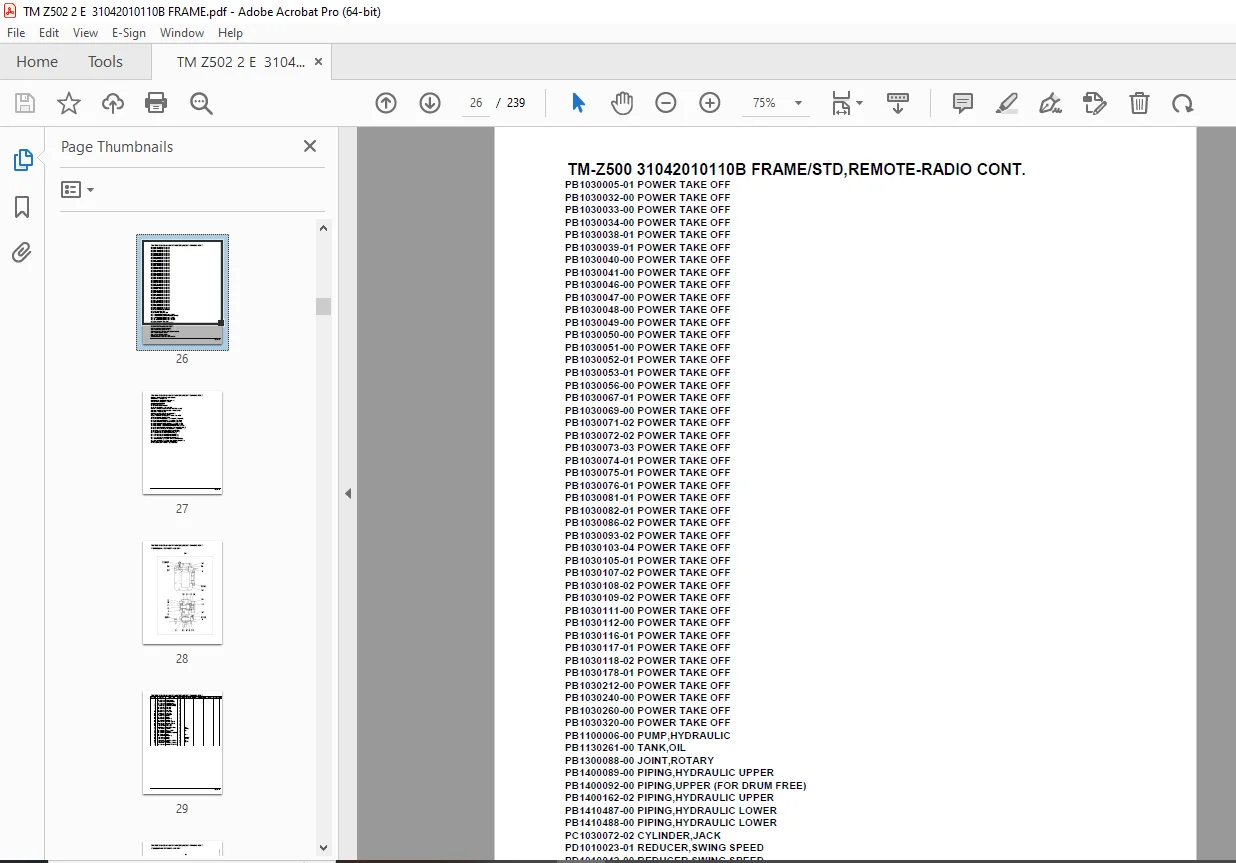

TABLE OF CONTENTS:

Tadano Crane TM-Z500 31042010110B FRAME/STD,REMOTE-RADIO CONT Parts Manual – PDF DOWNLOAD

TM-Z500 31042010110B FRAME/STD,REMOTE-RADIO CONT.
000013
PB1030005-01 POWER TAKE OFF
PB1030032-00 POWER TAKE OFF
PB1030033-00 POWER TAKE OFF
PB1030034-00 POWER TAKE OFF
PB1030038-01 POWER TAKE OFF
PB1030039-01 POWER TAKE OFF
PB1030040-00 POWER TAKE OFF
PB1030041-00 POWER TAKE OFF
PB1030046-00 POWER TAKE OFF
PB1030047-00 POWER TAKE OFF
PB1030048-00 POWER TAKE OFF
PB1030049-00 POWER TAKE OFF
PB1030050-00 POWER TAKE OFF
PB1030051-00 POWER TAKE OFF
PB1030052-01 POWER TAKE OFF
PB1030053-01 POWER TAKE OFF
PB1030056-00 POWER TAKE OFF
PB1030067-01 POWER TAKE OFF
PB1030069-00 POWER TAKE OFF
PB1030071-02 POWER TAKE OFF
PB1030072-02 POWER TAKE OFF
PB1030073-03 POWER TAKE OFF
PB1030074-01 POWER TAKE OFF
PB1030075-01 POWER TAKE OFF
PB1030076-01 POWER TAKE OFF
PB1030081-01 POWER TAKE OFF
PB1030082-01 POWER TAKE OFF
PB1030086-02 POWER TAKE OFF
PB1030093-02 POWER TAKE OFF
PB1030103-04 POWER TAKE OFF
PB1030105-01 POWER TAKE OFF
PB1030107-02 POWER TAKE OFF
PB1030108-02 POWER TAKE OFF
PB1030109-02 POWER TAKE OFF
PB1030111-00 POWER TAKE OFF
PB1030112-00 POWER TAKE OFF
PB1030116-01 POWER TAKE OFF
PB1030117-01 POWER TAKE OFF
PB1030118-02 POWER TAKE OFF
PB1030178-01 POWER TAKE OFF
PB1030212-00 POWER TAKE OFF
PB1030240-00 POWER TAKE OFF
PB1030260-00 POWER TAKE OFF
PB1030320-00 POWER TAKE OFF
PB1100006-00 PUMP,HYDRAULIC
PB1130261-00 TANK,OIL
PB1300088-00 JOINT,ROTARY
PB1400089-00 PIPING,HYDRAULIC UPPER
PB1400092-00 PIPING,UPPER (FOR DRUM FREE)
PB1400162-02 PIPING,HYDRAULIC UPPER
PB1410487-00 PIPING,HYDRAULIC LOWER
PB1410488-00 PIPING,HYDRAULIC LOWER
PC1030072-02 CYLINDER,JACK
PD1010023-01 REDUCER,SWING SPEED
PD1010042-00 REDUCER,SWING SPEED
PD1010080-00 REDUCER,SWING SPEED
PE1010120-03 CYLINDER,ELEVATING
PF1010038-01 WINCH (DRUM FREE)
PF1020000-02 DRUM,WINCH (MINI)
PF1180009-02 DETECTOR,DISORDERLY WINDING
PF1400096-00 MOUNT,WINCH
PF1400185-00 MOUNT,WINCH
PI1010029-01 MOTOR,HYDRAULIC
PI1010058-00 MOTOR,HYDRAULIC (WINCH)
TM-Z500 31042010110B FRAME/STD,REMOTE-RADIO CONT.
000013
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1100018-01 VALVE,RELIEF
PI1250040-02 VALVE,COUNTERBALANCE
PI1280011-00 VALVE,PILOT CHECK
PI1300006-00 FILTER,OIL
PK1010126-03 FRAME
PK1100089-01 SWING FRAME
PK1200098-01 COVER,SWING FRAME
PL1010458-01 OPERATION SYSTEM, CONTROL VALVE
PL1030184-01 OPERATION SYSTEM, ACCELERATOR
PM5230010-00 MOTOR,OIL
PN1011025-03 ELECTRICAL ACCESSORIES
PN1400011-00 WIRING,MATERIALS
PO1010463-00 PLATE ASSY,NAME (FOR DRUM FREE)
PO1010565-00 PLATE,INDICATION
PV1020006-01 VALVE,REMOTE CONTROL(T.DRUM-FREE)
PV1020059-00 VALVE,REMOTE CONTROL(DRUM FREE)
PV1030006-00 SWITCH BOX (RADIO CONTROL,T TYPE)
PV1030009-01 SWITCH BOX (REMOTE CONTROL,T TYPE)
PV1040005-00 CONTROL BOX (RADIO CONTROL,T TYPE)
PV1040009-00 CONTROL BOX (REMOTE CONTROL,T TYPE)
PV1050001-03 CYLINDER,ACCELERATOR(RADIO CONTROL,T)
PV1060034-00 ELECTRICAL ACCESSORIES,REMO.CON.
PV1250002-04 STOWING BOX (REMOTE CONTROL)
PV1300006-00 CABLE,REMOTE CONTROL (T TYPE)
PV1400007-02 ANTENNA (RADIO CONTROL,T)
PV1400009-00 ANTENNA (FOR RADIO CONTROL)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1410003-01 MOUNT,ANTENNA (FOR RADIO CONTROL)
PV1410005-01 MOUNT,ANTENNA (RADIO CONTROL,TYPE-A)
PW1010020-00 ACCESSORIES (PUMP,GREASE)
PX1100079-01 TANK SUPPORT INSTALLATION

G.B 31/12/24
