Tadano TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT. Parts Manual PDF

Description

Tadano Crane TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

Language : English
Pages : 600
Downloadable : Yes
File Type : PDF

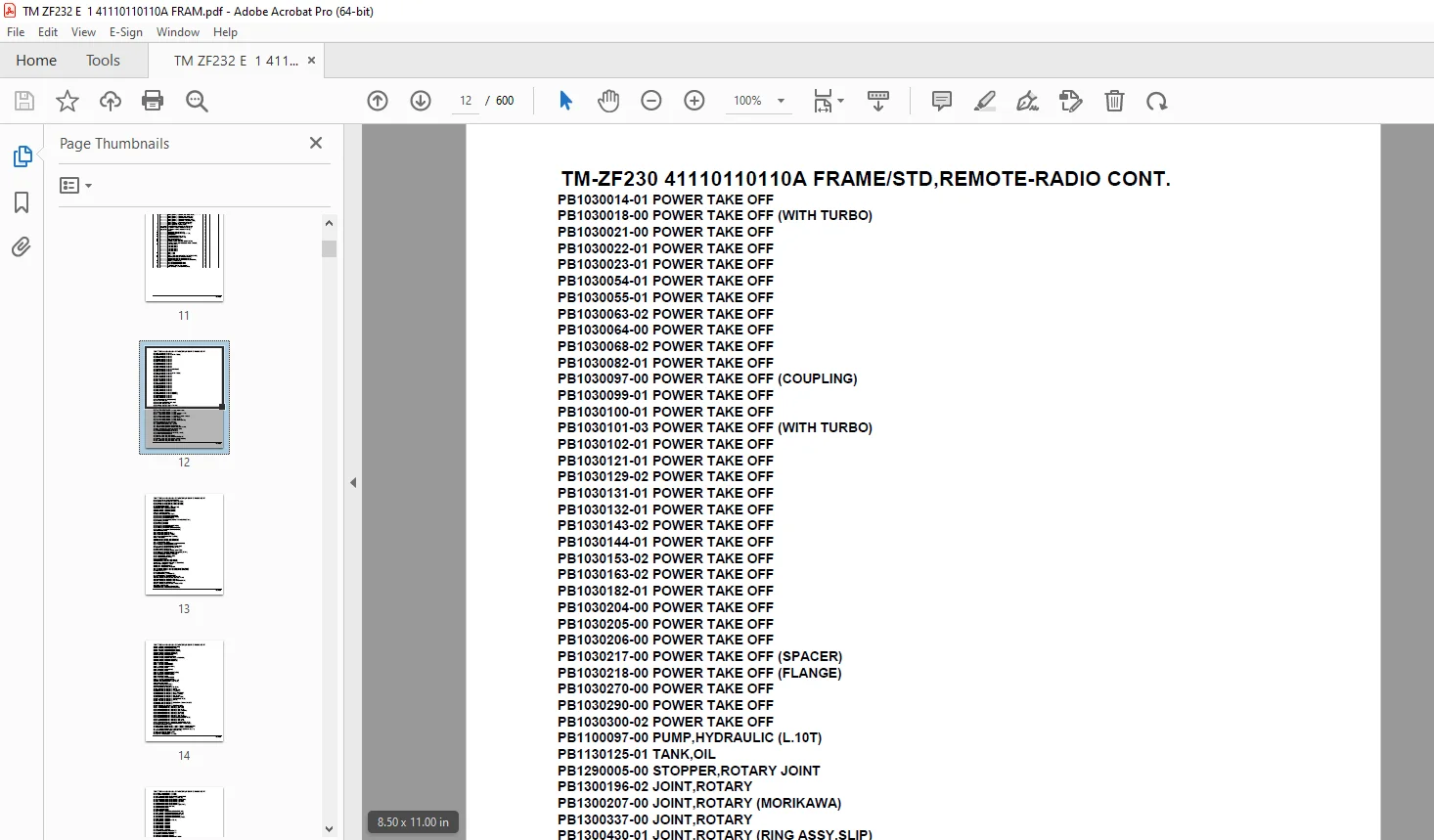

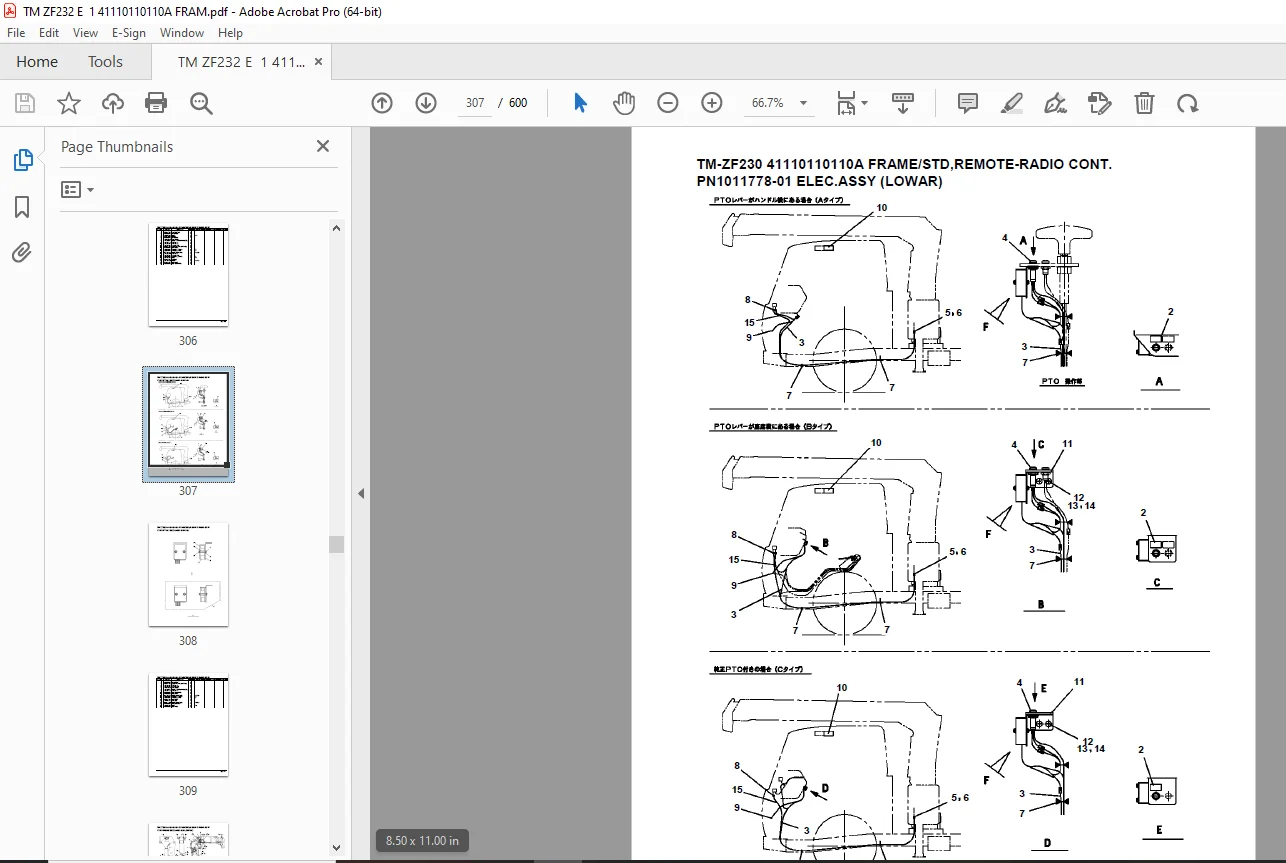

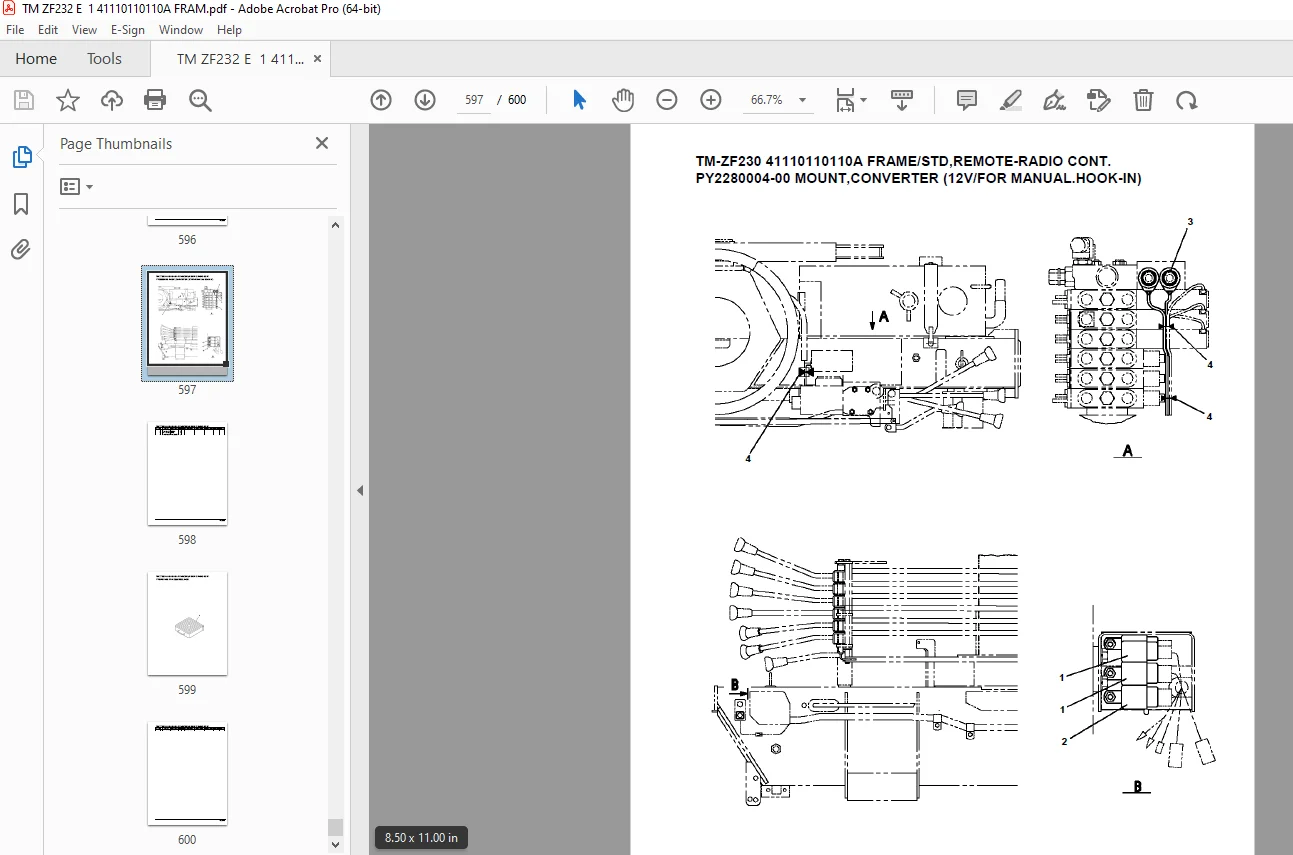

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD

TAKE OFF (WITH TURBO)
PB1030102-01 POWER TAKE OFF
PB1030121-01 POWER TAKE OFF
PB1030129-02 POWER TAKE OFF
PB1030131-01 POWER TAKE OFF
PB1030132-01 POWER TAKE OFF
PB1030143-02 POWER TAKE OFF
PB1030144-01 POWER TAKE OFF
PB1030153-02 POWER TAKE OFF
PB1030163-02 POWER TAKE OFF
PB1030182-01 POWER TAKE OFF
PB1030204-00 POWER TAKE OFF
PB1030205-00 POWER TAKE OFF
PB1030206-00 POWER TAKE OFF
PB1030217-00 POWER TAKE OFF (SPACER)
PB1030218-00 POWER TAKE OFF (FLANGE)
PB1030270-00 POWER TAKE OFF
PB1030290-00 POWER TAKE OFF
PB1030300-02 POWER TAKE OFF
PB1100097-00 PUMP,HYDRAULIC (L.10T)
PB1130125-01 TANK,OIL
PB1290005-00 STOPPER,ROTARY JOINT
PB1300196-02 JOINT,ROTARY
PB1300207-00 JOINT,ROTARY (MORIKAWA)
PB1300337-00 JOINT,ROTARY
PB1300430-01 JOINT,ROTARY (RING ASSY,SLIP)
PB1300445-00 JOINT,ROTARY
PB1320274-00 VALVE,MANUAL CONTROL (REAR JACK)
PB1320292-01 VALVE,MANUAL CONTROL
PB1320412-01 VALVE,MANUAL CONTROL (SERVICE PORT)
PB1320456-00 VALVE,MANUAL CONTROL (DUMP)
PB1320516-00 VALVE,MANUAL CONTROL(DUMP/NIHON SPINDLE)
PB1320517-00 VALVE,MANUAL CONTROL (DUMP)
PB1320528-01 VALVE,MANUAL CONTROL (NABCO)
PB1320614-01 VALVE,MANUAL CONTROL (DUMP/NABCO)
PB1380225-00 POWER SUPPLY (MOUNT)
PB1400203-02 PIPING,HYDRAULIC UPPER
PB1410607-01 PIPING,HYDRAULIC LOWER
PB1410891-01 PIPING,LOWER (POWER SUPPLY)
PB1411554-01 PIPING,LOWER (REMOTE CONTROL VALVE)
PB1910114-00 PIPING (VALVA,MANUALCONTOROL)
PC1010796-01 OUTRIGGER (REAR ROTARY)
PC1020035-00 OUTRIGGER,REAR (ROTARY)
PC1020036-00 OUTRIGGER,REAR (ROTARY,DAY CAB)
PC1020104-01 OUTRIGGER,REAR
PC1030185-04 CYLINDER,JACK (REAR)
PC1030196-03 CYLINDER,JACK (MIN670.WITH FLOAT)
PC1030197-04 CYLINDER,JACK (MIN661.WITHOUT FLOAT)
PC1030421-00 CYLINDER,JACK (COLD-FORGED)
PC1030423-00 CYLINDER,JACK (COLD-FORGED)
TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT.
000006
PC1100205-01 OPE.ASSY,OUTRIGGER (REAR)
PC1190023-00 INDICATOR,OUTRIGGER (BML,OPTION)
PC1190024-00 INDICATOR,OUTRIGGER (BML,OPTION)
PC1190025-00 INDICATOR,OUTRIGGER (BML,OPTION)
PC1230015-00 PIPING,REAR JACK
PC1230019-01 PIPING,REAR JACK (2,ROTARY)
PD1010035-01 REDUCER,SWING SPEED
PD1010090-02 REDUCER,SWING SPEED
PD1010185-00 REDUCER,SWING SPEED
PD1200082-00 PIPING,SWING
PE1010228-01 CYLINDER,ELEVATING
PE5020095-00 ELEC.ASSY (CRANE/SWITCH)
PE5020096-00 ELEC.ASSY (CRANE/HARNESS)
PE5020098-00 ELEC.ASSY (CARRIER)
PE5020101-00 ELEC.ASSY (AWL LAMP/STOP TO CONFIGURATION)
PE5020102-01 ELEC.ASSY
PE5020107-00 ELEC.ASSY
PE5020108-00 ELEC.ASSY
PE5020109-00 ELEC.ASSY (CRANE/HARNESS)
PE5020110-00 ELEC.ASSY (FRAME)
PE5021179-00 ELEC.ASSY (MOUNTING VEHICLE)
PE5021180-00 ELEC.ASSY (MOUNTING VEHICLE)
PF1010129-02 WINCH (B)
PF1020000-02 DRUM,WINCH (MINI)
PF1020005-00 DRUM,WINCH (HARTYS)
PF1020026-00 DRUM,WINCH (Y.G.TEC)
PF1050161-03 HOOK (1-PART LINE ,OPTION)
PF1050447-00 HOOK
PF1180065-02 DETECTOR,DISORDERLY WIND
PF1180081-00 DETECTOR,DISORDERLY WIND
PF1400212-01 MOUNT,WINCH
PG1130086-01 DETECTOR,BOOM LENGTH (BML,OPTION)
PG1130134-00 DETECTOR,BOOM LENGTH
PG1130144-01 DETECTOR,BOOM LENGTH (MOUNT)
PH1010007-01 DETECTOR,LOAD (BML,OPTION)
PH1010008-00 DETECTOR,LOAD
PH1060266-01 DETECTOR,OVER WINDING (OPTION)
PH1100052-01 DETECTOR,OVER FRONT AREA (BML,OPTION)
PH1100054-00 DETECTOR,OVER FRONT AREA
PH1250028-00 MOMENT LIMITER (AML-PB)
PH1250115-00 MOMENT LIMITER (BML)
PH5032122-00 HARNESS (L=1000)
PH5033590-00 HARNESS
PI1010058-00 MOTOR,HYDRAULIC (WINCH)
PI1010068-00 MOTOR,HYDRAULIC (SWING)
PI1250073-01 VALVE,COUNTERBALANCE (ELEVATING)
PI1280051-00 VALVE,PILOT CHECK
PI1300026-01 FILTER,OIL (WAKO)
PI1300028-01 FILTER,OIL (CARTRIDGE)
PI1440025-00 METER,LOAD (2.3TON ENG&JAPANESE/NAGANO)
PI1440026-00 METER,LOAD (2.3TON ENG&JAPANESE/KUSABA)
PK1010356-01 FRAME
PK1100204-01 SWING FRAME
PK1130010-00 COVER,BEARING (RED)
PK1330279-00 COVER (SWING BEARING)
PL1010223-00 OPE.ASSY,CONT.VALVE (BML,OP.)
PL1010562-02 OPERATION SYSTEM, CONTROL VALVE
PL1010580-00 OPE.ASSY,CONT.VALVE (BML)
PL1010734-01 OPE.ASSY,CONT.VALVE (POWER SUPPLY)
PL1010997-00 OPE.ASSY,CONT.VALVE
PL1030468-02 OPERATION SYSTEM, ACCELERATOR
PM5230003-00 MOTOR,OIL
PN1011388-03 ELEC.ASSY (RADIO CONTROL)
PN1011389-03 ELEC.ASSY (REMOTO CONTROL)
TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT.
000006
PN1011420-00 ELEC.ASSY (REMOTE CONTROL)
PN1011422-02 ELEC.ASSY (LOWER,LAMP)
PN1011423-03 ELEC.ASSY (UPPER,LAMP/POST)
PN1011426-02 ELEC.ASSY (UPPER,LAMP/BOOM)
PN1011581-00 ELEC.ASSY (ALARM,UPPER)
PN1011777-00 ELEC.ASSY (ALARM,LOWER)
PN1011778-01 ELEC.ASSY (LOWAR)
PN1011908-03 ELEC.ASSY (BML,OPTION)
PN1011913-01 ELEC.ASSY (WITH SWITCH/P.T.O CABLE)
PN1011969-00 ELEC.ASSY (ALARM,LOWER)
PN1011990-02 ELEC.ASSY (ALARM,UPPER)
PN1012225-00 ELEC.ASSY
PN1013426-01 ELEC.ASSY (FRAME)
PN1013428-01 ELEC.ASSY (FRAME)
PN1013429-00 ELEC.ASSY (ANTENNA)
PN1013708-01 ELEC.ASSY
PN1013738-00 ELEC.ASSY (CRANE)
PN1014041-00 ELEC.ASSY
PN1014042-00 ELEC.ASSY (SPARE HARNESS)
PN1014043-01 ELEC.ASSY (ANTENNA)
PN1014202-02 ELEC.ASSY (CARRIER)
PN1014240-00 ELEC.ASSY
PN1014341-01 ELEC.ASSY (CARRIER)
PN1014342-01 ELEC.ASSY (CARRIER)
PN1080213-00 LAMP (MOUNT,BOOM/24V-45W)
PN1080214-00 LAMP (MOUNT,POST/24V-60W)
PN1350004-01 REEL,CORD
PN5010195-00 NAME PLATE ASSY
PN5010239-00 NAME PLATE ASSY
PO1011761-00 PLATE ASSY,NAME (ENGLISH)
PO1012473-02 PLATE ASSY,NAME (HOOK)
PO1012546-01 PLATE ASSY,NAME (BML,OPTION)
PO1012605-01 PLATE ASSY,NAME (JAPANESE)
PO1012607-02 PLATE ASSY,NAME (REAR,OUTRIGGER)
PO1012608-00 PLATE ASSY,NAME (POWER SUPPLY)
PO1012649-00 PLATE ASSY,NAME (BML,OPTION)
PO1012650-00 PLATE ASSY,NAME (RADIO CONTROL)
PO1014243-00 PLATE ASSY,NAME (MOUNTING ON REAR)
PO1014437-01 PLATE ASSY,NAME (UPPER)
PO1014489-01 PLATE ASSY,NAME
PO1014584-04 PLATE ASSY,NAME (BOOM,ELEV. STOWING FAILURE)
PO1014592-03 PLATE ASSY,NAME
PO1014748-00 PLATE ASSY,NAME (FOR FIXING AWL)
PO1070498-00 PERFORMANCE DATA (ZF232,DAY CAB)
PO1070499-00 PERFORMANCE DATA (ZF232,STD CAB)
PO1070500-00 PERFORMANCE DATA (ZF232,WIDE CAB)
PO1070501-00 PERFORMANCE DATA (ZF232,STD CAB/ENG.)
PO1070502-00 PERFORMANCE DATA (ZF233,DAY CAB)
PO1070503-00 PERFORMANCE DATA (ZF233,STD CAB)
PO1070504-00 PERFORMANCE DATA (ZF233,WIDE CAB)
PO1070505-00 PERFORMANCE DATA (ZF233,STD CAB/ENG.)
PO1070506-00 PERFORMANCE DATA(ZF233,MOUNTING ON REAR)
PO1070511-00 PERFORMANCE DATA (ZF234,STD CAB)
PO1070512-00 PERFORMANCE DATA (ZF234,WIDE CAB)
PO1070513-00 PERFORMANCE DATA(ZF234,MOUNTING ON REAR)
PP5150008-00 PARTS ASSY,RADIO CONTROLLER (F-TYPE KIT:LED)
PP5500002-00 PUMP,OIL (27CC:L)
PR5040006-00 RADIO CONTROLLER ASSY (F-TYPE:LED/WITHOUT HOOK-IN)
PR5040007-00 RADIO CONTROLLER ASSY (F-TYPE:LED/WITH HOOK-IN)
PS5420043-00 SUPPORT ASSY (STOPPER,INNER CASE/ZF230W:-#ED3540)
PS5530075-00 SWITCH ASSY (GREEN:PANASONIC)
PV1010025-00 REMOTE CONTROL (KIT)
PV1010057-00 REMOTE CONTROL
PV1020087-04 VALVE,REMOTE CONTROL
TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT.
000006
PV1020140-04 VALVE,REMOTE CONTROL
PV1020330-00 VALVE,REMOTE CONTROL
PV1030014-05 SWITCH BOX (RADIO CONTROL.M2.TYPE-B)
PV1030015-02 SWITCH BOX (REMOTE CONTROL.M2)
PV1030019-05 SWITCH BOX (RADIO CONTROL.M2.TYPE-A)
PV1030034-05 SWITCH BOX (RADIO CONTROL,TYPE-D)
PV1030037-05 SWITCH BOX (RADIO CONTROL,TYPE-E)
PV1030052-00 SWITCH BOX (RADIO CONTROL)
PV1030080-05 SWITCH BOX (RADIO CONTROL,LED TYPE)
PV1030086-00 SWITCH BOX (FUTABA)
PV1030089-00 SWITCH BOX
PV1030091-00 SWITCH BOX
PV1030092-00 SWITCH BOX
PV1040013-02 CONTROL BOX (RADIO CONTROL.M2.B)
PV1040014-00 CONTROL BOX (REMOTE CONTROL.M2)
PV1040018-02 CONTROL BOX (RADIO CONTROL.M2.A)
PV1040036-01 CONTROL BOX (RADIO CONTROL,D)
PV1040038-02 CONTROL BOX (RADIO CONTROL,TYPE-E)
PV1040050-00 CONTROL BOX
PV1040051-00 CONTROL UNIT (ANTENNA)
PV1040076-00 CONTROL BOX
PV1040093-03 CONTROL UNIT
PV1040094-00 CONTROL BOX
PV1040099-00 CONTROL UNIT
PV1040106-00 CONTROL UNIT
PV1040108-00 CONTROL UNIT
PV1040109-00 CONTROL UNIT
PV1050007-02 CYLINDER,ACCELERATOR
PV1050011-00 CYLINDER,ACCELERATOR
PV1070002-00 RADIO CONTROL (KIT)
PV1070081-00 RADIO CONTROL (KIT)
PV1070227-00 RADIO CONTROL (FRQ.A OR FRQ.B)
PV1070228-00 RADIO CONTROL (FRQ.D OR FRQ.E)
PV1070229-00 RADIO CONTROL
PV1080001-00 PARTS,BML (3,4 SECT.HOOK-IN/STD-SIZED)
PV1080002-00 PARTS,BML (3,4 SECT.MANUAL/STD-SIZED)
PV1080003-00 PARTS,BML (3,4 SECT.RADICON HOOK-IN/STD)
PV1080004-00 PARTS,BML (3,4 SECT.HOOK-IN/SMALL-SIZED)
PV1080005-00 PARTS,BML (3,4 SECT.MANNUAL/SMALL-SIZED)
PV1080006-00 PARTS,BML (3,4 SECT.RADICON HOOK-IN/S)
PV1080072-00 PARTS,BML (2-4 SECT./MANUAL)
PV1090030-00 PARTS,AWL (2-4 SECT./RADICON OR MH)
PV1250002-04 STOWING BOX (REMOTE CONTROL)
PV1250006-00 STOWING BOX (BAG,RADIO CONTROL)
PV1250013-00 BOX,STOWING
PV1300007-00 CABLE,REMOTE CONTROL (T,OPTION 20M)
PV1400011-00 ANTENNA (15M.TRAVELLING TYPE A,B)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400024-01 ANTENNA (15M.TRAVELLING TYPE C,D,E)
PV1400030-01 ANTENNA
PV1400042-00 ANTENNA (FOR RADIO CONTROL)
PV1410002-01 MOUNT,ANTENNA (RADIO CONTROL)
PV1410014-02 MOUNT,ANTENNA (RADIO CONTROL,D.E-TYPE)
PW5060074-00 WINCH ASSY
PX1100164-00 TANK SUPPORT INSTALLATION
PX1940004-00 MOUNT
PX1940184-01 MOUNT (BOOM)
PX1940222-00 MOUNT (PLATE/SWITCH ASSY)
PY1250015-01 SWITCH INSTALLATION (BML)
PY1250016-00 SWITCH INSTALLATION (BML)
PY1560030-01 ALARM SYSTEM
PY1560031-01 ALARM SYSTEM
PY1560035-01 ALARM SYSTEM
PY1560036-00 ALARM SYSTEM
TM-ZF230 41110110110A FRAME/STD,REMOTE-RADIO CONT.
000006
PY1560037-00 ALARM SYSTEM
PY1560038-01 ALARM SYSTEM
PY2060002-02 ROPE,GUIDE (OPTION)
PY2060004-00 ROPE,GUIDE
PY2280001-01 MOUNT,CONVERTER (12V/FOR RADICON)
PY2280003-00 MOUNT,CONVERTER (12V/FOR MANUAL)
PY2280004-00 MOUNT,CONVERTER (12V/FOR MANUAL.HOOK-IN)
PY2340011-00 PLATE (355X355,H=80)

G.B 18/01/2025
