Tadano Crane TM-ZF360 41102210480A FRAME/CRAWLER,RADIO CONTROL,HOOK-IN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-ZF360 41102210480A FRAME/CRAWLER,RADIO CONTROL,HOOK-IN Parts Manual – PDF DOWNLOAD

Language : English
Pages : 173
Downloadable : Yes
File Type : PDF

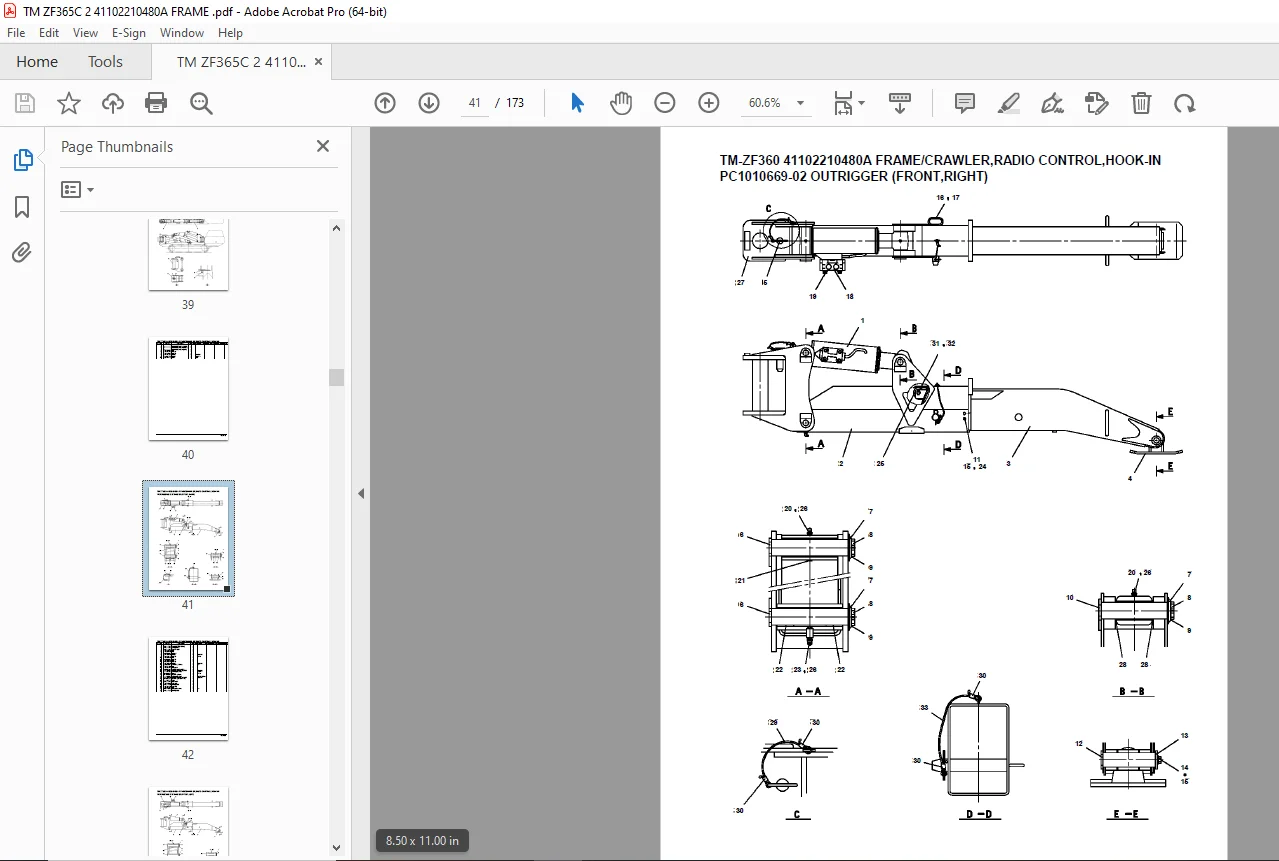

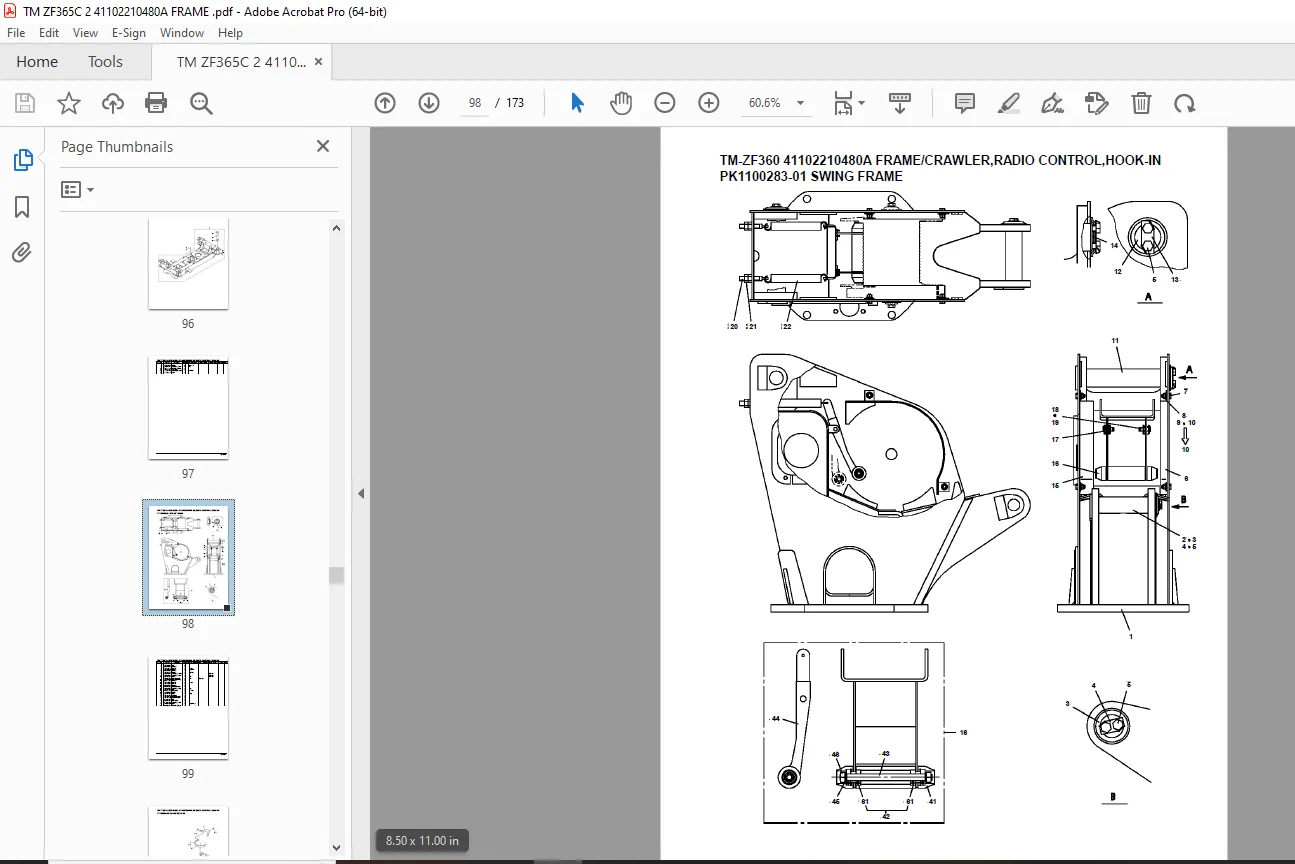

IMAGES PREVIEW OF THE MANUAL:

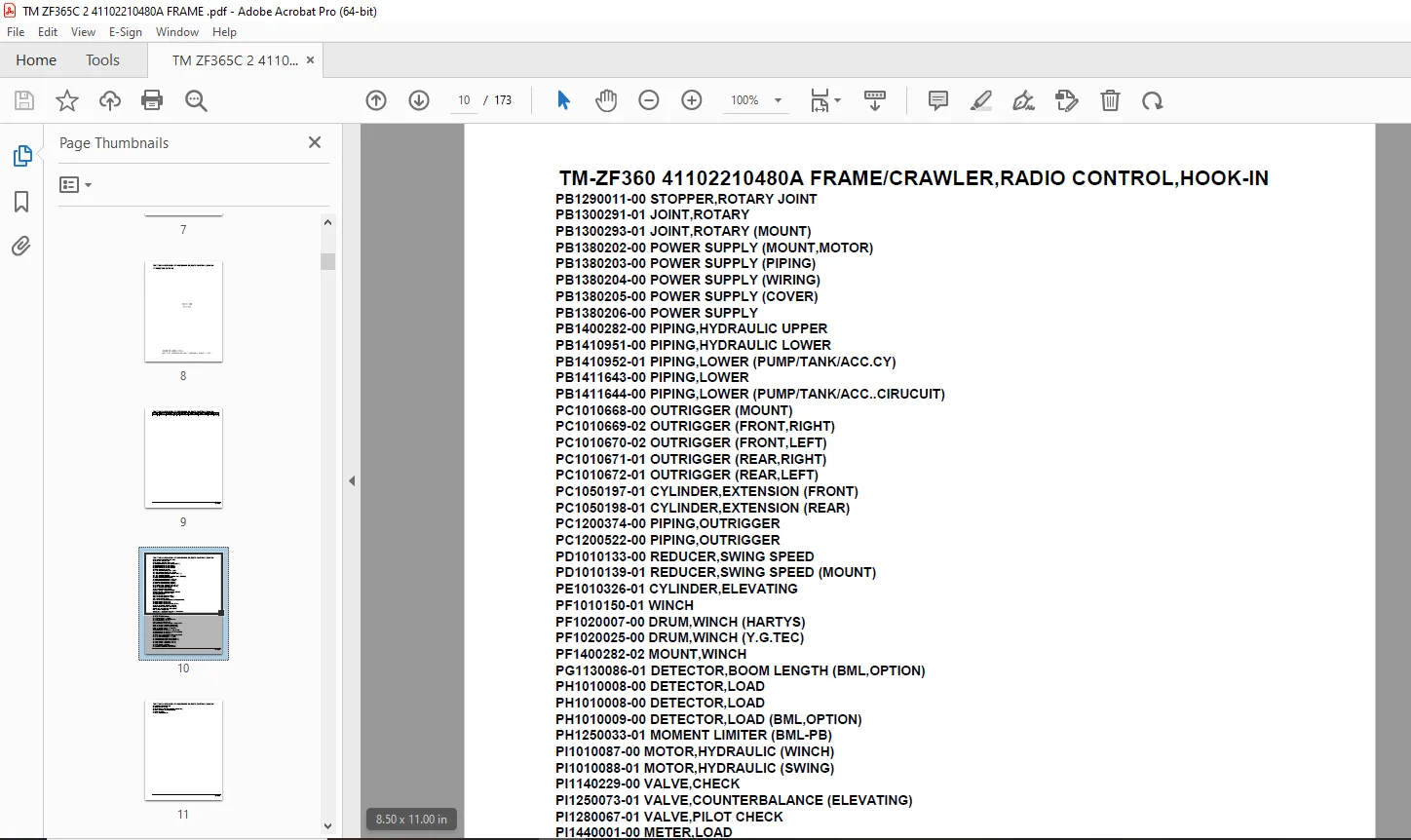

TABLE OF CONTENTS:

Tadano Crane TM-ZF360 41102210480A FRAME/CRAWLER,RADIO CONTROL,HOOK-IN Parts Manual – PDF DOWNLOAD

TM-ZF360 41102210480A FRAME/CRAWLER,RADIO CONTROL,HOOK-IN
000005
PB1290011-00 STOPPER,ROTARY JOINT
PB1300291-01 JOINT,ROTARY
PB1300293-01 JOINT,ROTARY (MOUNT)
PB1380202-00 POWER SUPPLY (MOUNT,MOTOR)
PB1380203-00 POWER SUPPLY (PIPING)
PB1380204-00 POWER SUPPLY (WIRING)
PB1380205-00 POWER SUPPLY (COVER)
PB1380206-00 POWER SUPPLY
PB1400282-00 PIPING,HYDRAULIC UPPER
PB1410951-00 PIPING,HYDRAULIC LOWER
PB1410952-01 PIPING,LOWER (PUMP/TANK/ACC.CY)
PB1411643-00 PIPING,LOWER
PB1411644-00 PIPING,LOWER (PUMP/TANK/ACC..CIRUCUIT)
PC1010668-00 OUTRIGGER (MOUNT)
PC1010669-02 OUTRIGGER (FRONT,RIGHT)
PC1010670-02 OUTRIGGER (FRONT,LEFT)
PC1010671-01 OUTRIGGER (REAR,RIGHT)
PC1010672-01 OUTRIGGER (REAR,LEFT)
PC1050197-01 CYLINDER,EXTENSION (FRONT)
PC1050198-01 CYLINDER,EXTENSION (REAR)
PC1200374-00 PIPING,OUTRIGGER
PC1200522-00 PIPING,OUTRIGGER
PD1010133-00 REDUCER,SWING SPEED
PD1010139-01 REDUCER,SWING SPEED (MOUNT)
PE1010326-01 CYLINDER,ELEVATING
PF1010150-01 WINCH
PF1020007-00 DRUM,WINCH (HARTYS)
PF1020025-00 DRUM,WINCH (Y.G.TEC)
PF1400282-02 MOUNT,WINCH
PG1130086-01 DETECTOR,BOOM LENGTH (BML,OPTION)
PH1010008-00 DETECTOR,LOAD
PH1010008-00 DETECTOR,LOAD
PH1010009-00 DETECTOR,LOAD (BML,OPTION)
PH1250033-01 MOMENT LIMITER (BML-PB)
PI1010087-00 MOTOR,HYDRAULIC (WINCH)
PI1010088-01 MOTOR,HYDRAULIC (SWING)
PI1140229-00 VALVE,CHECK
PI1250073-01 VALVE,COUNTERBALANCE (ELEVATING)
PI1280067-01 VALVE,PILOT CHECK
PI1440001-00 METER,LOAD
PK1010943-00 FRAME
PK1100283-01 SWING FRAME
PK1130004-00 COVER,BEARING
PK1330050-01 COVER (LEVER CONTROL)
PK1330219-00 COVER (FRAME)
PL1020040-00 LEVER,CONTROL
PL1030710-00 OPERATION SYSTEM, ACCELERATOR
PN1012165-01 ELEC.ASSY (RADIO CONTROL)
PN1012166-00 ELEC.ASSY (RADIO CONTROL)
PN1012173-02 ELECTRICAL ACCESSORIES
PN1350027-01 REEL,CORD
PO1012903-00 PLATE ASSY,NAME (BML,OPTION)
PO1014153-00 PLATE ASSY,NAME (FRAME CARRIER)
PO1014154-00 PLATE ASSY,NAME
PP5240001-00 PLATE,NAME (STD OPERATION MARK)
PV1020221-03 VALVE,REMOTE CONTROL
PV1020255-00 VALVE,REMOTE CONTROL
PV1030052-00 SWITCH BOX (RADIO CONTROL)
PV1030052-00 SWITCH BOX (RADIO CONTROL)
PV1040051-00 CONTROL UNIT (ANTENNA)
PV1040051-00 CONTROL UNIT (ANTENNA)
PV1040059-00 CONTROL BOX
PV1050011-00 CYLINDER,ACCELERATOR
PV1070007-00 RADIO CONTROL SYSTEM
