Tadano Truck Crane TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN Parts Manual PDF

Description

Tadano Truck Crane TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN Parts Manual PDF-DOWNLOAD

FILE DETAILS:

Tadano Truck Crane TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN Parts Manual-PDF DOWNLOAD

Language : English
Pages :444
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Truck Crane TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN Parts Manual – PDF DOWNLOAD

TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN
000000
PB1000451-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000365-00 OUTRIGGER SYSTEM
PD1000411-00 SWING SYSTEM
PE1000414-00 ELEVATING SYSTEM
PF1000368-00 WINCH SYSTEM
PG1000366-00 TELESCOPING SYSTEM
PH1000372-00 SAFETY DEVICES
PK1000426-00 FRAME
PL1000433-00 CONTROL DEVICES
PN1000310-00 ELECTRIC EQUIPMENT
PO1000144-01 INDICATION PLATES
PW1000028-00 ACCESSORIES & TOOLS
PX1000453-01 MOUNTING PARTS
PY1000380-00 OPTIONS
ASSEMBLY

TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN
000015
PB1070204-01 PROPELLER SHAFT,PUMP
PB1100171-01 PUMP,HYDRAULIC
PB1130192-03 TANK,OIL
PB1200149-00 PIPING,SUCTION
PB1220173-00 PIPING,DELIVERY
PB1240149-00 PIPING,LOWER RETURN
PB1260132-04 PIPING,UPPER RETURN
PB1280106-00 PIPING,GAUGE
PB1300235-01 JOINT,ROTARY
PB1310006-00 BRUSH,ROTARY JOINT
PB1320107-07 VALVE,MANUAL CONTROL
PB1320108-02 VALVE,MANUAL CONTROL (SWING)
PB1320154-02 VALVE,MANUAL CONTROL (OUTRIGGER,F/J)
PB1320560-00 VALVE,MANUAL CONTROL
PC1010102-04 OUTRIGGER
PC1010102-04 OUTRIGGER
PC1010899-01 OUTRIGGER (FRONT)
PC1010900-01 OUTRIGGER (REAR)
PC1030054-04 CYLINDER,JACK
PC1030054-04 CYLINDER,JACK
PC1050174-03 CYLINDER,EXTENSION
PC1100208-00 OPERATION SYSTEM, OUTRIGGER
PC1200426-01 PIPING,OUTRIGGER
PC1220106-01 PIPING,FRONT JACK
PC1250025-00 FRONT JACK INSTALLATION
PC1290004-03 FRONT JACK,HYDRAULIC
PD1030059-02 GEAR,DRIVE
PD1070008-00 DRIVING UNIT,SWING
PD1100043-01 OPERATION SYSTEM, SWING BRAKE
PD1200153-00 PIPING,SWING
PE1010239-04 CYLINDER,ELEVATING
PE1200085-00 PIPING,ELEVATING
PF1010028-01 WINCH
PF1030004-01 CLUTCH,WINCH
PF1050094-00 HOOK (SHEAVE 4 PC’S)
PF1050333-00 HOOK (AUXILIARY)
PF1050335-00 HOOK (SHEAVE 6 PC’S)
PF1050349-00 HOOK (SHEAVE 2 PC’S)
PF1090003-01 SOCKET,ROPE (SEIZING )
PF1110029-02 OPE.ASSY, WINCH BRAKE (MAIN)
PF1110030-02 OPE.ASSY, WINCH BRAKE (AUX.)
PF1120007-04 BAND,WINCH BRAKE
PF1140023-02 OPE.ASSY,DRUM LODK (AUX.)
PF1140077-02 OPE.ASSY,DRUM LOCK (MAIN)
PF1160021-04 OPE.ASSY,CLUTCH (MAIN)
PF1160023-03 OPE.ASSY,CLUTCH (AUX.)
PF1180018-00 DETECTOR,DISORDERLY WINDING
PF1200298-02 PIPING,WINCH (MAIN)
PF1200299-01 PIPING,WINCH (AUX.)
PF1220034-01 PIPING,WINCH BRAKE (AUX.)
PF1220104-02 PIPING,WINCH BRAKE (MAIN)
PF1250064-01 DETECTOR,DRUM ROTATION
PF1300007-00 VALVE,CLUTCH
PF1320005-00 JOINT,WINCH ROTARY
PF1400132-03 MOUNT,WINCH (MAIN)
PF1400133-03 MOUNT,WINCH (AUX.)
PG1010461-06 BOOM
PG1040211-03 JIB
PG1050088-05 CYLINDER,TELESCOPING
PG1070037-02 REEL,HOSE (MOUNT)
PG1070330-01 REEL,HOSE
PG1070340-03 REEL,HOSE
PG1120107-02 DETECTOR SYSTEM, BOOM LENGTH
PG1130097-00 DETECTOR,BOOM LENGTH (WITH ANGLE DETECT)
TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN
000015
PG1200113-01 PIPING,TELESCOPING
PG1280002-02 VALVE,CONTROL (TELESCOPING)
PG1360214-00 GUIDE,WIRE
PH1060262-01 DETECTOR,OVER WIND (WEIGHT,JIB & S/T)
PH1060268-04 DETECTOR,OVER WIND (BOOM)
PH1070013-02 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070024-01 SWITCH,OVER WIND DETECTOR (BOOM)
PH1180160-01 CONNECTION,MOMENT LIMITER SYSTEM
PH1200044-02 PIPING,VENT
PH1250026-01 MOMENT LIMITER (AML-LC)
PI1010027-00 MOTOR,HYDRAULIC (WINCH)
PI1010072-01 MOTOR,HYDRAULIC (AIR CONDITIONER)
PI1010124-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1010162-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1010186-00 MOTOR,HYDRAULIC
PI1010205-00 MOTOR,HYDRAULIC
PI1030006-00 CYLINDER,MASTER
PI1030008-01 CYLINDER,MASTER
PI1030012-00 CYLINDER,MASTER (NABCO)
PI1030040-00 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1050002-00 RESERVOIR,OIL
PI1100044-01 VALVE,RELIEF
PI1120138-04 VALVE,SOLENOID
PI1120146-02 VALVE,SOLENOID
PI1120344-00 VALVE,SOLENOID
PI1120345-00 VALVE,SOLENOID
PI1120353-00 VALVE,SOLENOID
PI1130005-01 VALVE,HYDRAULIC
PI1130022-01 VALVE,HYDRAULIC
PI1140017-00 VALVE,CHECK
PI1140042-00 VALVE,CHECK
PI1140042-00 VALVE,CHECK
PI1140082-00 VALVE,CHECK
PI1140100-00 VALVE,CHECK
PI1140159-01 VALVE,CHECK
PI1140170-03 VALVE,CHECK
PI1140229-00 VALVE,CHECK
PI1160007-00 VALVE,FLOW CONTROL
PI1220022-00 FLOW DIVIDER
PI1250091-01 VALVE,COUNTERBALANCE (WINCH)
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PK1100267-01 SWING FRAME
PK1120101-01 SWING TABLE
PK1140124-02 CAB,OPERATOR
PK1150021-00 SEAT,OPERATOR
PK1200316-03 COVER,SWING FRAME
PK1220193-00 WEIGHT, COUNTERBALANCE
PK1330047-00 COVER (WITHOUT HEATER,OP.)
PK1410012-00 MOUNT,CAB
PL1010873-00 OPE.ASSY,CONT.VALVE (ISO)
PL1010874-00 OPE.ASSY,CONT.VALVE (TDN)
PL1030790-00 OPE.ASSY,ACCELERATOR
PL1040036-01 OPE.ASSY,GOVERNOR
PN1050149-01 ELECTRICAL PARTS,CAB
PN1070001-02 ELECTRICAL PARTS, BOOM
PN1080076-01 LAMP (WORKING)
PO1010058-01 PLATE ASSY,NAME (LOWER)
PO1010886-03 PLATE ASSY,NAME (UPPER 1)
PO1012513-00 PLATE ASSY,NAME (OPTION,HEATER/ENGLISH)
PO1012514-00 PLATE ASSY,NAME (OP.,HEATER/ENG & CHI)
PO1012818-00 PLATE ASSY,NAME (UPPER 2)
PO1012825-05 PLATE ASSY,NAME (OIL)
PO1012942-00 PLATE ASSY,NAME (AUSTRALIA/SHIPMENT)
TG-500E-3-10705 5 BOOM + JIB, 2M2D, KG56TAN
000015
PO1030008-00 TADANO (CAB,BLUE/BLACK)
PO1030009-00 TADANO (CAB,WHITE/WHITE)
PO1030010-00 TADANO (CAB,BLUE/WHITE)
PO1050015-00 MARKING (BOOM)
PO1080053-00 PLATE,NAME (CATEGORY B)
PO1080054-00 PLATE,NAME (CATEGORY C)
PR5170001-00 ROPE,WIRE (TESAC)
PR5170003-00 ROPE,WIRE (TSK)
PR5170005-00 ROPE,WIRE (TSK/NON-SPIN)
PR5170005-00 ROPE,WIRE (TSK/NON-SPIN)
PS5540003-00 SWITCH (OVER WIND/JIB & SINGLE TOP)
PV5240030-00 VALVE ASSY,SOLENOID
PW1010146-00 ACCESSORIES (MET & WEAR)
PW1010166-00 ACCESSORIES (MAT FOR CRANE CAB)
PW1010180-00 ACCESSORIES (AML SPARE FUSE)
PW1030051-00 TOOLS
PX1100224-00 TANK SUPPORT INSTALLATION
PX1120389-00 BOOM REST INSTALLATION
PX1140059-00 OUTRIGGER SUPPORT INSTALLATION
PX1160051-00 ATTACHMENT PARTS,SWING BEARING
PX1180114-00 MOUNT,HOOK (MAIN)
PX1180211-00 MOUNT,HOOK (AUX)
PX1210062-00 GUARD
PX1220361-00 PUMP INSTALLATION
PX1240007-00 MIRROR (DRUM)
PX1250114-00 COVER (SWING FRAME REAR)
PX1260068-00 STEP INSTALLATION
PX1810048-00 MOUNT,SUPPORT (SHIPMENT)
PX1810049-00 MOUNT,SUPPORT (AUX. WIRE STOWED,OPTION)
PY1030117-00 SINGLE TOP
PY1100107-01 HEATER SYSTEM
PY1120017-01 HEATER ASSY (DIESEL FUEL,MY30)
PY1120018-00 HEATER (BODY,MY30AFD2)
PY1120022-00 HEATER (PANEL KIT ASSY,CONTROL)
PY1120023-01 HEATER (HOLDER ASSY,FUEL PUMP)
PY1120024-00 HEATER (VALVE KIT ASSY,SOLENOID)
PY1180237-01 LAMP (AML)
PY1200055-03 PIPING,COOLER (OIL)
PY1200074-01 PIPING,COOLER (CAB)
PY1250001-00 SWITCH INSTALLATION (FAN)
PY1300002-04 COOLER,OIL (MOUNT)
PY1300003-00 COOLER,OIL
PY1300025-00 COOLER,OIL (MOUNT)
PY1360020-03 FAN INSTALLATION
PY1370008-01 EVAPORATOR ASSY
PY1380036-02 COMPRESSOR ASSY
PY1850011-01 COOLER,CAB
PY2320000-00 SUNVISOR (FOR CRANE CAB)

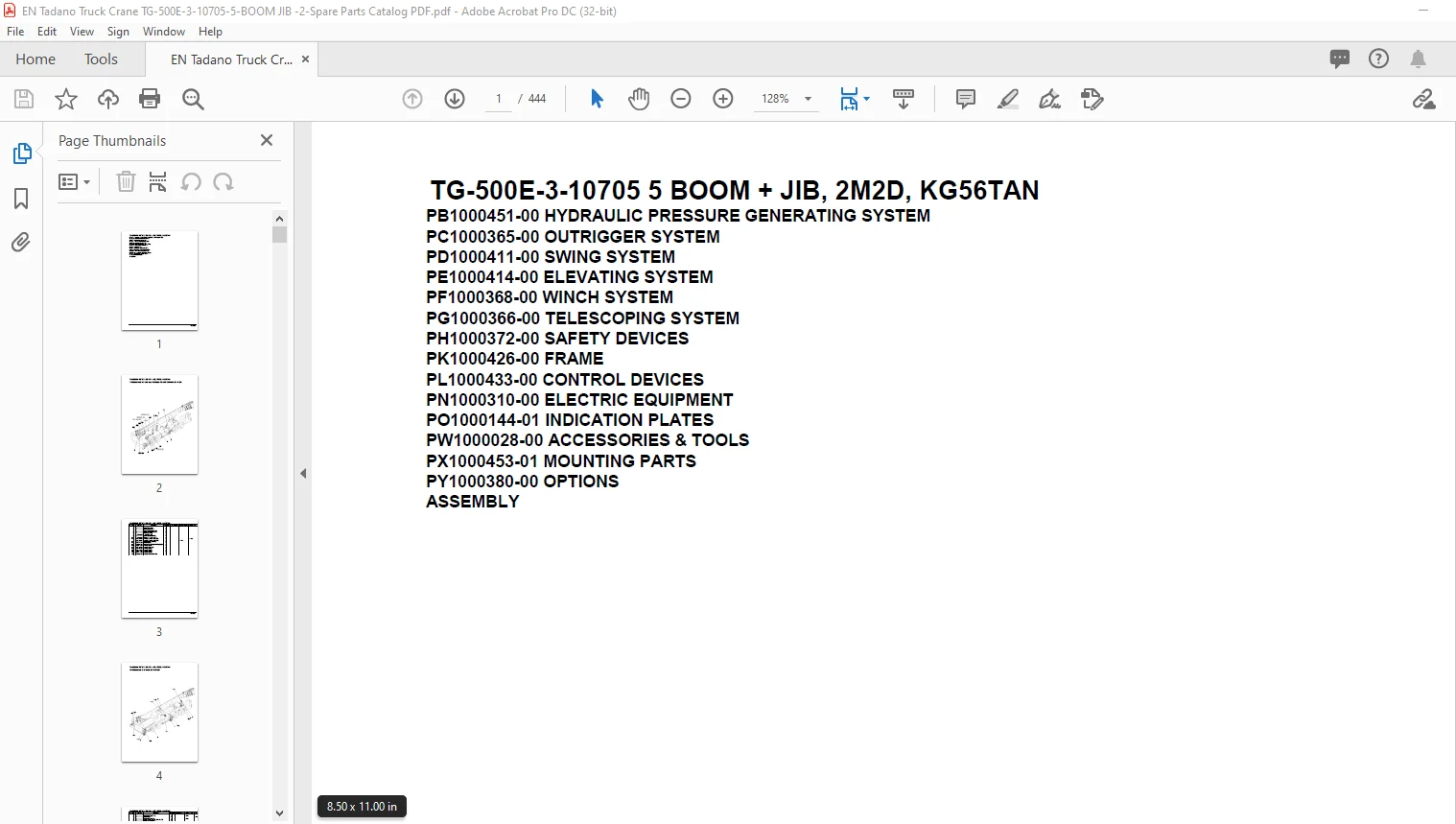

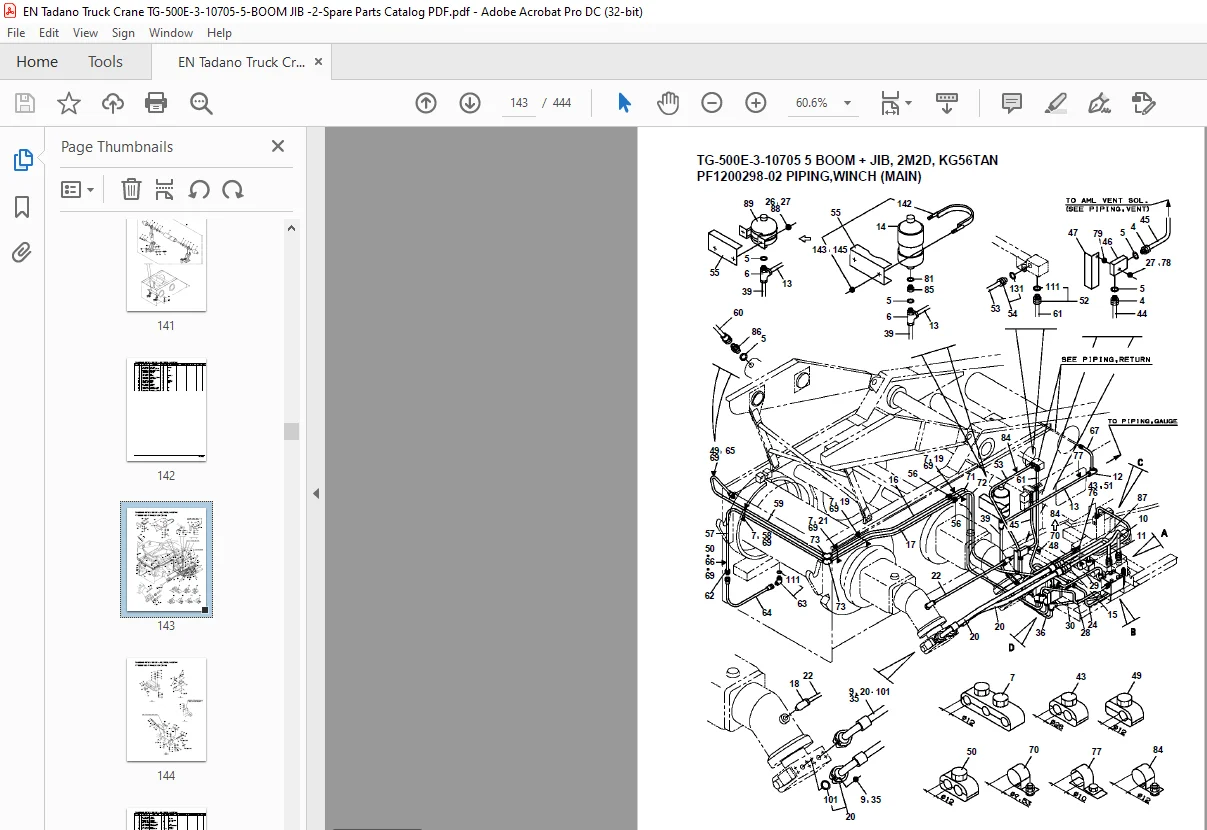

IMAGES PREVIEW OF THE MANUAL:
