Tadano Truck Crane TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN Parts Manual

Description

Tadano Truck Crane TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Truck Crane TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN Parts Manual – PDF DOWNLOAD

Language : English
Pages :448
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Truck Crane TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN Parts Manual – PDF DOWNLOAD

TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN
000000
PB1000225-01 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000169-01 OUTRIGGER SYSTEM
PD1000209-01 SWING SYSTEM
PE1000208-01 ELEVATING SYSTEM
PF1000196-01 WINCH SYSTEM
PG1000206-01 TELESCOPING SYSTEM
PH1000193-01 SAFETY DEVICES
PK1000218-01 FRAME
PL1000214-01 CONTROL DEVICES
PN1000179-01 ELECTRIC EQUIPMENT
PO1000057-00 INDICATION PLATES
PW1000051-00 ACCESSORIES & TOOLS
PX1000222-01 MOUNTING PARTS
PY1000191-01 OPTIONS
ASSEMBLY

TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN
000015
PB1070013-03 PROPELLER SHAFT,PUMP
PB1070023-02 PROPELLER SHAFT,PUMP
PB1070195-02 PROPELLER SHAFT,PUMP
PB1100066-00 PUMP,HYDRAULIC
PB1100171-01 PUMP,HYDRAULIC
PB1130191-02 TANK,OIL
PB1200077-00 PIPING,SUCTION
PB1220088-00 PIPING,DELIVERY
PB1240057-00 PIPING,LOWER RETURN
PB1260062-01 PIPING,UPPER RETURN
PB1280042-00 PIPING,GAUGE
PB1300077-01 JOINT,ROTARY
PB1300274-00 JOINT,ROTARY
PB1320051-02 VALVE,MANUAL CONTROL
PB1320154-02 VALVE,MANUAL CONTROL (OUTRIGGER,F/J)
PC1010195-00 OUTRIGGER
PC1030210-01 CYLINDER,JACK
PC1050046-01 CYLINDER,EXTENSION
PC1100063-01 OPE.ASSY,OUTRIGGER
PC1120079-02 OPE.ASSY,OUTRIGGER ACCELERATOR
PC1200209-00 PIPING,OUTRIGGER
PC1220002-00 PIPING,FRONT JACK
PC1250028-00 FRONT JACK INSTALLATION
PC1290004-03 FRONT JACK,HYDRAULIC
PD1020007-00 SWING UNIT
PD1020008-00 SWING UNIT
PD1070019-00 DRIVING UNIT,SWING
PD1070100-04 DRIVING UNIT,SWING
PD1100025-00 OPERATION SYSTEM, SWING BRAKE
PD1200037-00 PIPING,SWING
PD5080059-00 DETECTOR ASSY,LENGTH
PE1010290-06 CYLINDER,ELEVATING (DETECTING STRAIN)
PE1010300-03 CYLINDER,ELEVATING
PE1200170-03 PIPING,ELEVATING
PF1010053-01 WINCH (18)
PF1010251-01 WINCH (20)
PF1030004-01 CLUTCH,WINCH
PF1040040-01 COVER,WINCH
PF1050016-00 HOOK (70TON, SHEAVE 7 PC’S)
PF1050107-01 HOOK (SHEAVE 1 PC,15TON)
PF1050108-01 HOOK (AUXILIARY)
PF1050427-00 HOOK (70TON,SHEAVE 7 PC’S)
PF1070005-00 ROPE,WIRE
PF1070032-00 ROPE,WIRE (TSK)
PF1090003-01 SOCKET,ROPE (SEIZING )
PF1090003-01 SOCKET,ROPE (SEIZING )
PF1110100-02 OPE.ASSY,WINCH BRAKE
PF1120028-00 BAND,WINCH BRAKE
PF1120110-02 BAND,WINCH BRAKE
PF1140110-01 OPE.ASSY,DRUM LOCK (OPTION)
PF1160004-02 OPE.ASSY,CLUTCH
PF1200083-01 PIPING,WINCH
PF1220110-02 PIPING,WINCH BRAKE
PF1250021-01 DETECTOR,DRUM ROTATION (MAIN & AUX.)
PF1300002-00 VALVE,CLUTCH
PF1320005-00 JOINT,WINCH ROTARY
PF1400300-03 MOUNT,WINCH
PF1400300-03 MOUNT,WINCH
PG1010023-05 BOOM
PG1040104-00 JIB
PG1050060-05 CYLINDER,TELESCOPING
PG1070250-04 REEL,HOSE (MOUNT)
PG1070260-03 REEL,HOSE
PG1070270-01 REEL,HOSE
TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN
000015
PG1120150-00 DETECTOR SYSTEM, BOOM LENGTH
PG1130050-02 DETECTOR,BOOM LENGTH (NICHIDEN)
PG1130076-00 DETECTOR,BOOM LENGTH (CHUHATSU)
PG1130114-00 DETECTOR,BOOM LENGTH (CHUHATSU)
PG1160005-01 DETECTOR,BOOM RETRACTION
PG1200053-00 PIPING,TELESCOPING
PG1280002-02 VALVE,CONTROL (TELESCOPING)
PG1360204-00 WIRE GUIDE (BOOM)
PH1060077-00 DETECTOR,OVER WINDING (JIB&S/T)
PH1060078-01 DETECTOR,OVER WINDING (BOOM)
PH1070001-02 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070002-02 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1070029-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070034-01 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1100056-00 DETECTOR,OVER FRONT AREA
PH1170038-00 DETECTOR,CONTROL VALVE ACTUATION
PH1180063-01 CONNECTION,MOMENT LIMITER SYSTEM
PH1200024-01 PIPING,VENT
PH1250008-01 MOMENT LIMITER (AML-M1)
PH1600000-00 COVER,AML
PI1010072-01 MOTOR,HYDRAULIC (AIR CONDITIONER)
PI1010120-01 MOTOR,HYDRAULIC
PI1010124-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1010186-00 MOTOR,HYDRAULIC
PI1030026-00 CYLINDER,MASTER
PI1030031-00 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1050001-00 RESERVOIR,OIL
PI1060012-00 CYLINDER,BRAKE
PI1060060-00 CYLINDER,BRAKE
PI1070010-01 CYLINDER,CONTROL
PI1100003-01 VALVE,RELIEF
PI1120041-01 VALVE,SOLENOID
PI1120180-01 VALVE,SOLENOID
PI1120220-01 VALVE,SOLENOID
PI1120316-00 VALVE,SOLENOID
PI1130029-00 VALVE,HYDRAULIC
PI1140007-01 VALVE,CHECK
PI1140017-00 VALVE,CHECK
PI1140042-00 VALVE,CHECK
PI1140042-00 VALVE,CHECK
PI1140050-00 VALVE,CHECK
PI1140062-01 VALVE,CHECK
PI1140160-00 VALVE,CHECK
PI1140170-03 VALVE,CHECK
PI1140191-01 VALVE,CHECK
PI1140229-00 VALVE,CHECK
PI1160007-00 VALVE,FLOW CONTROL
PI1220022-00 FLOW DIVIDER
PI1250004-02 VALVE,COUNTERBALANCE
PI1250050-01 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1300080-00 FILTER,OIL
PI1320010-00 COCK,GAUGE
PI1340011-01 ACCUMULATOR
PI1420001-01 GAUGE,PRESSURE
PI1420002-00 GAUGE,PRESSURE
PK1100221-03 SWING FRAME
PK1120066-00 SWING TABLE
PK1140068-03 CAB,OPERATOR
PK1150023-00 SEAT,OPERATOR
PK1150028-00 SEAT,OPERATOR
PK1200132-01 COVER,SWING FRAME
PK1200133-01 COVER,SWING FRAME (SUPPORT)
TG-700E-3-10201 5 BOOM + JIB, 2M2D, KG54WXN
000015
PK1220250-03 WEIGHT,COUNTERBALANCE
PK1250020-02 PIPING,WEIGHT REMOVER
PK1270020-01 CYLINDER,WEIGHT REMOVER
PK1330001-00 COVER (WITHOUT RADIO)
PK1330005-01 COVER (WITHOUT HEATER)
PK1330039-00 COVER (WITHOUT RADIO)
PK1410040-00 MOUNT,CAB
PL1010196-02 OPE.ASSY,CONT.VALVE (TDN)
PL1010333-00 OPE.ASSY,CONT.VALVE (PEDAL)
PL1030310-04 OPE.ASSY,ACCELERATOR
PL1030739-00 OPE.ASSY,ACCELERATOR (L0WER)
PN1010759-00 ELEC.ASSY (F/J)
PN1050074-04 ELECTRICAL PARTS,CAB
PN1080017-01 LAMP
PO1010058-01 PLATE ASSY,NAME (LOWER)
PO1010313-01 PLATE ASSY,NAME (LOWER,ENGLISH/CHINESE)
PO1011014-01 PLATE ASSY,NAME (UPPER,ENG./CHINESE)
PO1011447-01 PLATE ASSY,NAME (UPPER,ENGLISH)
PO1012825-05 PLATE ASSY,NAME (OIL)
PO1013065-00 PLATE ASSY,NAME (SHIPMENT,JAPANESE/ENG.)
PO1013066-00 PLATE ASSY,NAME (ENGLISH)
PO1013067-00 PLATE ASSY,NAME (ENG./CHINESE)
PO1030008-00 TADANO (CAB,BLUE/BLACK)
PO1030009-00 TADANO (CAB,WHITE/WHITE)
PO1030010-00 TADANO (CAB,BLUE/WHITE)
PO1050049-00 MARKING (BOOM)
PW1010021-02 ACCESSORIES
PW1010096-00 ACCESSORIES (C/W)
PW1010174-00 ACCESSORIES (AML SPARE FUSE)
PW1030032-01 TOOLS
PW5110007-00 WEDGE
PX1100120-01 TANK SUPPORT INSTALLATION
PX1120130-00 BOOM REST INSTALLATION
PX1140060-00 OUTRIGGER SUPPORT INSTALLATION
PX1160020-00 ATTACHMENT PARTS, SWING BEARING
PX1180019-00 MOUNT,HOOK
PX1180082-00 MOUNT,HOOK (AUX.)
PX1220131-01 PUMP INSTALLATION
PX1260290-00 STEP (STEPLADDER)
PX1270017-00 WOOD BLOCK INSTALLATION
PX1290094-00 WEIGHT INSTALLATION
PX1810077-00 MOUNT,SUPPORT (SHIPMENT)
PY1030066-00 SINGLE TOP
PY1100114-00 HEATER SYSTEM (OPTION)
PY1120017-01 HEATER ASSY (DIESEL FUEL,MY30)
PY1120018-00 HEATER (BODY,MY30AFD2)
PY1120022-00 HEATER (PANEL KIT ASSY,CONTROL)
PY1120023-01 HEATER (HOLDER ASSY,FUEL PUMP)
PY1120024-00 HEATER (VALVE KIT ASSY,SOLENOID)
PY1200068-00 PIPING,COOLER (CAB)
PY1250001-00 SWITCH INSTALLATION (FAN)
PY1300002-04 COOLER,OIL (MOUNT)
PY1300003-00 COOLER,OIL
PY1360020-03 FAN INSTALLATION
PY1370008-01 EVAPORATOR ASSY
PY1380036-02 COMPRESSOR ASSY
PY1850011-01 COOLER,CAB

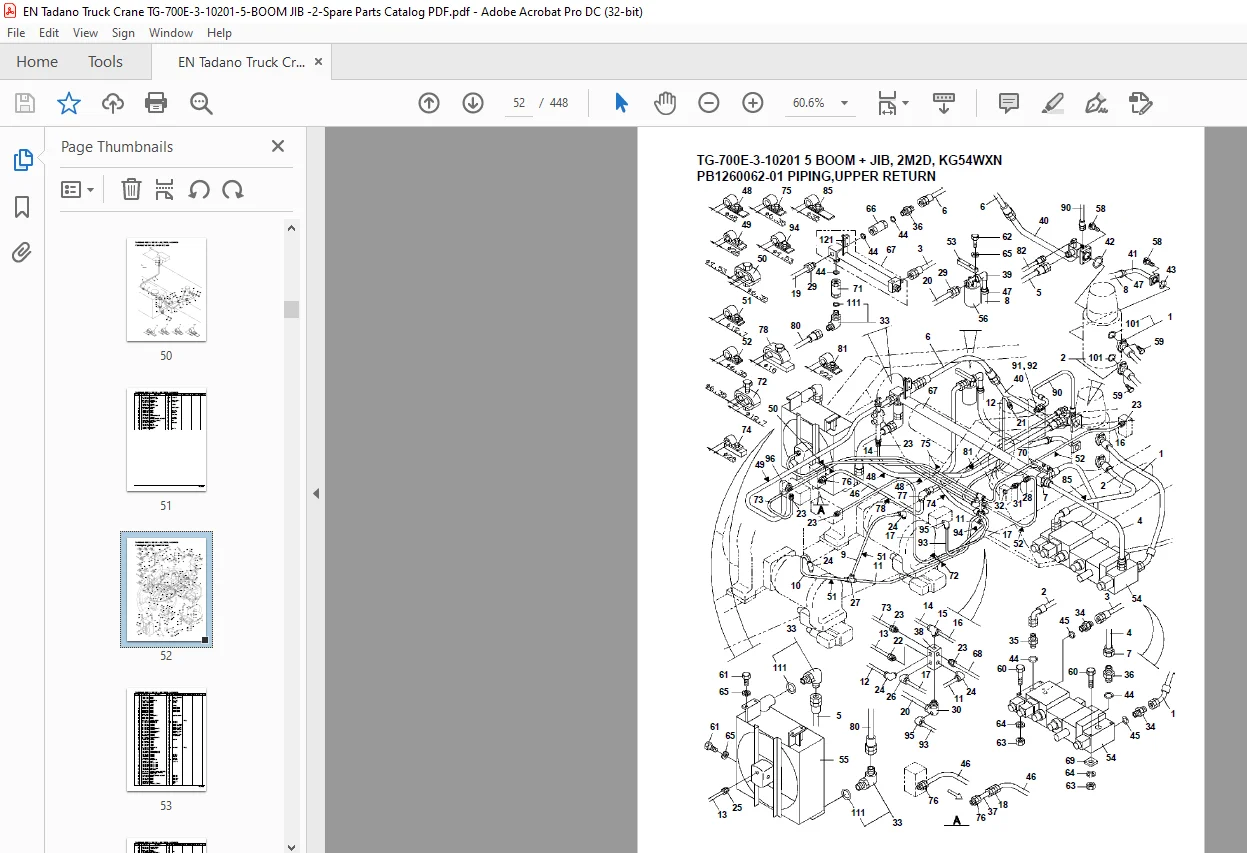

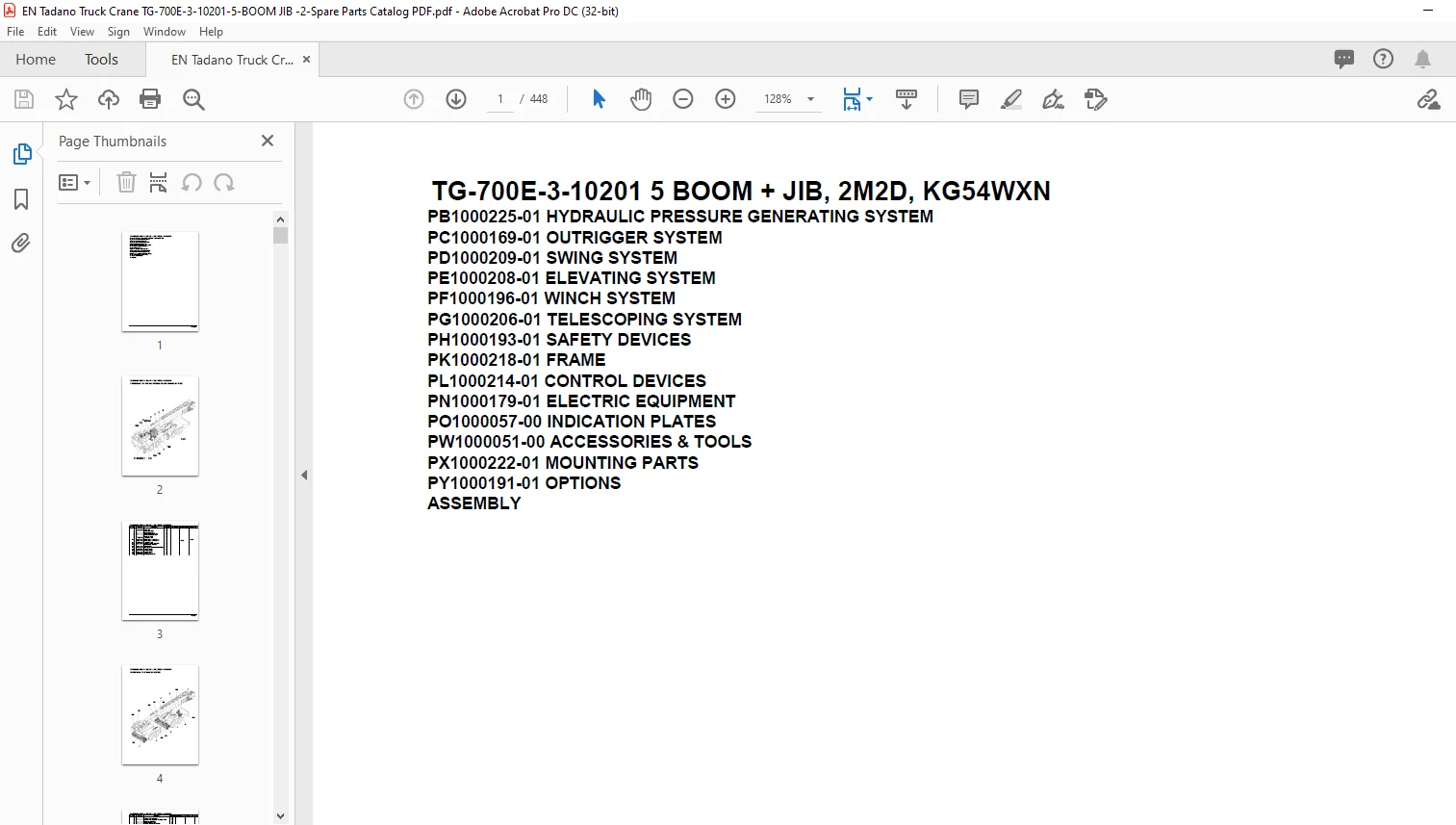

IMAGES PREVIEW OF THE MANUAL:
