Tadano Truck Crane TL-200E-2-20151 3 BOOM + JIB, 1M2D, K203LA Parts Manual

Description

Tadano Truck Crane TL-200E-2-20151 3 BOOM + JIB, 1M2D, K203LA Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Truck Crane TL-200E-2-20151 3 BOOM + JIB  1M2D, K203LA Parts Manual – PDF DOWNLOAD

Language : English
Pages :300
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Truck Crane TL-200E-2-20151 3 BOOM + JIB, 1M2D, K203LA Parts Manual – PDF DOWNLOAD

TL-200E-2-20151 3 BOOM + JIB, 1M2D, K203LA
000000
PB1000626-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000520-00 OUTRIGGER SYSTEM
PD1000538-00 SWING SYSTEM
PE1000543-00 ELEVATING SYSTEM
PF1000152-01 WINCH SYSTEM
PG1000155-01 TELESCOPING SYSTEM
PH1000530-00 SAFETY DEVICES
PK1000579-00 FRAME
PL1000569-00 CONTROL DEVICES
PN1000466-00 ELECTRIC EQUIPMENT
PO1000072-00 INDICATION PLATES
PW1000097-02 ACCESSORIES & TOOLS
PX1000759-00 MOUNTING PARTS
PY1000777-00 OPTIONS
ASSEMBLY

TL-200E-2-20151 3 BOOM + JIB, 1M2D, K203LA
000015
PB1070193-01 PROPELLER SHAFT,PUMP
PB1070240-00 PROPELLER SHAFT,PUMP
PB1100041-02 PUMP,HYDRAULIC
PB1130190-04 TANK,OIL
PB1200350-00 PIPING,SUCTION
PB1220017-00 PIPING,DELIVERY
PB1240021-00 PIPING,LOWER RETURN
PB1260360-01 PIPING,UPPER RETURN
PB1280010-00 PIPING,GAUGE (OPTION)
PB1300027-00 JOINT,ROTARY
PB1300274-00 JOINT,ROTARY
PB1320013-01 VALVE,MANUAL CONTROL (WITH F/J)
PB1320014-01 VALVE,MANUAL CONTROL
PB1320072-01 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1320606-00 VALVE,MANUAL CONTROL(WINCH:DETENT TO SP)
PB1910049-00 PIPING (GAUGE TEMPERATURE)
PC1010037-01 OUTRIGGER
PC1030005-03 CYLINDER,JACK
PC1050034-01 CYLINDER,EXTENSION
PC1100018-01 OPE.ASSY,OUTRIGGER (WITHOUT F/J)
PC1100220-01 OPE.ASSY,OUTRIGGER (WITH F/J)
PC1120300-02 OPERATON SYSTEM,OUTRIGGER ACCELERATOR
PC1200026-00 PIPING,OUTRIGGER (WITH F/J)
PC1200027-00 PIPING,OUTRIGGER (WITHOUT F/J)
PC1220007-00 PIPING,FRONT JACK
PC1250160-01 FRONT JACK INSTALLATION
PC1290003-05 FRONT JACK,HYDRAULIC
PD1030100-01 GEAR,DRIVE
PD1070130-01 DRIVING UNIT,SWING
PD1100130-00 OPERATION SYSTEM, SWING BRAKE
PD1200160-01 PIPING,SWING
PE1010371-00 CYLINDER,ELEVATING
PE1200071-01 PIPING,ELEVATING
PF1010120-00 WINCH
PF1030014-02 CLUTCH,WINCH
PF1050013-00 HOOK (MAIN)
PF1050090-01 HOOK (AUXILIARY)
PF1070032-00 ROPE,WIRE (TSK)
PF1070032-00 ROPE,WIRE (TSK)
PF1090016-03 SOCKET,ROPE
PF1110110-01 OPERATION SYSTEM, WINCH BRAKE
PF1120150-02 BAND,WINCH BRAKE
PF1140130-00 OPERATION SYSTEM, DRUM LOCK
PF1160100-00 OPERATION SYSTEM, CLUTCH
PF1200470-02 PIPING,WINCH
PF1220130-01 PIPING,WINCH BRAKE
PF1300003-00 VALVE,CLUTCH
PF1400370-02 MOUNT,WINCH
PG1010184-01 BOOM
PG1040177-00 JIB
PG1050421-02 CYLINDER,TELESCOPING
PG1120016-02 DETECTOR SYSTEM, BOOM LENGTH
PG1130005-01 DETECTOR,BOOM LENGTH
PG1200101-01 PIPING,TELESCOPING
PG1360245-00 WIRE GUIDE
PH1060550-04 DETECTOR,OVER WIND (JIB&S/T)
PH1060560-01 DETECTOR,OVER WINDING (BOOM)
PH1070030-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070040-01 SWITCH,OVER WIND DETECTOR (JIB&S/T)
PH1100025-02 DETECTOR,OVER FRONT AREA
PH1180118-00 CONNECTION,MOMENT LIMITER SYSTEM
PH1200160-01 PIPING,VENT
PI1010014-01 MOTOR,HYDRAULIC
PI1030001-00 CYLINDER,MASTER
TL-200E-2-20151 3 BOOM + JIB, 1M2D, K203LA
000015
PI1030026-00 CYLINDER,MASTER
PI1030040-00 CYLINDER,MASTER
PI1050001-00 RESERVOIR,OIL
PI1060002-00 CYLINDER,BRAKE
PI1070010-01 CYLINDER,CONTROL
PI1120041-01 VALVE,SOLENOID
PI1120220-01 VALVE,SOLENOID
PI1140020-00 VALVE,CHECK
PI1140062-01 VALVE,CHECK
PI1140070-00 VALVE,CHECK
PI1140210-00 VALVE,CHECK
PI1160012-00 VALVE,FLOW CONTROL
PI1170000-00 VALVE,PRESSURE DETECTOR
PI1250005-01 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1280002-00 VALVE,PILOT CHECK
PI1280100-00 VALVE,PILOT CHECK
PI1300003-00 FILTER,OIL
PI1300012-03 FILTER,OIL (TANK,OIL)
PI1300080-00 FILTER,OIL
PI1300120-02 FILTER,OIL
PI1340060-01 ACCUMULATOR
PI1420001-01 GAUGE,PRESSURE
PI1420002-00 GAUGE,PRESSURE
PK1100120-01 SWING FRAME
PK1120022-00 SWING TABLE
PK1140090-03 CAB,OPERATOR’S
PK1150023-00 SEAT,OPERATOR
PK1200005-03 COVER,SWING FRAME
PK1220061-00 WEIGHT,COUNTER BALANCE
PL1010550-00 OPERATION SYSTEM, CONTROL VALVE
PL1030047-02 OPERATION SYSTEM, ACCELERATOR
PN1010426-01 ELECTRICAL ACCESSORIES
PN1050016-04 ELECTRICAL PARTS,CAB(ENGLISH&CHINESE)
PN1050030-02 ELECTRICAL PARTS,CAB
PN1060024-00 SWITCH PANEL (FRONT JACK SWITCH)
PO1010091-00 PLATE ASSY,NAME (WITH F/J. ENGLISH)
PO1010159-03 PLATE ASSY,NAME (OIL)
PO1010501-00 PLATE ASSY,NAME (WITHOUT F/J)
PO1010976-00 PLATE ASSY,NAME (FOR HEATER ENG&CHI)
PO1011100-01 PLATE ASSY,NAME (WITHOUT F/J.ENG&CHI)
PO1011973-00 PLATE ASSY,NAME (WITH F/J)
PW1010196-01 ACCESSORIES
PW1030058-00 TOOLS
PX1100130-00 TANK SUPPORT INSTALLATION
PX1120017-00 BOOM REST INSTALLATION
PX1140009-00 OUTRIGGER SUPPORT INSTLLATION
PX1160002-00 ATTACHMENT PARTS, SWING BEARING
PX1180086-00 MOUNT,HOOK (MAIN)
PX1180351-00 MOUNT,HOOK (AUX.)
PX1220350-00 PUMP INSTALLATION
PX1250009-00 COVER INSTALLATION
PX1250011-00 COVER INSTALLATION
PX1260017-00 STEP INSTALLATION
PX1810213-00 MOUNT,SUPPORT (SHIPMENT)
PY1030170-01 SINGLE TOP
PY1100190-03 HEATER SYSTEM
PY1120006-01 HEATER (M22H)
PY1200150-01 PIPING,COLLER
PY1300010-02 COOLER,OIL
PY1360004-00 FAN INSTALLATION

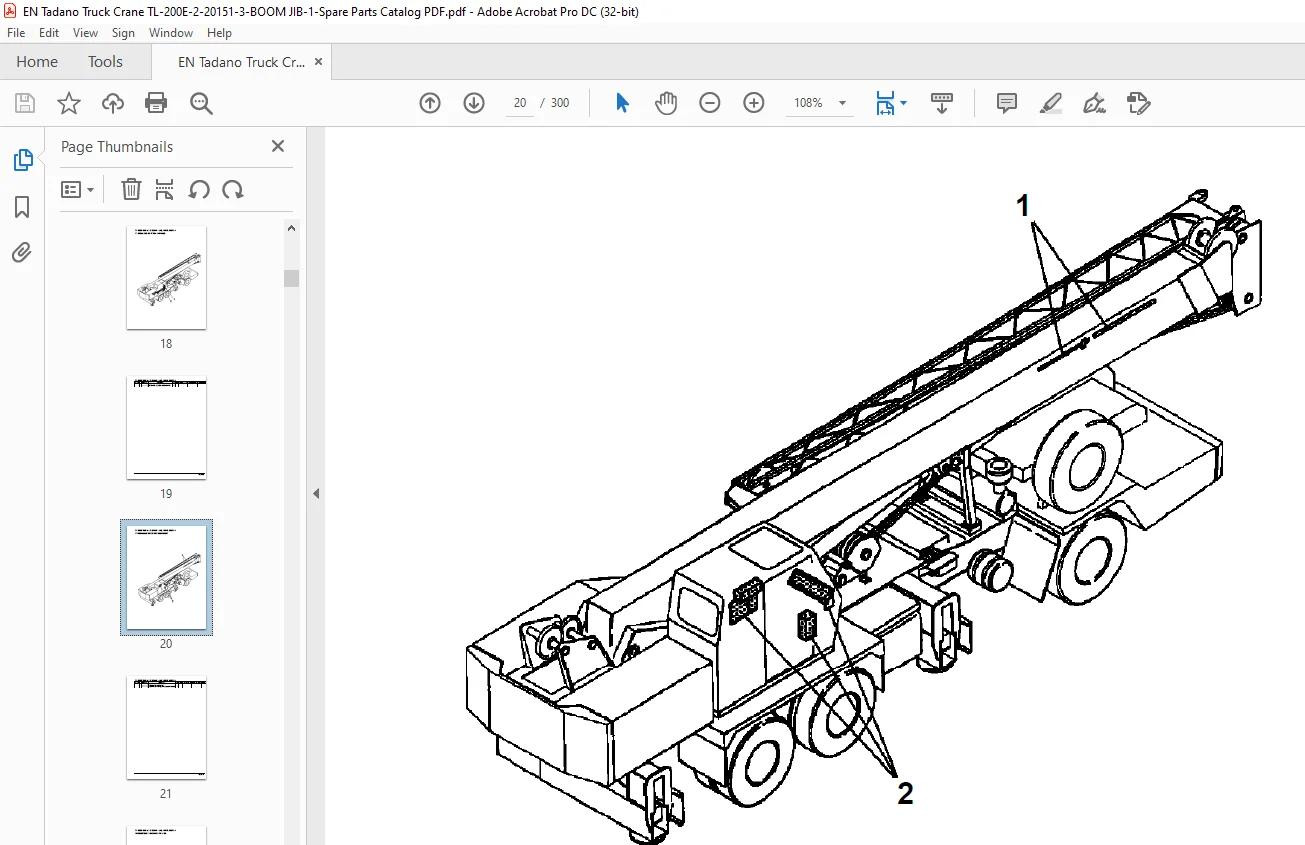

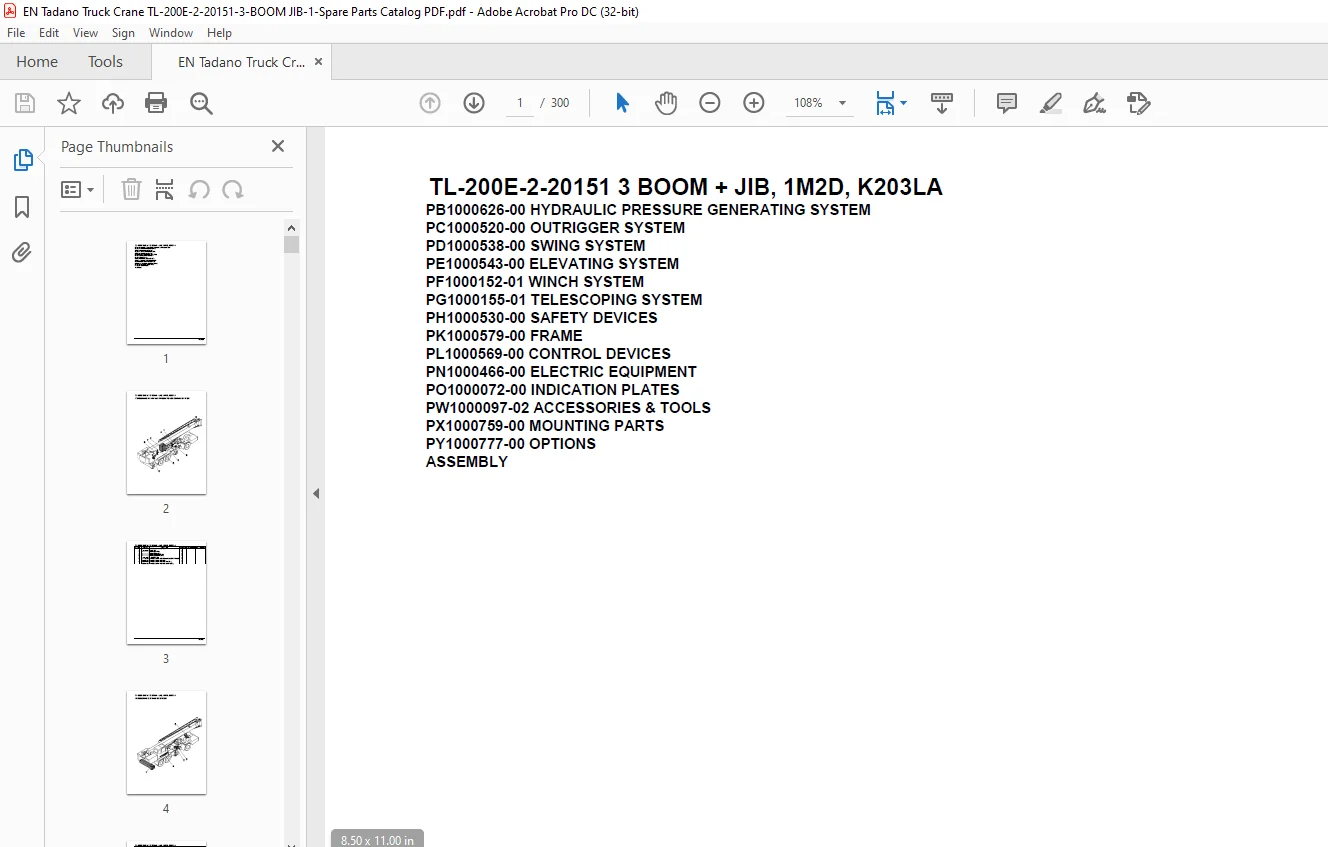

IMAGES PREVIEW OF THE MANUAL:
