Tadano Truck Crane TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN Parts Manual

Description

Tadano Truck Crane TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Truck Crane TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN Parts Manual – PDF DOWNLOAD

Language : English
Pages :317
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Tadano Truck Crane TL-300E-2-10301 4 BOOM + JIB  2M2D  KG45SXN Parts Manual – PDF DOWNLOAD

TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN
000000
PB1000076-00 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000064-00 OUTRIGGER SYSTEM
PD1000075-00 SWING SYSTEM
PE1000071-00 ELEVATING SYSTEM
PF1000067-01 WINCH SYSTEM
PG1000072-01 TELESCOPING SYSTEM
PH1000072-00 SAFETY DEVICES
PI1000075-01 HYDRAULIC DEVICES
PK1000075-00 FRAME
PL1000075-00 CONTROL DEVICES
PN1000072-01 ELECTRIC EQUIPMENT
PO1000097-00 INDICATION PLATES
PW1000064-00 ACCESSORIES & TOOLS
PX1000075-01 MOUNTING PARTS
PY1000063-00 OPTIONS
ASSEMBLY

TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN
000016
PB1070029-00 PROPELLER SHAFT,PUMP
PB1100041-02 PUMP,HYDRAULIC
PB1130251-04 TANK,OIL
PB1200028-00 PIPING,SUCTION
PB1220029-00 PIPING,DELIVERY
PB1240026-00 PIPING,LOWER RETURN
PB1260351-01 PIPING,UPPER RETURN
PB1280010-00 PIPING,GAUGE (OPTION)
PB1300027-00 JOINT,ROTARY
PB1300274-00 JOINT,ROTARY
PB1320013-01 VALVE,MANUAL CONTROL (WITH F/J)
PB1320077-00 VALVE,MANUAL CONTROL
PB1320151-00 VALVE,MANUAL CONTROL
PC1010341-00 OUTRIGGER (FOR CHINA)
PC1030005-03 CYLINDER,JACK
PC1050162-01 CYLINDER,EXTENSION
PC1100027-00 OPE.ASSY,OUTRIGGER (WITHOUT F/J)
PC1100222-00 OPE.ASSY,OUTRIGGER (WITH F/J)
PC1120029-02 OPERATION SYSTEM, OUTRIGGER ACCELERATOR
PC1200045-00 PIPING,OUTRIGGER (WITHOUT F/J)
PC1200225-00 PIPING,OUTRIGGER (WITH F/J)
PC1220101-00 PIPING,FRONT JACK
PC1250170-03 FRONT JACK INSTALLATION
PC1290003-05 FRONT JACK,HYDRAULIC
PD1030010-01 GEAR,DRIVE
PD1070090-02 DRIVING UNIT,SWING
PD1100032-00 OPERATION SYSTEM,SWING BRAKE
PD1200006-00 PIPING,SWING
PE1010363-05 CYLINDER,ELEVATING
PE1200070-00 PIPING,ELEVATING
PF1010002-00 WINCH
PF1010002-00 WINCH
PF1030014-02 CLUTCH,WINCH
PF1050180-01 HOOK (AUXILIARY)
PF1050310-00 HOOK (MAIN)
PF1070005-00 ROPE,WIRE
PF1070005-00 ROPE,WIRE
PF1070032-00 ROPE,WIRE (TSK)
PF1090016-03 SOCKET,ROPE
PF1110110-01 OPERATION SYSTEM, WINCH BRAKE
PF1120150-02 BAND,WINCH BRAKE
PF1140131-00 OPERATION SYSTEM, DRUM LOCK
PF1160014-00 OPERATION SYSTEM, CLUTCH
PF1200432-01 PIPING,WINTCH
PF1220131-00 PIPING,WINTCH BRAKE
PF1300001-00 VALVE,CLUTCH
PF1320002-01 JOINT,WINCH ROTARY
PF1320005-00 JOINT,WINCH ROTARY
PF1320012-01 JOINT,WINCH ROTARY
PF1400351-01 MOUNT,WINCH (2M2D)
PG1010039-03 BOOM
PG1040352-04 JIB
PG1050412-03 CYLINDER,TELESCOPING
PG1070028-01 REEL,HOSE
PG1070270-01 REEL,HOSE
PG1070301-00 REEL,HOSE
PG1120231-00 DETECTOR SYSTEM, BOOM LENGTH
PG1130050-02 DETECTOR,BOOM LENGTH (NICHIDEN)
PG1200272-01 PIPING,TELESCOPING
PG1360135-00 GUIDE,WIRE
PH1060330-02 DETECTOR,OVER WINDING (BOOM)
PH1060550-04 DETECTOR,OVER WIND (JIB&S/T)
PH1070030-00 SWITCH,OVER WIND DETECTOR (BOOM)
PH1070040-01 SWITCH,OVER WIND DETECTOR (JIB&S/T)
TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN
000016
PH1100025-02 DETECTOR,OVER FRONT AREA
PH1180210-03 CONNECTION,MOMENT LIMITER SYSTEM
PH1200002-01 PIPING,VENT
PH1250052-02 MOMENT LIMITER (AML K-K4)
PI1010014-01 MOTOR,HYDRAULIC
PI1030001-00 CYLINDER,MASTER
PI1030026-00 CYLINDER,MASTER
PI1050001-00 RESERVOIR,OIL
PI1060002-00 CYLINDER,BRAKE
PI1070010-01 CYLINDER,CONTROL
PI1120041-01 VALVE,SOLENOID
PI1120220-01 VALVE,SOLENOID
PI1130029-00 VALVE,HYDRAULIC
PI1140062-01 VALVE,CHECK
PI1140210-00 VALVE,CHECK
PI1170000-00 VALVE,PRESSURE DETECTOR
PI1230000-00 VALVE,SHUTTLE
PI1250005-01 VALVE,COUNTERBALANCE
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1280002-00 VALVE,PILOT CHECK
PI1280100-00 VALVE,PILOT CHECK
PI1300003-00 FILTER,OIL
PI1300080-00 FILTER,OIL
PI1300120-02 FILTER,OIL
PI1340060-01 ACCUMULATOR
PI1420001-01 GAUGE,PRESSURE
PI1420002-00 GAUGE,PRESSURE
PK1100028-00 SWING FRAME
PK1120035-00 SWING TABLE
PK1140090-03 CAB,OPERATOR’S
PK1150023-00 SEAT,OPERATOR
PK1200030-00 COVER,SWING FRAME
PK1220022-00 WEIGHT, COUNTERBALANCE
PL1010393-00 OPERATION SYSTEM, CONTROL VALVE
PL1030047-02 OPERATION SYSTEM, ACCELERATOR
PN1010094-00 ELECTRICAL ACCESSORIES
PN1050026-01 ELECTRICAL PARTS,CAB(ENGLISH&CHINESE)
PN1050026-01 ELECTRICAL PARTS,CAB(ENGLISH&CHINESE)
PN1060024-00 SWITCH PANEL (FRONT JACK SWITCH)
PN1400011-00 WIRING,MATERIALS
PO1010159-03 PLATE ASSY,NAME (OIL)
PO1010215-00 PLATE ASSY,NAME (WITHOUT F/J ENGLISH)
PO1010216-00 PLATE ASSY,NAME (WITH F/J ENGLISH)
PO1010976-00 PLATE ASSY,NAME (FOR HEATER ENG&CHI)
PO1011441-00 PLATE ASSY,NAME (WITH F/J)
PO1011442-00 PLATE ASSY,NAME (WITHOUT F/J)
PR5060014-00 REEL ASSY,HOSE
PW1010196-01 ACCESSORIES
PW1030032-01 TOOLS
PX1100090-00 TANK SUPPORT INSTALLATION
PX1120028-00 BOOM REST INSTALLATION
PX1140006-00 OUTRIGGER SUPPORT INSTALLATION
PX1160008-00 ATTACHMENT PARTS, SWING BEARING
PX1180361-00 MOUNT,HOOK (AUX.)
PX1180362-00 MOUNT,HOOK (MAIN)
PX1220120-00 PUMP INSTALLATION
PX1250003-00 COVER (OUTRIGGER)
PX1250003-00 COVER (OUTRIGGER)
PX1250016-00 COVER INSTALLATION
PX1260002-00 STEP INSTALLATION
PY1030131-01 SINGLE TOP
PY1100006-02 HEATER SYSTEM
PY1120002-02 HEATER (22HK)
PY1120006-01 HEATER (M22H)
TL-300E-2-10301 4 BOOM + JIB, 2M2D, KG45SXN
000016
PY1360004-00 FAN INSTALLATION

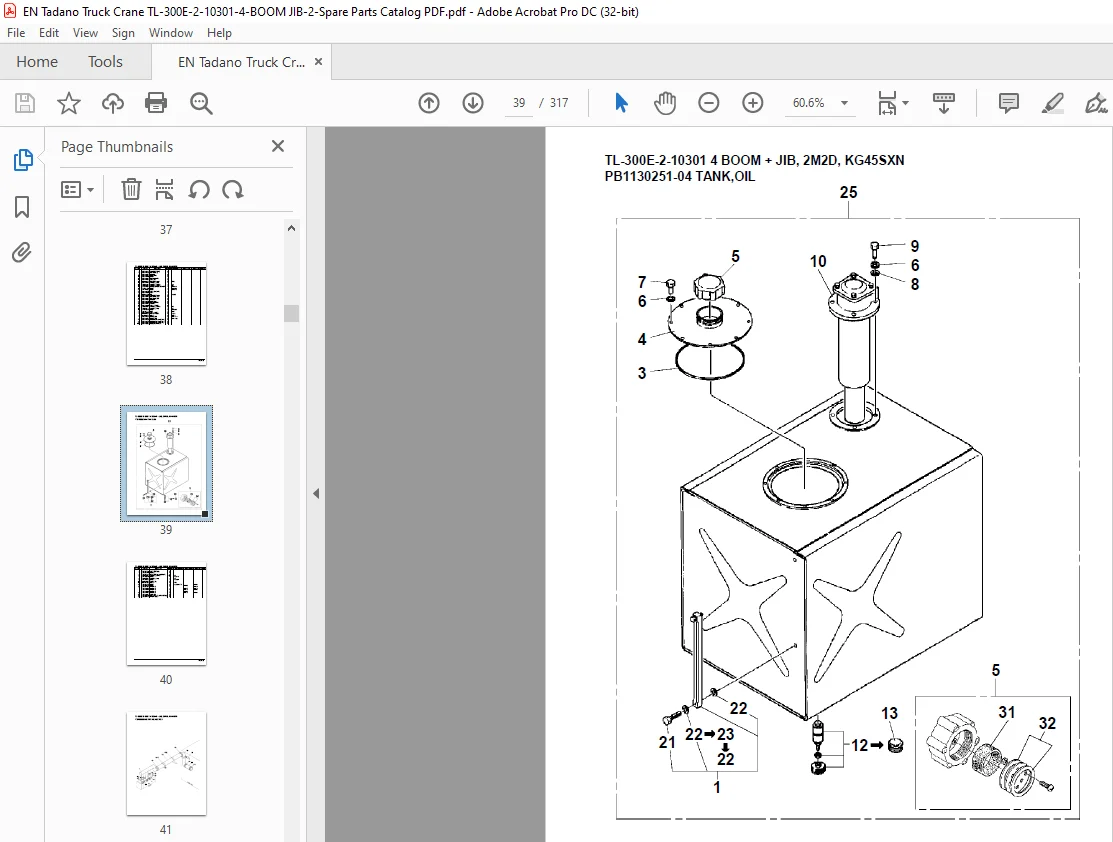

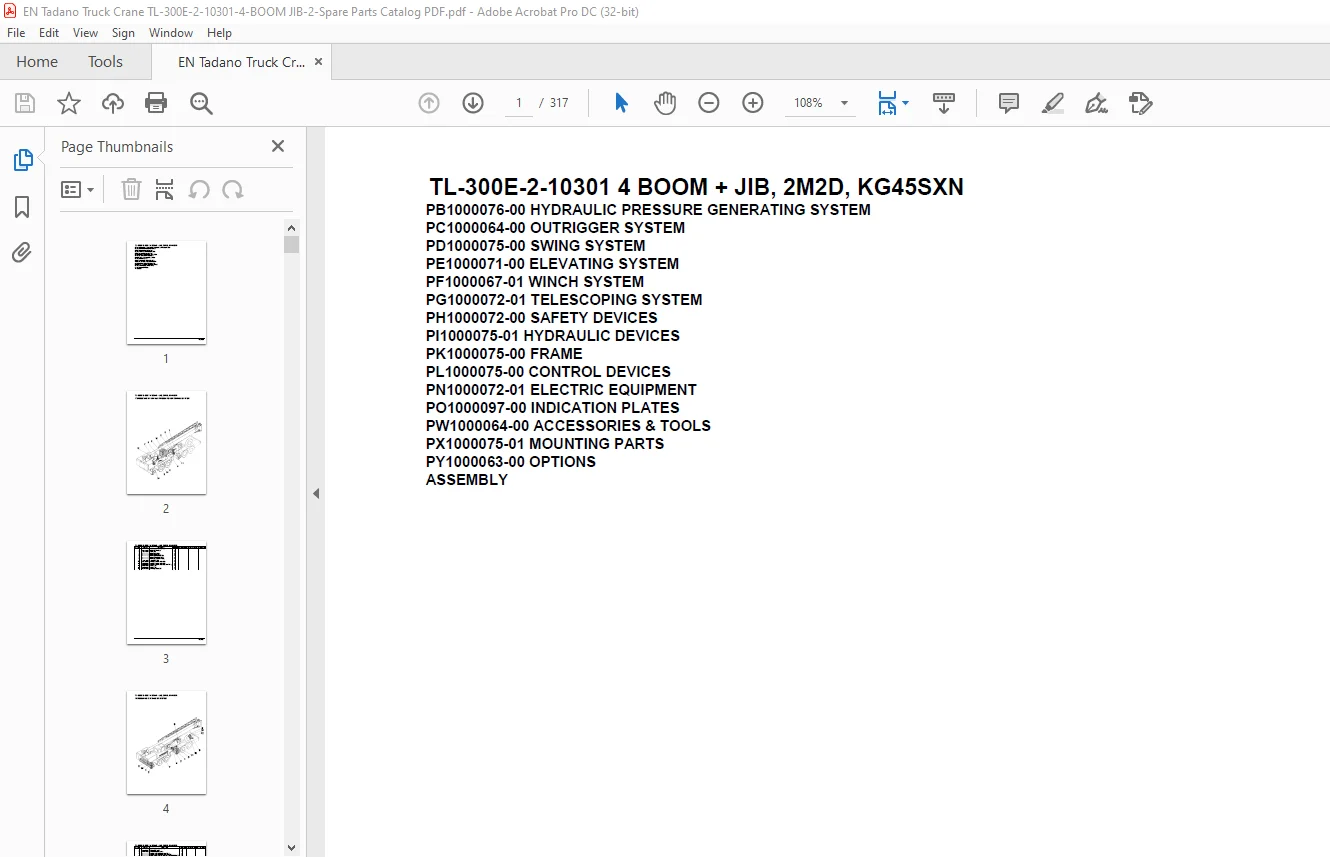

IMAGES PREVIEW OF THE MANUAL:
