Tadano Truck Crane TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN Parts Manual

Description

Tadano Truck Crane TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Tadano Truck Crane TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN Parts Manual – PDF DOWNLOAD

Language : English
Pages :481
Downloadable : Yes
File Type : PDF

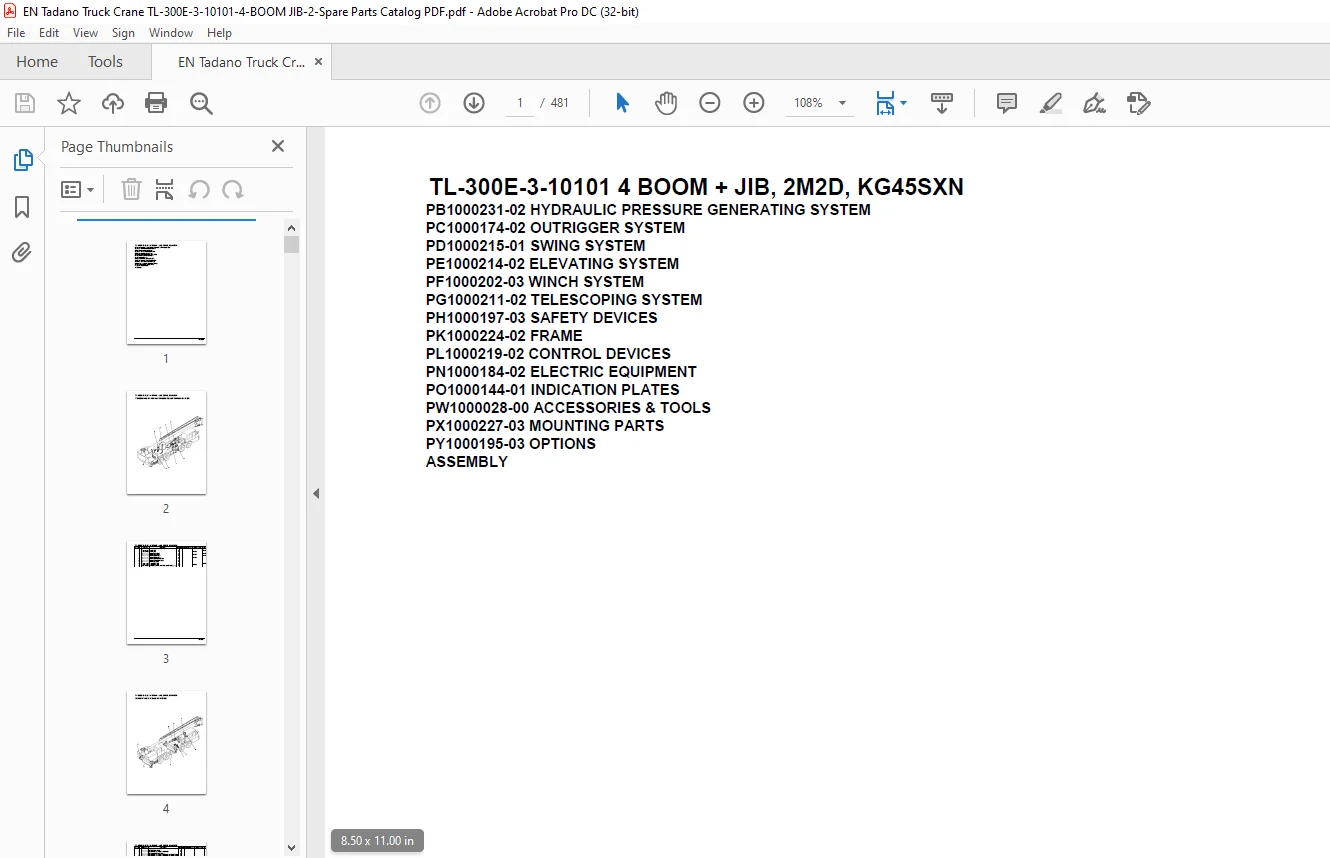

TABLE OF CONTENTS:

Tadano Truck Crane TL-300E-3-10101 4 BOOM + JIB  2M2D  KG45SXN Parts Manual – PDF DOWNLOAD

TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN
000000
PB1000231-02 HYDRAULIC PRESSURE GENERATING SYSTEM
PC1000174-02 OUTRIGGER SYSTEM
PD1000215-01 SWING SYSTEM
PE1000214-02 ELEVATING SYSTEM
PF1000202-03 WINCH SYSTEM
PG1000211-02 TELESCOPING SYSTEM
PH1000197-03 SAFETY DEVICES
PK1000224-02 FRAME
PL1000219-02 CONTROL DEVICES
PN1000184-02 ELECTRIC EQUIPMENT
PO1000144-01 INDICATION PLATES
PW1000028-00 ACCESSORIES & TOOLS
PX1000227-03 MOUNTING PARTS
PY1000195-03 OPTIONS
ASSEMBLY

TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN
000015
PB1070017-02 PROPELLER SHAFT,PUMP
PB1070023-02 PROPELLER SHAFT,PUMP
PB1070196-01 PROPELLER SHAFT,PUMP
PB1100042-00 PUMP,HYDRAULIC
PB1100062-02 PUMP,HYDRAULIC
PB1110002-00 PUMP INSTALLATION
PB1130043-04 TANK,OIL
PB1130193-01 TANK,OIL
PB1200045-00 PIPING,SUCTION
PB1200145-00 PIPING,SUCTION
PB1220102-00 PIPING,DELIVERY
PB1220164-00 PIPING,DELIVERY
PB1240088-01 PIPING,LOWER RETURN
PB1260037-03 PIPING,UPPER RETURN
PB1280035-02 PIPING,GAUGE
PB1300062-02 JOINT,ROTARY
PB1300062-02 JOINT,ROTARY
PB1310000-01 BRUSH,ROTARY JOINT
PB1310030-00 BRUSH,ROTARY JOINT
PB1320103-06 VALVE,MANUAL CONTROL
PB1320154-02 VALVE,MANUAL CONTROL (OUTRIGGER,F/J)
PB1320639-01 VALVE,MANUAL CONTROL (SWING)
PC1010086-02 OUTRIGGER (FRONT)
PC1011281-00 OUTRIGGER (REAR)
PC1030389-01 CYLINDER,JACK
PC1030389-01 CYLINDER,JACK
PC1050037-02 CYLINDER,EXTENSION
PC1050166-03 CYLINDER,EXTENSION
PC1100049-01 OPERATION SYSTEM, OUTRIGGER
PC1100050-00 OPE.ASSY,OUTRIGGER (F/J)
PC1120069-02 OPERATION SYSTEM, OUTRIGGER ACCELERATOR
PC1120099-01 OPERATION SYSTEM, OUTRIGGER ACCELERATOR
PC1200176-01 PIPING,OUTRIGGER
PC1220063-01 PIPING,FRONT JACK
PC1250170-03 FRONT JACK INSTALLATION
PC1290003-05 FRONT JACK,HYDRAULIC
PD1030019-01 GEAR,DRIVE
PD1030060-00 GEAR,DRIVE
PD1070006-01 DRIVING UNIT,SWING
PD1070021-02 DRIVING UNIT,SWING
PD1100017-04 OPE.ASSY,SWING BRAKE
PD1100041-04 OPE.ASSY,SWING BRAKE
PD1200027-05 PIPING,SWING
PD1200089-03 PIPING,SWING
PD5080058-00 DETECTOR ASSY,LENGTH
PE1010081-00 CYLINDER,ELEVATING (MOUNT)
PE1010363-05 CYLINDER,ELEVATING
PE1200032-01 PIPING,ELEVATING
PF1010021-01 WINCH
PF1030014-02 CLUTCH,WINCH
PF1050088-00 HOOK (SHEAVE 5 PC’S)
PF1050333-00 HOOK (AUXILIARY)
PF1070031-00 ROPE,WIRE (TESAC)
PF1070031-00 ROPE,WIRE (TESAC)
PF1070032-00 ROPE,WIRE (TSK)
PF1070032-00 ROPE,WIRE (TSK)
PF1090006-01 SOCKET,ROPE
PF1110025-04 OPE.ASSY, WINCH BRAKE (MAIN)
PF1110026-03 OPE.ASSY, WINCH BRAKE (AUX.)
PF1120006-04 BAND,WINCH BRAKE
PF1140016-02 OPE.ASSY,DRUM LOCK (MAIN)
PF1140017-01 OPE.ASSY,DRUM LODK (AUX.)
PF1160021-04 OPE.ASSY,CLUTCH (MAIN)
PF1160023-03 OPE.ASSY,CLUTCH (AUX.)
TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN
000015
PF1180014-02 DETECTOR,DISORDERLY WIND (MAIN,OPTION)
PF1180015-01 DETECTOR,DISORDERLY WIND (AUX.,OPTION)
PF1200136-05 PIPING,WINCH (MAIN,FOR SANWA MOTOR)
PF1200137-03 PIPING,WINCH (AUX.,FOR SANWA MOTOR)
PF1220030-02 PIPING,WINCH BRAKE (MAIN)
PF1220092-01 PIPING,WINCH BRAKE (AUX.)
PF1250016-02 DETECTOR,DRUM ROTATION (AML-M,OPTION)
PF1300006-00 VALVE,CLUTCH
PF1320005-00 JOINT,WINCH ROTARY
PF1400061-04 MOUNT,WINCH (AUX.,SANWA)
PF1400304-00 MOUNT,WINCH (MAIN)
PG1010145-06 BOOM
PG1040063-01 JIB
PG1050082-03 CYLINDER,TELESCOPING
PG1070028-01 REEL,HOSE
PG1070034-02 REEL,HOSE (MOUNT)
PG1120028-02 DETECTOR SYSTEM, BOOM LENGTH
PG1120085-02 DETECTOR SYSTEM, BOOM LENGTH
PG1130050-02 DETECTOR,BOOM LENGTH (NICHIDEN)
PG1130054-00 DETECTOR,BOOM LENGTH (WITH ANGLE DETECT)
PG1130079-00 DETECTOR,BOOM LENGTH
PG1130107-00 DETECTOR,BOOM LENGTH (WITH ANGLE DETECT)
PG1160000-03 DETECTOR,BOOM RETRACTION (TOP)
PG1200039-05 PIPING,TELESCOPING
PG1360112-01 WIRE GUIDE (BOOM)
PH1060073-02 DETECTOR,OVER WINDING (BOOM)
PH1060077-00 DETECTOR,OVER WINDING (JIB&S/T)
PH1070001-02 SWITCH,OVER WIND DETECTOR (BOOM)
PH1170011-00 DETECTOR,CONTROL VALVE ACTUATION
PH1180083-01 CONNECTION,MOMENT LIMITER SYSTEM
PH1180135-01 CONNECTION,MOMENT LIMITER SYSTEM
PH1200018-02 PIPING,VENT
PH1200035-00 PIPING,VENT (MODIFICATION)
PH1250008-01 MOMENT LIMITER (AML-M1)
PI1010034-03 MOTOR,HYDRAULIC (SANWA)
PI1010111-00 MOTOR,HYDRAULIC (SANWA)
PI1010121-01 MOTOR,HYDRAULIC (SWING)
PI1010124-00 MOTOR,HYDRAULIC (COOLER,OIL)
PI1030007-01 CYLINDER,MASTER (MIYAKO)
PI1030008-01 CYLINDER,MASTER
PI1030008-01 CYLINDER,MASTER
PI1030011-00 CYLINDER,MASTER
PI1030012-00 CYLINDER,MASTER (NABCO)
PI1030040-00 CYLINDER,MASTER
PI1040011-00 CYLINDER,AIR
PI1050002-00 RESERVOIR,OIL
PI1120085-02 VALVE,SOLENOID
PI1120086-02 VALVE,SOLENOID
PI1120353-00 VALVE,SOLENOID
PI1130005-01 VALVE,HYDRAULIC
PI1130029-00 VALVE,HYDRAULIC
PI1140007-01 VALVE,CHECK
PI1140042-00 VALVE,CHECK
PI1140047-00 VALVE,CHECK
PI1140229-00 VALVE,CHECK
PI1160007-00 VALVE,FLOW CONTROL
PI1170000-00 VALVE,PRESSURE DETECTOR
PI1250066-00 VALVE,COUNTERBALANCE (SANWA)
PI1260011-02 CARTRIDGE, COUNTERBALANCE
PI1280002-00 VALVE,PILOT CHECK
PI1300012-03 FILTER,OIL (TANK,OIL)
PI1300080-00 FILTER,OIL
PI1300120-02 FILTER,OIL
PI1340011-01 ACCUMULATOR
TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN
000015
PI1420001-01 GAUGE,PRESSURE
PI1420002-00 GAUGE,PRESSURE
PK1100067-02 SWING FRAME
PK1120072-02 SWING TABLE
PK1140071-03 CAB,OPERATOR
PK1150000-00 SEAT,OPERATOR
PK1150021-00 SEAT,OPERATOR
PK1150030-00 SEAT,OPERATOR (WOOCHNG)
PK1200066-03 COVER,SWING FRAME
PK1220078-00 WEIGHT, COUNTERBALANCE
PK1220179-00 WEIGHT, COUNTERBALANCE (FOR HONGKONG)
PK1330001-00 COVER (WITHOUT RADIO)
PK1330002-01 COVER (WITHOUT HEATER,OP.)
PK1330047-00 COVER (WITHOUT HEATER,OP.)
PK1410025-01 MOUNT,CAB
PL1010134-06 OPE.ASSY,CONT.VALVE (TDN)
PL1010136-02 OPE.ASSY,CONT.VALVE (PEDAL)
PL1010394-01 OPE.ASSY,CONT.VALVE (TDN,AUX.WINCH)
PL1010395-02 OPE.ASSY,CONT.VALVE (ISO,AUX.WINCH)
PL1010712-04 OPE.ASSY,CONT.VALVE (ISO)
PL1010712-04 OPE.ASSY,CONT.VALVE (ISO)
PL1030104-05 OPE.ASSY,ACCELERATOR (UPPER)
PN1050049-03 ELECTRICAL PARTS,CAB
PN1060013-04 SWITCH PANEL (OPERATION)
PN1080000-00 LAMP (WORKING)
PN1140084-00 SWITCH,DETECTOR (F/J)
PN1400011-00 WIRING,MATERIALS
PO1010159-03 PLATE ASSY,NAME (OIL)
PO1010832-00 PLATE ASSY,NAME (OPTION,HEATER/ENGLISH)
PO1010873-00 PLATE ASSY,NAME (ISO ARRANGEMENT)
PO1010873-00 PLATE ASSY,NAME (ISO ARRANGEMENT)
PO1011024-01 PLATE ASSY,NAME (UPPER 1)
PO1011026-00 PLATE ASSY,NAME (UPPER 2)
PO1011027-00 PLATE ASSY,NAME (LOWER,ENG.)
PO1011031-00 PLATE ASSY,NAME (OP.HEATER/ENG.& CHI)
PO1012513-00 PLATE ASSY,NAME (OPTION,HEATER/ENGLISH)
PO1012514-00 PLATE ASSY,NAME (OP.,HEATER/ENG & CHI)
PO1012999-00 PLATE ASSY,NAME (SHIPMENT)
PO1030008-00 TADANO (CAB,BLUE/BLACK)
PO1030009-00 TADANO (CAB,WHITE/WHITE)
PO1030010-00 TADANO (CAB,BLUE/WHITE)
PO1050042-00 MARKING (BOOM)
PR5060014-00 REEL ASSY,HOSE
PW1010174-00 ACCESSORIES (AML SPARE FUSE)
PW1010196-01 ACCESSORIES
PW1030032-01 TOOLS
PW5110008-00 WEDGE
PX1030214-00 FENDER
PX1100053-01 TANK SUPPORT INSTALLATION
PX1120155-00 BOOM REST INSTALLATION
PX1140023-01 OUTRIGGER SUPPORT INSTALLATION
PX1160015-02 ATTACHMENT PARTS, SWING BEARING
PX1180065-00 MOUNT,HOOK (MAIN)
PX1180140-00 MOUNT,HOOK (AUX.)
PX1180351-00 MOUNT,HOOK (AUX.)
PX1220346-00 PUMP INSTALLATION
PX1250003-00 COVER (OUTRIGGER)
PX1260024-00 STEP INSTALLATION
PX1270032-00 WOOD BLOCK INSTALLATION
PX1810012-00 MOUNT,SUPPORT (SHIPMENT)
PX1810061-00 MOUNT,SUPP0RT (SHIPMENT)
PY1030030-00 SINGLE TOP
PY1100060-01 HEATER SYSTEM (DIESEL FUEL)
PY1100109-01 HEATER SYSTEM (DIESEL FUEL)
TL-300E-3-10101 4 BOOM + JIB, 2M2D, KG45SXN
000015
PY1120008-01 HEATER (DIESEL FUEL)
PY1120017-01 HEATER ASSY (DIESEL FUEL,MY30)
PY1120018-00 HEATER (BODY,MY30AFD2)
PY1120022-00 HEATER (PANEL KIT ASSY,CONTROL)
PY1120023-01 HEATER (HOLDER ASSY,FUEL PUMP)
PY1120024-00 HEATER (VALVE KIT ASSY,SOLENOID)
PY1200032-03 PIPING,COOLER
PY1250001-00 SWITCH INSTALLATION (FAN)
PY1300002-04 COOLER,OIL (MOUNT)
PY1300003-00 COOLER,OIL
PY1360020-03 FAN INSTALLATION
PY2320000-00 SUNVISOR (FOR CRANE CAB)

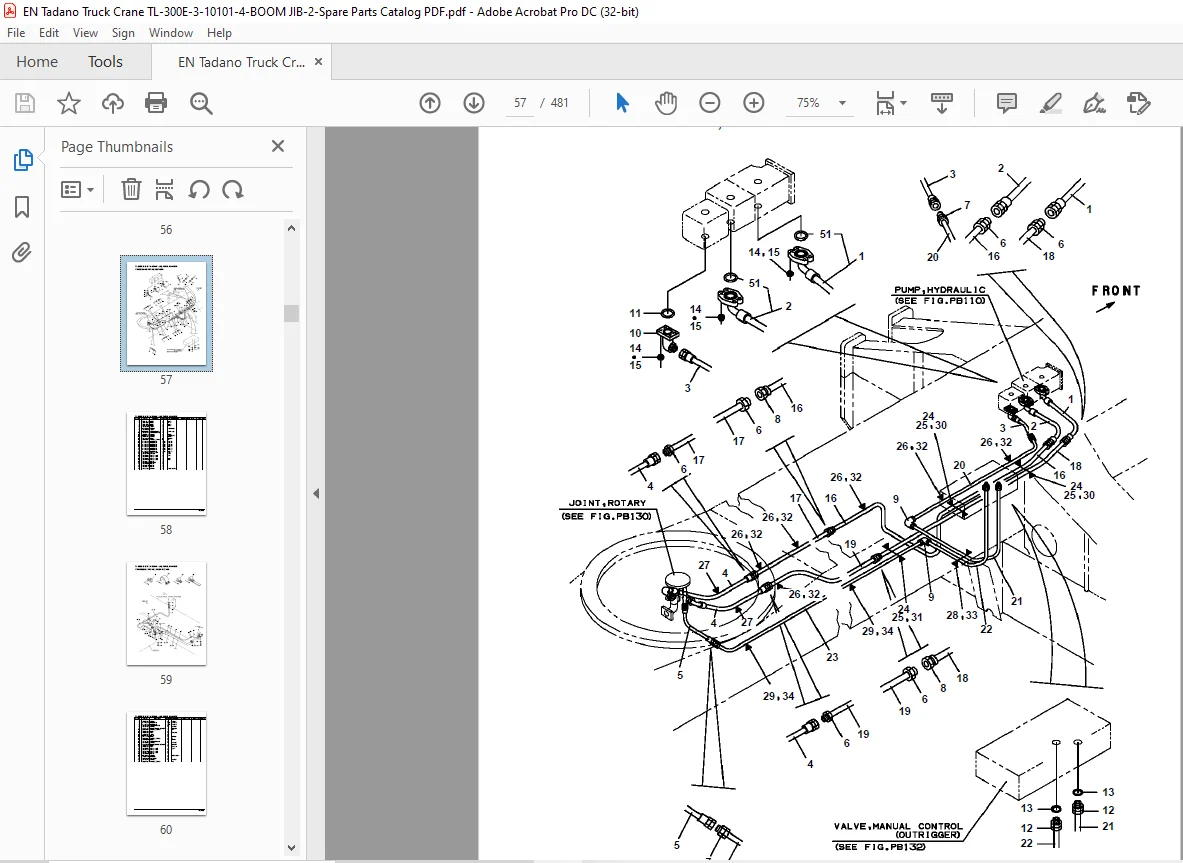

IMAGES PREVIEW OF THE MANUAL:
