Takeuchi TW50 Mini Loader Parts Manual – PDF DOWNLOAD

Description

Takeuchi TW50 Mini Loader Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Takeuchi TW50 Mini Loader Parts Manual – PDF DOWNLOAD

Language : English
Pages : 107
Downloadable : Yes
File Type : PDF

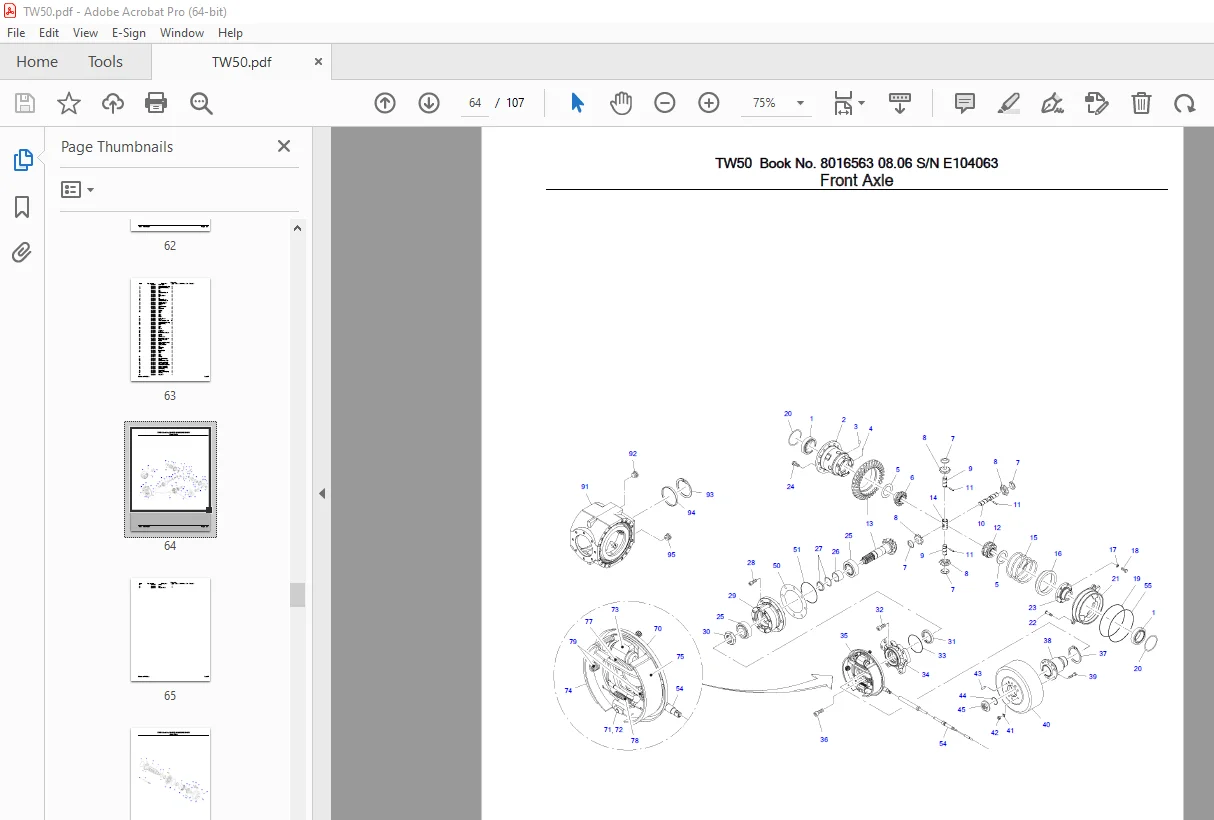

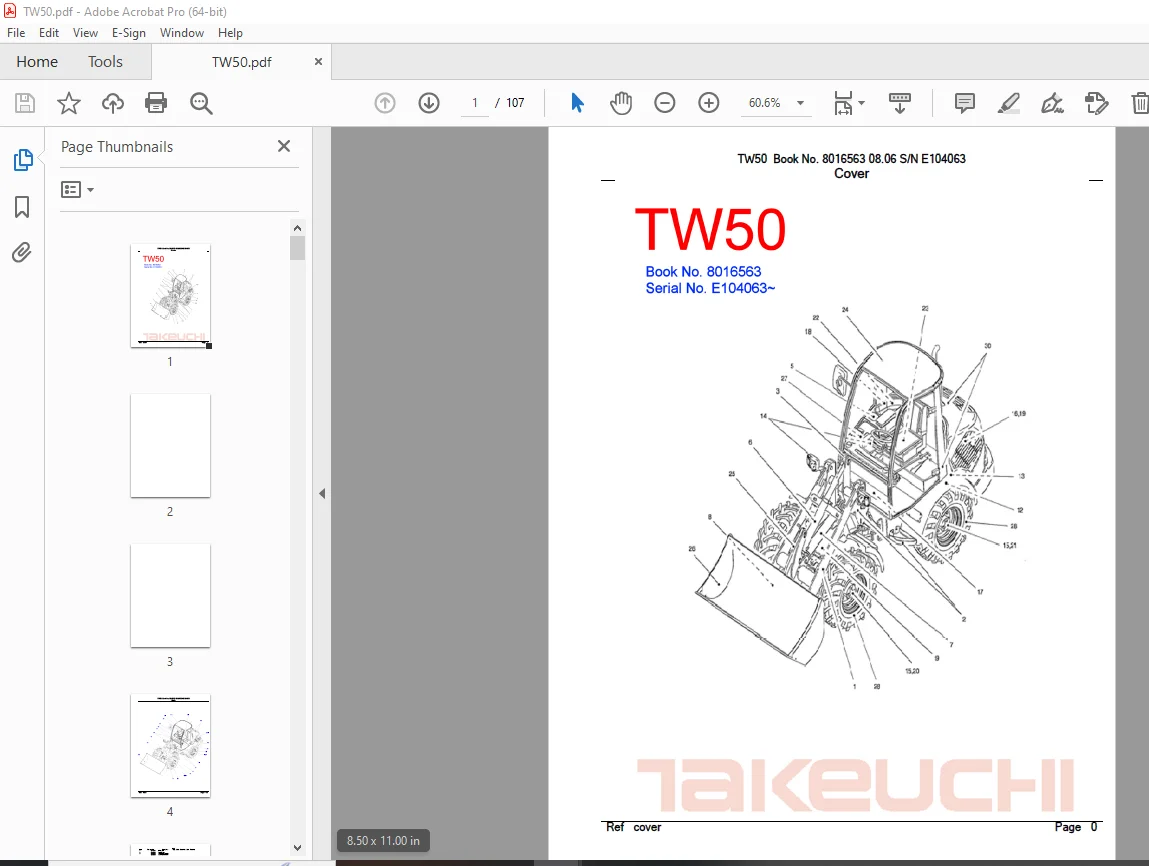

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Takeuchi TW50 Mini Loader Parts Manual – PDF DOWNLOAD

1 8017301 Lifting Unit
2 5820059 Base Frame
3 5820072 Steering Hydraulics
5820069 Working Hydraulics
8016949 Return Hydraulics
5820070 Driving Hydraulics
8016629 Hydraulic System QRC
8012416 Locking Device
5 5820138 Directional Valve
8002252 Brake Throttle Valve
6 3762245 Working Ram
7 8000638 Lifting Ram
9 3959515 Steering Ram
12 5820062 Hydraulic Tank Compl
13 5820066 Retrun Filter
14 5820074 Electric System
8016811 Electric System (Canopy)
8008597 Printed Circuit Compl
8012903 Working Headlights
15 5820056 Drive Set
16 8016801 Diesel Engine
8016950 Exhaust System
17 8014176 Foot Pedal Mechanism
18 8016941 Air Filter System
19 5820115 Oil Pressure Pump Compl
8019516 Oil Pressure Pump 12V
8019522 Oil Motor
20 5820057 Front Axle
8014145 Front Axle Pipe
21 5820058 Rear Axle
8014145 Rear Axle Pipe
8009421 Rear Axle Multiple
22 8019993 Fuel System
23 8013032 Driver’s Seat Compl
24 8016507 Cabin Canopy
8012821 FOPS-Grating Compl
8020364 Window Panes Kit
8013842 Cabin Door Compl
8015598 Hinged Rear Side Window
8014357 Covering Canopy
8015046 Protective Canopy
8014185 Steering Column Compl
25 8010455 Hyd Quick Release Eq
26 3705155 Pallet Fork Compl
27 8020453 Heating Kit
28 8016620 Decals & Accessories
8016643 Protective Hoses
8018800 Filter Set
30 5820078 Covering Compl
8016808 Engine Hood Compl
