Taylor-Dunn C4-32,C4-33,C4-38 Operation & Maintenance With Parts Manual PDF

Description

Taylor-Dunn C4-32,C4-33,C4-38 Operation & Maintenance With Parts Manual S.NO up to 76227 – PDF DOWNLOAD

FILE DETAILS:

Taylor-Dunn C4-32,C4-33,C4-38 Operation & Maintenance With Parts Manual S.NO up to 76227 – PDF DOWNLOAD

Language : English
Pages : 617
Downloadable : Yes
File Type : PDF

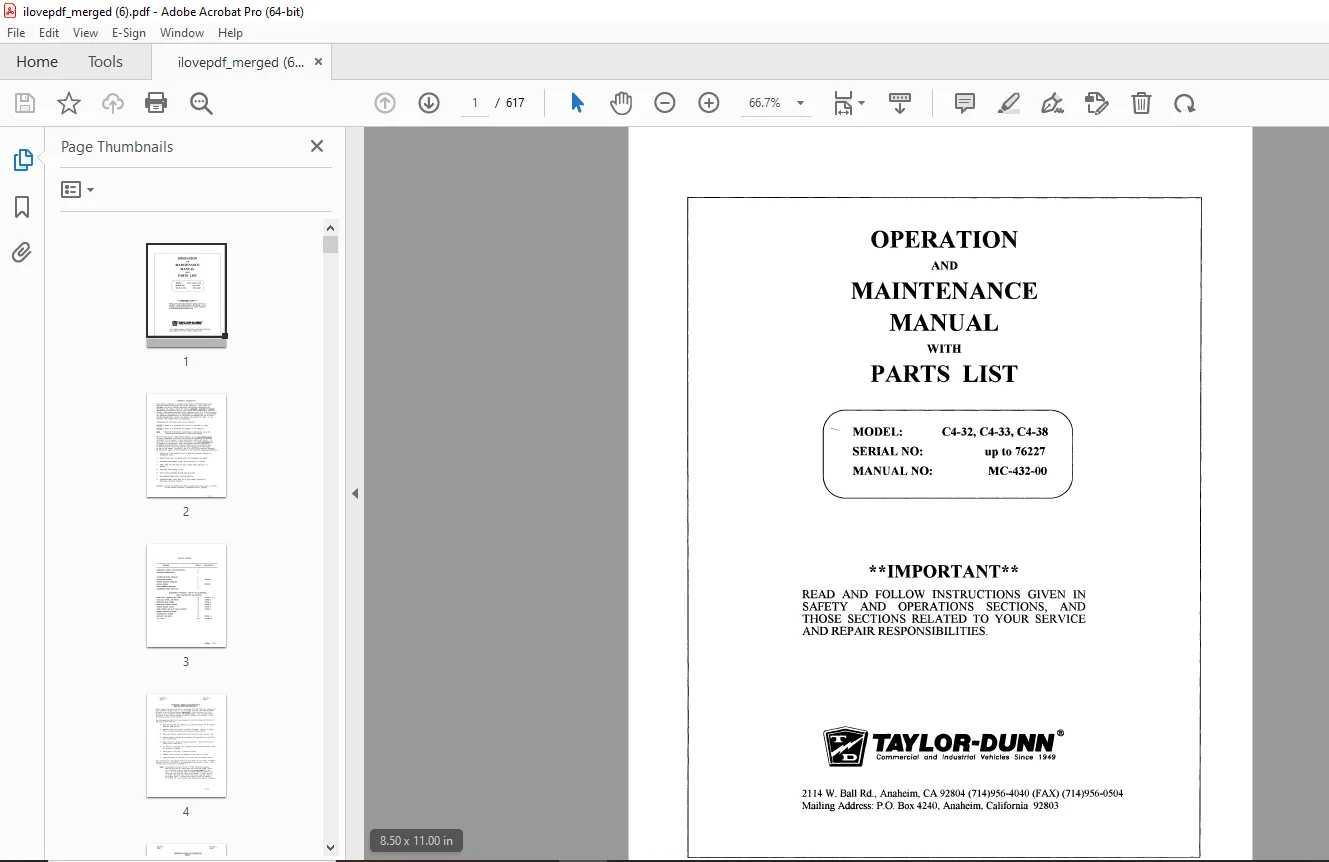

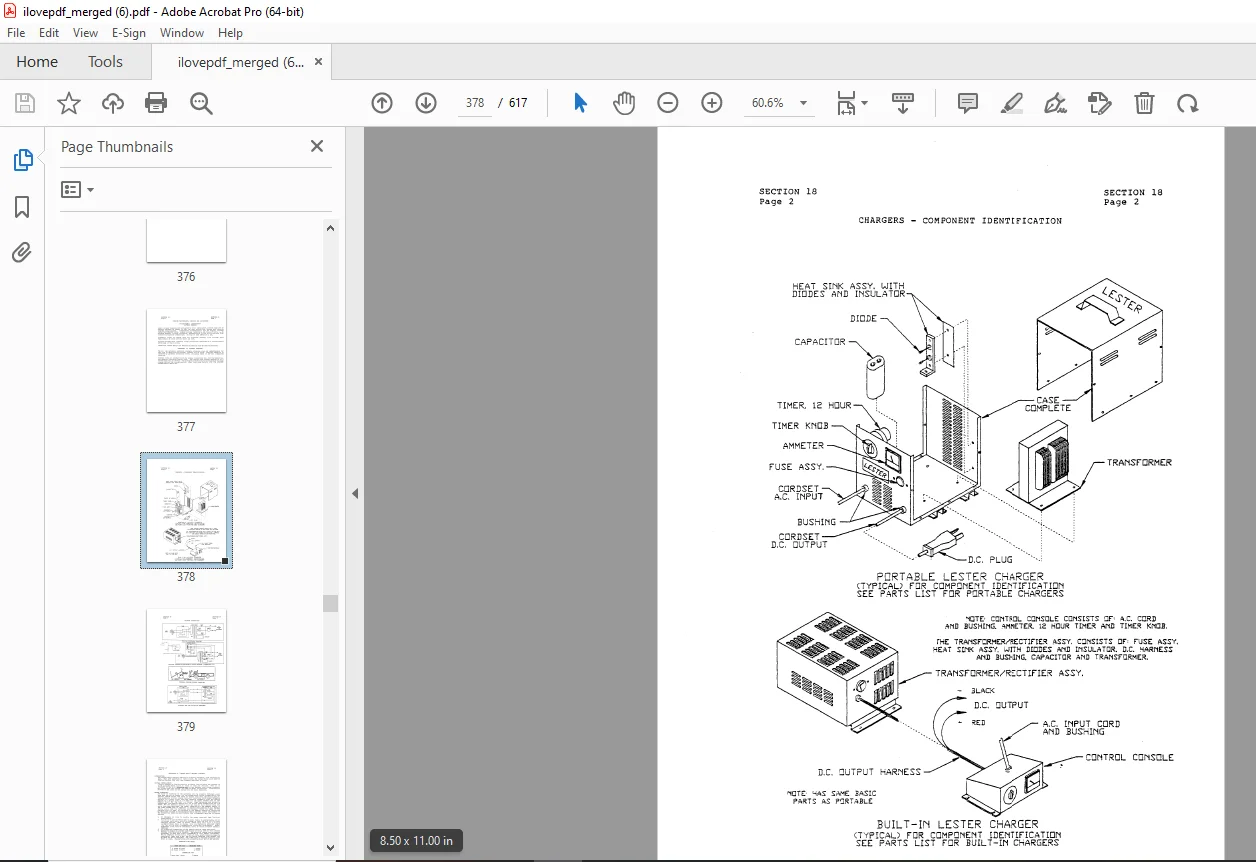

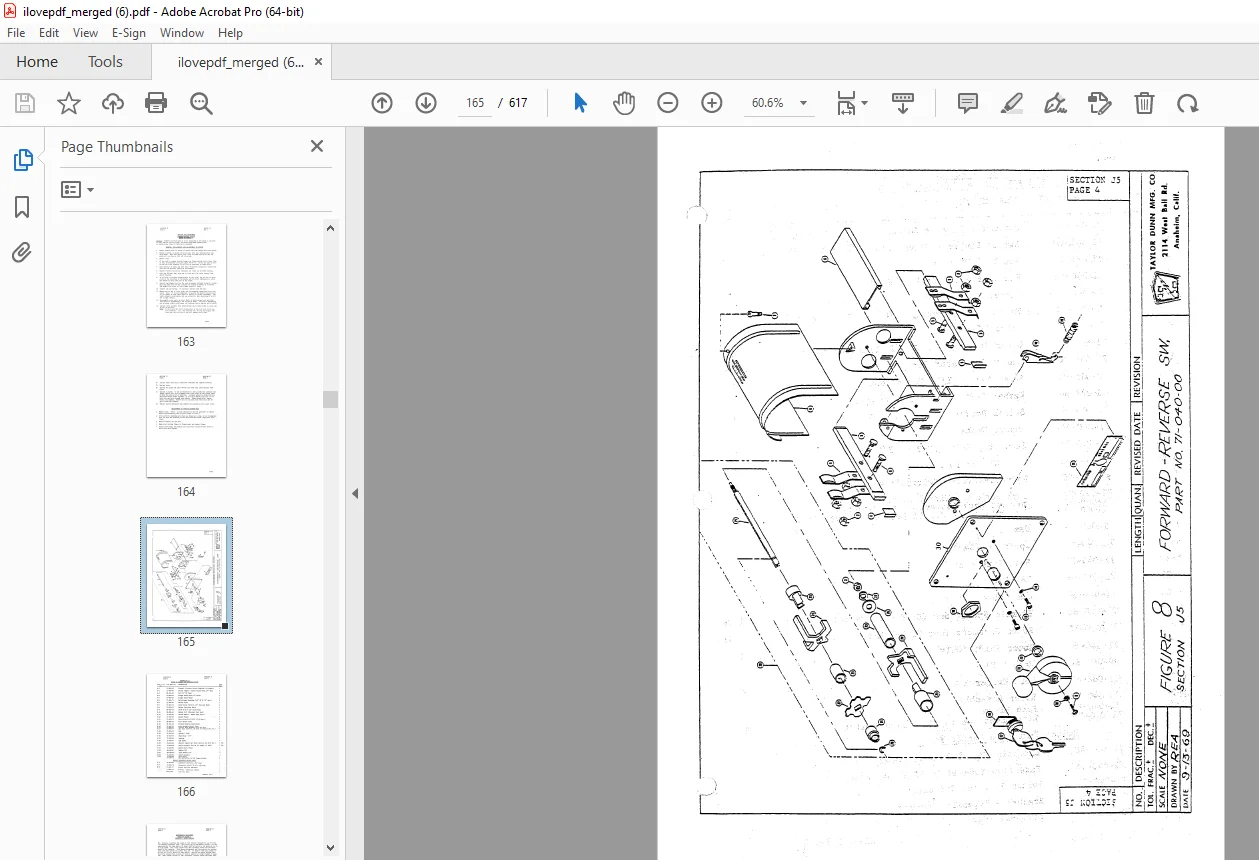

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Taylor-Dunn C4-32,C4-33,C4-38 Operation & Maintenance With Parts Manual S.NO up to 76227 – PDF DOWNLOAD

MC-432-00 Operation and Maintenance Manual with Part List 1
Important Information 2
Table of Contents 3
Section A: Inspection, Safety, and Introduction 4
Section B: Operating Instructions 7
Section D: Maintenance Guide Checklist 14
Section E: Lubrication Diagram 16
Section F: Trouble Shooting Procedures 17
Section G: Wiring Diagram 19
Section H: Parts Ordering Procedure 20
Section I: Suggested Spare Parts List 21
Section J1: Front Axle, Fork, Steering and Tires – Maintenance Procedures 24
Section J2: “Power Traction” Rear Axle, Motor and Brakes – Maintenance Procedures 31
Section J3: Hydraulic Brake System – Maintenance Procedures 46
Section J4: Mechanical Control Linkage – Maintenance Procedures 52
Section J5: Forward/Reverse Control Switch – Maintenance Procedures 56
Section J6: Rheostat 5 Speed Control – Maintenance Procedures 61
Section J7: General Electrical System – Maintenance Procedures 66
Section J8: Batteries – Maintenance Procedures 68
Section J9: Body and Trim – Maintenance and Parts List 83
Section J2M: Electric Motors – Maintenance, Service and Adjustment 87
Series “L” Battery Chargers – Operating and Servicing Handbook 92
Notice of Change 99
MC-432-01 Operation and Maintenance Manual100
Important Information101
Table of Contents102
Section A: Inspection, Safety, and Introduction103
Section B: Operating Instructions106
Section D: Maintenance Guide Checklist114
Section E: Lubrication Diagram116
Section F: Trouble Shooting Procedures117
Section G: Wiring Diagram119
Section H: Parts Ordering Procedure120
Section I: Suggested Spare Parts List121
Section J1: Front Axle, Fork, Steering and Tires – Maintenance Procedures124
Section J2: “Power Traction” Rear Axle, Motor and Brakes – Maintenance Procedures131
Section J2M: Electric Motors – Maintenance, Service and Adjustment147
Section J3: Hydraulic Brake System – Maintenance Procedures152
Section J4: Mechanical Control Linkage – Maintenance Procedures158
Section J5: Forward/Reverse Control Switch – Maintenance Procedures162
Section J6: Rheostat 5 Speed Control Switch – Maintenance Procedures167
Section J7: General Electrical System – Maintenance Procedures172
Section J8: Batteries – Maintenance Procedures174
Section J9: Body and Trim – Maintenance Procedures190
MC-432-02 Operation and Maintenance Manual with Part List194
Important Information196
Table of Contents197
Section 1: Inspection, Safety, and Introduction198
Section 2: Operating Instructions200
Section 3: Taylor-Dunn Limited 90 Warranty206
Section 4: Maintenance Guide Checklist207
Section 5: Lubrication Diagram209
Section 6: Trouble Shooting Procedures210
Section 7: Wiring Diagram212
Section 8: Parts Ordering Procedure213
Section 9: Suggested Spare Parts List214
Section 10: Front Axle, Fork, Steering and Tires – Maintenance Procedures216
Section 11: “Power Traction” Rear Axle, Motor and Brakes – Maintenance Procedures222
Section 12: Electric Motors – Maintenance, Service and Adjustment237
Section 13: Hydraulic Brake System – Maintenance Procedures 240
Section 14: Mechanical Control Linkage – Maintenance Procedures246
Section 15: PWR-TRON II – Introduction253
Section 16: General Electrical System – Maintenance Procedures273
Section 17: Batteries – Maintenance Procedures275
Section 18: Charger – Maintenance, Service and Adjustment279
Section 19: Body and Trim – Maintenance Procedures291
Notice of Change294
MC-432-03 Operation and Maintenance Manual with Parts List295
Important Information296
Table of Contents297
Section 1: Inspection, Safety, and Introduction298
Section 2: Operating Instructions300
Section 3: Taylor-Dunn Limited 90 Warranty306
Section 4: Maintenance Guide Checklist307
Section 5: Lubrication Diagram308
Section 6: Trouble Shooting Procedures309
Section 7: General Wiring Diagram311
Section 8: Parts Ordering Procedure312
Section 9: Suggested Spare Parts List313
Section 10: Front Axle, Fork, Steering and Tires – Maintenance Procedures315
Section 11: “Power Traction” Rear Axle, Motor and Brakes – Maintenance Procedures321
Section 12: Electric Motors – Maintenance, Service and Adjustment336
Section 13: Hydraulic Brake System – Maintenance Procedures 339
Section 14: Mechanical Control Linkage – Maintenance Procedures345
Section 15: PWR-TRON II – Introduction352
Section 16: General Electrical System – Maintenance Procedures371
Section 17: Batteries – Maintenance Procedures373
Section 18: Charger – Maintenance, Service and Adjustment377
Section 19: Body and Trim – Maintenance Procedures391
Notice of Change394
MC-432-04 Operation and Maintenance Manual with Parts List395
Table of Contents397
Section 1: Introduction399
Section 2: Operating Guidelines405
Section 3: Scheduled Maintenance and Service Procedures413
Section 4: Illustrated Parts List 457
MC-432-05 Operation and Maintenance Manual with Part List505
Table of Contents506
Section 1: Introduction508
Section 2: Operating Guidelines514
Section 3: Scheduled Maintenance and Service Procedures522
Section 4: Illustrated Parts List 566
Manual Revisions614
Notes615
Business Reply Mail Card616
Correspondence Form617
DESCRIPTION:

Taylor-Dunn C4-32,C4-33,C4-38 Operation & Maintenance With Parts Manual S.NO up to 76227 – PDF DOWNLOAD

OPERATING INSTRUCTIONS SECTION:

The controls on your Taylor-Dunn vehicle have been designed and located for convenience of operation and efficient performance. Before driving your vehicle for the first ti.me, familiarize yourself with each of the controls. Read the following instructions and with power OFF, operate each control.

• STEERING The steering wheel and steering system is similar to automotive types. Turn the steering wheel to the right (or clockwise) for a right turn and left (or counterclockwise) for a left turn.
• KEY LOCK Your vehicle is equipped with a keyed lock located on the corner of forward reverse switch. It is designed to lock the switch in the neutral position only. The key will remove from the lock in the locked position (Neutral) only.
• I BRAKE (HAND) The hand parking brake is located in the right center of floor board. To engage hand brake, grasp top lever and pull towards rear all the way till hand lever stops. To release brake, push hand lever all the way forward.
• BRAKE (FOOT) The brake pedal is designed and located for right foot operation. It is the pedal located to the left of accelerator pedal. It functions the same as the – brake pedal in your automobile. Depressing the pedal applies the braking action. The greater the effort applied to the pedal with your foot, the greater the braking action to your vehicle. Removing your foot from the pedal allows immediate release of the braking action to your vehicle.
• FORWARD-REVERSE SWITCH The forward-reverse switch is located to the right of the drivers seat. It is operated by the red handle. To place in forward position pull the red handle to the left towards the driver. To place in reverse position push the red handle to the right away from driver.
• CAUTION: The forward-reverse switch serves the same purpose as the transmission in your automobile. Treat it with the same respect and care.
• DO NOT SHIFT from forward to reverse or vice-versa while the vehicle is in motion. Shifting while in motion, especially near top speed, causes great strain to your entire vehicle and will eventually cause severe damage.

G.B 24/01/25
