Taylor-Dunn MR-380-27 Operation Trouble Shooting & Replacement Parts Manual PDF
$28.95
Taylor-Dunn MR-380-27 Operation Trouble Shooting & Replacement Parts Manual S.NO. 130187 – PDF DOWNLOAD

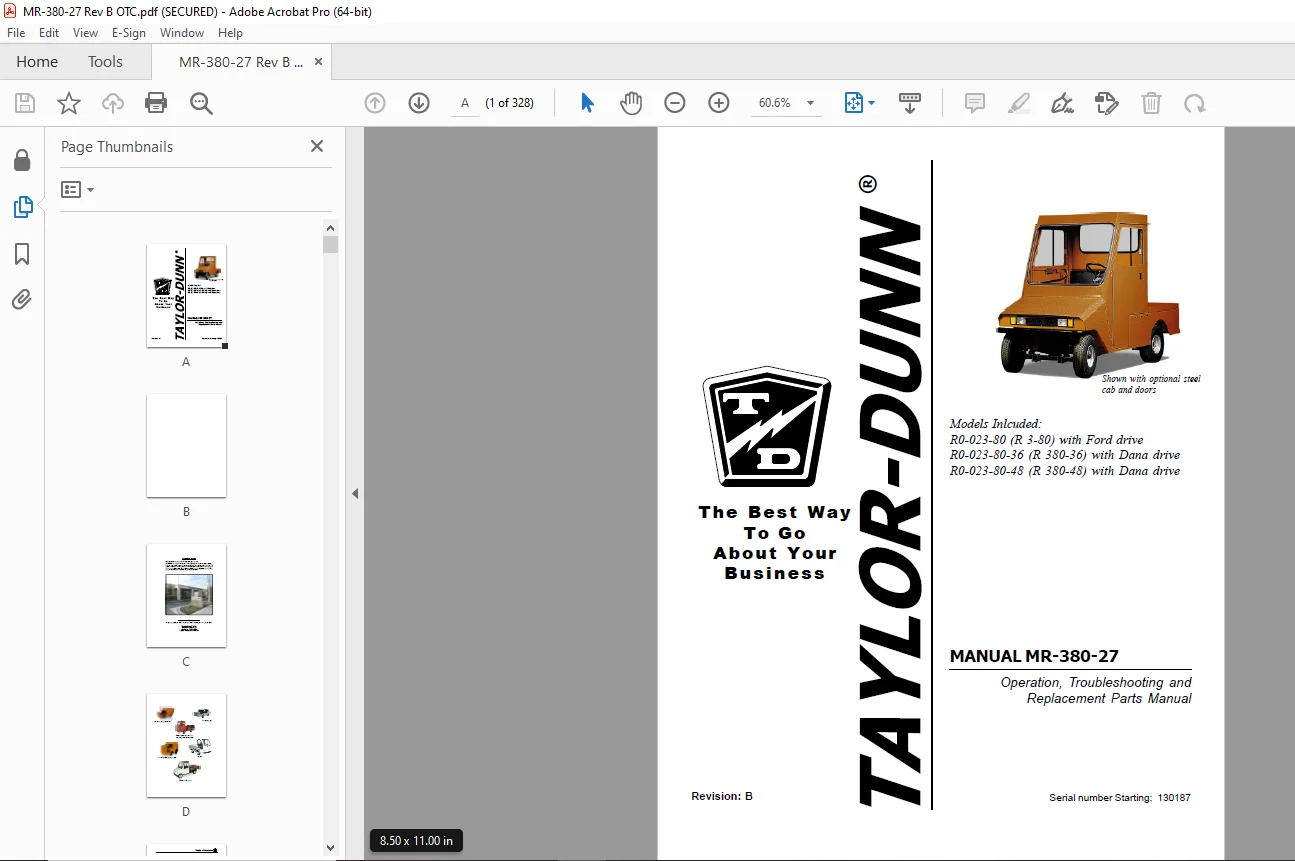

- R0-023-80 (R 3-80) with Ford drive
- R0-023-80-36 (R 380-36) with Dana drive
- R0-023-80-48 (R 380-48) with Dana drive
Description
Taylor-Dunn MR-380-27 Operation Trouble Shooting & Replacement Parts Manual S.NO. 130187 – PDF DOWNLOAD
FILE DETAILS:
Taylor-Dunn MR-380-27 Operation Trouble Shooting & Replacement Parts Manual S.NO. 130187 – PDF DOWNLOAD
Language : English
Pages : 328
Downloadable : Yes
File Type : PDF

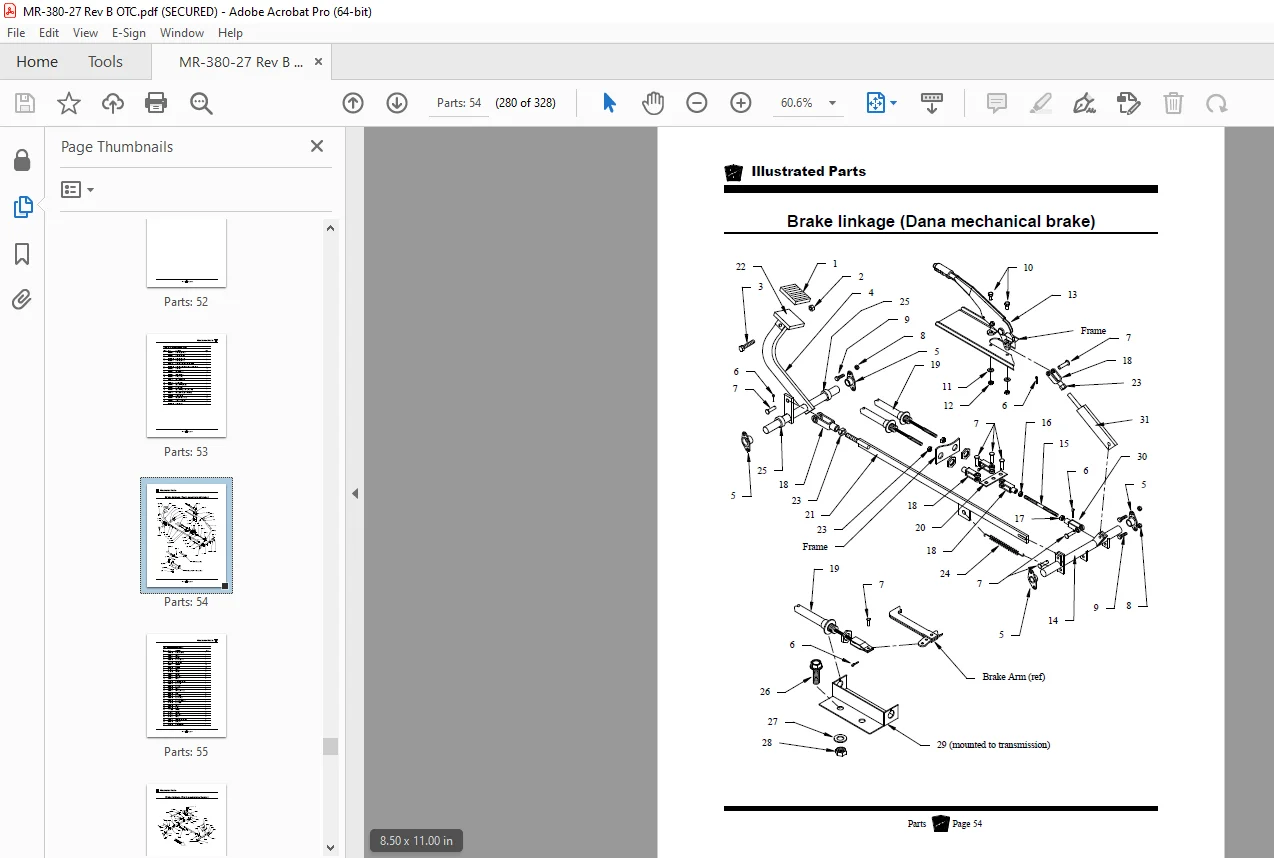

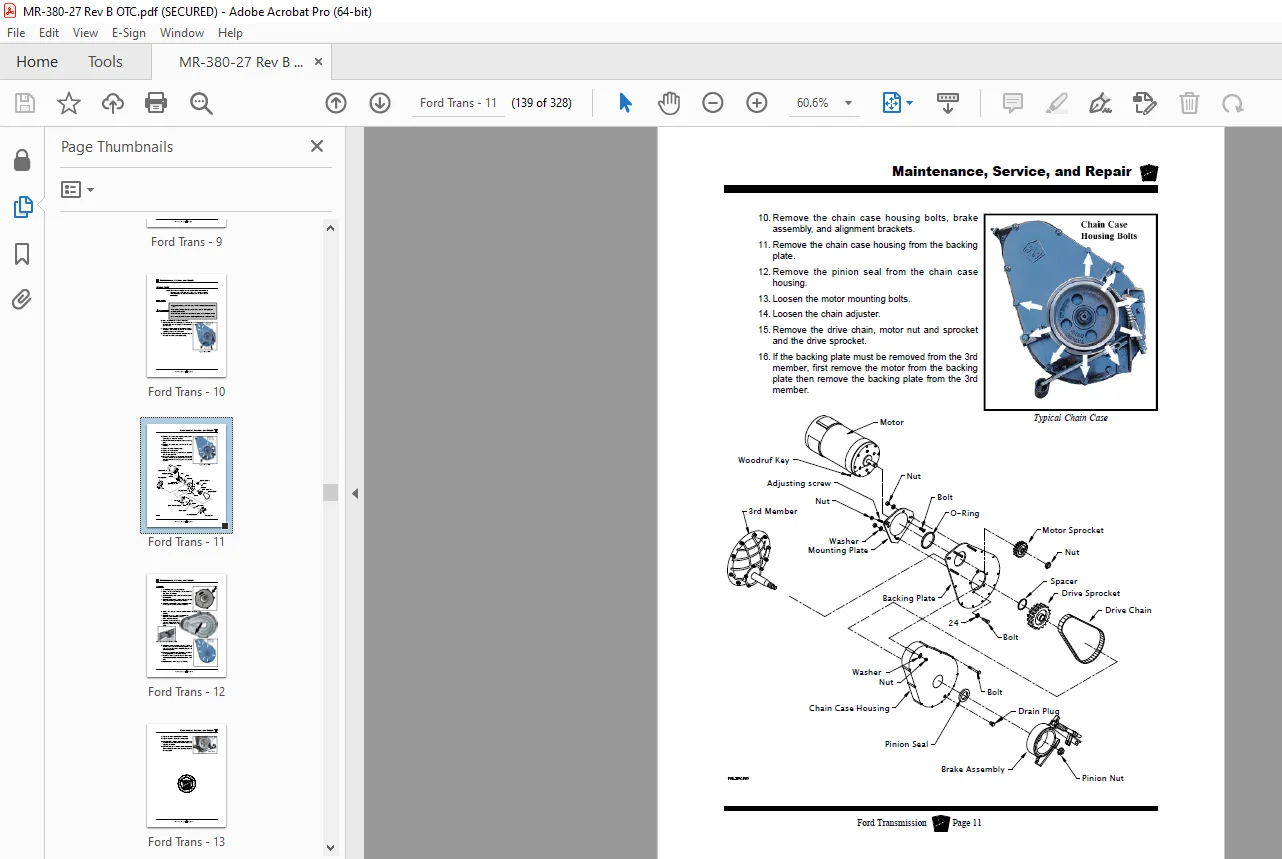

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Taylor-Dunn MR-380-27 Operation Trouble Shooting & Replacement Parts Manual S.NO. 130187 – PDF DOWNLOAD
- R0-023-80 (R 3-80) with Ford drive
- R0-023-80-36 (R 380-36) with Dana drive
- R0-023-80-48 (R 380-48) with Dana drive
Table of Contents 5
Introduction 13
Vehicle Safety and Operation 21
Maintenance 35
Lubrication 39
Front Axle 41
Steering 57
Brakes 71
Motor101
Dana Transmission113
Ford Transmission129
Suspension149
Tires and Wheels155
Battery161
Troubleshooting175
Symptoms176
Start Control System Troubleshooting177
Special Troubleshooting197
Charger Troubleshooting209
Wire Diagrams219
Complete, R 3-80-36 and -48220
Dash, R 3-80-36 and -48221
Control Panel, R 3-80-36 and -48222
Accelerator Module, R 3-80-36 and -48223
Lighting, R 3-80-36 and -48224
Complete, R 3-80225
Control Panel, R 3-80226
Illustrated Parts, Index227
Appendix A, Special Tools319
Appendix B, Torque Values321
Appendix C325
DESCRIPTION:
Taylor-Dunn MR-380-27 Operation Trouble Shooting & Replacement Parts Manual S.NO. 130187 – PDF DOWNLOAD
- Safety Rules and Operating Instructions:
- This section outlines the safety and operational issues, location and operation of controls, and the operational checks that are to be performed on this vehicle. It also includes various subjects that should be included in the operator and service training program.
- Maintenance Service and Repair:
- This section gives specific information on the servicing of the vehicle and a schedule for maintenance checks. Electrical and Charger Troubleshooting This section identifies the troubleshooting procedures for testing the electrical system and battery charger.
- Illustrated Parts:
- This section provides an illustrated view of various assemblies. The illustrations are accompanied by tables identifying the parts.
