Taylor-Dunn P2-49 Vehicle Operation & Maintenance With Parts Manual PDF

Description

Taylor-Dunn P2-49 Vehicle Operation & Maintenance With Parts Manual –  PDF DOWNLOAD

FILE DETAILS:

Taylor-Dunn P2-49 Vehicle Operation & Maintenance With Parts Manual –  PDF DOWNLOAD

Language : English
Pages :120
Downloadable : Yes
File Type : PDF

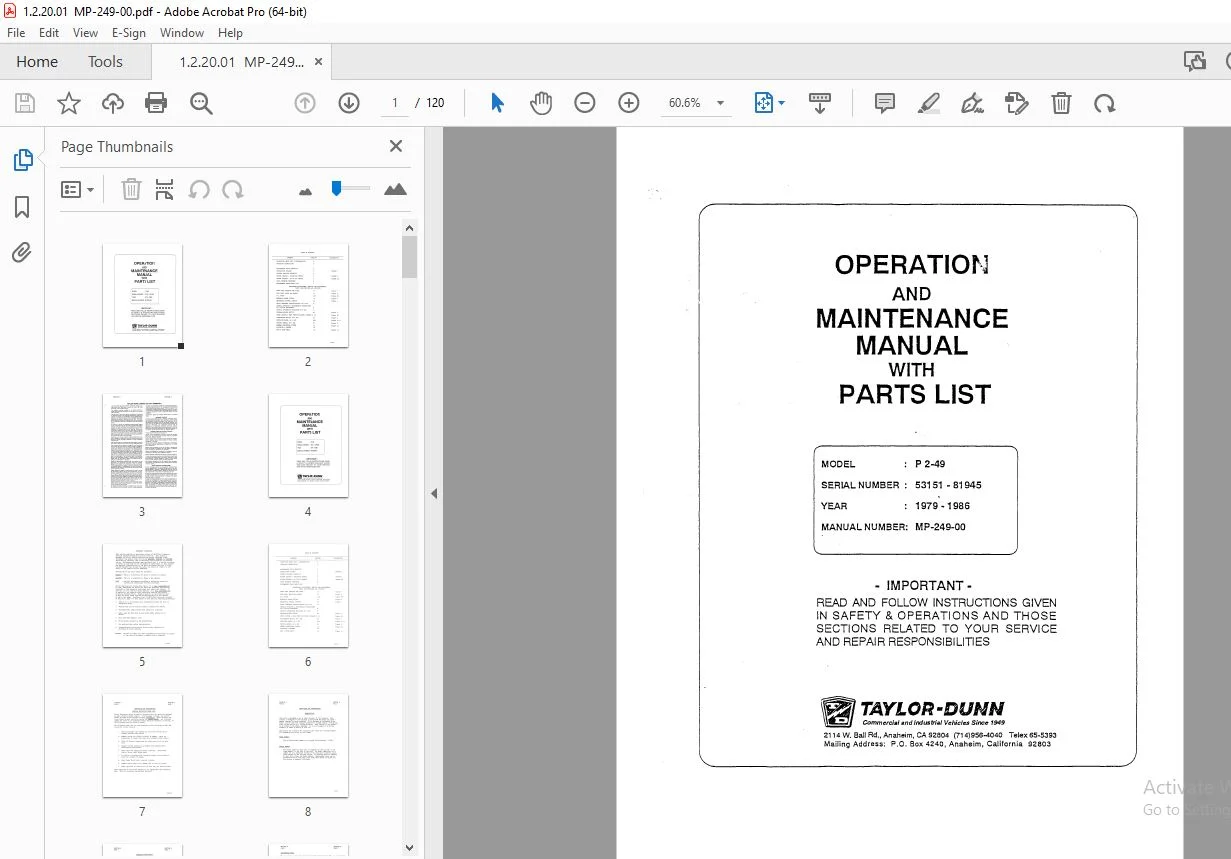

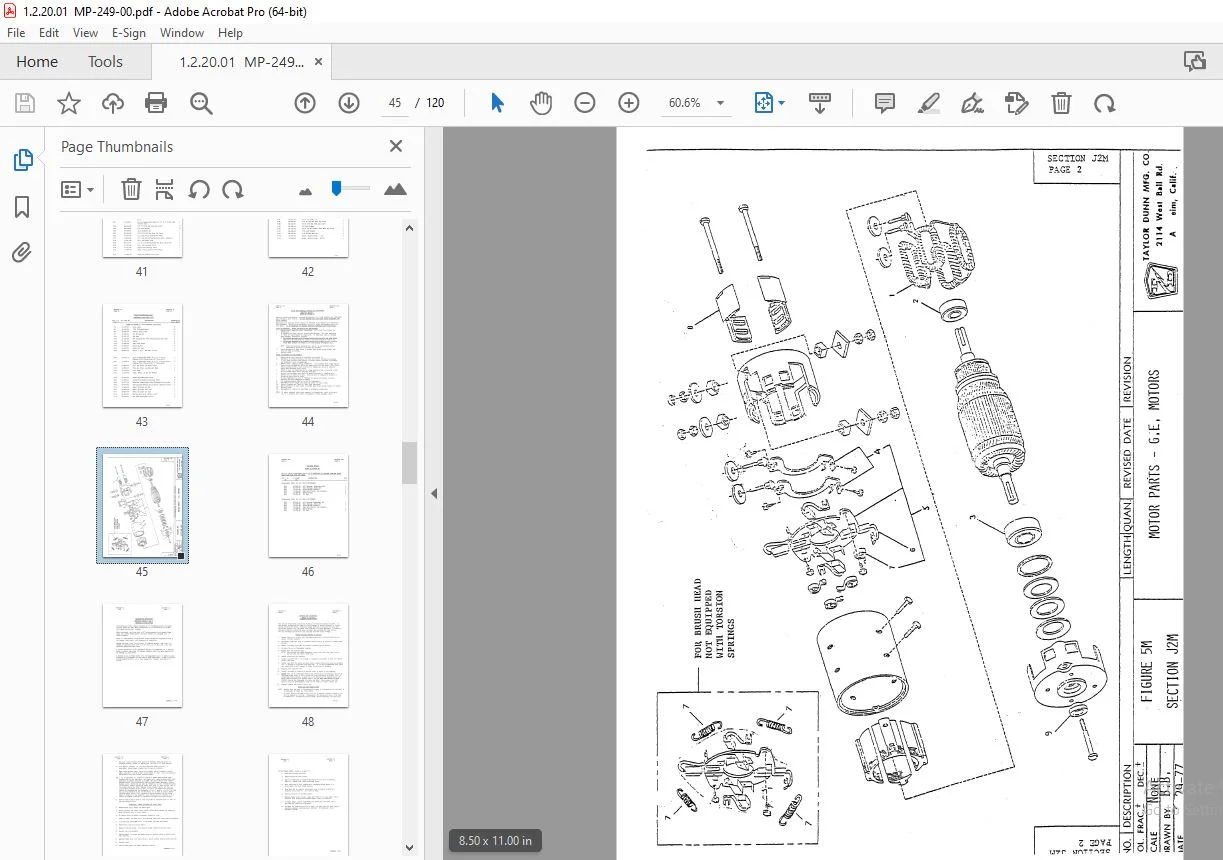

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Taylor-Dunn P2-49 Vehicle Operation & Maintenance With Parts Manual –  PDF DOWNLOAD

MODEL P 2-49
SERIAL NUMBER : 53151 -81945
YEAR 1979 -1986
MANUAL NUMBER: MP-249-00
MP-249-00 Operation and Maintenance Manual with Parts List
Table of Contents
Section C: 90 Day Warranty
MP-249-00 Operation and Maintenance Manual with Parts List
Important Information
Table of Contents
Section A: Inspection, Safety, and Introduction
Section B: Operating Instructions
Section D: Maintenance Guide Checklist
Section E: Lubrication Diagram
Section F: Trouble Shooting Procedures
Section G: Wiring Diagram
Section H: Parts Ordering Procedure
Section I: Suggested Spare Parts List
Section J1: Front Axle, Steering and Tires – Maintenance Procedures
Section J2: “Full Floating” Rear Axle, Motor and Brakes – Maintenance Procedures
Section J2M: Electric Motors – Maintenance, Service and Adjustment
Section J3: Hydraulic Brake System – Maintenance Procedures
Section J4: Mechanical Control Linkage – Maintenance Procedures
EV-1 SCR Control for Electric Vehicles
Section M: EV-1 SCR-1 System
Section M1: EV-1 Forward/Reverse Switch – Service and Adjustment
Section M2: EV-1 SCR Control Accelerator Switch
Section M3B: EV-1 SCR 150 AMP Contactor Panel
Section M4: EV-1 SCR Control Module
EV-1 SCR Control Accelerator Switch
Section J6: Speed Control Program Switch – Maintenance Procedures
Section J7: General Electrical System – Maintenance Procedures
Section J8: Batteries – Maintenance Procedures
Series “SA” Battery Chargers – Operating & Servicing Handbook

DESCRIPTION:

Taylor-Dunn P2-49 Vehicle Operation & Maintenance With Parts Manual –  PDF DOWNLOAD

INSPECTION AND INTRODUCTION;

INTRODUCTION:

This unit is designed as an in plant tractor, to tow trailers. This tractor is designed to tow trailers in and around buildings and yards on smooth concrete or paved surfaces. It is designed to be powered by an elect、i.cmotor that uses storage batteries as a power source. The operator rides on the vehicle in a sitting position. This vehicle is not designed to be driven on the public highways. It is not designed to be driven downhill or towed in excess of 10 M.P.H. The tractor has a hea可steel exterior plate frame with internal members. All components are bolted to this frame
