This Parts Catalogue contains the component parts of the engine mounted on TCM WHEEL LOADER.
How to order parts:
When ordering, be sure to specify the model name and serial number (machine number),
engine type and engine manufacture yearts and seria| number (engine number) of yo.ur
machine, as well as the part number and desired quantity for each part. The machine serial
number (machine number) is indicated on the machine name plate, the engine serial number
(engine number) is punched on the cylinder block. Moreover manufacture years are
expressed on ID Plate of the engine upper part as the alphabet.

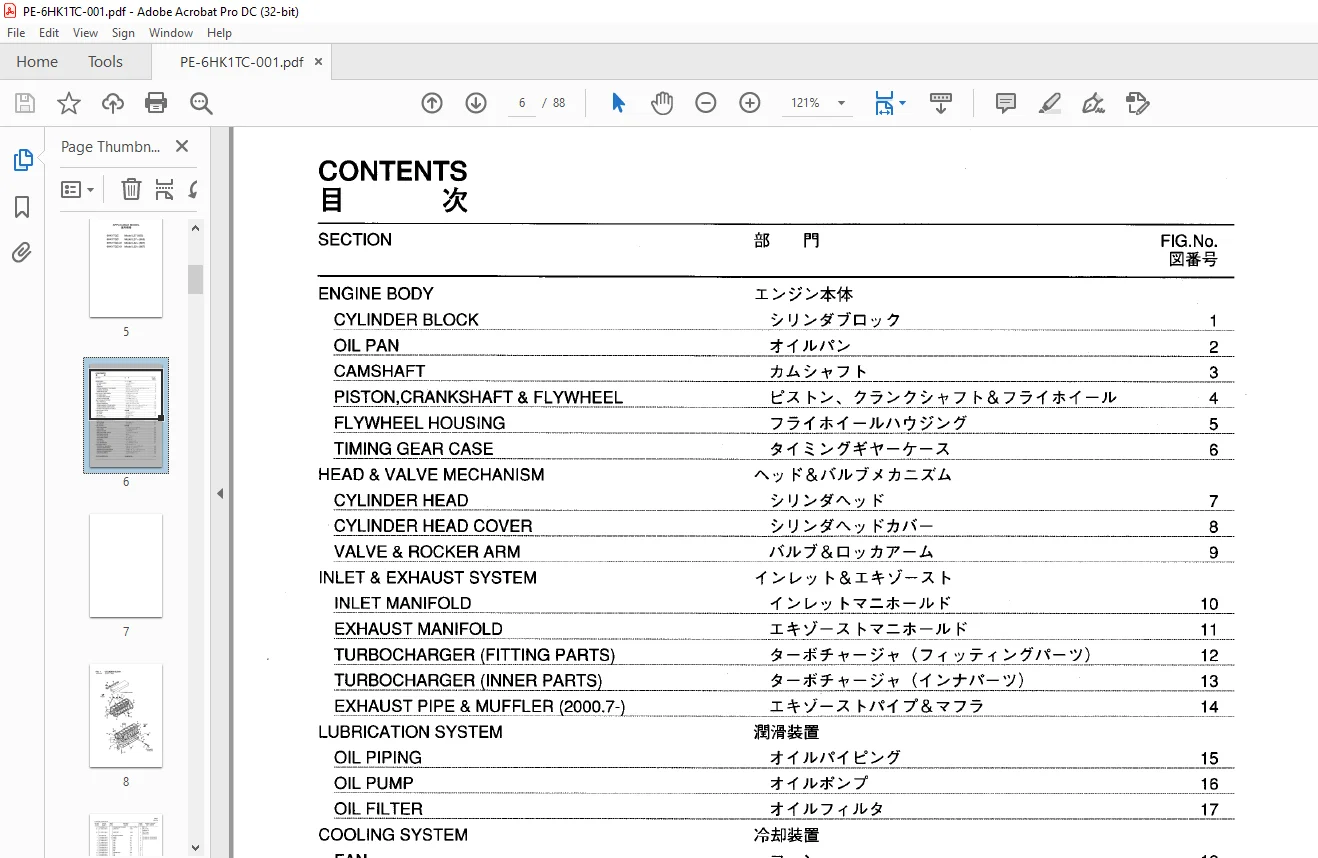

TABLE OF CONTENTS:

TCM 6HK1TQC 6HK1TQC-01 Isuzu Diesel Engine Parts Manual PE-6HK1TC – PDF DOWNLOAD

ENGINE BODY
部门FIG.No.
囡番号
工>夕、>本体
CYLINDER BLOCK 夕1
OIL PAN 才1, 心2
CAMSHAFT 卜3
PISTON, CRANKSHAFT & FLYWHEEL 匕4
FLYWHEEL HOUSING 向5
TIMING GEAR CASE 夕6
HEAD & VALVE MECHANISM 卜9
CYLINDER HEAD 夕10
CYLINDER HEAD COVER 夕11
VALVE & ROCKER ARM 卜13
INLET & EXHAUST SYSTEM 匕14
INLET MANIFOLD 卜10
EXHAUST MANIFOLD 卜11
TURBOCHARGER (FITTING PARTS) 夕12
TURBOCHARGER (INNER PARTS) 卜13
EXHAUST PIPE & FLAPPER (20.00–) 匕14
LUBRICATION SYSTEM
OIL PIPING 夕15
OIL PUMP 才16
OIL FILTER 夕17
COOLING SYSTEM
FAN 卜18
WATER HOUSING & THERMOSTAT 夕19
WATER PUMP 夕20
OIL COOLER 夕21
FUEL SYSTEM
INJECTION PIPING 夕22
FUEL PIPING 夕23
NOZZLE HOLDER 卜24
INJECTION PUMP (-2000.9) 夕25
GOVERNOR (-2000.9) 卜26
FEED PUMP (-2000.9) 夕27
AUTOTIMER (2000.9) 卜28
COUPLING 卜29
FUEL FILTER 夕30
SEDIMENTER 夕30
ELECTRICAL PARTS
STARTER (FITTING PARTS) 夕32
STARTER (INNER PARTS) 卜33
GENERATOR (FITTING PARTS) 夕34
GENERATOR (INNER PARTS) 卜35
ELECTRICAL PARTS 卜36
PARTS NUMBER INDEX
