TCM C240 Isuzu Diesel Engine Parts Manual 72A-C240 – PDF DOWNLOAD

Description

TCM C240 Isuzu Diesel Engine Parts Manual 72A-C240 – PDF DOWNLOAD

FILE DETAILS:

TCM C240 Isuzu Diesel Engine Parts Manual 72A-C240 – PDF DOWNLOAD

Language : English
Pages : 76
Downloadable : Yes
File Type : PDF
Size: 1.90 MB

DESCRIPTION:

TCM C240 Isuzu Diesel Engine Parts Manual 72A-C240 – PDF DOWNLOAD

How to Use This Part Manual

This part manual covers all standard and optional replacement parts for the C240 Diesel Engine.

1. Instruction of Item Numbers Example: (1) A capital letter instead of Item No. represents an assembled part (organized over two parts). (2) Using a small letter with item no. in remarked column such as (Item 8a) represents an assembled part or parts which included more than two parts.
2. Description in each part manual represents names, proper places, and function of parts. Also, you will see (the 1 thru 6) in remarked column, tightest column which represents an assembly included Item No. 1 thru 6. (Be sure to follow above instructions when you order parts).
3. Quantity always represents for one vehicle unless there is a special note.
4. Symbols used in remarked column are as follows: A: Interchangeable with new for old part B: Non-interchangeable part C: Interchangeable with new to old part D: Abolished part E: Newly added part
5. Key to the symbols and abbreviations: ASS-Y – Assembly STD – Standard O.S – OverSize U.S – UnderSize t – Thickness AR – As Required R.H – Right Hand L.H – Left Hand R – Length

• • Not Illustrated § – Not Sold Separately

6. Using Right Hand and Left Hand in this part manual, it is viewed from the operator’s seat facing toward forward.
7. Ordering spare parts, please be sure to notice Model Nos., Chassis Nos., Part Nos., Part Names, and Quantities. Whenever replacing the TCM vehicle parts, be sure to use genuine TCM parts.

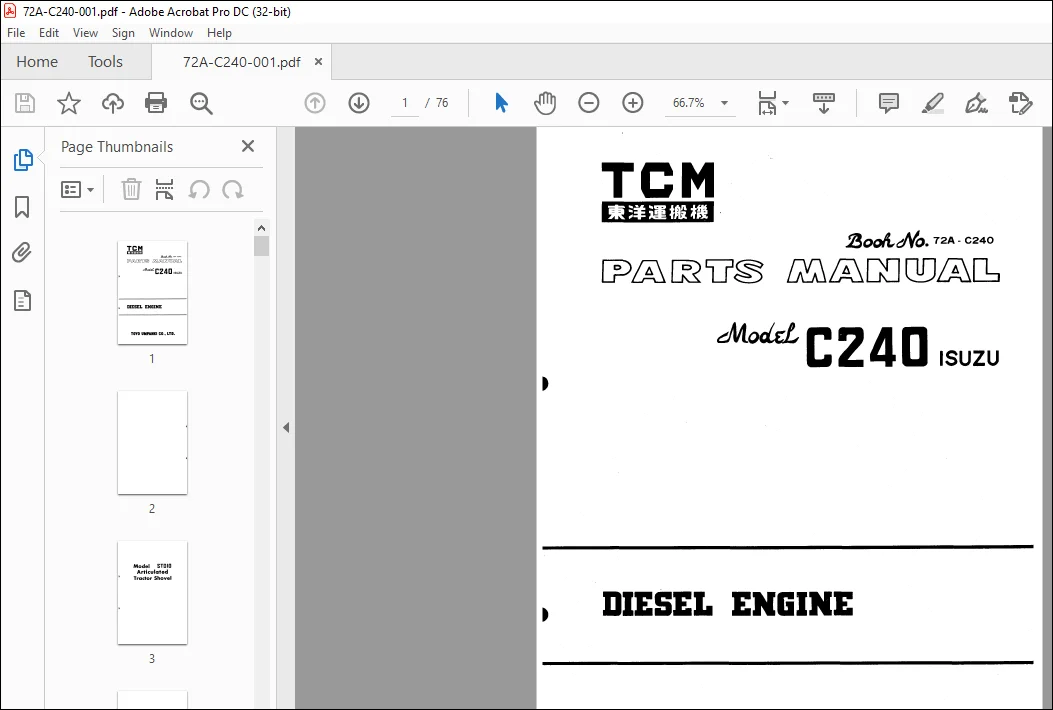

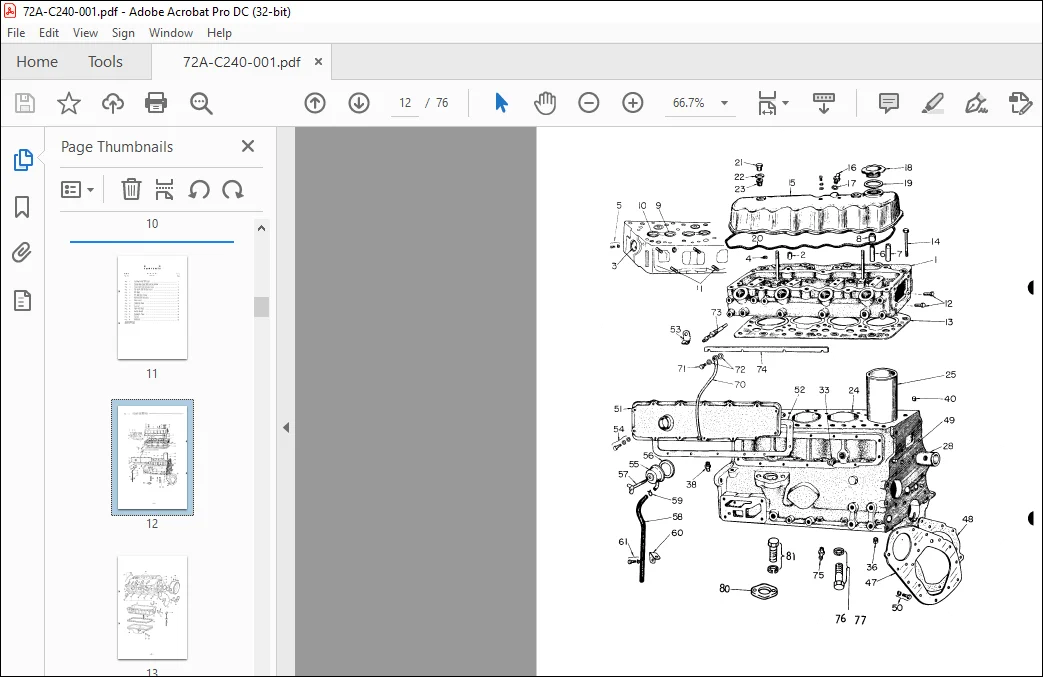

IMAGES PREVIEW OF THE MANUAL:
