TCM C240 Isuzu Diesel Engine Parts Manual 74B-C240 – PDF DOWNLOAD
Original price was: $78.00.$19.95Current price is: $19.95.
TCM C240 Isuzu Diesel Engine Parts Manual 74B-C240 – PDF DOWNLOAD
Description
TCM C240 Isuzu Diesel Engine Parts Manual 74B-C240 – PDF DOWNLOAD
FILE DETAILS:
TCM C240 Isuzu Diesel Engine Parts Manual 74B-C240 – PDF DOWNLOAD
Language : English
Pages : 82
Downloadable : Yes
File Type : PDF
Size: 2.16 MB
DESCRIPTION:
TCM C240 Isuzu Diesel Engine Parts Manual 74B-C240 – PDF DOWNLOAD
- Instruction of Item Numbers Example: (1) A capital letter instead of Item No. represents an assembled part (organized over two parts). (2) Using a small letter with item no. in remarked column such as (Item 8a) represents an assembled part or parts which included more than two parts.
- Description in each part manual represents names, proper places, and function of parts. Also, you will see (the 1 thru 6) in remarked column, tightest column which represents an assembly included Item No. 1 thru 6. (Be sure to follow above instructions when you order parts).
- Quantity always represents for one vehicle unless there is a special note.
- Symbols used in remarked column are as follows: A: Interchangeable with new for old part B: Non-interchangeable part C: Interchangeable with new to old part D: Abolished part E: Newly added part
- Key to the symbols and abbreviations: ASS-Y – Assembly STD – Standard O.S – OverSize U.S – UnderSize t – Thickness AR – As Required R.H – Right Hand L.H – Left Hand R – Length
- Using Right Hand and Left Hand in this part manual, it is viewed from the operator’s seat facing toward forward.
- Ordering spare parts, please be sure to notice Model Nos., Chassis Nos., Part Nos., Part Names, and Quantities. Whenever replacing the TCM vehicle parts, be sure to use genuine TCM parts.

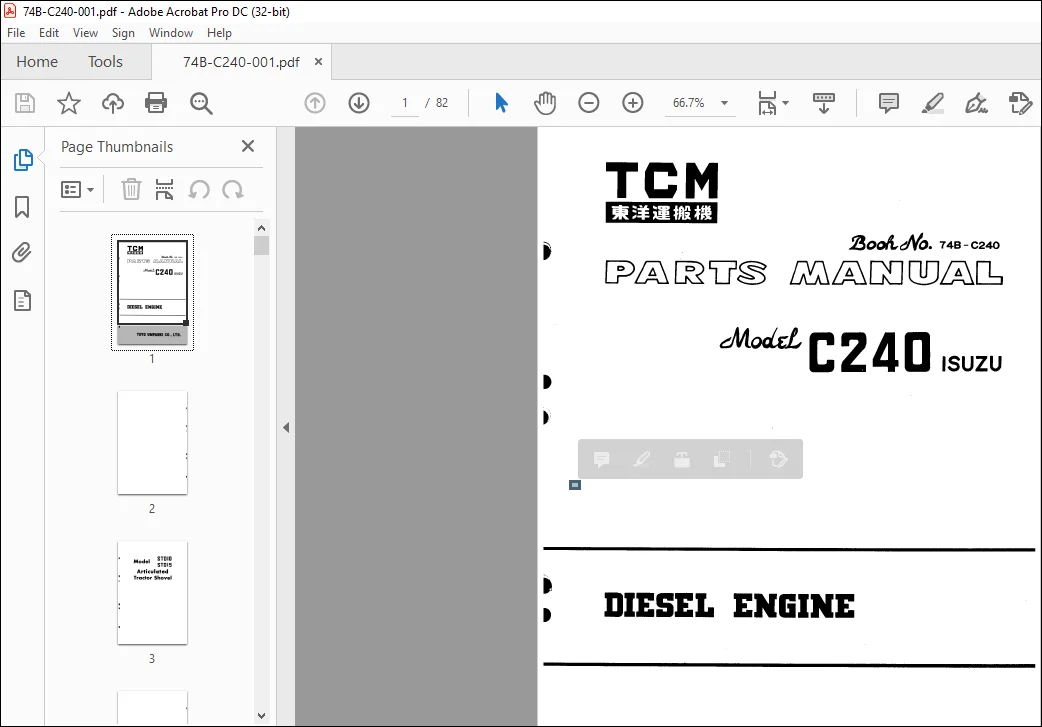

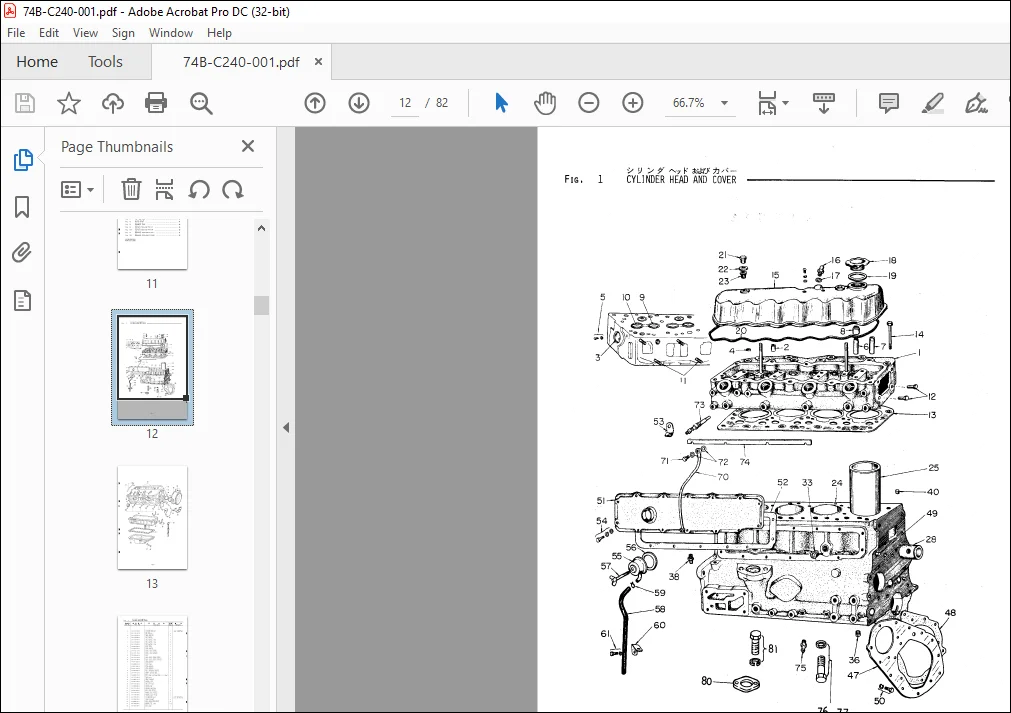

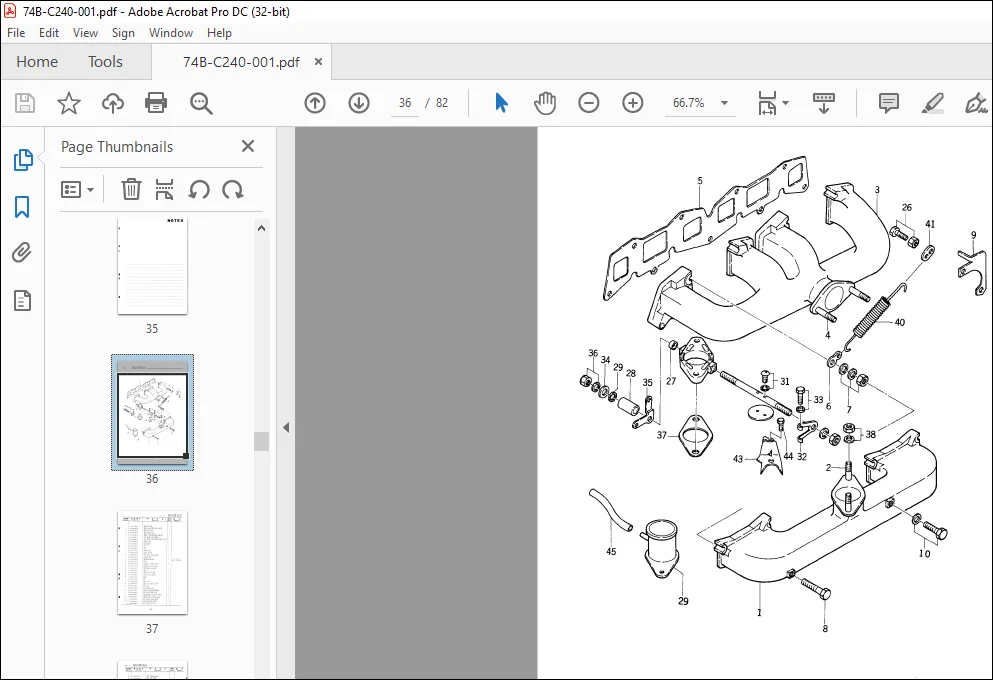

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
TCM C240 Isuzu Diesel Engine Parts Manual 74B-C240 – PDF DOWNLOAD
Cylinder Head and Cover
Fig. 2 Timing Gear Case and Cooling System
Crankshaft and Related Parts
Fig. 3 Crankshaft and Related Parts
Camshaft and Related Parts
Fig. 4 Camshaft and Related Parts
Fig. 5 Unknown (text removed)
Fig. 6 Unknown (text removed)
Fig. 7 Unknown (text removed)
Other Parts
Fig. 8 Other Parts
Fig. 9 Unknown (text removed)
Governor
Fig. 10 Governor
Fig. 11 Unknown (text removed)
Nozzle Holder
Fig. 12 Nozzle Holder
Automatic Timer
Fig. 13 Automatic Timer
Starter STD10-0102
Fig. 14 Starter STD10-0102 up to vehicle number 0102
Starter STD10-0103
Fig. 14A Starter STD10-0103 from vehicle number 0103 onwards
Generator STD10-0102
Fig. 15 Generator STD10-0102 up to vehicle number 0102
Generator STD10-0103
Fig. 15A Generator STD10-0103 from vehicle number 0103 onwards
Numerical Index Table of Parts
