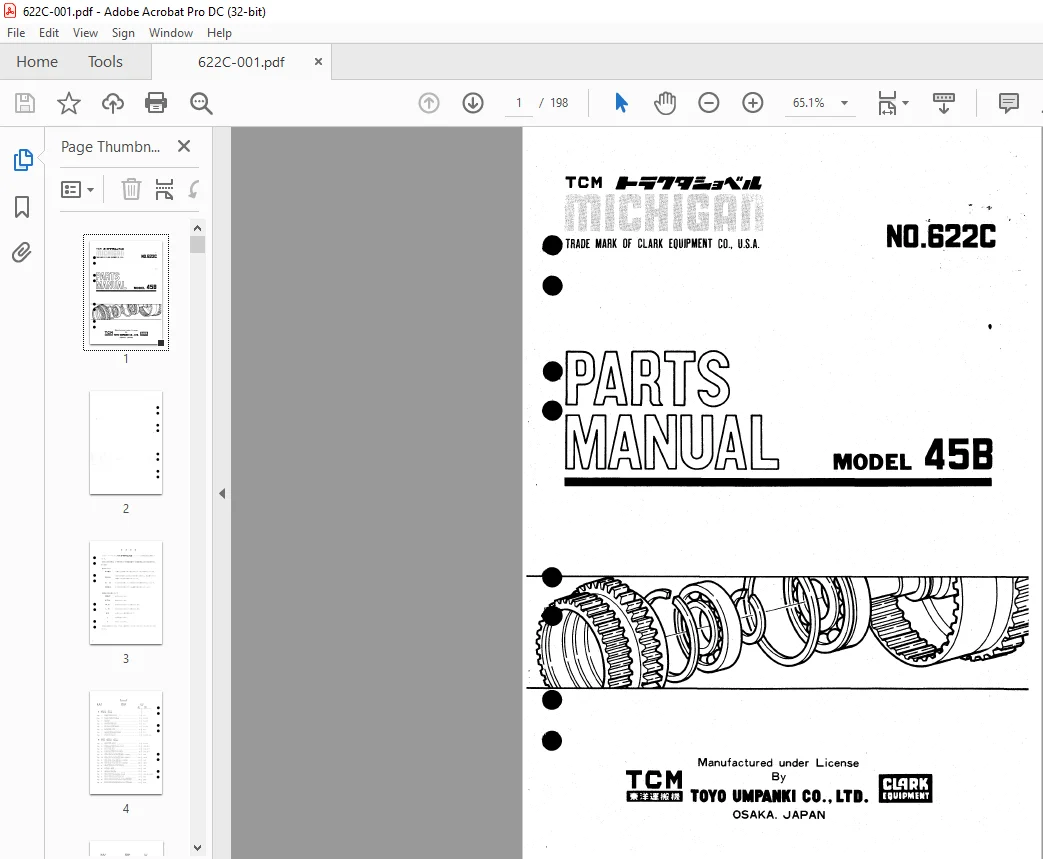

TCM Clark 45B Tractor Shovel Parts Manual 622C – PDF DOWNLOAD

A Engine Group
Engine Mount Parts

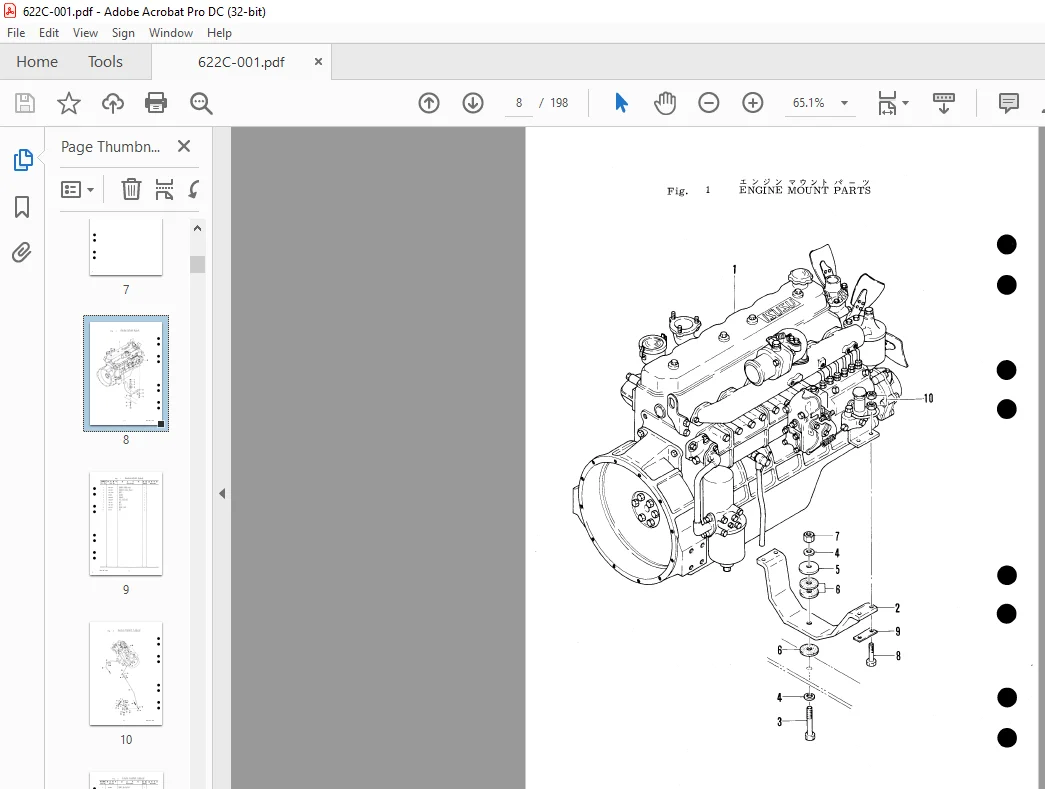

Fig. 1 Engine Mount Parts
Engine Control Linkage
Fig. 2 Engine Control Linkage
Radiator
Fig. 3 Radiator
Fuel Tank and Line
Fig. 4 Fuel Tank and Line
Air Cleaner and Muffler
Fig. 5 Air Cleaner and Muffler
Instrument Panel
Fig. 6 Instrument Panel
Battery and Battery Mount
Fig. 7 Battery and Battery Mount
Electrical System
Fig. 8 Electrical System
Drive System Group
Drive Axle-Front
Fig. 9 Drive Axle-Front
Differential and Carrier-Front
Fig. 10 Differential and Carrier-Front
Drive Axle-Rear
Fig. 11 Drive Axle-Rear
Differential and Carrier-Rear
Fig. 12 Differential and Carrier-Rear
Planet Carrier-Front and Rear
Fig. 13 Planet Carrier-Front and Rear
Fig. 13A Planet Carrier-Front and Rear
Disc Brake-Front and Rear
Fig. 14 Disc Brake-Front and Rear
Fig. 14A Disc Brake-Front and Rear
Wheel and Tire-Front and Rear
Fig. 15 Wheel and Tire-Front and Rear
Propeller Shaft
Fig. 16 Propeller Shaft
Midmount Bearing
Fig. 17 Midmount Bearing
Drive Unit (Transmission Group)

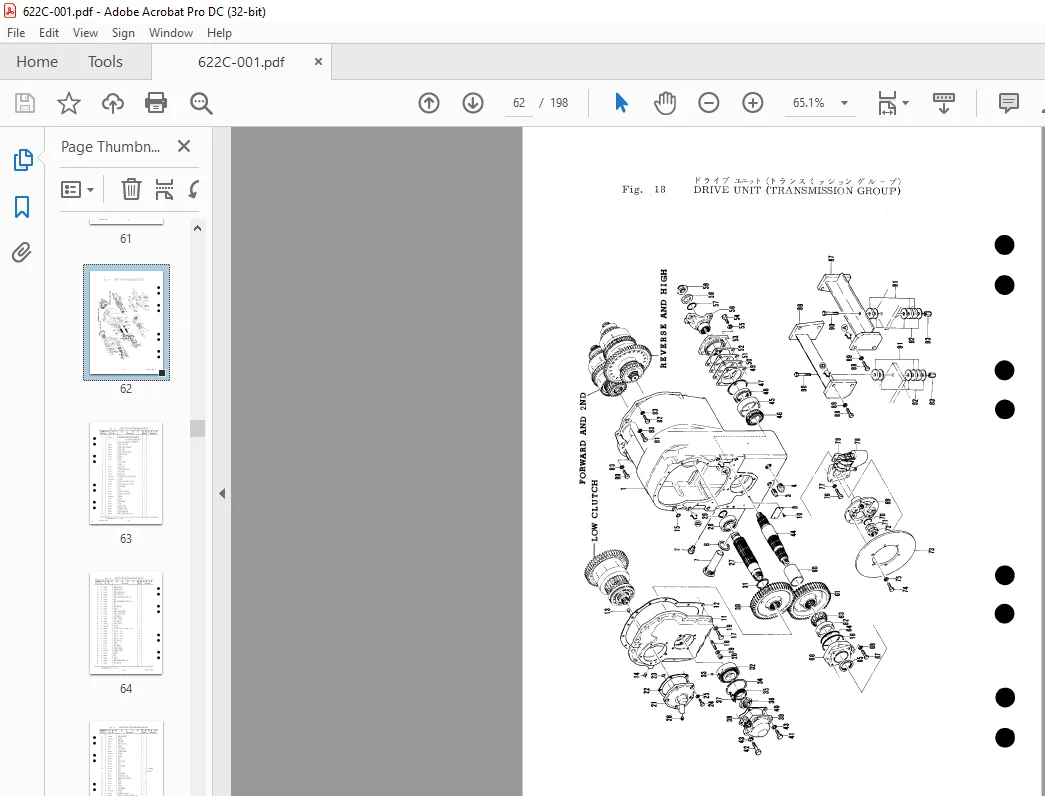

Fig. 18 Drive Unit (Transmission Group)
Drive Unit (Clutch Group-Low)
Fig. 19 Drive Unit (Clutch Group-Low)
Drive Unit (Clutch Group-Forward and 2nd)
Fig. 20 Drive Unit (Clutch Group-Forward and 2nd)
Drive Unit (Clutch Group-Reverse and High)
Fig. 21 Drive Unit (Clutch Group-Reverse and High)
Drive Unit (Control Valve-Transmission)
Fig. 22 Drive Unit (Control Valve-Transmission)
Drive Unit (Internal Tube-Transmission)
Fig. 23 Drive Unit (Internal Tube-Transmission)
Drive Unit (Torque Converter Group)
Fig. 24 Drive Unit (Torque Converter Group)
Drive Unit (Brake Pump)
Fig. 25 Drive Unit (Brake Pump)
Control System Group
Steering Handle Mounting
Fig. 26 Steering Handle Mounting
Steering Valve
Fig. 27 Steering Valve
Cylinder-Steering
Fig. 28 Cylinder-Steering
Brake Control and Line
Fig. 29 Brake Control and Line
Brake-Control Valve
Fig. 30 Brake-Control Valve
Declutch Valve
Fig. 31 Declutch Valve
Pressure Control Valve
Fig. 32 Pressure Control Valve
Brake Piston Pump
Fig. 33 Brake Piston Pump
Oil Reservoir
Fig. 34 Oil Reservoir
Parking Brake Control
Fig. 35 Parking Brake Control
Transmission Control Linkage
Fig. 36 Transmission Control Linkage
Chassis Group
Frame
Fig. 37 Frame
Hood Grill and Seat
Fig. 38 Hood Grill and Seat
Cockpit
Fig. 39 Cockpit
Hydraulic System Group
Pump-Main and Steering
Fig. 40 Pump-Main and Steering
Valve and Valve Control
Fig. 41 Valve and Valve Control
Hydraulic Oil Tank
Fig. 42 Hydraulic Oil Tank
Hydraulic System-Boom
Fig. 43 Hydraulic System-Boom
Hydraulic System-Bucket
Fig. 44 Hydraulic System-Bucket
Hydraulic System-Steering
Fig. 45 Hydraulic System-Steering
Hydraulic System-Transmission and Torque Converter

Fig. 46 Hydraulic System – Transmission and Torque Converter

Fig. 47 Cylinder – Boom
Fig. 48 Cylinder – Bucket
Fig. 49 Boom, Beucrank, Pushrod and Bucket
Fig. 50 Bucket Data
Fig. 51 Bucket Leveler
Fig. 52 Piping – Grease
Fig. 53 Name Plate and Decal
Fig. 54 Tools
Fig. 55 Clip
Fig. 56 Others
Index
