TCM L32-2 Wheel Loader Parts Catalogue Manual PW-667A – PDF DOWNLOAD
Original price was: $48.95.$28.95Current price is: $28.95.
TCM L32-2 Wheel Loader Parts Catalogue Manual PW-667A – PDF DOWNLOAD
Description
TCM L32-2 Wheel Loader Parts Catalogue Manual PW-667A – PDF DOWNLOAD
FILE DETAILS:
TCM L32-2 Wheel Loader Parts Catalogue Manual PW-667A – PDF DOWNLOAD
Language : English
Pages : 232
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
TCM L32-2 Wheel Loader Parts Catalogue Manual PW-667A – PDF DOWNLOAD
INTRODUCTION:

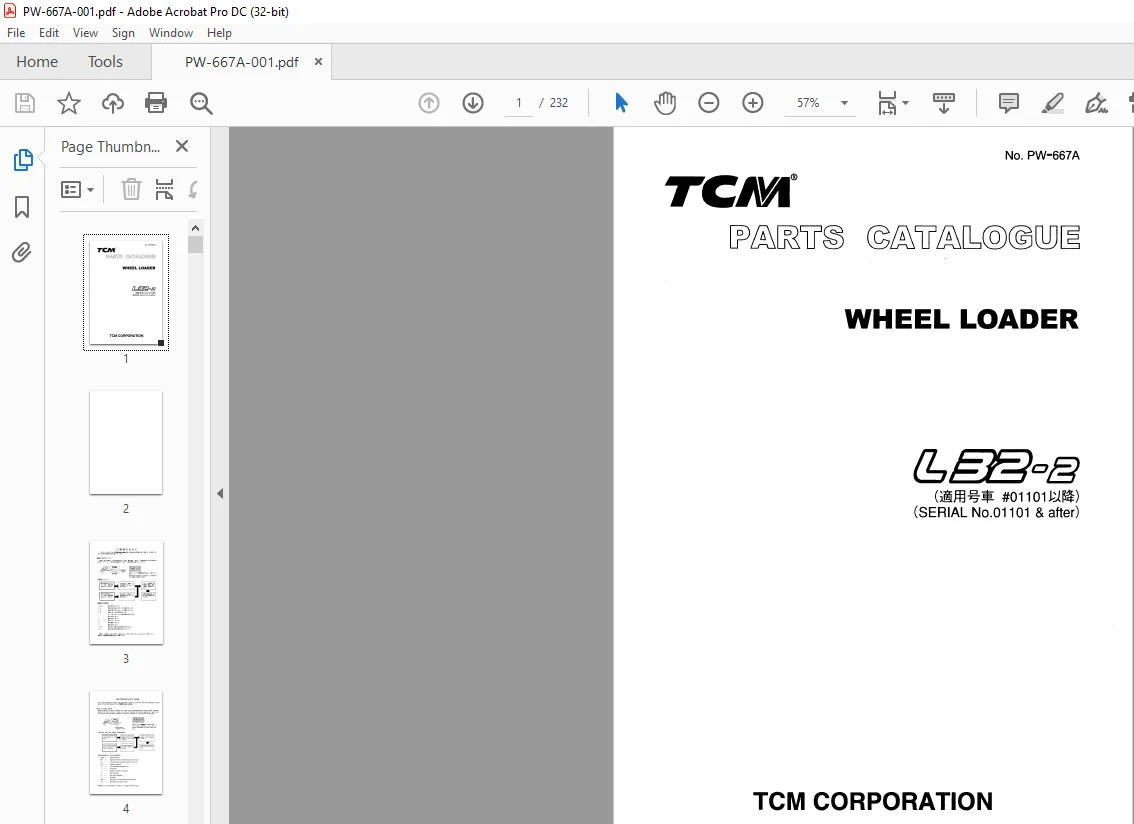

This Parts Catalogue contains the component parts for serial No. 1101 and subsequent serial
Nos. of the main body for the TCM WHEEL LOADER.
How to order parts:
When ordering, be sure to specify the model name, specification and serial number (machine
number) of your machine, as well as the part number and desired quantity for each part.
The machine serial number (machine number) is indicated on the machine name plate.

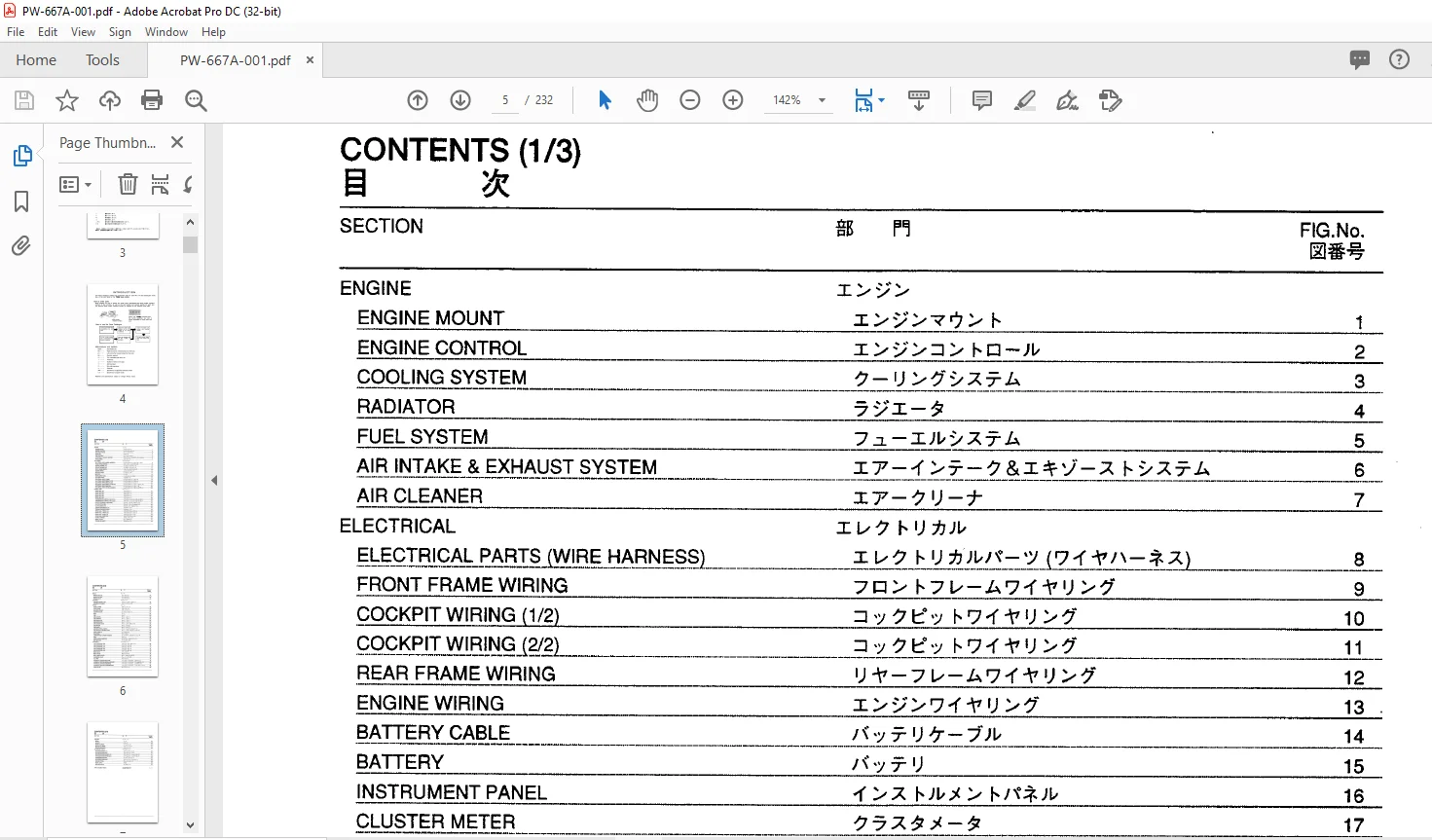

TABLE OF CONTENTS:
TCM L32-2 Wheel Loader Parts Catalogue Manual PW-667A – PDF DOWNLOAD

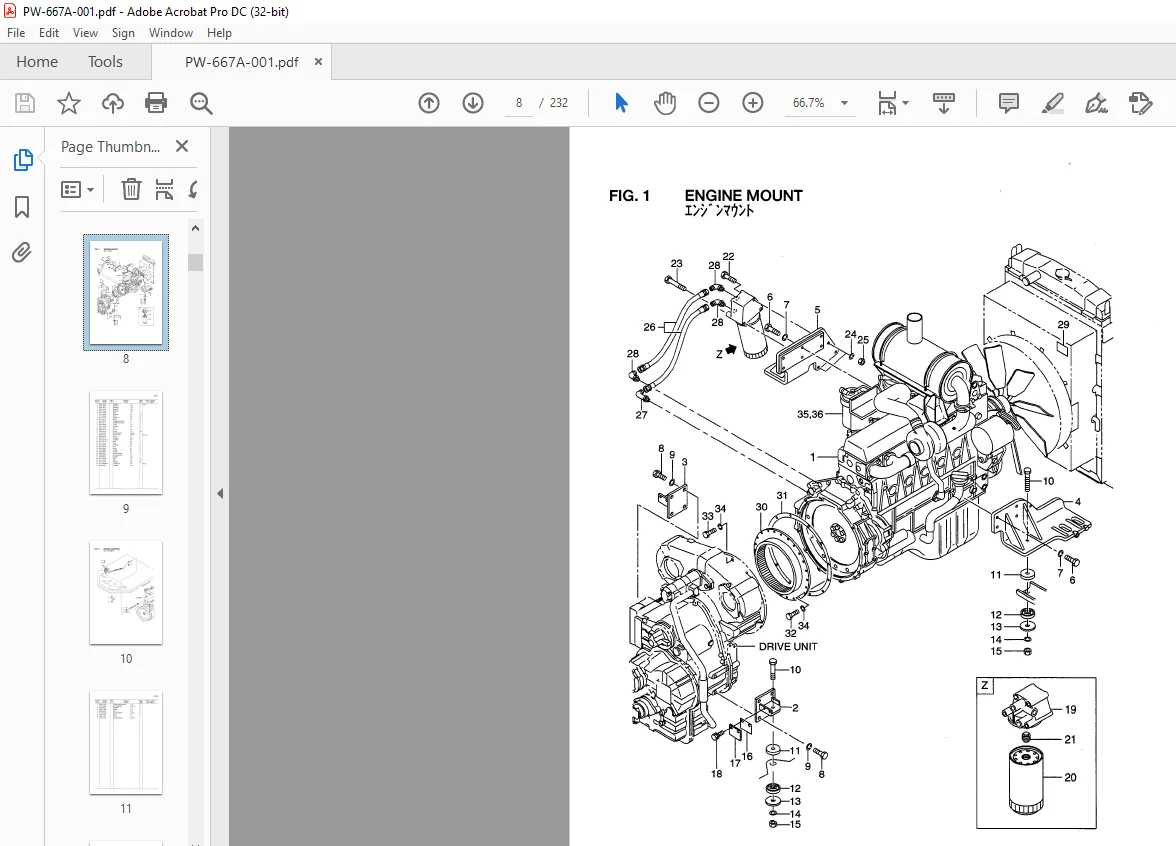

ENGINE MOUNT
ENGINE CONTROL
COOLING SYSTEM
RADIATOR
FUEL SYSTEM
AIR INTAKE & EXHAUST SYSTEM
AIR CLEANER
ELECTRICAL
ELECTRICAL PARTS (WIRE HARNESS)
FRONT FRAME WIRING
COCKPIT WIRING (1/2)
COCKPIT WIRING (2/2)
REAR FRAME WIRING
ENGINE WIRING
BATTERY CABLE
BATTERY
INSTRUMENT PANEL
CLUSTER METER
ELECTRICAL PARTS (LAMP)
ELECTRICAL PARTS (RELAY) (1/2)
ELECTRICAL PARTS (RELAY) (2/2)
ELECTRICAL PARTS (RELAY & SWITCH)
ELECTRICAL PARTS (SWITCH)
ELECTRICAL PARTS (HORN & BULLER)
POWER TRAIN
DRIVE UNIT (1/5)
DRIVE UNIT (2/5)
DRIVE UNIT (3/5)
DRIVE UNIT (4/5)
DRIVE UNIT (5/5)
TRANSMISSION CONTROL VALVE (1/2)
TRANSMISSION CONTROL VALVE (2/2)
TORQUE CONVERTER (1/2)
TORQUE CONVERTER (2/2)
DRIVE AXLE – FRONT
DRIVE AXLE – FRONT (2/2)
DRIVE AXLE – REAR (1/2)
DRIVE AXLE – REAR (2/2)
PLANET CARRIER
WHEEL & TIRE
PROPELLER SHAFT
BRAKE
BRAKE LINE
BRAKE LINE (2/2)
BRAKE VALVE
STEERING
STEERING WHEEL UNIT
STEERING CYLINDER
FRAME
FRONT FRAME
REAR FRAME
BALANCE WEIGHT
COCKPIT & SEAT
SEAT
CAB
CAB (COVER)
CAB (MIRROR)
CAB (DOOR) (LH)
CAB (DOOR) (RH)
CAB (COVER & BOLSTER)
CAB (WIPER)
CAB (LAMP)
CAB ELECTRICAL PARTS
CAB (MOUNT & WASHER TANK)
HOOD & GRILLE
SIDE PANEL
LAMP BRACKET & FRONT FENDER
STEP
DECK PLATE & HANDRAIL
BATTERY BOX
HYDRAULIC
VALVE CONTROL – B9X
VALVE CONTROL (1/4)
VALVE CONTROL (2/4)
VALVE CONTROL (3/4)
VALVE CONTROL (4/4)
MAIN VALVE
MPPC VALVE
BODY (MPPC VALVE)
CHARGING VALVE
OIL TANK
HYDRAULIC SYSTEM (SUCTION)
HYDRAULIC SYSTEM
HYDRAULIC SYSTEM (STEERING)
HYDRAULIC SYSTEM (TRANSMISSION)
PUMP MOUNT
LOADING
BOOM
BUCKET
BOOM CYLINDER
BUCKET CYLINDER
BUCKET LEVELER
ACCESSORY PARTS
AIR CONDITIONER (1/2)
AIR CONDITIONER
AIR CONDITIONER PIPING (1/2)
AIR CONDITIONER PIPING
COMPRESSOR MOUNT
AIR CONDITIONER UNIT
GREASE PIPING
DECAL (JPN)
SERVICE TOOLS
Questions? Email us: [email protected]
