TCM UD434 Nissan Diesel Engine Parts Manual 70A-UD434 – PDF DOWNLOAD
Original price was: $86.95.$28.95Current price is: $28.95.
TCM UD434 Nissan Diesel Engine Parts Manual 70A-UD434 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
TCM UD434 Nissan Diesel Engine Parts Manual 70A-UD434 – PDF DOWNLOAD
FILE DETAILS:
TCM UD434 Nissan Diesel Engine Parts Manual 70A-UD434 – PDF DOWNLOAD
Language : English
Pages : 116
Downloadable : Yes
File Type : PDF
Size: 3.4 MB

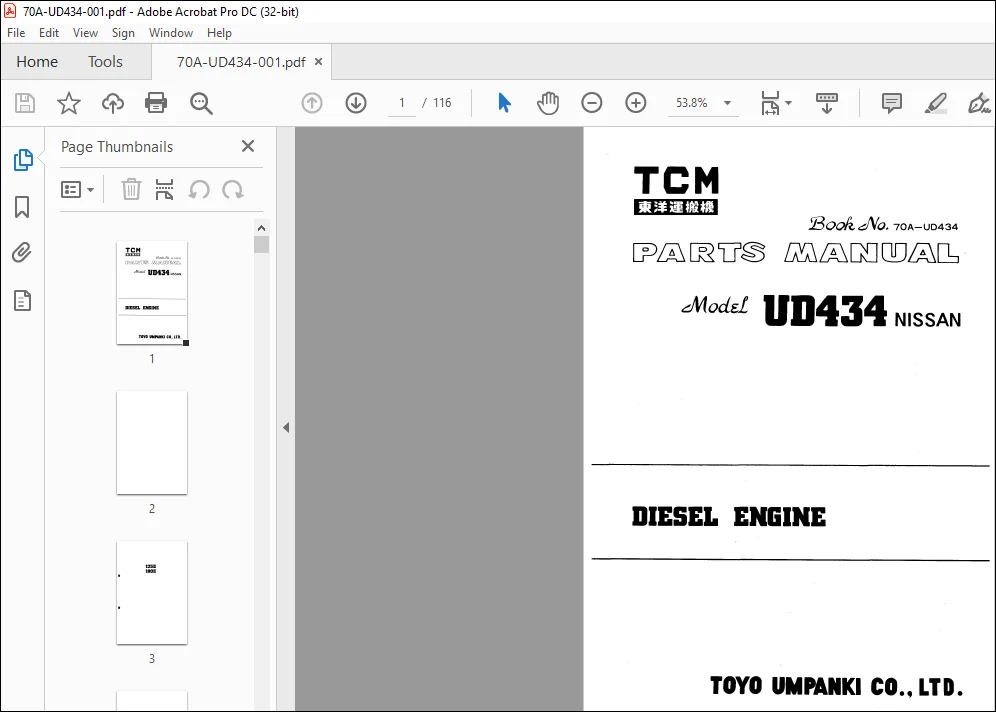

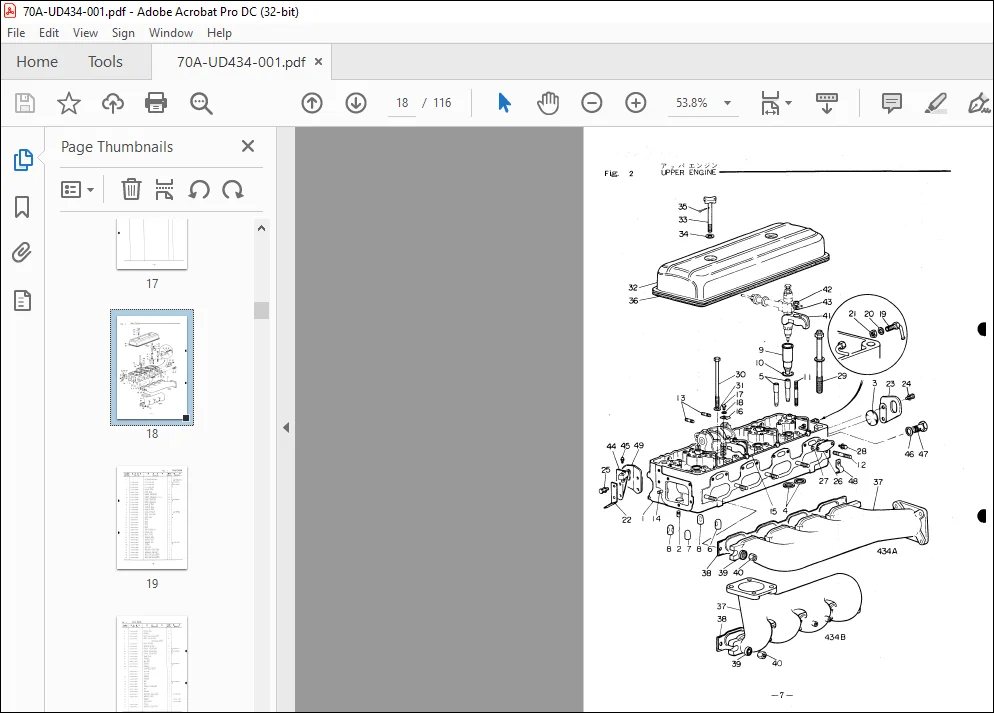

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
TCM UD434 Nissan Diesel Engine Parts Manual 70A-UD434 – PDF DOWNLOAD
Block and Head
Cylinder Block 1
Upper Engine Fig 3
Front Cover and Flywheel Housing 11
Piston and Crank Shaft 15
Cam Shaft and Valve Mechanism 19
Gear Train 23
Cylinder Block 1
Upper Engine Fig 3
Front Cover and Flywheel Housing 11
Piston and Crank Shaft 15
Cam Shaft and Valve Mechanism 19
Gear Train 23
Fuel System
Injection Pump (No 1) 27
Injection Pump (No 2) (Governor) 31
Injection Pump (No 3) (Timer) 37
Injection Pump (No 4) (Fuel Pump) 39
Injection Pump (No 5) (Coupling) 41
Fuel Pipe and Pump Bracket 43
Fuel Filter 47
Fuel Strainer 49
Injection Pump (No 1) 27
Injection Pump (No 2) (Governor) 31
Injection Pump (No 3) (Timer) 37
Injection Pump (No 4) (Fuel Pump) 39
Injection Pump (No 5) (Coupling) 41
Fuel Pipe and Pump Bracket 43
Fuel Filter 47
Fuel Strainer 49
Lubricating System
Fig 15 Lubricating System 51
Oil Filter 55
Oil Pipe 57
Fig 15 Lubricating System 51
Oil Filter 55
Oil Pipe 57
Cooling System
Water Pump 59
Cooling System 61
Water Pump 59
Cooling System 61
Scavenging System
Fig 20 Blower 67
Air Filter (For Model 125m) 71
Air Filter (For Model 180) 73
Fig 20 Blower 67
Air Filter (For Model 125m) 71
Air Filter (For Model 180) 73
Electrical
Starting Motor 75
Generator (400W) 79
Starting Motor 75
Generator (400W) 79
Engine Accessories
Driver Meter 83
Exhaust System 85
Accessories 87
Driver Meter 83
Exhaust System 85
Accessories 87
Numerical Index
