TCM WHEEL LOADER 808A 810A SERVICE MANUAL – PDF DOWNLOAD

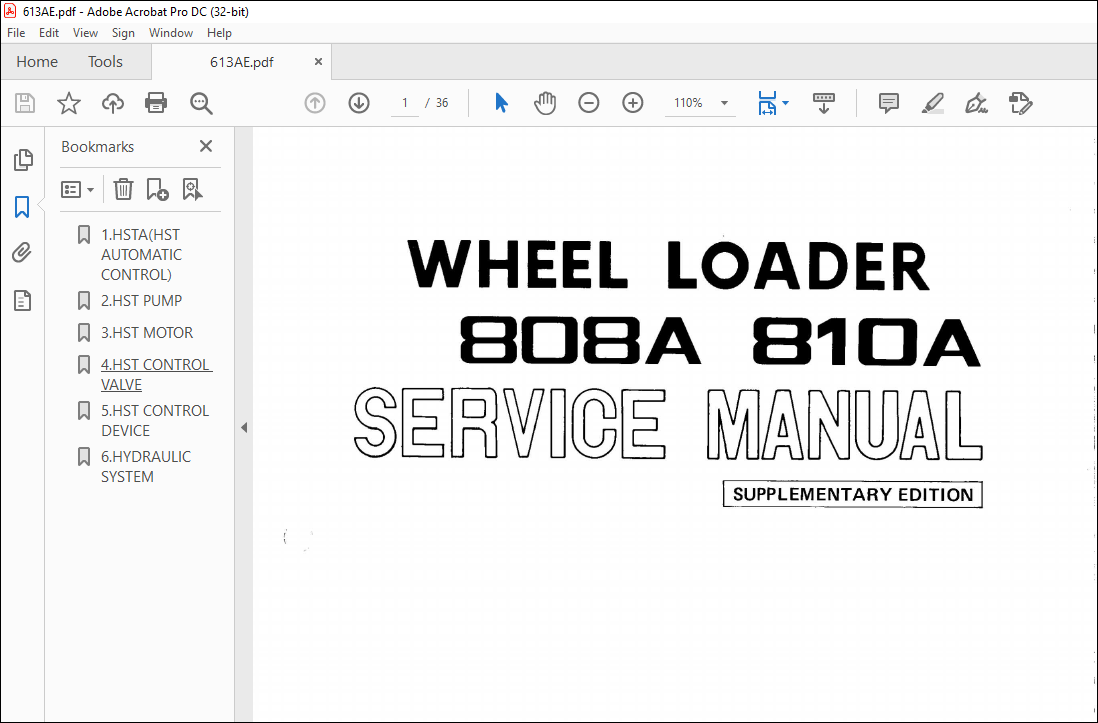

IMAGES PREVIEW OF THE MANUAL:
FILE DETAILS:
TCM WHEEL LOADER 808A 810A SERVICE MANUAL – PDF DOWNLOAD
Language : English
Pages :36
Downloadable : Yes
File Type : PDF
Size:6.07 MB
DESCRIPTION:
TCM WHEEL LOADER 808A 810A SERVICE MANUAL – PDF DOWNLOAD
- Foreword
- The TCM Wheel Loader Models 808A and 810A we have marketed this time are articulated-steering hydraulic four-wheel drive loaders.
- Their stepless speed change and full hydraulic power steering mechanisms enable the operators to steer them with ease, and many attachments available enable the loaders to display their versatility and high performance as multi-purpose wheel loaders.
- To get the most out of these machines, it is necessary for you to become familiar with their features, construction, operating, and maintenance procedures.
- This Service Manual explains the structure of the Models 808A and 810A Wheel Loaders for service personnel and shop workers. We hope this manual is helpful for your servicing job. The description and specifications given in this manual are subject to change without notice for improvement.
