TCM WHEEL LOADER LL4-2 PARTS MANUAL PW-62EA – PDF DOWNLOAD
FILE DETAILS:
TCM WHEEL LOADER LL4-2 PARTS MANUAL PW-62EA – PDF DOWNLOAD
Language : English
Pages :191
Downloadable : Yes
File Type : PDF
Size:5.31 MB

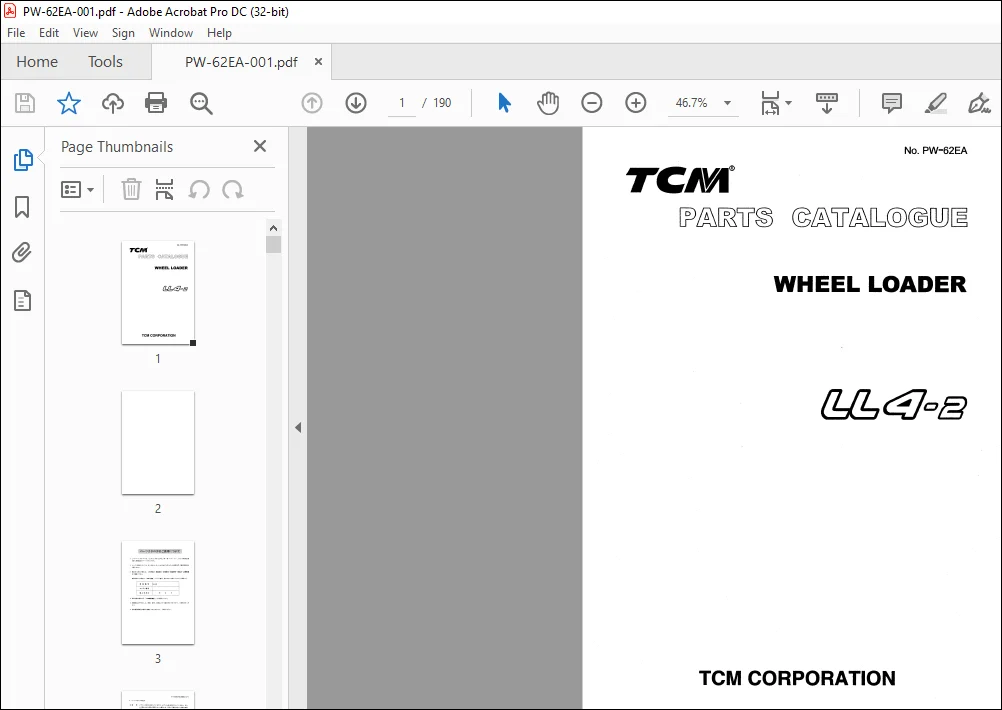

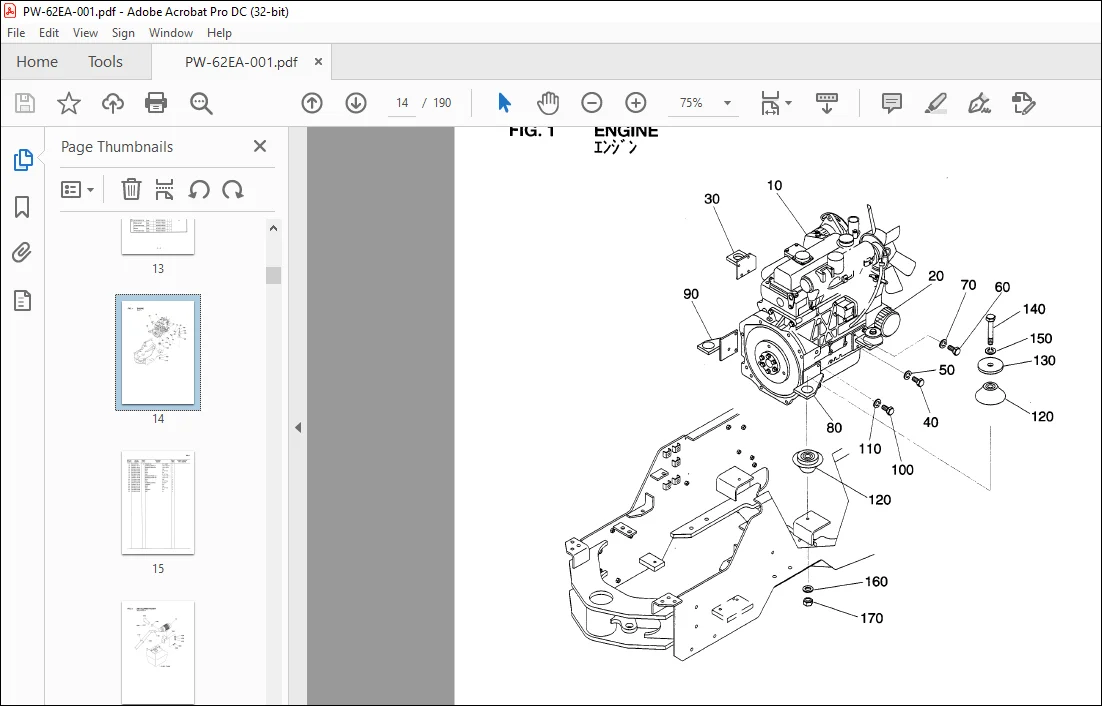

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
TCM WHEEL LOADER LL4-2 PARTS MANUAL PW-62EA – PDF DOWNLOAD
Description foe use of component catalogue
- This component catalogue is for the vehicle components in the L L4-2 Wheel Loader, excluding the engine and specially designed components.
- For engine components, refer to the list of genuine components for Kubota D1503-DI-K2A type diesel engine.
- When any component is ordered, contact the nearest branch or business office of our company and tell them the model type and model number of your machine, along with the component number, component name, and required quantity. For an order to be placed for any component, we advise recording the machine number, engine number, and delivered date in the following table. Model Number: LL4-2 Engine Number: Delivered Date: Year/Month/Date
- Always use genuine TCM components when any component is to be replaced.
- Any description of the components may be deleted or changed, or the described component may become unavailable without prior notice.
- The component number index is included at the end of the catalogue. Please use it for reference.
- How to use the Component Catalogue: (1) Symbols: These symbols coincide with the symbols in figures. However, they are not always described in the same order as serial numbers. When a specified component is changed, a sub-number is added to the symbol, and it shows the number of changes for the component. (2) Component Number: A component number with a * mark indicates a component which is not supplied as a single component but only with an assembly. (3) Component Name:
- LH: Shows the left side of the vehicle in a forwarding direction.
- RH: Shows the right side of the vehicle in a forwarding direction.
- t: Shows the thickness in millimeters.
- *: Shows the marketable part set or kit.
- #: Shows the not sold separately.
- AR: Shows the quantity required.
- +: Shows the not illustrated.
- L: Shows the length.
- (x): Shows (outer diameter x length).
- (x x): Shows (outer diameter x inner diameter x length).
(4) Quantity: Shows the quantity of components used in the machine or in an assembly for a single machine. For the components in an assembly, however, it shows the quantity of components used in the assembly. AR: It is used when appropriate.
(5) Applicable Model Number: The model number is shown where the component is used.

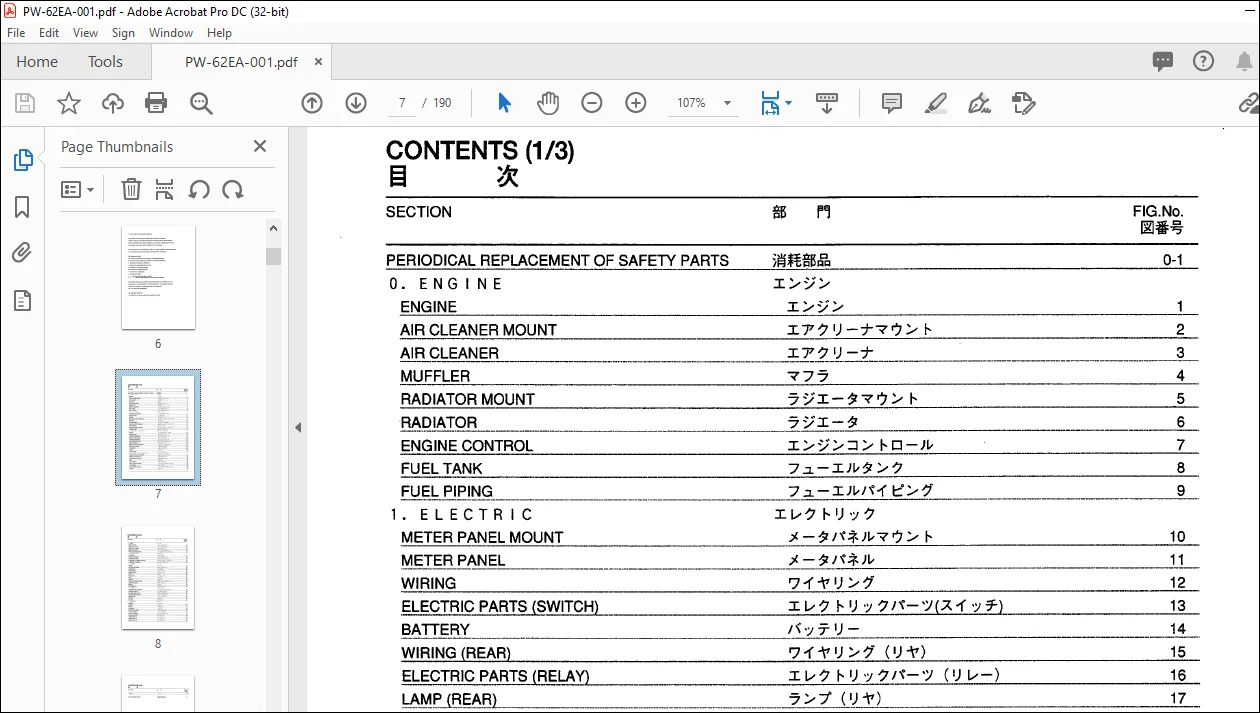

TABLE OF CONTENTS:
