TEREX AERIALS TA50RT (BI-FUEL) OPERATION, SERVICE & PARTS MANUAL 17326 – PDF DOWNLOAD

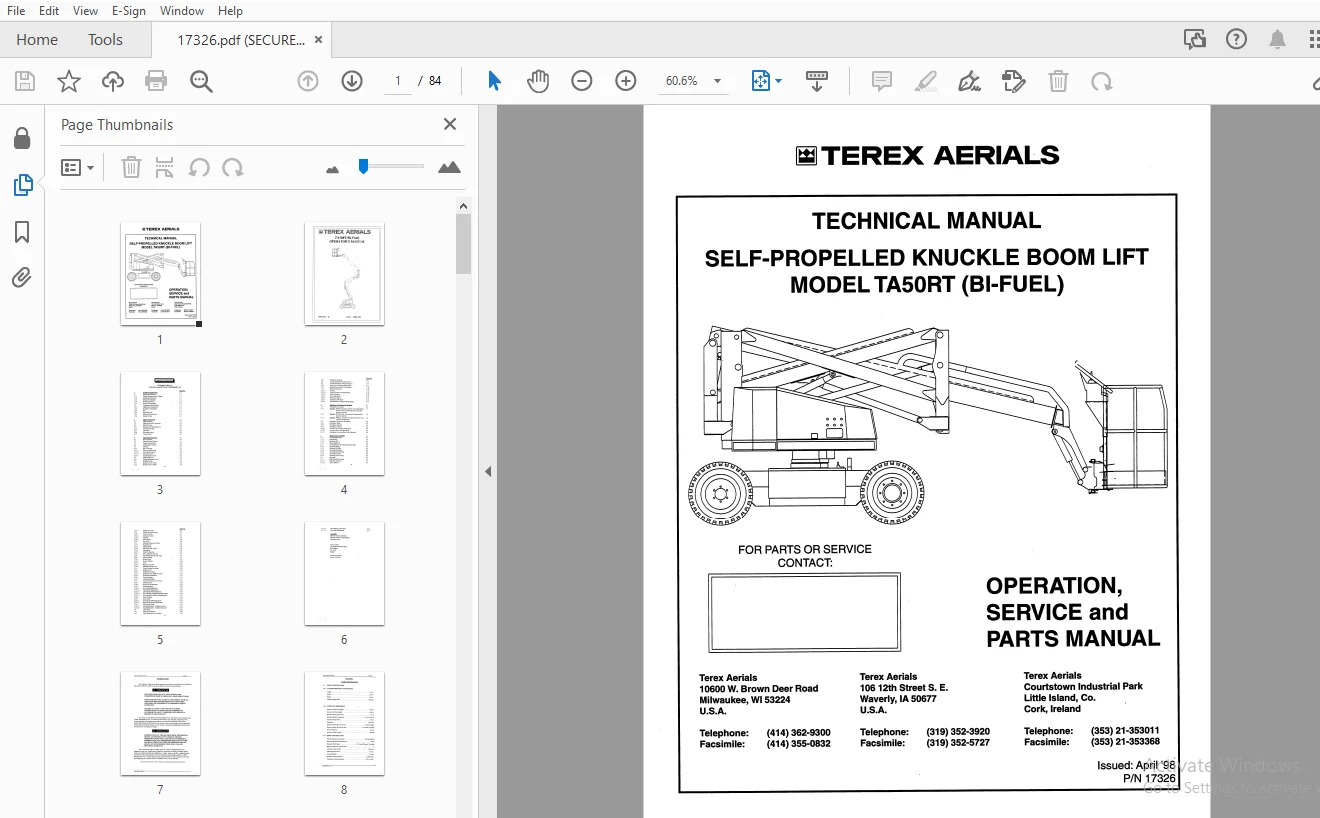

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
TEREX AERIALS TA50RT (BI-FUEL) OPERATION, SERVICE & PARTS MANUAL 17326 – PDF DOWNLOAD
Design Specifications:
- Closed Dimensions and Weights
- Operating Dimensions
- Working Envelope
- General Arrangement
- Component Specifications
Mechanical Components
- Hydraulic Components
- Oil
- Equivalent Oils
- Electrical Components
- Engine Details
Safety Precautions:
- Safety Symbols
- Safety Rules and Precautions
- Safety Features
- Emergency Stop Pushbuttons
- Footswitch Control
- Tilt Alarm
- Movement Alarm
- Torque Chart
Operating Procedures:
- Pre-use Checks
- Ground Control Checks
- Cage Control Checks
- Unloading Procedures
- Driving
- Drive Controls
- Forward and Reverse
- Drive Speed Control
- Steering Control
- Travel Speed Control
- Differential Lock
- Engage Differential Lock
- Braking System
- Brakes in Static Mode
- Brakes in Drive Mode
- Emergency Braking
- Access Operations (Cage Control)
- Access Operations (Ground Control)
- After Use and Storage Instructions
- Special Precautions
- Cold Weather
- Towing
- Towing without Towing Package
- Wind Conditions
- Crane Operations
- Driving on Slopes
- Testing the Tilt Alarm
- Oil and Battery Charge Warning Lamps
Emergency Procedures & Systems:
- Situation: Platform elevated, operator not incapacitated but unit will not operate properly using the platform controls.
- Situation: Unit elevated, with operator incapacitated at platform controls.
- Situation: Platform in contact with live power lines, and operator incapacitated.
- Emergency Pump
- Emergency Rotation
- Emergency Towing
- Towing with towing package fitted
- Towing without towing package
- Emergency Lowering from Cage (Optional)
Maintenance Schedules:
- Introduction
- Hydraulic Oils
- Diesel Engine Oil
- Servicing Check List (Basic Machine Only)
- Servicing (Daily, Weekly, Monthly, Six Monthly, Yearly, Four Yearly)
- Daily Routine Servicing
- Hydraulic Oil Level
- Tyre Condition
- Cage Door Lock
- Weekly Routine Service
- Control Valves
- Hydraulic System
- Steering
- Start Battery
- Pivot Pins
- Monthly Routine Servicing
- Hydraulic Oil
- Chassis Bolts
- Slew Ring Gear Teeth
- Lubrication
- Pivot Pin Security
- Drive Gearbox Oil Level
- Six Monthly Routine Servicing
- Cage Levelling
- Boom Pivots
- Boom Cylinders
- Axle
- Return Line Filter
- Machine Systems Test
- Yearly Routine Servicing
- Hydraulic Oil
- Hydraulic Oil Tank
- Hydraulic Tank Refill Procedure
- Structural Examination
- Cage Mounting
- Levelling Cylinders
- Four Yearly Routine Servicing
- Flexible Hoses
- Pivot Pins and Bearings
- Pin Replacement
- Boom Pin Replacement
- Tie Rail Pin Replacement
- Lift Cylinder Pin Replacement
- Self Levelling Cylinder Pin Replacement
- Zoom Boom Cylinder Pin Replacement
- Zoom Cylinder
- Zoom Pads
- Front Zoom Pad Replacement
- Rear Zoom Boom Replacement
- Lift Cylinder Seals
- Seal Replacement – Cylinder In-place
- Seal Replacement – Cylinder Removed
- Lubrication
- General Lubrication
- Slew Bearing/Gear Lubricants
- Slew Bearing Lubrication
- Slew Gear Lubrication
Appendix:
- Electric circuit (schematic)
- Electric circuit (wiring diagram)
- Hydraulic circuit
