TEREX AERIALS TS25RT SCISSOR LIFT PARTS MANUAL 12261-255 – PDF
$17.95
TEREX AERIALS TS25RT SCISSOR LIFT PARTS MANUAL 12261-255 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
TEREX AERIALS TS25RT SCISSOR LIFT PARTS MANUAL 12261-255 – PDF DOWNLOAD

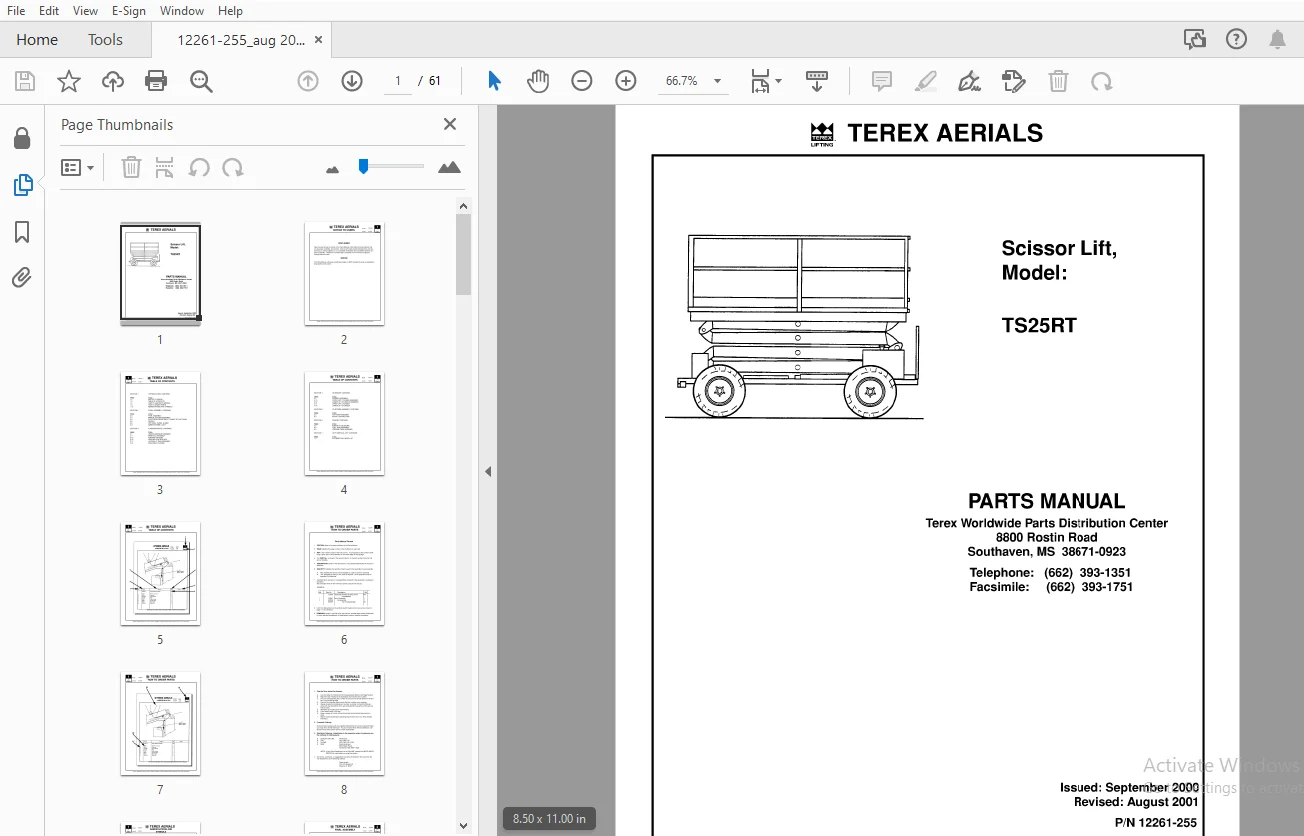

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
TEREX AERIALS TS25RT SCISSOR LIFT PARTS MANUAL 12261-255 – PDF DOWNLOAD
SECTION 1: INTRODUCTION
1.1 NOTICE TO USERS
1.2 TABLE OF CONTENTS
1.6 HOW TO USE PARTS MANUAL
1.8 HOW TO ORDER PARTS
1.10 ABBREVIATIONS AND SYMBOLS
SECTION 2: FINAL ASSEMBLY
2.2 FINAL ASSEMBLY
2.4 MANUAL HOLDER ASSEMBLY
2.5 ELECTRICAL RECEPTACLE. POWER TO PLATFORM
2.6 DECALS
2.8 OPTIONAL TRAVEL ALARM
2.9 AMBER STROBE LIGHT
SECTION 3: UNDERCARRIAGE
3.1 UNDERCARRIAGE ASSEMBLY
3.7 MANIFOLD ASSEMBLY
3.13 TOW BAR (OPTION)
3.15 GROUND CONTROL BOX
3.17 HYDRAULIC TANK ASSEMBLY
3.18 STEERING CYLINDER
SECTION 4: SCISSORS
4.1 SCISSOR ASSEMBLY
4.10 UPPER LIFT CYLINDER ASSEMBLY
4.12 LOWER LIFT CYLINDER ASSEMBLY
4.14 UPPER LIFT CYLINDER
4.15 LOWER LIFT CYLINDER
SECTION 5: PLATFORM ASSEMBLY
5.2 PLATFORM ASSEMBLY
5.4 AERIAL CONTROL BOX
SECTION 6: ENGINE
6.2 KUBOTA D-722 ENGINE
6.4 FUEL TANK ASSEMBLY
6.5 PROPANE TANK ASSEMBLY
SECTION 7: ALPHABETICAL LIST
7.2 ALPHABETICAL PARTS LIST
S.S 04/24
