Terex Crane T300-1 Parts Manual 12261-280 – PDF DOWNLOAD

Description

Terex Crane T300-1 Parts Manual 12261-280 – PDF DOWNLOAD

FILE DETAILS:

Terex Crane T300-1 Parts Manual 12261-280 – PDF DOWNLOAD

Language : English
Pages : 296
Downloadable : Yes
File Type : PDF

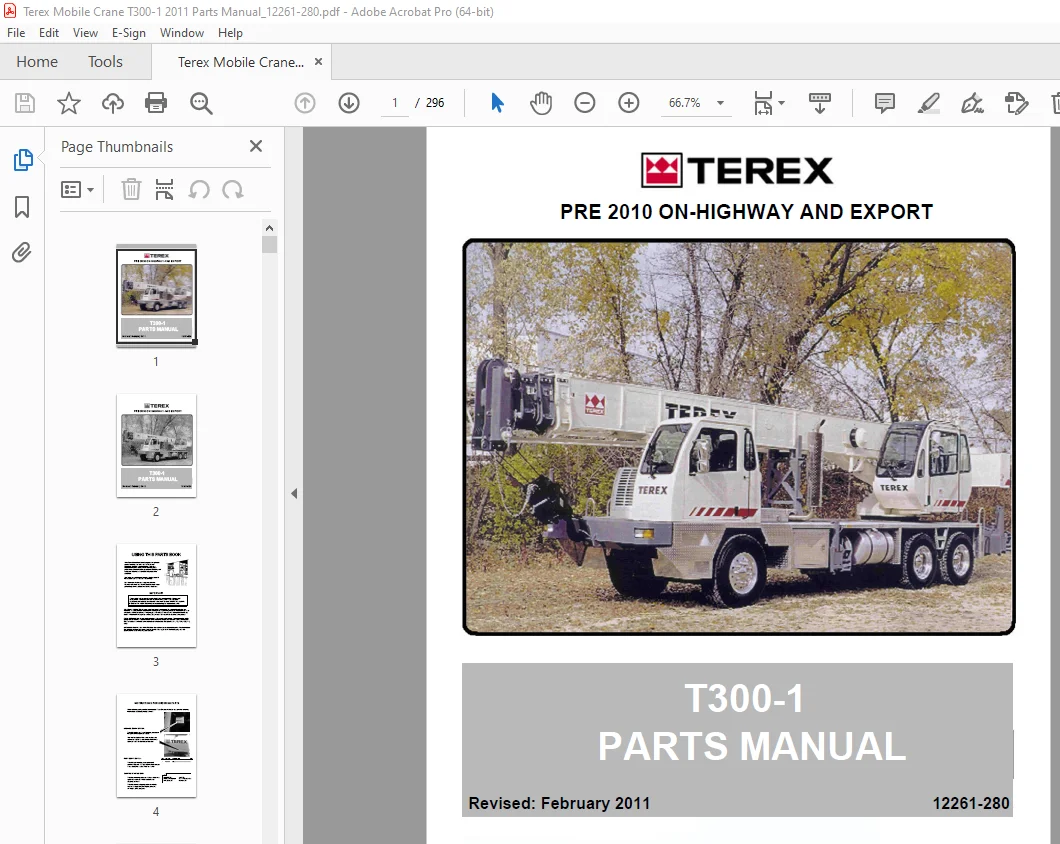

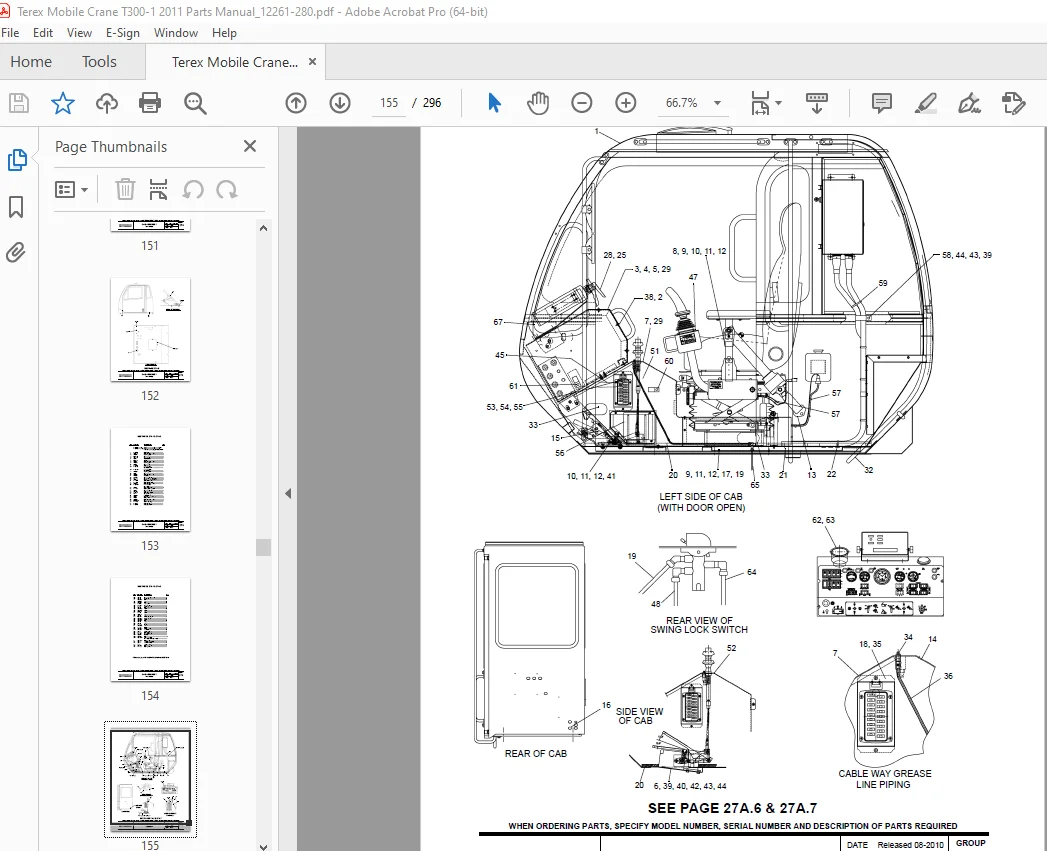

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Terex Crane T300-1 Parts Manual 12261-280 – PDF DOWNLOAD

2 CARRIER FRAME, FUEL TANK
2.1) Frame, Boom Rack, Pintle Hook
2.2) Fenders & Decks
2.4) Fuel Tank
3 OUTRIGGERS
3.1) Outriggers
3.1A) Outriggers
3.2) Outrigger Beam Assembly (Front)
3.3) Outrigger Beam Assembly (Rear)
3.4) Outrigger Jack Cylinder (Front)
3.4A) Outrigger Jack Cylinder (Front)
3.5) Outrigger Jack Cylinder (Rear)
3.5A) Outrigger Jack Cylinder (Rear)
3.6) Outrigger Extend Cylinder
3.7) Outrigger Valves
3.10) Front Jack
5 CARRIER AXLES & WHEELS
5.1) Front Axle Assembly
5.2) Rear Axle Assembly
5.3) Air Suspension Kit
5.4) Wheels & Tires
6 CARRIER ENGINE (Cummins ISC 300)
6.1) Engine Cummins – ISC300 Domestic
Manual Transmission
6.5) Engine Cummins – ISC300 Domestic
Auto Transmission
6.9) Cooling System Cummins – ISC300
Domestic Manual & Auto Transmission
6.11) Exhaust Assembly System – ISC300
Domestic Manual & Auto Transmission
6.12) Air Cleaner Assembly ISC300
Domestic Manual & Automatic
6A CARRIER ENGINE(Cummins QSC8.3 T3) – Export
6A.1) Engine Cummins QSC8.3 T3 Export Manual
Transmission
6A.5) Cooling System Cummins QSC8.3 T3 Export
Manual Transmission
6A.6) Exhaust System Cummins QSC8.3 T3
Export Manual Transmission
6A.9) Air Cleaner Cummins QSC8.3 T3 – Export
Manual Transmission
PARTS GROUPS
7 TRANSMISSION (MANUAL)
7.1) Transmission (Fuller RT8908LL)
7.2) Transmission (Shift Linkage)
7A TRANSMISSION (AUTOMATIC)
7A.1) Transmission (Allison)
7A.2) Transmission (Main Housing)
7A.4) Transmission (Fill Tube)
7A.5) Transmission (Main Shaft)
7A.6) Transmission (Output Flange)
7A.7) Transmission (Front Support And Oil Pump
7A.9) Transmission (P1 Planetary)
7A.10) Transmission (P2 Planetary)
7A.11) Transmission (Control Valve)
7A.15) Transmission (Oil Cooler)
7A.17) Transmission (Torque Converter)
7A.19) Transmission (Rotating Clutch)
7A.21) Transmission (Converter Housing)
7A.22) Transmission (Planetary And Rear Cover
7A.24) Transmission (Vehicle Interface Module)
7A.25) Transmission (Shifter Selector 6 Speed)
7A.26) Transmission (Blank TCM)
7A.27) Transmission (Fitting)
8 AUXILIARY TRANSMISSION
8.1) Auxiliary Transmission (Fuller 2A-92)
8.2) Auxiliary Transmission (Fuller 2A-92)
9 DRIVE SHAFTS
9.1) Drive Shafts (Cummins / Fuller)
9.2) Drive Shafts (Cummins / Allison)
9.3) Drive Shafts (Cummins / Allison)
10 BRAKES
10.1) Air Brakes (Carrier Dash)
10.2) Air Brakes (Rear)
10.3) Air Brakes (Front)
10.4) Air Brakes (Rear – Front)
10.6) Air Brakes (Air Dryer Assembly)
11 STEERING
11.1) Steering System
11.3) Steering Gear
11.4) Steering Column
11.5) Intermediate Column Assembly
12 SUPERSTRUCTURE
12.1) Superstructure
12.2) Swing Bearing
12.3) Swing Gear Dust Cover
2/2011
T300-1
13 COUNTERWEIGHT
13.1) Counterweight (6100#/7200#)
13.2) Counterweight (900#/2000#)
13.3) Counterweight (9900#/11000#)
22 SWING SYSTEM
22.1) Swing Drive (Braden)
22.2) Swing Reduction Unit (Braden)
22.4) Swing Motor (Eaton)
24 PUMP DRIVE CASE
24.1) Pump Disconnect
24.2) Hydraulic Pump
24.4) Steering Pump (Cummins)
25 HYDRAULIC SYSTEM
25.1) Hydraulic Reservoir
25.2) Hydraulic Swivel Assembly
25.3) Rotary Manifold
25.4) Boom Valve
25.5) Winch Valve
25.6) Swing Valve
25.7) Auxiliary Winch Valve
27 OPERATOR’S CAB & MACHINERY HOUSING
27.1) Operator’s Cab (Upper)
27.4) Operator’s Cab (Upper)
27.5) Operator’s Cab (Upper)
27.7) Operator’s Cab (Upper)
27.8) Operator’s Cab (Front Windshield)
27.9) Operator’s Cab (Roof Hatch)
27.10) Operator’s Cab (Door)
27.11) Crane Cab (Shelf Assembly)
27.12) Carrier Cab Auto Trans
27.14) Carrier Cab
27.17) Carrier Cab (Door)
27.18) Engine Housing
27.19) Operator’s Seat (Crane)
27.20) Carrier Seat (Lower Cab)
27.21) Wipers (Crane)
27.22) Carrier Cab (Wiper)
27A OPERATOR’S CAB
27A.1) Cab Assembly (Lower Auto)
27A.5) Upper Cab Assembly
27A.8) Cab Assembly (Lower Manual)
PARTS GROUPS
28 OPERATOR’S CONTROLS
28.1) Controls
28.2) Swing Brake Control
28.4) 360° House Lock
28.5) Boom Angle Indicator
28.6) Throttle Controls (Upper)
28.8) Throttle Controls (Lower)
28.9) Arm Module Assemblies
28.10) Right Arm Assembly Single Axis
28.11) Left Arm Assembly Single Axis
28.12) Right Arm Assembly Double Axis
28.13) Left Arm Assembly Double Axis
28.14) Boom Control
28.15) Control Module
30 MARKING
30.1) Marking Decals
30.4) Anti-Slip
31 HEATER / AC
31.1) Heater / AC Installation (Upper)
31.2) Heater / AC (Kenway LRCR004)
31.3) Hydraulic / AC (Kenway) & LP Heater
(Suburban)
31.5) Combination of HYD Heater
HYD AC and LP Heater
31.7) No Heater Includes Cover
31.8) Schematic, Electrical Air
and Oil Heat System
31.9) Schematic, Oil Heat
Model 9057 Effective 1/08
31A HEATER
31A.1) Propane Heater (Suburban NT-20S-TC)
31A.3) Propane Heater (Suburban NT-20S-TC)
31A.5) Propane Heater (Suburban NT-20S-TC)
2/2011
T300-1
33 ELECTRICAL SYSTEM
33.1) Dash Assembly (Upper)
33.4) Dash Assembly (Lower)
33.8) Circuit Breaker (Upper)
33.9) Circuit Breaker (Lower)
33.10) Electrical System (Batteries)
33.12) Electrical Assembly (Lights & Harnesses)
33.15) Electrical System (Work Light Assembly)
33.17) Electrical System (Revolving Light Assebly)
33.18) Collector Ring (40 Pass)
33.19) Electrical Assembly (Relay Panel)
33.20) Shift Console Assembly (Lower)
33B ELECTRICAL SYSTEM
33B.1) Dash Assembly (Lower Export)
33B.5) Dash Assembly (Lower)
33B.9) Dash Assembly (Upper)
33B.12) Electrical Assembly
39 HYDRAULIC TELESCOPING BOOM
39.1) 105’ Boom
39.7) 105’ Boom (Extend Cylinder)
39.8) 105’ Boom (Boom Cylinder)
39.9) 105’ Boom (Hold Valve)
39A HYDRAULIC TELESCOPING BOOM
39A.1) 94’ Boom
39A.7) 94’ Boom (Extend Cylinder)
39A.7A) 94’ Boom (Extend Cylinder)
39A.7B) 94’ Boom (Extend Cylinder)
39A.8) 94’ Boom (Hoist Cylinder)
39A.9) 94’ Boom (Hold Valve)
PARTS GROUPS
39B JIB
39B.1) Side-Stow Offsettable Jib (32’)
39B.2) Side-Stow Offsettable Jib (32’-49’)
39B.3) Jib Stowage Assembly
39B.5) Anti-Two Block (Jib)
40 HYDRAULIC WINCH
40.1) Winch Valve
40.2) Winch Motor
40.3) Winch Cable Roller
40.4) Hydraulic Winch (BRADEN PD15B)
40.5) Hydraulic Winch (BRADEN PD15B)
44 HOOK BLOCKS, BALLS
44.1) Hook Block (2 Sheave / 25 Ton)
44.2) Hook Block (2 Sheave / 30 Ton)
44.3) Hook Block (3 Sheave / 30 Ton)
44.4) Hook Block (4 Sheave / 30 Ton)
44.5) Hook Block (4 Sheave / 40 Ton)
44.6) Hook Block (5 Sheave / 50 Ton)
44.7) Overhaul Ball (240# / 250#)
45 WIRE ROPE, PENDANTS, REEVING
45.1) Wire Rope & Reeving
50 ATTACHMENT OPTIONS
50.1) Auxiliary Winch
50.2) Auxiliary Winch
50.3) Auxiliary Boom Head Sheave
50.4) Anti-Two (Aux Sheave)
50.5) Tool Box Assembly (Right)
50.6) Tool Box Assembly (Left)
51 51.1) Remote Control (Upper)
51.2) Remote Brakes
51.3) Collector Ring Assembly (48 Pass)
51.4) Collector Ring (48 Pass)
52 RATED CAPACITY INDICATOR
52.1) Greer RCI510 (RCI Assembly)
52.4) Greer RCI510 (Computer)
52.5) Greer RCI510 (Reel)
54 FILTERS
54.1) Filter Specifications
55 RECOMMENDED SPARE PARTS
55.1) Recommended Spare Parts List
