Terex Vibratory Screed Operator Parts Manual – PDF DOWNLOAD

Description

Terex Vibratory Screed Operator Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Terex Vibratory Screed Operator Parts Manual – PDF DOWNLOAD

Language : English
Pages : 40
Downloadable : Yes
File Type : PDF

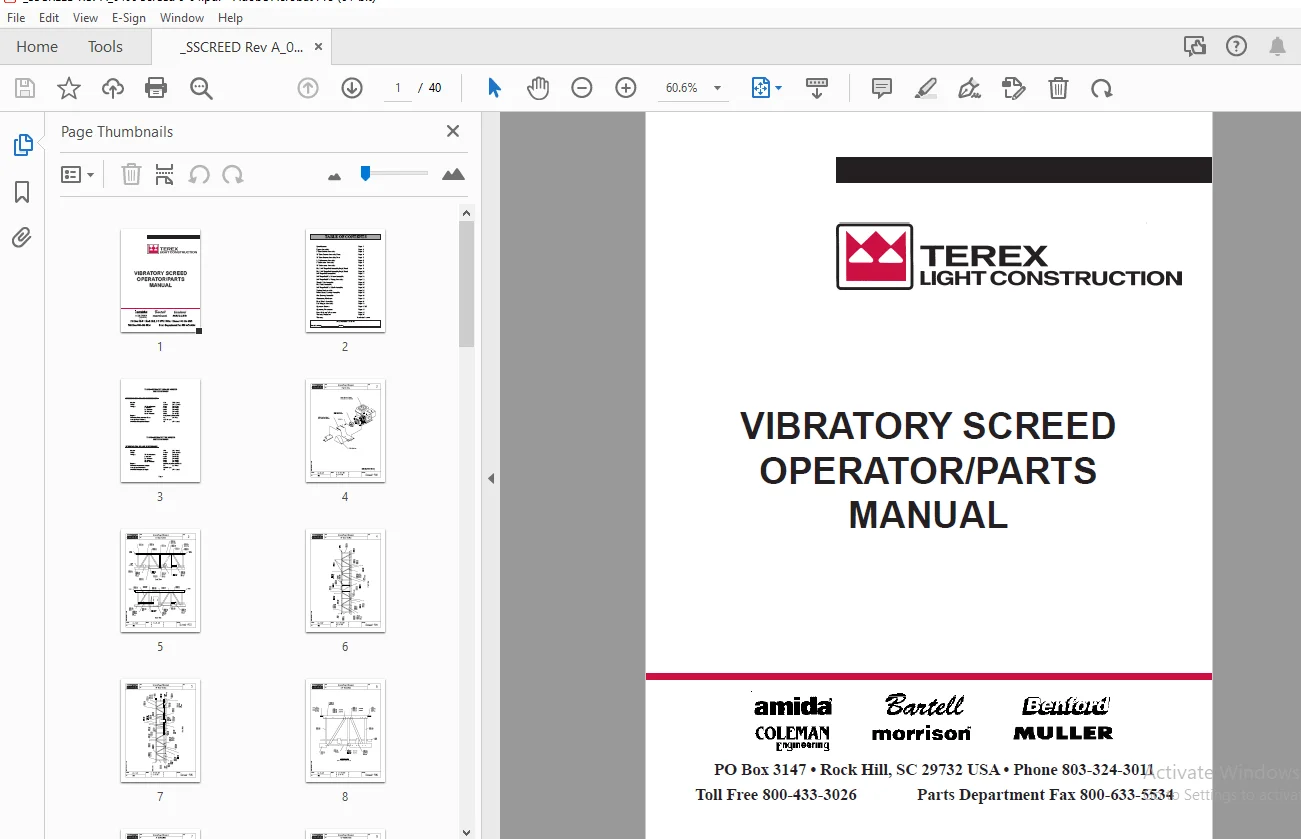

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Terex Vibratory Screed Operator Parts Manual – PDF DOWNLOAD

Specifications Page 1
Engine Assembly Page 2
5’ Base Section Assembly Page 3
10’ Base Section Assembly,Front Page 4
10’ Base Section Assembly,Rear Page 5
2.5’ Subsection Assembly Page 6
5’ Subsection Assembly Page 7
10’ Subsection Assembly Page 8
Hyd. Self-Propelled Assembly, Right Hand Page 9
Hyd. Self-Propelled Assembly, Right Hand Page 10
Self-Propelled Assemblies Page 11
Self-Propelled Hyd. Motor Assembly Page 12
Self-Propelled Hyd. Pump Assembly Page 13
Winch Cable Assembly Page 14
Hyd. Tank Assembly Page 15
Self-Propelled Hyd. Shaft Assembly Page 16
Turnbuckle Assembly Page 17
Pillow Block Bearing Assembly Page 18
Cast Bearing Assembly Page 19
Connecting Hardware Page 20
Hand Winch Assembly Page 21
End Adaptor Assembly Page 22
Operators Section Page 24-35
Operating Precautions Page 36
Parts Ordering Information Page 36
Warranty Procedure Page 37
Warranty Inside back cover

S.S 06/24
