Tigercat 1165 HARVESTER SERVICE MANUAL SN 11650101-11650500 – PDF DOWNLOAD

Description

Tigercat 1165 HARVESTER SERVICE MANUAL SN 11650101-11650500 – PDF DOWNLOAD

DESCRIPTION:

Tigercat 1165 HARVESTER SERVICE MANUAL SN 11650101-11650500 – PDF DOWNLOAD

INTRODUCTION:

An Operator’s manual, Service manual and a Parts catalogue is available by Tigercat to assist the dealer, customer and operator in becoming familiar with the features of the 1165 Harvester.
SERIAL NUMBERS:
11650101 to 11650500

• The 1165 Harvester is designed for harvesting trees, at-the-stump processing or roadside processing applications in thinning, selective felling and clear felling applications in plantations and natural stands.
• The Operator’s manual will assist the operator with the techniques of proper and safe operation of the 1165 Harvester. There is also important information regarding the safe operation of the attachment (if equipped). The service manual contains safety and servicing procedures and a preventive maintenance schedule to ensure optimum machine performance.
• Section 1 in both the operator’s manual and the service manual contains safety information that must be followed. As well, throughout the rest of the manuals, DANGER, WARNING and CAUTION notices are displayed where necessary, drawing attention to possible hazards when performing certain procedures.
• Only trained personnel are allowed to operate or work on the machine.
• The information contained in this manual is current at time of printing. Improvements to the machine are on-going and may not be covered, therefore in these cases contact your Tigercat dealer for the appropriate information.
• Tigercat reserves the right to make changes to the machine after this manual release date that may not immediately appear in this manual.

TABLE OF CONTENTS:

Tigercat 1165 HARVESTER SERVICE MANUAL SN 11650101-11650500 – PDF DOWNLOAD

INTRODUCTIONv
MACHINE IDENTIFICATION AND SERIAL NUMBERSvi
NON-APPROVED FIELD PRODUCT CHANGESviii
REGULATORY INFORMATIONix
WARRANTY–EPAx
EC DECLARATION OF CONFORMITYxii
SAFETY1
CONTROLS AND OPERATION2
LUBRICATION AND MAINTENANCE3
HYDRAULIC SYSTEM4
ELECTRICAL AND COMPUTERS6
DRIVE8
BRAKES AND DIFFERENTIAL LOCKS9
COOLING SYSTEM AND FAN10
STEERING, CENTRE JOINT AND OSCILLATION LOCK11
LEVELER13
HARVESTING ATTACHMENT19
MISCELLANEOUS25

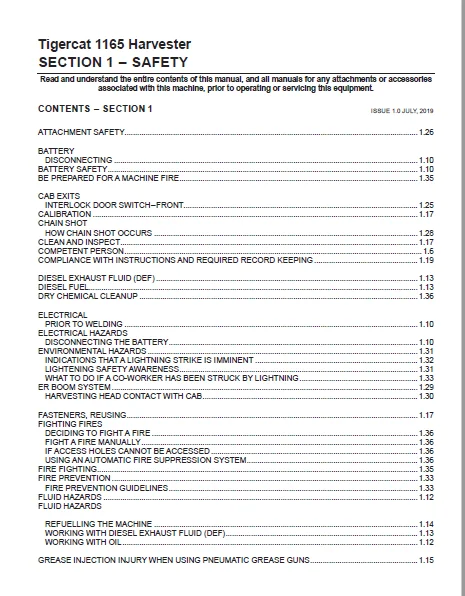

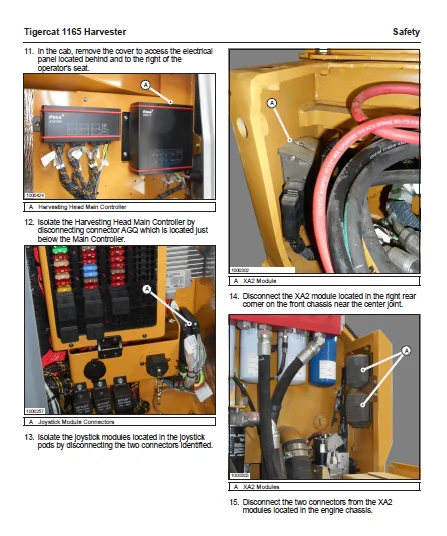

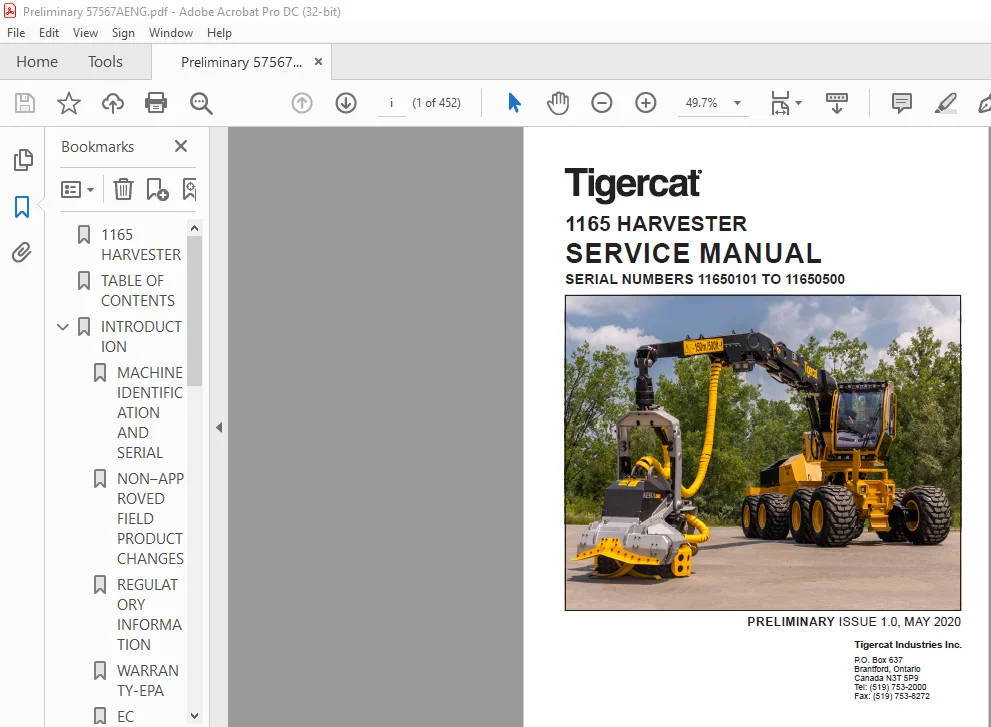

IMAGES PREVIEW OF THE MANUAL:

TIGERCAT 1165 HARVESTER SERVICE MANUAL SN 11650101-11650500 – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
