Tigercat 822C L822C 830C L830C Feller Buncher Service Manual – PDF DOWNLOAD

Description

Tigercat 822C L822C 830C L830C Feller Buncher Service Manual – PDF DOWNLOAD

DESCRIPTION:

Tigercat 822C L822C 830C L830C Feller Buncher Service Manual – PDF DOWNLOAD

SERIAL NUMBER 822*2001 TO 822*3000
SERIAL NUMBER 830*2001 TO 830*3000

INTRODUCTION :

An Operator’s manual, Service manual and a Parts catalog are made available by Tigercat to assist the dealer, customer and operator in becoming familiar with the features of the 822C/L822C/830C/L830C Feller Bunchers.
Serial numbers:
822C 82212001 to 82213000
L822C 82222001 to 82223000
830C 83012001 to 83013000
L830C 83022001 to 83023000

• The 822C/L822C/830C/L830C Feller Bunchers are designed for harvesting trees, selective felling, thinning and final felling applications in plantations and natural stands.
• The operator’s manual will assist the operator with the techniques of proper and safe operation of the
  822C/L822C/830C/L830C Feller Bunchers. There is also important information regarding the safe operation of the saw head. The service manual contains safety and servicing procedures and a preventive maintenance schedule to ensure optimum machine performance.
• Section 1 in both the operator’s manual and the service manual contains safety information that must be followed. As well, throughout the rest of the manuals, DANGER, WARNING and CAUTION notices are displayed where necessary, drawing attention to possible hazards when performing certain procedures.
• Only trained personnel should be allowed to operate or work on the machine.
• The information contained in this manual is current at time of printing. Improvements to the machine are on-going and may not be covered, therefore in these cases contact your Tigercat dealer for the appropriate information.
• The phrase “and up” appearing in this manual after the serial number implies that the related information is current for any machine serial number HIGHER than the serial number preceding the “and up”.

TABLE OF CONTENTS:

Tigercat 822C L822C 830C L830C Feller Buncher Service Manual – PDF DOWNLOAD

860C/870C/L870C OPERATOR 3
NON-APPROVED FIELD PRODUCT CHANGES 7
INTRODUCTION v 5
STANDARD TOPS, FOPS, OPS vI 6
NON-APPROVED FIELD PRODUCT CHANGES vII 7
SAFETY 1 9
USING HIGH-SPEED DISC SAWS SAFELY APPENDIX TO SECTION 1 49
LUBRICATION AND MAINTENANCE 3 65
HYDRAULIC SYSTEM 4119
PILOT SYSTEM 5149
ELECTRICAL AND COMPUTERS 6163
ENGINE START AND STOP 7247
COOLING 10269
TRACK DRIVE AND UNDERCARRIAGE 11287
BOOM FUNCTIONS 12333
LEVELING 13347
SWING 15381
SAW DRIVE 17397
WRIST AND CLAMPS 18407
APPENDIX – USING HIGH SPEED DISC SAWS SAFELY 49

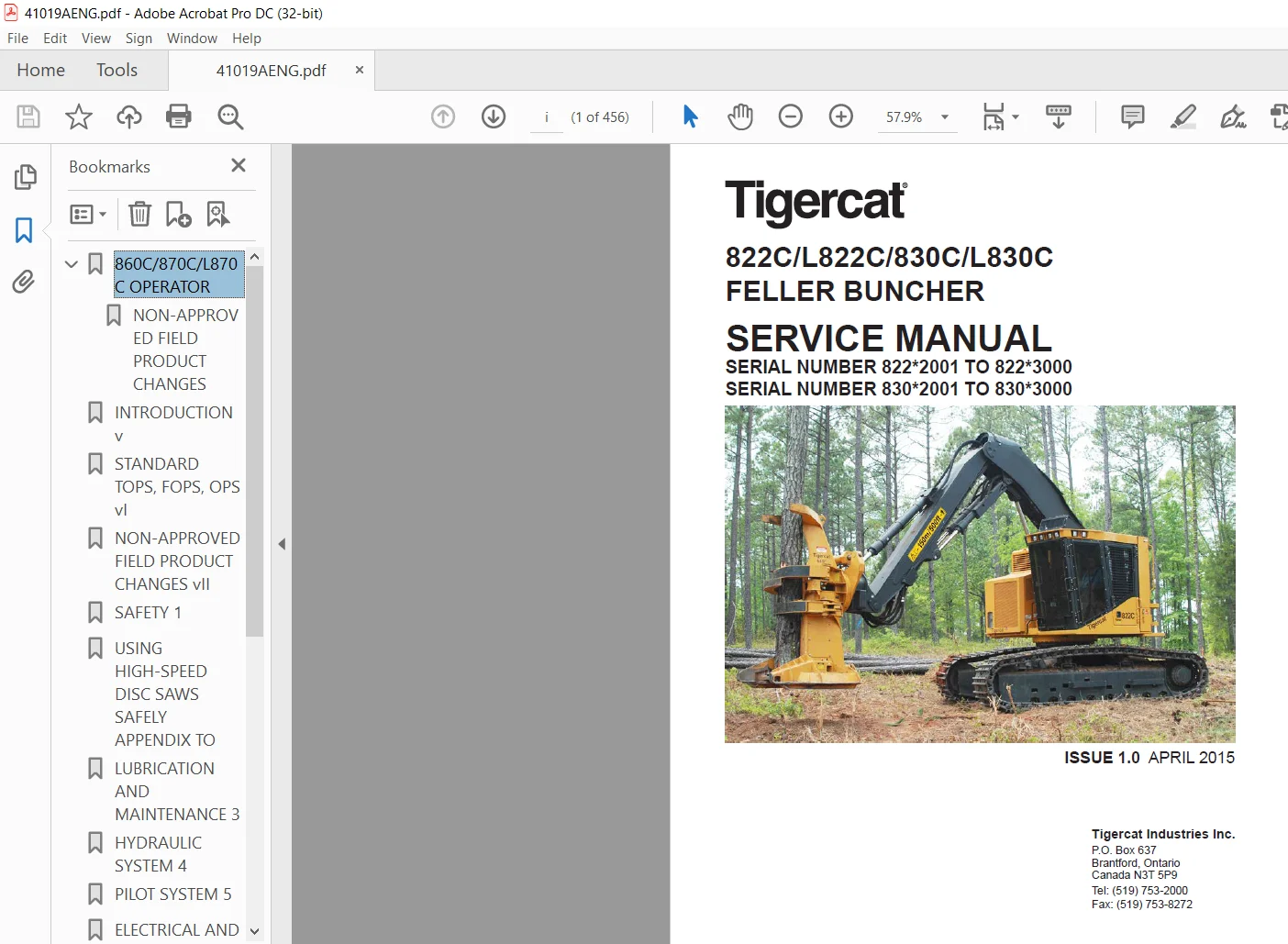

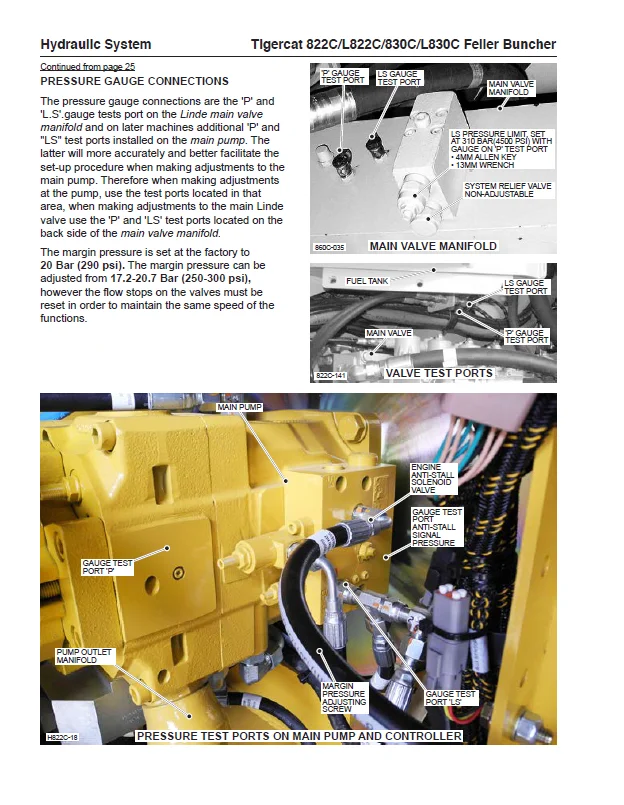

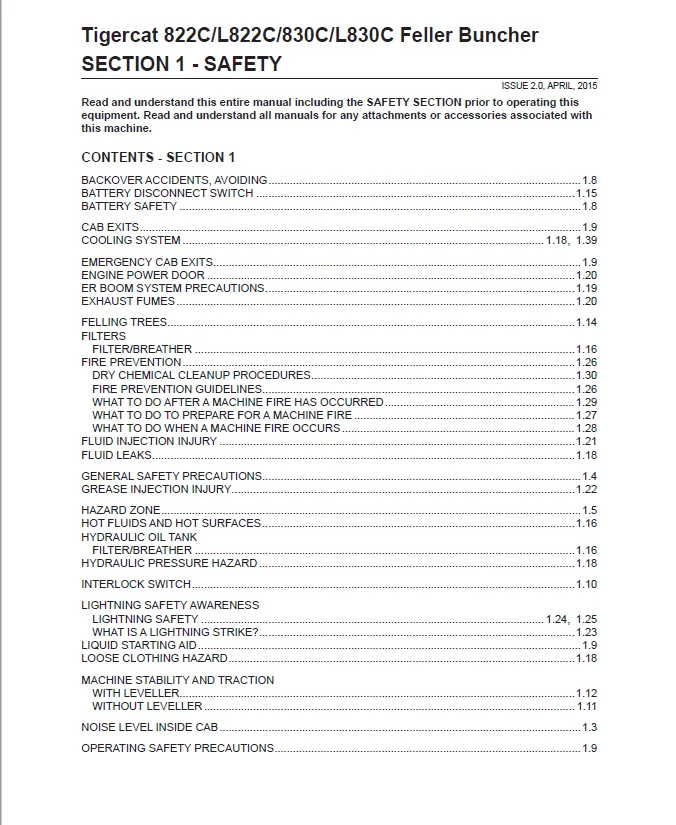

IMAGES PREVIEW OF THE MANUAL:

TIGERCAT 822C L822C 830C L830C FELLER BUNCHER SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
