Tigercat C13 Tier 2 Engine OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD

Description

Tigercat C13 Tier 2 Engine OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD

TABLE OF CONTENTS:

Tigercat C13 Tier 2 Engine OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD

Battery safety……………………………………………………………………………………………………………………………………………..7
Component location diagrams………………………………………………………………………………………………………………..14
CONTROLS AND MAINTENANCE………………………………………………………………………………………………………………………18
ACCIDENT PREVENTION……………………………………………………………………………………………………………………………….18
FLUID CAPACITIES………………………………………………………………………………………………………………………………………..20
MAINTENANCE SCHEDULE…………………………………………………………………………………………………………………………..19
Replacement of alte rnato r belt ………………………………………………………………………………………………………31
replacement of CRANKCASE VENTILATION filte r………………………………………………………………………………30
Replacement of engine oil and filte r………………………………………………………………………………………………22
Replacement of fuel filte r………………………………………………………………………………………………………………..27
COOLING SYSTEM……………………………………………………………………………………………………………………………………… 8, 17
ENGINE IDENTIFICATION…………………………………………………………………………………………………………………………………12
engine oil chart………………………………………………………………………………………………………………………………………….38
ENGINE TECHNICAL DATA………………………………………………………………………………………………………………………………..13
ENGINE USE
COLD START HEATER……………………………………………………………………………………………………………………………………16
PRELIMINARY CHECKS…………………………………………………………………………………………………………………………………16
STARTING AND STOPPING THE ENGINE………………………………………………………………………………………………………..16
TO PREVENT ENGINE DAMAGE…………………………………………………………………………………………………………………….17
Fuel circuit…………………………………………………………………………………………………………………………………………… 17,
GENERAL INFORMATION……………………………………………………………………………………………………………………………………5
IN CASE OF AN EMERGENCY…………………………………………………………………………………………………………………………..10
In case of fire…………………………………………………………………………………………………………………………………………..10
MOVING THE ENGINE………………………………………………………………………………………………………………………………………35
OIL LEVEL CHECK……………………………………………………………………………………………………………………………………………21
SAFETY PRECAUTIONS, GENERAL……………………………………………………………………………………………………………………7
SAFETY SYMBOLS…………………………………………………………………………………………………………………………………………….6
SIGNAL WORDS…………………………………………………………………………………………………………………………………………………6
WARNINGS………………………………………………………………………………………………………………………………………..17
Engine Coolant Level low……………………………………………………………………………………………………………………..17
Engine Coolant Temperatu re High………………………………………………………………………………………………………17
Fuel Level low………………………………………………………………………………………………………………………………………….26

DESCRIPTION:

Tigercat C13 Tier 2 Engine OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD

GENERAL INFORMATION :

NON-APPROVED FIELD PRODUCT CHANGES:

• Unauthorized changes made of any kind to this Tigercat product could affect the product’s ability to perform as originally intended. The product’s integrity, and it’s ability to perform safely could be at serious risk.
• IT IS Tigercat POLICY THAT NO CHANGES ARE TO BE MADE TO ITS PRODUCTS INCLUDING DELETIONS OR ADDITIONS OTHER THAN A Tigercat APPROVED OPTION FITTED IN THE FACTORY APPROVED MANNER.

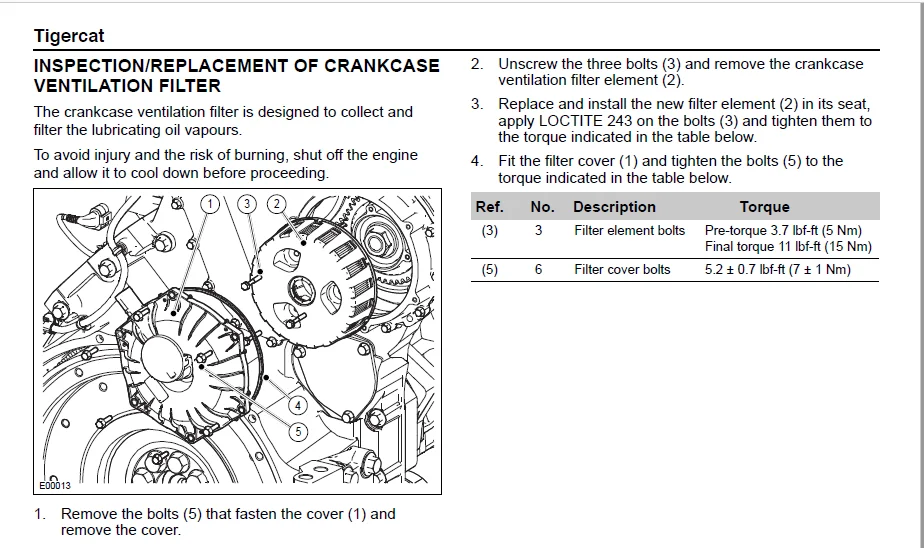

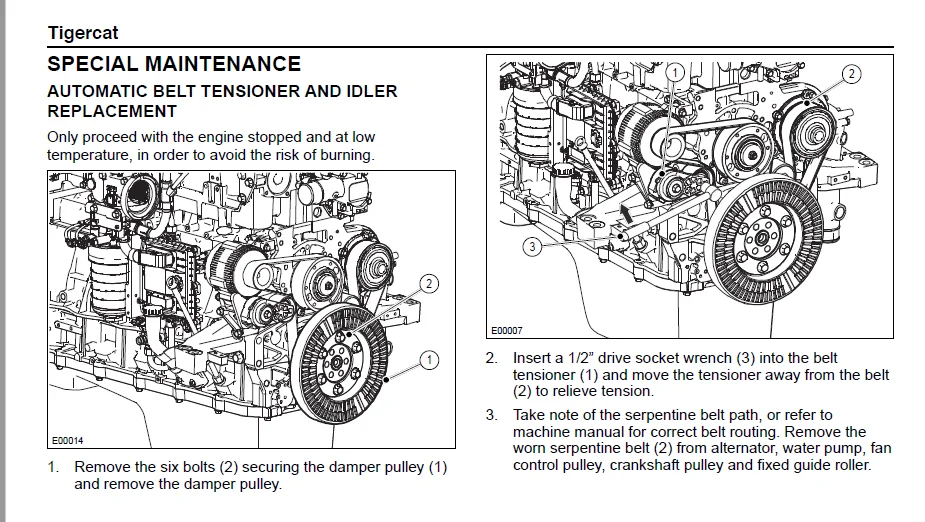

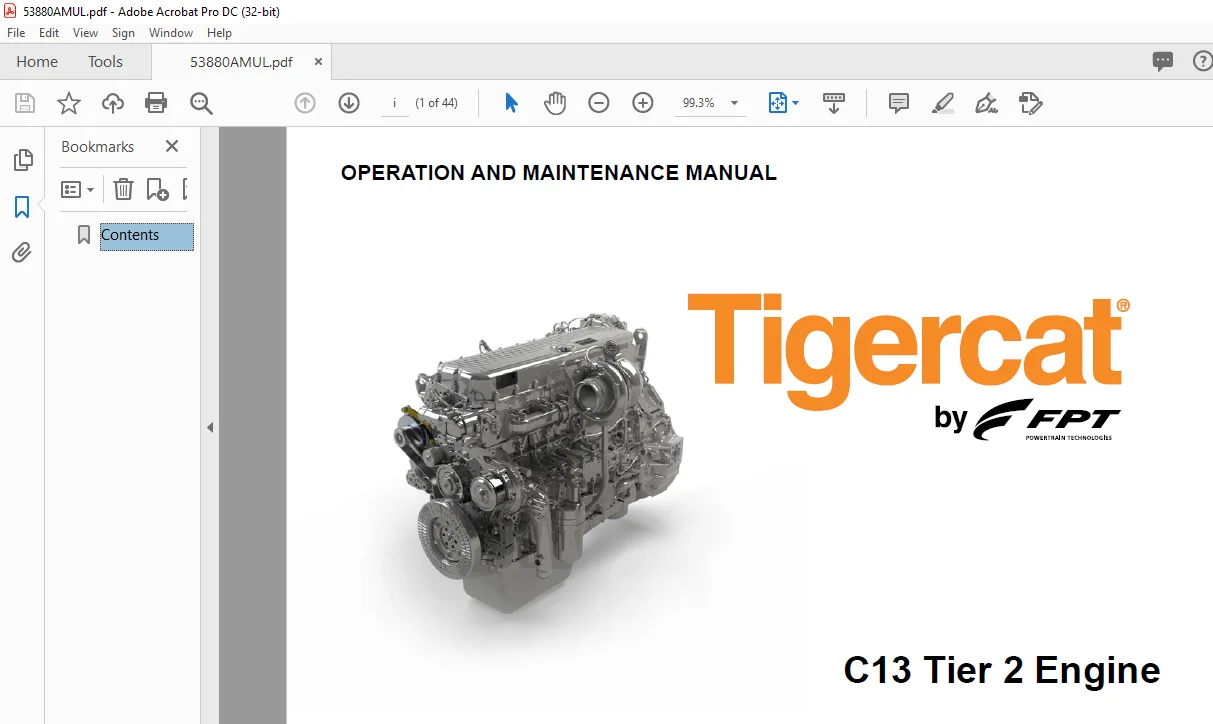

IMAGES PREVIEW OF THE MANUAL:

TIGERCAT C13 TIER 2 ENGINE OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
