Tigercat Cursor Series Operation & Maintenance Manual – PDF DOWNLOAD

Description

Tigercat Cursor Series Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

Tigercat Cursor Series Operation & Maintenance Manual – PDF DOWNLOAD

GENERAL INFORMATION
NON-APPROVED FIELD PRODUCT CHANGES:

• Unauthorized changes made of any kind to this Tigercat product could affect the product’s ability to perform as originally intended. The product’s integrity, and it’s ability to perform safely could be at serious risk.
• IT IS Tigercat POLICY THAT NO CHANGES ARE TO BE MADE TO ITS PRODUCTS INCLUDING DELETIONS OR ADDITIONS OTHER THAN A Tigercat APPROVED OPTION FITTED IN THE FACTORY APPROVED MANNER. Official approval to make changes or install options is only to be undertaken as follows:

i) The relevant options for that product must be shown or
listed on current Tigercat documentation or literature
such as a printed specifi cation sheet, price list, parts
manual, or product literature issued by Tigercat.
ii) Approved options or product changes authorized in
writing by the Tigercat Engineering Manager.

SAFETY
THE FOLLOWING INFORMATION IS INTENDED TO ENCOURAGE CAUTION WHEN USING THE ENGINE, SO AS TO AVOID DAMAGE TO PERSONS OR PROPERTY AS A RESULT OF IMPROPER OR INCORRECT BEHAVIOR.
? The engines must only be used for the purposes indicated by the Manufacturer.
? Any tampering, modifi cation and use of non-original spare parts may compromise proper operation and safe use of the engine; never, under any circumstances make modifications to the wiring and to the units equipping the engine, or connect them to other power systems.
? Pay particular attention to moving parts of the engine, to high temperature components and to circuits containing pressurised fluids; its electrical equipment houses electrical currents and voltage.
? The exhaust fumes produced by the engine are bad for your health.
? The engine must be handled using suitable lifting equipment, making use of the lifting eyelets provided on the engine for
that purpose.

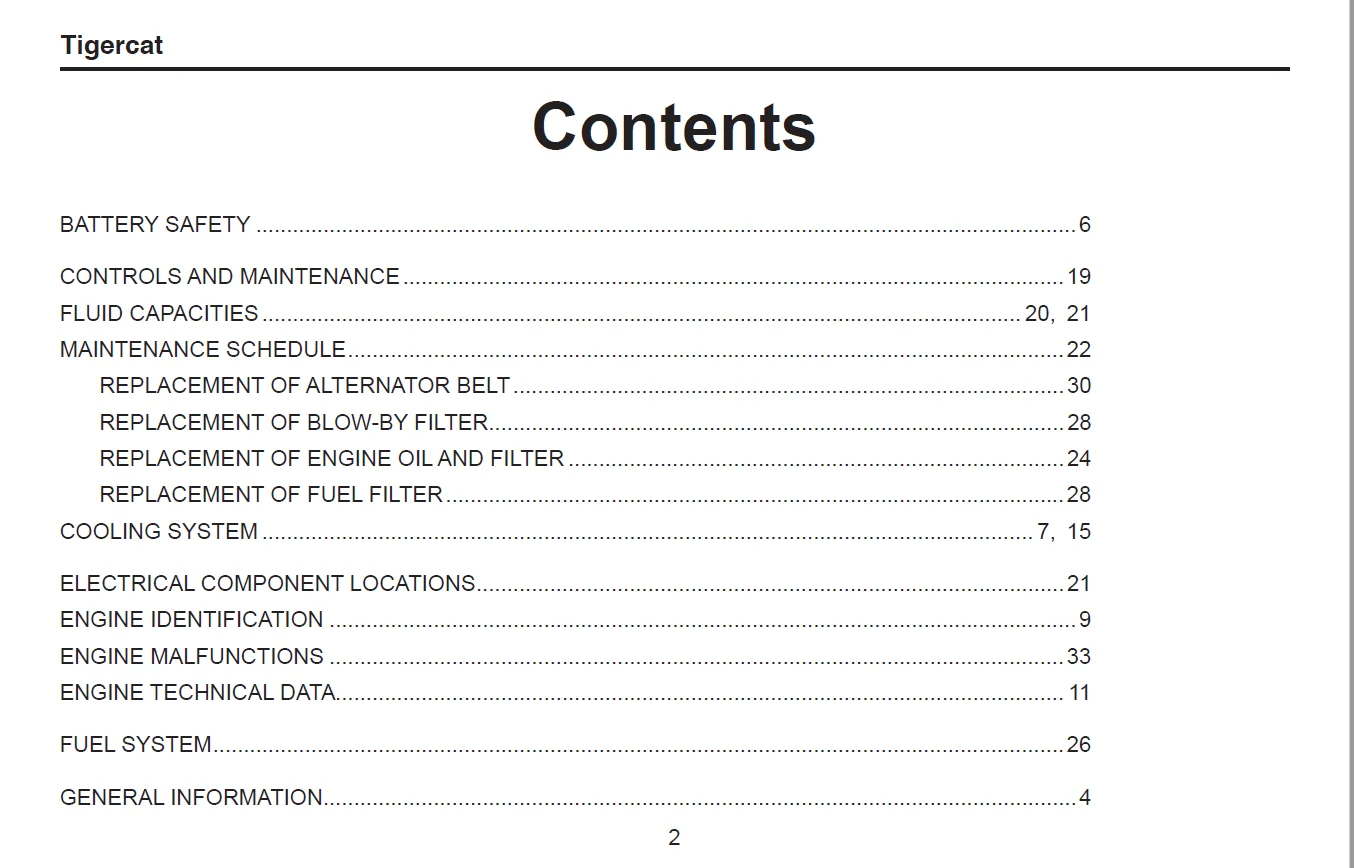

TABLE OF CONTENTS:

Tigercat Cursor Series Operation & Maintenance Manual – PDF DOWNLOAD

BATTERY SAFETY 6
CONTROLS AND MAINTENANCE 19
FLUID CAPACITIES 20, 21
MAINTENANCE SCHEDULE 22
REPLACEMENT OF ALTERNATOR BELT 30
REPLACEMENT OF BLOW-BY FILTER28
REPLACEMENT OF ENGINE OIL AND FILTER 24
REPLACEMENT OF FUEL FILTER 28
COOLING SYSTEM 7, 15
ELECTRICAL COMPONENT LOCATIONS 21
ENGINE IDENTIFICATION 9
ENGINE MALFUNCTIONS 33
ENGINE TECHNICAL DATA 11
FUEL SYSTEM 26
GENERAL INFORMATION 4
IN CASE OF AN EMERGENCY 37
LONG PERIODS OF INACTIVITY 31
PREPARING THE ENGINE 31
RESTARTING THE ENGINE 32
OIL VISCOSITY CHART 39
SAFETY PRECAUTIONS, GENERAL6
SAFETY SYMBOLS 5
SIGNAL WORDS 5
SPECIAL WARNINGS 15
ENGINE COOLANT LEVEL LOW 15
ENGINE COOLANT TEMPERATURE HIGH 15
FUEL LEVEL LOW 16
USE 14
COLD START HEATER 14
PRELIMINARY CHECKS 14
PROPER USE OF THE ENGINE 15
STARTING AND STOPPING THE ENGINE 14

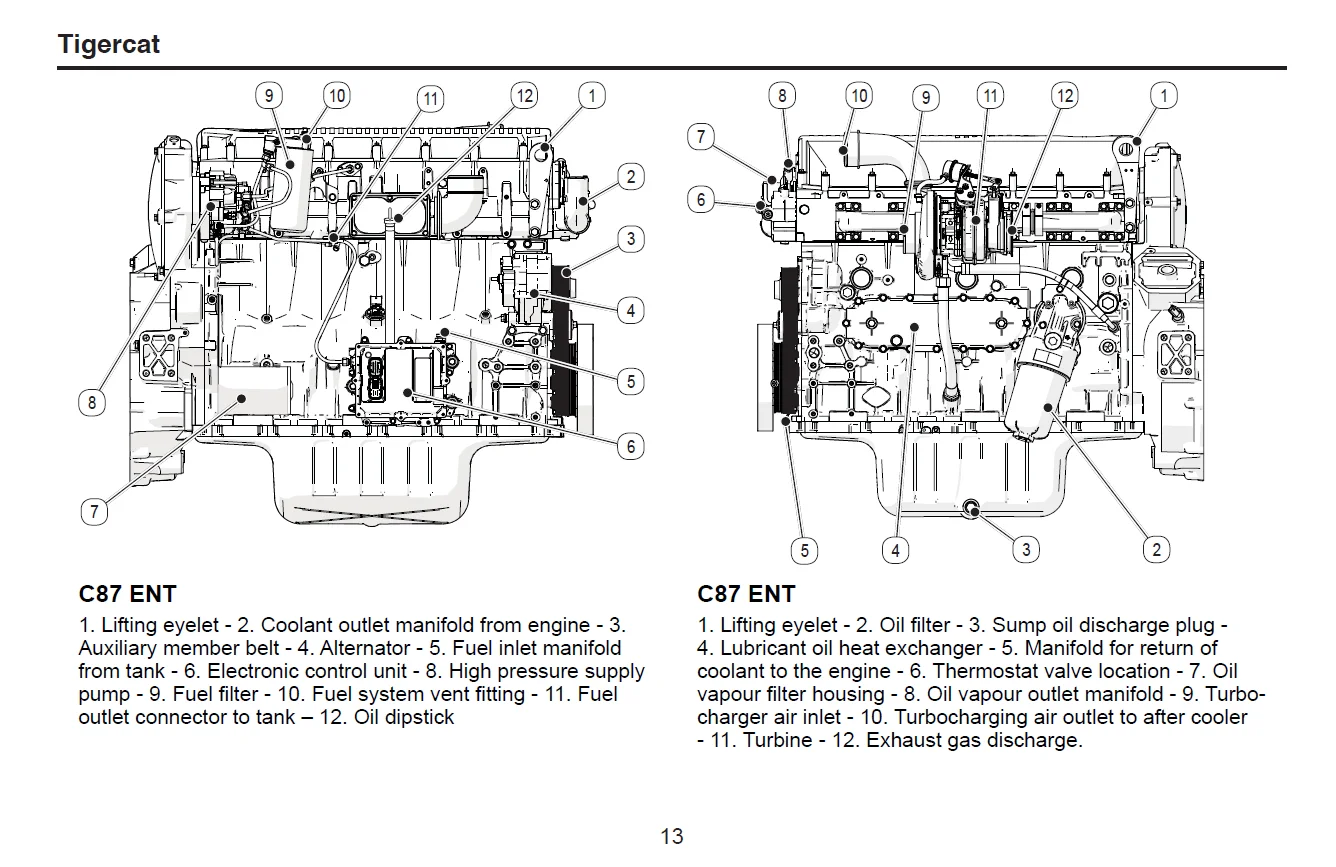

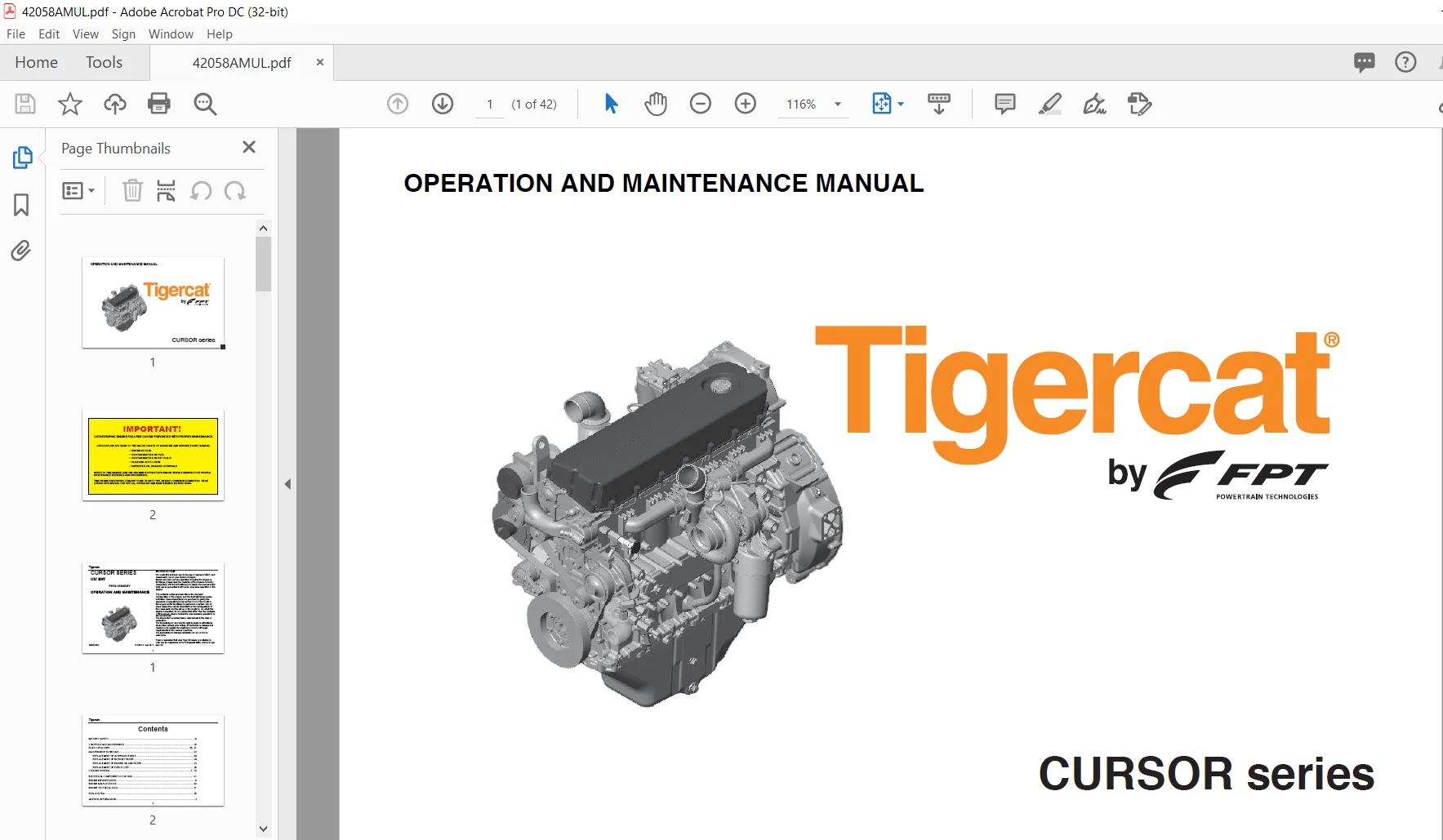

IMAGES PREVIEW OF THE MANUAL:

TIGERCAT CURSOR SERIES OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealersinorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
