Tigercat M726E MULCHER OPERATOR’S MANUAL – PDF DOWNLOAD

Description

Tigercat M726E MULCHER OPERATOR’S MANUAL – PDF DOWNLOAD

DESCRIPTION:

Tigercat M726E MULCHER OPERATOR’S MANUAL – PDF DOWNLOAD

INTRODUCTION :

• An Operator’s manual, Service manual and a Parts catalog are made available by Tigercat to assist the
  dealer, customer and operator in becoming familiar with the features of the M726E Mulcher serial number
  726M3501 and up.
• The M726E is a mechanical mulcher intended for use in forest mastication, vegetation management and
  land reclamation operations.
• An optional multi-function hydraulic system and quick attach boom adapter allows the machine to be
  quickly and easily switched from a mulcher to a feller buncher for increased versatility.
• When equipped with a felling head the M726E can be used for harvesting trees, selective felling, thinning
  and final felling applications in plantations and natural stands.
  The operator’s manual will assist the operator with the techniques of proper and safe operation of the
  M726E Mulcher.
• There is also important information regarding the safe operation of the saw head. The
  service manual contains safety and servicing procedures and a preventive maintenance schedule to assist
  in repair and to ensure optimum machine performance. For manual part numbers, see the title page in
  each manual.
• Section 1 in both the operator’s manual and the service manual contains safety information that must be
  followed. As well, throughout the rest of the manuals, WARNING and CAUTION notices are displayed
  where necessary, drawing attention to possible hazards when performing certain procedures.
• Only trained personnel should be allowed to operate or work on the machine.
• The information contained in this manual is current at time of printing. Improvements to the machine are
  on-going and may not be covered, therefore in these cases contact your Tigercat dealer for the
  appropriate information.
• The phrase “and up” appearing in this manual after the serial number implies that the related information
  is current for any machine serial number HIGHER than the serial number preceding the “and up”.
• Tigercat reserves the right to make changes to the machine after this manual release date that may not
  immediately appear in this manual.

TABLE OF CONTENTS:

Tigercat M726E MULCHER OPERATOR’S MANUAL – PDF DOWNLOAD

M726E OPERATOR ISSUE 3.3 ………………………….. 1
INTRODUCTION………………………………….. 3
S.A.E. STANDARDS………………………………. 4
NON-APPROVED FIELD PRODUCT CHANGES………………. 5
SECTION 1 – SAFETY………………………………… 7
BOOM LIFT LOCK ……………………………….. 20
CAB EXITS ……………………………………. 15
EMERGENCY CAB EXITS …………………………… 15
ENGINE ACCESS PANELS ………………………….. 21
FIRE PREVENTION ………………………………. 27
DRY CHEMICAL CLEANUP PROCEDURES …………….. 31
FIRE PREVENTION GUIDELINES …………………. 27
WHAT TO DO AFTER A MACHINE FIRE HAS OCCURRED …. 30
WHAT TO DO TO PREPARE FOR A MACHINE FIRE …….. 28
WHAT TO DO WHEN A MACHINE FIRE OCCURS ……….. 29
FLUID INJECTION INJURY ………………………… 22
GREASE INJECTION INJURY ……………………….. 23
HAZARD ZONE ………………………………….. 9
LIGHTNING SAFETY AWARENESS……………………… 7
LIGHTNING SAFETY ………………………….. 24
WHAT IS A LIGHTNING STRIKE? ………………… 24
MULCHING OPERATION SAFETY ……………………… 16
PARKING THE MACHINE …………………………… 14
SAFETY INTERLOCK SWITCHES ON CAB DOORS ………….. 15
SAFETY LABELS ………………………………… 32
SAFETY PRECAUTIONS, GENERAL ……………………. 8
SAFETY PRECAUTIONS, OPERATING ………………….. 12
SAFETY PRECAUTIONS, SERVICING ………………….. 18
SAFETY SYMBOLS ……………………………….. 8
SIGNAL WORDS …………………………………. 8
APPENDIX – USING HIGH SPEED DISC SAWS SAFELY………… 35
Comments and instructions………………………. 35
Direction of throw ………………………… 41
High angle wrist rotation ability …………… 42
Recognizing the Dangers ……………………. 41
Throwing long wood pieces ………………….. 44
Dangers ……………………………………… 37
forward ……………………………………… 36
Be aware of the hazards ……………………. 36
Other instructions ………………………… 37
Safe practices ……………………………. 37
Several types of heads involved …………….. 36
Stored energy …………………………….. 36

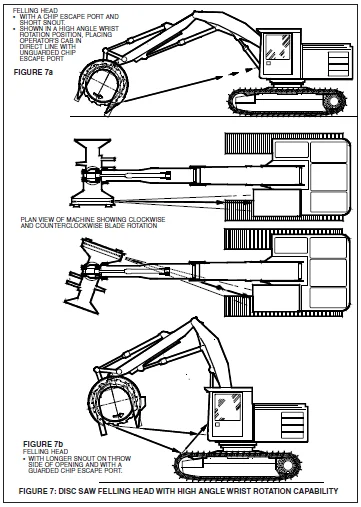

HIGH ANGLE WRIST ROTATION CAPABILITY ……………. 43
Saw Head Don’ts ………………………………. 49
Type of Housing makes a Difference ……………… 38
SECTION 2 – CONTROLS AND OPERATION………………….. 51
ACCUMULATING ARMS …………………………….. 58
AIR CLEANER, ENGINE AIR ……………………….. 91
AIR CLEANER UNLOADER VALVE …………………….. 91
AIR COMPRESSOR ……………………………….. 93
AIR COMPRESSOR – AIR SUPPLY ……………………. 93
AIR CONDITIONER/HEATER ………………………… 68
AIR SUPPLY……………………………………. 51
DRAINING THE SYSTEM ……………………….. 93
AIR VENTS ……………………………………. 68
ARTICULATION LOCK BAR ………………………….106
ATTACHMENT MODE SELECTION ……………………… 71
AUXILIARY POWER OUTLET ………………………… 86
BATTERY DISCONNECT SWITCH ……………………… 87
BOOM CYLINDER LOCK …………………………….107
BOOM FLOAT …………………………………… 58
BOOM LIFT ……………………………………. 58
BOOM LIFT LOCK ………………………………..106
BRAKES ………………………………………. 59
BULB TEST SWITCH ……………………………… 85
CENTER JOINT LOCK PIN ………………………….106
CHANGING THE ATTACHMENT ………………………..108
QUICK ATTACHMENT OPTION …………………….112
CIGAR LIGHTER ………………………………… 86
CLAMP ARMS …………………………………… 59
CLEANING A/C CONDENSER, AND COOLER PACKAGE ………. 92
CLEANING INSTRUCTIONS FOR GLASS WINDOWS ………….103
CONTROLS – CAB ……………………………….. 58
CUTTER SWITCH ………………………………… 71
DOME LIGHT …………………………………… 63
DRIVE CONTROL ………………………………… 59
DRIVE LIMITER ………………………………… 86
EMERGENCY EXIT/SKYLIGHT ……………………….. 63
ENGINE ACCESS PANELS ………………………….. 89
ENGINE AIR PRECLEANER …………………………. 90
ENGINE, HOT WATER SHUT OFF VALVE ……………….. 69
ENGINE, RESTARTING AFTER RUNNING OUT OF FUEL …… 97
ENGINE, STARTING ……………………………… 97
ENGINE, STARTING, COLD WEATHER …………………. 98
ENGINE, STOPPING ………………………………100
FAN SWITCH …………………………………… 84
FILTER – CAB FRESH AIR ………………………… 69
FILTER, RECIRCULATING AIR – A/C UNIT ……………. 68

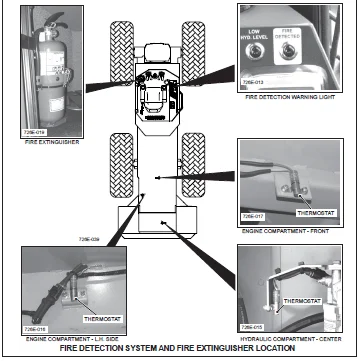

FIRE DETECTION SYSTEM …………………………. 74
FIRE EXTINGUISHER …………………………….. 69
FOOT CONTROL, CENTER ………………………….. 59
FOOT CONTROL, LEFT ……………………………. 59
FOOT CONTROL, RIGHT …………………………… 59
FUEL TANK ……………………………………. 88
FUSE AND RELAY PANEL…………………………… 51
CAB ………………………………………118
MAIN ……………………………………..119
GAUGES……………………………………….. 52
HYDRAULIC OIL TEMPERATURE ………………….. 83
GEAR SHIFT LEVER ……………………………… 62
HEAD TILT ……………………………………. 58
HORN SWITCH ………………………………….. 83
HOT WATER SHUT OFF VALVE (ENGINE) ………………. 69
HYDRAULIC HAND FILL PUMP ………………………. 90
HYDRAULIC OIL TANK ……………………………. 89
ICONS, PICTOGRAM DESCRIPTIONS ………………….. 55
INSTRUMENT PANEL ……………………………… 72
JOYSTICK, LEFT ……………………………….. 58
JOYSTICK, RIGHT ………………………………. 58
KEY SWITCH …………………………………… 85
LIGHT – DOME …………………………………. 63
LIGHTS SWITCH, WORKING, REAR ………………….. 86
LIGHTS SWITCH, WORKING, FRONT ………………….. 86
MACHINE PREPARATION …………………………… 99
System Test and Warm-Up ……………………. 99
MOVING INSTRUCTIONS ……………………………121
OPERATING MACHINE …………………………….. 94
PRE-START CHECKS ………………………….. 94
PARKING BRAKE ………………………………… 61
PICTOGRAM DESCRIPTIONS ………………………… 55
PILOT SYSTEM SHUT OFF …………………………. 83
PRECLEANER, ENGINE AIR ………………………… 90
PRESSURIZED WATER SYSTEM ………………………. 63
PRESSURIZING THE HYDRAULIC TANK ………………… 89
RADIO, AM/FM STEREO / CD PLAYER ………………… 63
SAW/MULCHER MULTIFUNCTION OPTION ……………….. 70
SEAT ………………………………………… 64
SKYLIGHT/EMERGENCY EXIT ……………………….. 63
SPEED CONTROL LEVER …………………………… 62
STARTING ENGINE ………………………………. 97
STEERING …………………………………….. 58
STEREO RADIO/CD PLAYER ………………………… 63
STOPPING ENGINE ……………………………….100
THROTTLE CONTROL SWITCH ……………………….. 60
TOWING INSTRUCTIONS ……………………………104
TRANSPORTING INSTRUCTIONS ………………………105
VEHICLE MOVING INSTRUCTIONS …………………….120
VENTING THE HYDRAULIC RESERVOIR ………………… 89
WAIT TO START ………………………………… 77
WARNING LIGHTS………………………………… 53
FIRE DETECTION SYSTEM ……………………… 74
LOW FUEL LEVEL ……………………………. 77
LOW HYDRAULIC OIL LEVEL ……………………. 77
STOP LIGHT ……………………………….. 77
WAIT TO START …………………………….. 77
WATER SYSTEM, PRESSURIZED …………………….. 63
WINDOWS ………………………………………101
CARE OF POLYCARBONATE WINDOWS ……………….101
CAUTIONS ………………………………102
CLEANING INSTRUCTIONS …………………..102
CONCEALING HAIRLINE SCRATCHES ……………102
FIRE PRECAUTIONS ……………………….102
GRAFFITI REMOVAL ……………………….102
INSPECTION AND MAINTENANCE ………………101
RESISTANCE TO CHEMICALS …………………101
RESISTANCE TO WATER …………………….101
CLEANING INSTRUCTIONS FOR GLASS WINDOWS ………103
SECTION 3 – LUBRICATION & MAINTENANCE………………..123
AIR CLEANER MAINTENANCE ………………………..146
AIR CONDITIONING SYSTEM, CHECKING ……………….150
BELT, ENGINE SERPENTINE, REPLACING ………………155
BLINK CODES …………………………………..161
CENTER JOINT…………………………………..151
LUBRICATION ……………………………….151
MAINTENANCE ……………………………….151
DRIVE SHAFT SPLINE LUBRICATION, MIDDLE AND REAR …..156
EMERGENCY EXIT/SKYLIGHT ………………………..128
EMERGENCY EXITS, CHECK DAILY ……………………128
FILTERS……………………………………….123
ENGINE AIR CLEANER …………………………146
FUEL FILTER/WATER SEPARATOR …………………142
HYDRAULIC OIL RETURN FILTERS ………………..144
HYDROSTATIC CHARGE PUMP PRESSURE FILTERS …….145
SERVICING GUIDELINES FOR OIL FILTERS …………145
FIRE PREVENTION ……………………………….129
HYDRAULIC OILS ………………………………..135
NEW MACHINE MAINTENANCE…………………………123
FIRST 125 HOUR INSPECTION AND SERVICE REPORT ….124
INITIAL PRE-DELIVERY INSPECTION ……………..124
TIGHTENING POINTS ………………………….124
OIL LOST FROM LEAKAGE ………………………….124
OIL SAMPLE COLLECTION PROCEDURES ………………..126
OIL SAMPLING PROGRAM …………………………..125
PRESSURE SETTINGS ……………………………..165
PRESSURIZED WATER SYSTEM MAINTENANCE …………….148
SCHEDULED MAINTENANCE…………………………..123
GENERAL …………………………………..127
8 HOURS …………………………………..130
125 HOURS …………………………………131
250 HOURS …………………………………131
500 HOURS …………………………………132
1000 HOURS ………………………………..132
2000 HOURS ………………………………..133
SEASONAL ………………………………….134
SERVICE AND LUBRICATION POINTS CHART …………….136
SKYLIGHT/EMERGENCY EXIT ………………………..128
SPEED CONTROL LEVER ADJUSTMENT ………………….159
STARTUP PROCEDURE AFTER MAINTENANCE ……………..152
TORQUE CHART ………………………………….163
TORQUE, FLUID CONNECTIONS ………………………166
TORQUE SPECIFICATIONS – GENERAL …………………165
TRANSMISSION ………………………………….151
WEIGHTS OF COMMERCIAL WOOD ……………………..170
WHEELS, INSTALLING …………………………….124

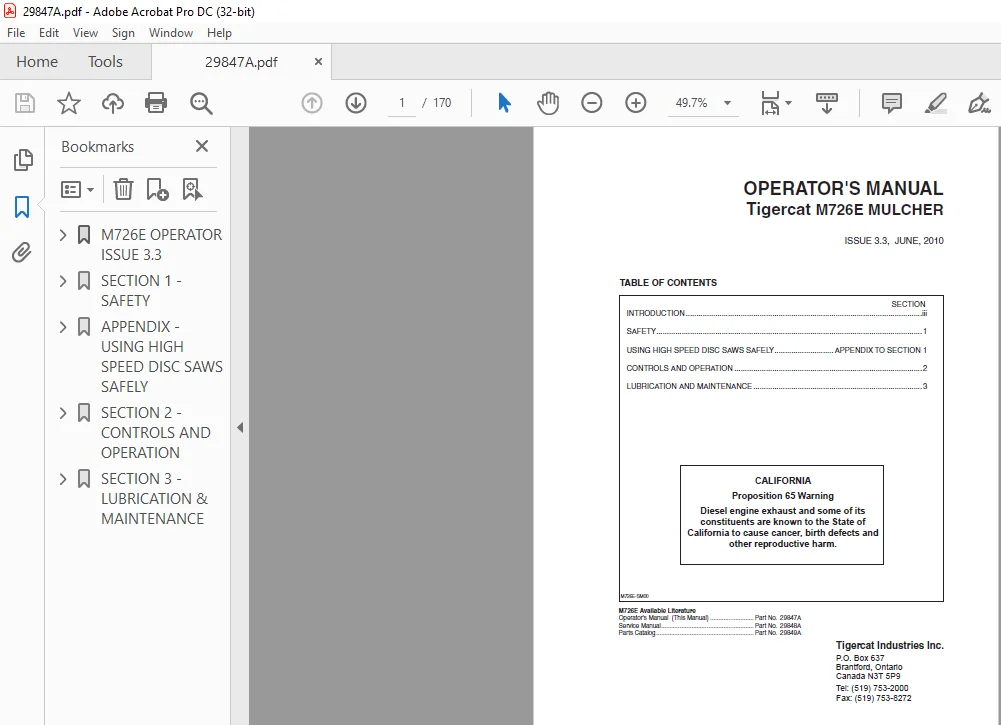

IMAGES PREVIEW OF THE MANUAL:
