Tigercat X870C LX870C Feller Buncher Workshop Manual PDF

Description

Tigercat X870C LX870C Feller Buncher Service Manual – PDF DOWNLOAD

DESCRIPTION:

Tigercat X870C LX870C Feller Buncher Service Manual – PDF DOWNLOAD

INTRODUCTION:

An Operator’s manual, Service manual and a Parts catalog are made available by Tigercat to assist the dealer, customer and operator in becoming familiar with the features of the X870C/LX870C Feller Bunchers.
Serial numbers:-
X870C 87062601 to 87063500
LX870C 87072601 to 87073500

The X870C/LX870C Feller Bunchers are designed for harvesting trees, selective felling, thinning and final felling applications in plantations and natural stands. The Operator’s manual will assist the operator with the techniques of proper and safe operation of the X870C/LX870C Feller Bunchers.

• There is also important information regarding the safe operation of the saw head. The service manual contains safety and servicing procedures and a preventive maintenance schedule to ensure optimum machine performance. Section 1 in both the Operator’s manual and the Service manual contains safety information that must be followed.
• As well, throughout the rest of the manuals, DANGER, WARNING and CAUTION notices are displayed where necessary, drawing attention to possible hazards when performing certain procedures. Only trained personnel should be allowed to operate or work on the machine.
• The information contained in this manual is current at time of printing. Improvements to the machine are on-going and may not be covered, therefore in these cases contact your Tigercat dealer for the appropriate information.
• The phrase “and up” appearing in this manual after the serial number implies that the related information is current for any machine serial number HIGHER than the serial number preceding the “and up”. Tigercat reserves the right to make changes to the machine after this manual release date that may not immediately appear in this manual.

TABLE OF CONTENTS:

Tigercat X870C LX870C Feller Buncher Service Manual – PDF DOWNLOAD

CONTENTS 3
INTRODUCTION 5
NON-APPROVED FIELD PRODUCT CHANGES 7
STANDARDS ROPS, TOPS, FOPS, OPS 6
SECTION 1 – SAFETY 9
APPENDIX – USING HIGH SPEED DISC SAWS SAFELY 51
SECTION 3 – LUBRICATION AND MAINTENANCE 67
SECTION 4 – HYDRAULIC SYSTEM127
SECTION 5 – PILOT SYSTEM165
SECTION 6 – ELECTRICAL AND COMPUTERS 187
SECTION 7 – ENGINE AND ANTI-STALL319
SECTION 10 – COOLING SYSTEM341
SECTION 11 – TRACK DRIVE365
SECTION 12 – BOOM FUNCTIONS401
SECTION 13 – LEVELING419
SECTION 15 – SWING453
SECTION 17 – SAW DRIVE475
SECTION 18 – WRIST AND CLAMPS485
SECTION 25 – MISCELLANEOUS 525

IMAGES PREVIEW OF THE MANUAL:

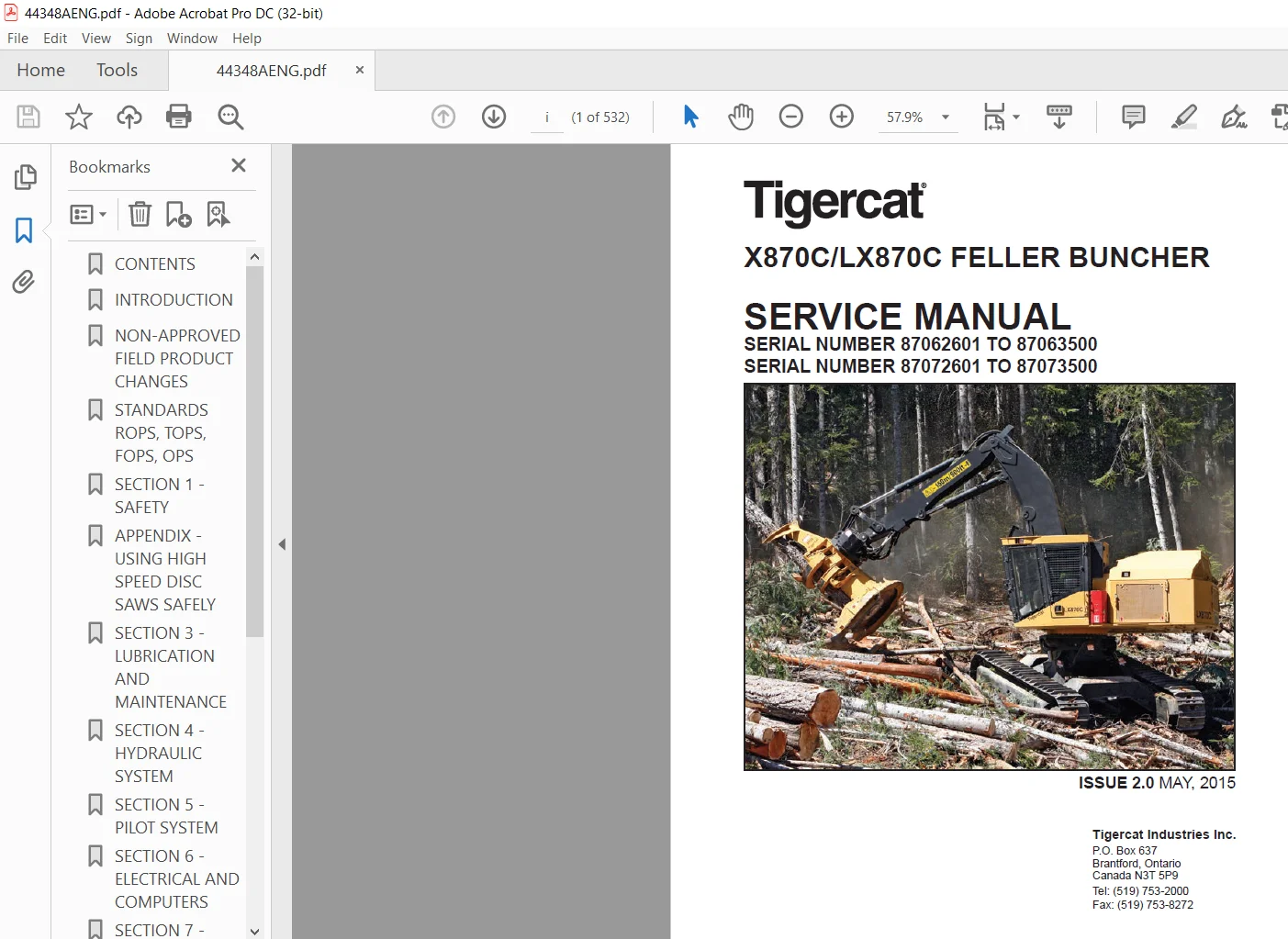

TIGERCAT X870C LX870C FELLER BUNCHER SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealersinorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
