Toyota BT Forklift RRE140 RRE140C RRE140E RRE140EC RRE160 RRE160C RRE160E RRE160EC Parts Manual 6239943 – PDF DOWNLOAD
$32.95
Toyota BT Forklift RRE140 RRE140C RRE140E RRE140EC RRE160 RRE160C RRE160E RRE160EC Parts Manual 6239943 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Toyota BT Forklift RRE140 RRE140C RRE140E RRE140EC RRE160 RRE160C RRE160E RRE160EC Parts Manual 6239943 – PDF DOWNLOAD
FILE DETAILS:
Toyota BT Forklift RRE140 RRE140C RRE140E RRE140EC RRE160 RRE160C RRE160E RRE160EC Parts Manual 6239943 – PDF DOWNLOAD
Language : English
Pages : 736
Downloadable : Yes
File Type : PDF

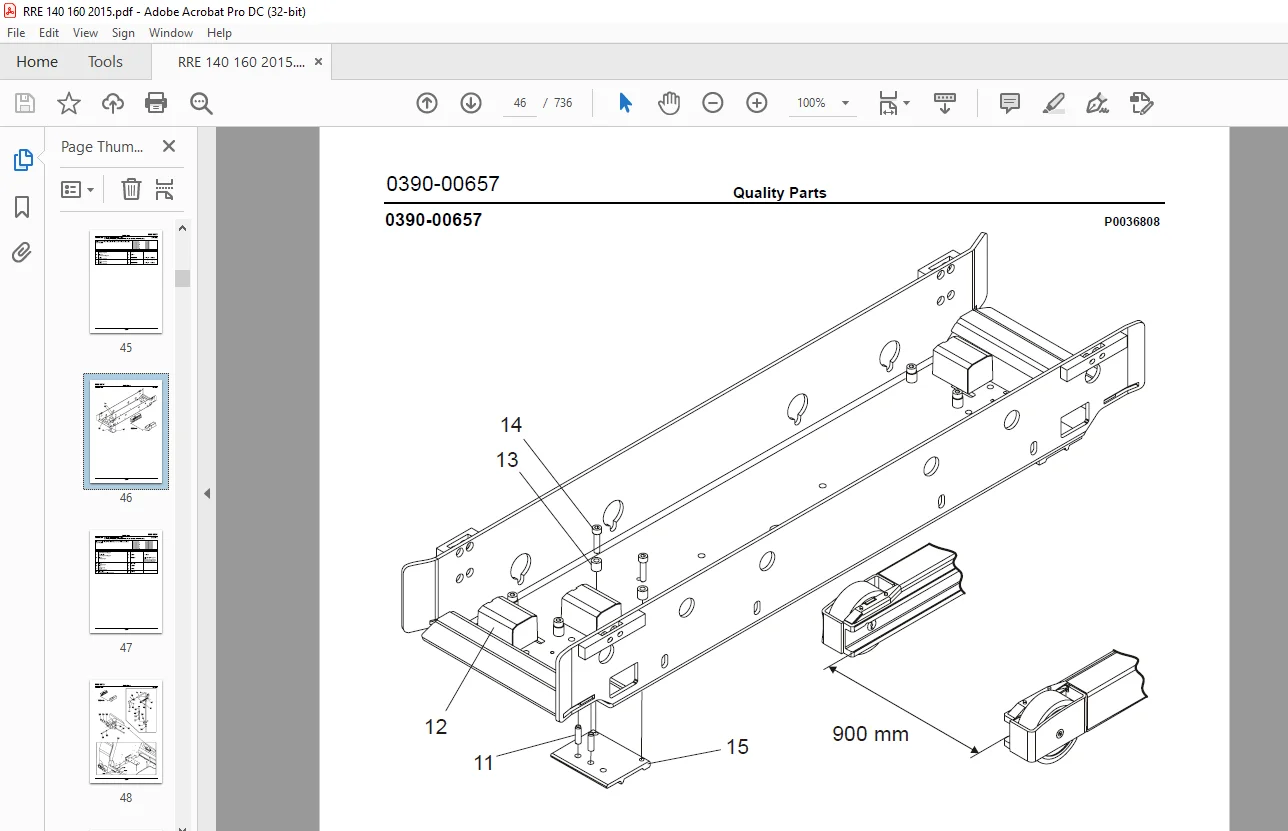

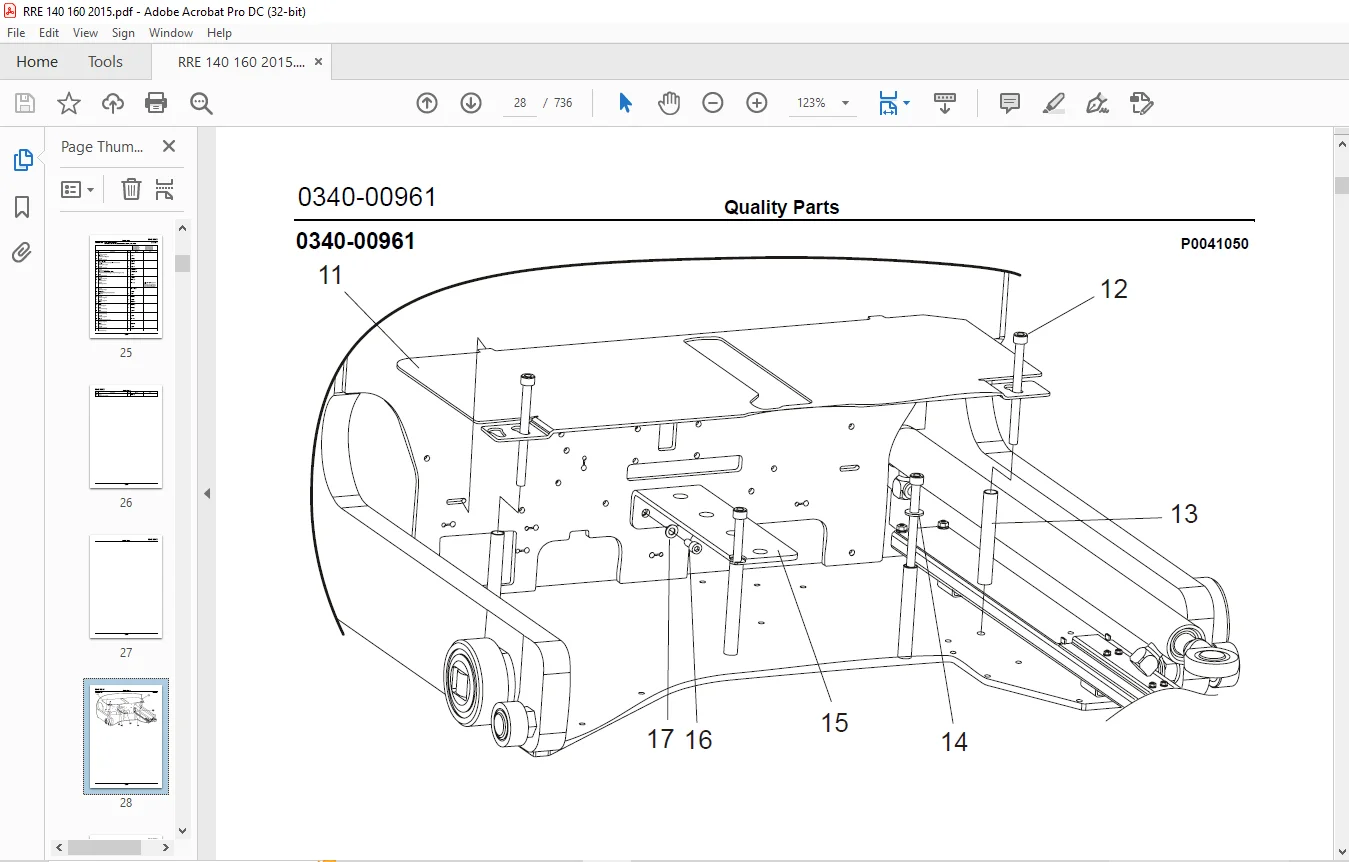

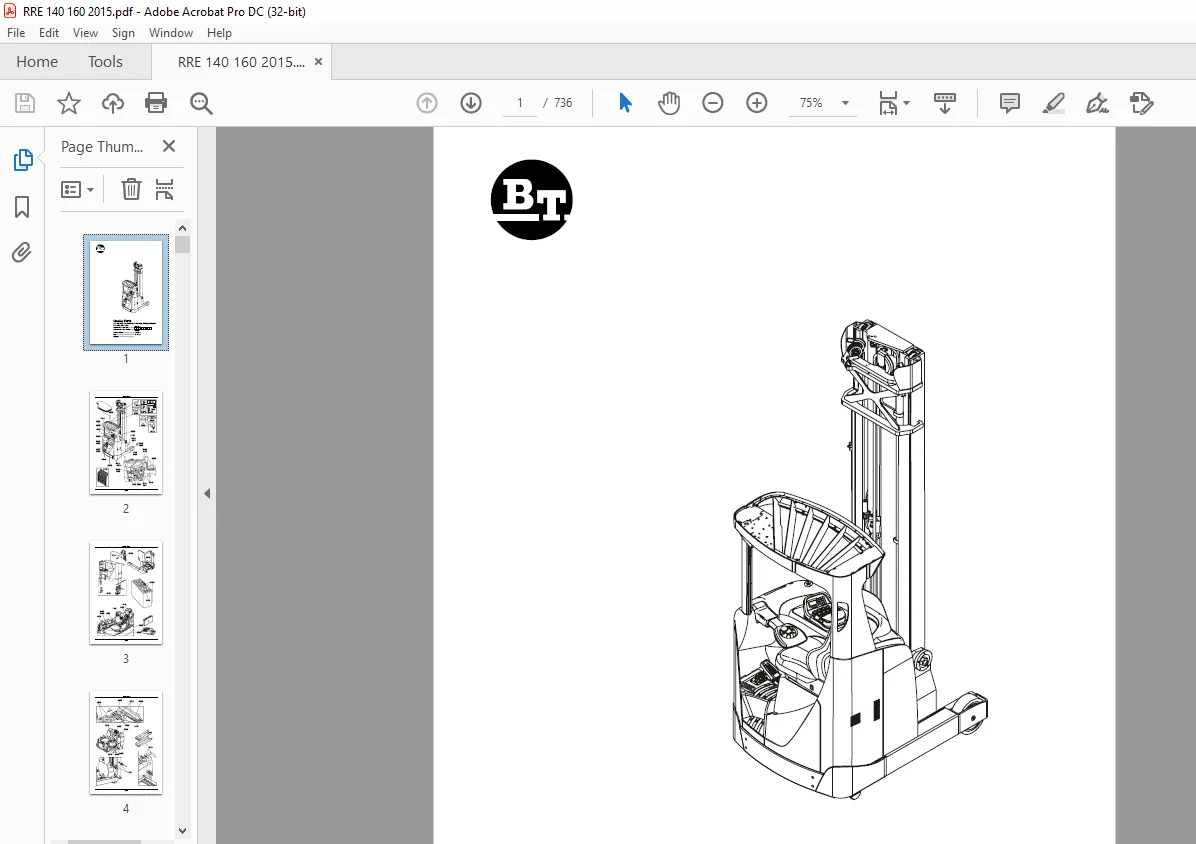

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Toyota BT Forklift RRE140 RRE140C RRE140E RRE140EC RRE160 RRE160C RRE160E RRE160EC Parts Manual 6239943 – PDF DOWNLOAD
0000 Chassis........................................................................................... 6 Chassi; Chassis; Châssis........................................................................... 6 1000 Motors............................................................................................ 9 Motorer; Motoren; Moteurs.......................................................................... 9 2000 Transmission/Drive gear........................................................................... 9 Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction.......... 9 3000 Brake/Wheel/Caterpillar system.................................................................... 9 Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles........................... 9 4000 Steering system................................................................................... 10 Styrsystem; Steuer-/Lenksystem; Système de direction............................................... 10 5000 Electrical system................................................................................. 10 Elektriskt system; Elektroanlage; Système électrique............................................... 10 6000 Hydraulic/pneumatic system........................................................................ 14 Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique.................... 14 7000 Work function - lifting masts..................................................................... 16 Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage.... 16 9000 Options/attachments............................................................................... 17 Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options............. 17 0340-00850 P0037271.................................................................................... 22 0340-00850 Inspection covers [2013-11-21].............................................................. 23 0340-00926 P0040050.................................................................................... 24 0340-00926 Inspection covers [2013-05-27].............................................................. 25 0340-00961 P0041050.................................................................................... 28 0340-00961 Inspection covers [2014-12-16].............................................................. 29 0340-01052 P0043148.................................................................................... 30 0340-01052 Inspection covers [2014-11-04].............................................................. 31 0340-01104 P0044528.................................................................................... 32 0340-01104 Inspection covers [2015-01-22].............................................................. 33 0340-01238 P0047998.................................................................................... 34 0340-01238 Inspection covers [2015-01-22].............................................................. 35 0350-00141 P0032305.................................................................................... 36 0350-00141 Support arms, stabilizers [2011-03-09]...................................................... 37 0390-00597 P0035633.................................................................................... 38 0390-00597 Battery compartment parts [2015-02-19]...................................................... 39 0390-00653 P0036803.................................................................................... 40 0390-00653 Battery compartment parts [2015-08-27]...................................................... 41 0390-00655 P0036806.................................................................................... 44 0390-00655 Battery compartment parts [2011-03-08]...................................................... 45 0390-00657 P0036808.................................................................................... 46 0390-00657 Battery compartment parts [2015-08-27]...................................................... 47 0390-00659 P0036810.................................................................................... 48 0390-00659 Battery compartment parts [2011-03-08]...................................................... 49 0390-00673 P0037387.................................................................................... 50 0390-00673 Battery compartment parts [2015-03-18]...................................................... 51 0390-00674 P0037388.................................................................................... 52 0390-00674 Battery compartment parts [2014-02-12]...................................................... 53 0390-00677 P0037391.................................................................................... 54 0390-00677 Battery compartment parts [2015-02-19]...................................................... 55 0390-00744 P0040040.................................................................................... 56 0390-00744 Battery compartment parts [2011-10-06]...................................................... 57 0390-00755 P0040248.................................................................................... 58 0390-00755 Battery compartment parts [2015-08-27]...................................................... 59 0390-00757 P0040250.................................................................................... 60 0390-00757 Battery compartment parts [2013-11-25]...................................................... 61 0390-00758 P0040254.................................................................................... 62 0390-00758 Battery compartment parts [2013-11-25]...................................................... 63 0390-00783 P0041194.................................................................................... 64 0390-00783 Battery compartment parts [2014-05-21]...................................................... 65 0390-01046 P0043697.................................................................................... 68 0390-01046 Battery compartment parts [2013-03-25]...................................................... 69 0390-01068 P0044568.................................................................................... 70 0390-01068 Battery compartment parts [2013-11-25]...................................................... 71 0390-01134 P0046436.................................................................................... 72 0390-01134 Battery compartment parts [2015-08-12]...................................................... 73 0390-01181 P0048036.................................................................................... 76 0390-01181 Battery compartment parts [2015-01-22]...................................................... 77 0390-01192 P0048419.................................................................................... 78 0390-01192 Battery compartment parts [2015-08-27]...................................................... 79 0390-01193 P0048421.................................................................................... 80 0390-01193 Battery compartment parts [2015-08-27]...................................................... 81 0390-01194 P0048424.................................................................................... 82 0390-01194 Battery compartment parts [2015-02-19]...................................................... 83 0390-01196 P0048427.................................................................................... 84 0390-01196 Battery compartment parts [2015-02-19]...................................................... 85 0390-01218 P0049160.................................................................................... 86 0390-01218 Battery compartment parts [2015-05-21]...................................................... 87 0390-01235 P0049712.................................................................................... 88 0390-01235 Battery compartment parts [2015-08-27]...................................................... 89 0390-01236 P0049713.................................................................................... 90 0390-01236 Battery compartment parts [2015-08-27]...................................................... 91 0390-01238 P0049725.................................................................................... 92 0390-01238 Battery compartment parts [2015-08-27]...................................................... 93 0390-01241 P0049731.................................................................................... 94 0390-01241 Battery compartment parts [2015-08-27]...................................................... 95 0390-01243 P0049734.................................................................................... 96 0390-01243 Battery compartment parts [2015-08-27]...................................................... 97 0450-00098 P0032258....................................................................................100 0450-00098 Motor fixing points [2014-08-13]............................................................101 0510-00040 P0032690....................................................................................102 0510-00040 Cabin fixing points [2013-11-25]............................................................103 0510-00055 P0042976....................................................................................104 0510-00055 Cabin fixing points [2013-11-21]............................................................105 0510-00057 P0044529....................................................................................108 0510-00057 Cabin fixing points [2013-11-21]............................................................109 0620-00566 P0042564....................................................................................112 0620-00566 Seat, cushions [2013-11-25].................................................................113 0620-00567 P0042554....................................................................................116 0620-00567 Seat, cushions [2013-11-25].................................................................117 0620-00590 P0044791....................................................................................120 0620-00590 Seat, cushions [2014-02-20].................................................................121 0620-00606 P0045737....................................................................................122 0620-00606 Seat, cushions [2015-01-22].................................................................123 0620-00633 P0048041....................................................................................124 0620-00633 Seat, cushions [2015-01-22].................................................................125 0640-00148 P0039594....................................................................................126 0640-00148 Driver controls ( mechanical ) [2015-02-11].................................................127 0640-00149 P0039595....................................................................................128 0640-00149 Driver controls ( mechanical ) [2014-11-10].................................................129 0640-00158 P0046767....................................................................................130 0640-00158 Driver controls ( mechanical ) [2014-08-22].................................................131 0640-00159 P0046768....................................................................................132 0640-00159 Driver controls ( mechanical ) [2014-11-20].................................................133 0680-00368 P0034642....................................................................................134 0680-00368 Internal fittings [2013-11-25]..............................................................135 0680-00370 P0034644....................................................................................138 0680-00370 Internal fittings [2011-09-26]..............................................................139 0740-00023 P0034822....................................................................................142 0740-00023 Mirrors [2014-04-14]........................................................................143 0810-00208 P0032310....................................................................................144 0810-00208 Overhead guard/roof [2011-03-08]............................................................145 0810-00233 P0034641....................................................................................146 0810-00233 Overhead guard/roof [2013-04-25]............................................................147 0810-00240 P0035140....................................................................................150 0810-00240 Overhead guard/roof [2014-11-20]............................................................151 0810-00243 P0035141....................................................................................152 0810-00243 Overhead guard/roof [2011-03-08]............................................................153 0810-00246 P0035651....................................................................................154 0810-00246 Overhead guard/roof [2014-04-14]............................................................155 0810-00411 P0044065....................................................................................158 0810-00411 Overhead guard/roof [2014-04-14]............................................................159 0810-00412 P0044066....................................................................................162 0810-00412 Overhead guard/roof [2014-04-14]............................................................163 0810-00458 P0047523....................................................................................166 0810-00458 Overhead guard/roof [2014-11-20]............................................................167 0820-00302 P0032356....................................................................................168 0820-00302 Finger/foot guards [2013-11-25].............................................................169 0820-00372 P0036707....................................................................................170 0820-00372 Finger/foot guards [2011-03-08].............................................................171 0840-00245 P0032149....................................................................................172 0840-00245 Driver protection [2013-11-25]..............................................................173 0840-00297 P0037237....................................................................................174 0840-00297 Driver protection [2014-10-23]..............................................................175 0840-00466 P0047302....................................................................................176 0840-00466 Driver protection [2015-08-17]..............................................................177 0850-00502 P0032594....................................................................................178 0850-00502 Signs, warnings, decals [2015-04-13]........................................................179 0850-00503 P0032596....................................................................................180 0850-00503 Signs, warnings, decals [2013-11-25]........................................................181 1710-00140 P0031304....................................................................................182 1710-00140 Electric pump motor [2012-05-02]............................................................183 1730-00068 P0037563....................................................................................184 1730-00068 Electric steering motor [2013-11-21]........................................................185 1730-00081 P0045143....................................................................................186 1730-00081 Electric steering motor [2013-11-21]........................................................187 1740-00049 P0034022....................................................................................188 1740-00049 Electric fan motor, electric fan [2012-05-02]...............................................189 1740-00055 P0037263....................................................................................190 1740-00055 Electric fan motor, electric fan [2010-09-14]...............................................191 1740-00056 P0037264....................................................................................192 1740-00056 Electric fan motor, electric fan [2013-09-24]...............................................193 1760-00170 P0032398....................................................................................194 1760-00170 Electric drive motor [2012-10-30]...........................................................195 2550-00094 P0030285....................................................................................196 2550-00094 Mechanical drive gear unit [2011-11-23].....................................................197 3180-00045 P0042001....................................................................................198 3180-00045 Electrically controlled travel brake [2013-04-24]...........................................199 3180-00054 P0043913....................................................................................200 3180-00054 Electrically controlled travel brake [2013-10-31]...........................................201 3370-00050 P0041933....................................................................................202 3370-00050 Electromagnetic parking brake [2014-11-11]..................................................203 3530-00138 P0030290....................................................................................204 3530-00138 Drive wheel [2011-03-08]....................................................................205 3550-00510 P0034485....................................................................................206 3550-00510 Fork/support arm wheels [2013-01-15]........................................................207 3550-00550 P0037580....................................................................................208 3550-00550 Fork/support arm wheels [2015-01-22]........................................................209 3550-00658 P0041998....................................................................................210 3550-00658 Fork/support arm wheels [2014-08-21]........................................................211 3550-00746 P0046750....................................................................................212 3550-00746 Fork/support arm wheels [2015-01-22]........................................................213 3550-00773 P0047999....................................................................................214 3550-00773 Fork/support arm wheels [2015-03-25]........................................................215 3550-00774 P0048001....................................................................................216 3550-00774 Fork/support arm wheels [2015-03-25]........................................................217 3550-00785 P0048661....................................................................................218 3550-00785 Fork/support arm wheels [2015-03-25]........................................................219 3550-00786 P0048662....................................................................................220 3550-00786 Fork/support arm wheels [2015-03-25]........................................................221 4310-00080 P0032654....................................................................................222 4310-00080 Electric steering wheel/lever [2014-06-09]..................................................223 4310-00112 P0042541....................................................................................224 4310-00112 Electric steering wheel/lever [2014-11-19]..................................................225 4350-00018 P0031638....................................................................................228 4350-00018 Steering angle sensor [2013-11-25]..........................................................229 5160-00164 P0036566....................................................................................230 5160-00164 General alarm signals (audible/visual) [2014-03-27].........................................231 5160-00202 P0046023....................................................................................232 5160-00202 General alarm signals (audible/visual) [2014-03-27].........................................233 5190-00139 P0031508....................................................................................234 5190-00139 Battery cut out connector/contactor [2013-11-25]............................................235 5190-00142 P0032073....................................................................................236 5190-00142 Battery cut out connector/contactor [2013-11-25]............................................237 5200-00068 P0040082....................................................................................238 5200-00068 Instrument panel, display [2013-11-25]......................................................239 5200-00072 P0040701....................................................................................240 5200-00072 Instrument panel, display [2015-01-22]......................................................241 5200-00073 P0040702....................................................................................244 5200-00073 Instrument panel, display [2015-01-22]......................................................245 5200-00090 P0048011....................................................................................248 5200-00090 Instrument panel, display [2015-01-22]......................................................249 5200-00091 P0048013....................................................................................252 5200-00091 Instrument panel, display [2015-01-22]......................................................253 5280-00126 P0032634....................................................................................256 5280-00126 Level/position transducers/lamps [2013-11-25]...............................................257 5280-00158 P0035149....................................................................................258 5280-00158 Level/position transducers/lamps [2014-02-18]...............................................259 5280-00160 P0035151....................................................................................260 5280-00160 Level/position transducers/lamps [2014-08-19]...............................................261 5280-00169 P0035574....................................................................................262 5280-00169 Level/position transducers/lamps [2014-03-27]...............................................263 5280-00171 P0035578....................................................................................266 5280-00171 Level/position transducers/lamps [2014-03-27]...............................................267 5280-00234 P0045966....................................................................................270 5280-00234 Level/position transducers/lamps [2014-08-21]...............................................271 5280-00237 P0045969....................................................................................274 5280-00237 Level/position transducers/lamps [2014-08-21]...............................................275 5280-00248 P0046790....................................................................................278 5280-00248 Level/position transducers/lamps [2014-08-21]...............................................279 5280-00250 P0046792....................................................................................282 5280-00250 Level/position transducers/lamps [2014-08-21]...............................................283 5390-00311 P0032660....................................................................................286 5390-00311 Driving function harnesses/fuse [2011-03-08]................................................287 5390-00318 P0033744....................................................................................288 5390-00318 Driving function harnesses/fuse [2009-09-09]................................................289 5390-00319 P0033756....................................................................................290 5390-00319 Driving function harnesses/fuse [2013-11-25]................................................291 5390-00357 P0040892....................................................................................292 5390-00357 Driving function harnesses/fuse [2014-04-02]................................................293 5390-00380 P0046025....................................................................................294 5390-00380 Driving function harnesses/fuse [2014-03-27]................................................295 5430-00155 P0037261....................................................................................296 5430-00155 Drive motor cables/resistors/fuses [2011-03-08].............................................297 5460-00112 P0040960....................................................................................298 5460-00112 Transistor panel [2012-11-02]...............................................................299 5590-00382 P0031270....................................................................................300 5590-00382 Work function harnesses/fuse [2014-02-24]...................................................301 5590-00398 P0032163....................................................................................302 5590-00398 Work function harnesses/fuse [2013-04-25]...................................................303 5590-00408 P0032380....................................................................................304 5590-00408 Work function harnesses/fuse [2009-09-09]...................................................305 5590-00409 P0032524....................................................................................306 5590-00409 Work function harnesses/fuse [2013-11-25]...................................................307 5590-00413 P0032656....................................................................................308 5590-00413 Work function harnesses/fuse [2013-11-25]...................................................309 5590-00429 P0033524....................................................................................310 5590-00429 Work function harnesses/fuse [2013-11-25]...................................................311 5590-00430 P0033523....................................................................................312 5590-00430 Work function harnesses/fuse [2013-11-25]...................................................313 5590-00536 P0036108....................................................................................314 5590-00536 Work function harnesses/fuse [2013-11-25]...................................................315 5590-00713 P0040246....................................................................................316 5590-00713 Work function harnesses/fuse [2011-11-24]...................................................317 5590-00736 P0040893....................................................................................318 5590-00736 Work function harnesses/fuse [2013-08-13]...................................................319 5590-00749 P0041296....................................................................................320 5590-00749 Work function harnesses/fuse [2013-02-07]...................................................321 5590-00803 P0043358....................................................................................322 5590-00803 Work function harnesses/fuse [2015-08-27]...................................................323 5590-00828 P0043953....................................................................................324 5590-00828 Work function harnesses/fuse [2015-05-22]...................................................325 5590-00829 P0043955....................................................................................326 5590-00829 Work function harnesses/fuse [2015-02-11]...................................................327 5590-00878 P0045688....................................................................................328 5590-00878 Work function harnesses/fuse [2014-09-26]...................................................329 5590-00891 P0046334....................................................................................330 5590-00891 Work function harnesses/fuse [2014-05-22]...................................................331 5590-00912 P0046983....................................................................................332 5590-00912 Work function harnesses/fuse [2014-09-26]...................................................333 5590-00957 P0049151....................................................................................334 5590-00957 Work function harnesses/fuse [2015-06-15]...................................................335 5590-00976 P0049709....................................................................................336 5590-00976 Work function harnesses/fuse [2015-08-27]...................................................337 5680-00182 P0033449....................................................................................338 5680-00182 Battery/motor cables, fuse [2009-09-09].....................................................339 5680-00196 P0035191....................................................................................340 5680-00196 Battery/motor cables, fuse [2013-11-25].....................................................341 5680-00216 P0039914....................................................................................342 5680-00216 Battery/motor cables, fuse [2013-11-25].....................................................343 5680-00218 P0039916....................................................................................346 5680-00218 Battery/motor cables, fuse [2013-10-24].....................................................347 5680-00224 P0040600....................................................................................350 5680-00224 Battery/motor cables, fuse [2013-10-24].....................................................351 5680-00225 P0040601....................................................................................354 5680-00225 Battery/motor cables, fuse [2013-10-24].....................................................355 5680-00248 P0044720....................................................................................356 5680-00248 Battery/motor cables, fuse [2014-07-08].....................................................357 5680-00249 P0044722....................................................................................360 5680-00249 Battery/motor cables, fuse [2013-10-24].....................................................361 5680-00250 P0044723....................................................................................362 5680-00250 Battery/motor cables, fuse [2013-10-24].....................................................363 5680-00251 P0044724....................................................................................366 5680-00251 Battery/motor cables, fuse [2014-11-11].....................................................367 5710-00175 P0042409....................................................................................370 5710-00175 Drive/multi-function PCBs [2013-11-25]......................................................371 5710-00176 P0042410....................................................................................372 5710-00176 Drive/multi-function PCBs [2012-10-22]......................................................373 5820-00498 P0041956....................................................................................374 5820-00498 Lift/lowering/reach movement probes/sensors [2014-01-07]....................................375 5830-00222 P0034077....................................................................................376 5830-00222 Safety probes/sensors [2013-11-25]..........................................................377 5830-00247 P0035192....................................................................................378 5830-00247 Safety probes/sensors [2014-11-11]..........................................................379 5850-00018 P0033526....................................................................................380 5850-00018 Positioning probes/sensors [2013-11-25].....................................................381 5850-00029 P0037412....................................................................................382 5850-00029 Positioning probes/sensors [2013-11-25].....................................................383 5850-00034 P0041060....................................................................................384 5850-00034 Positioning probes/sensors [2013-11-25].....................................................385 5850-00038 P0043027....................................................................................386 5850-00038 Positioning probes/sensors [2015-01-22].....................................................387 5850-00045 P0043911....................................................................................388 5850-00045 Positioning probes/sensors [2015-01-22].....................................................389 5850-00072 P0048008....................................................................................390 5850-00072 Positioning probes/sensors [2015-01-22].....................................................391 6110-00026 P0031616....................................................................................392 6110-00026 Hydraulic tank [2014-09-26].................................................................393 6110-00032 P0046937....................................................................................394 6110-00032 Hydraulic tank [2014-09-26].................................................................395 6120-00267 P0032255....................................................................................396 6120-00267 Hydraulic tank lines [2013-11-25]...........................................................397 6120-00275 P0033522....................................................................................398 6120-00275 Hydraulic tank lines [2014-09-26]...........................................................399 6130-00037 P0032253....................................................................................400 6130-00037 Filters and housing [2014-09-02]............................................................401 6140-00038 P0032251....................................................................................402 6140-00038 Hydraulic pump [2011-03-08].................................................................403 6210-00085 P0037514....................................................................................404 6210-00085 Main valve unit lift/reach/tilt [2013-11-25]................................................405 6210-00086 P0037515....................................................................................406 6210-00086 Main valve unit lift/reach/tilt [2010-09-14]................................................407 6220-00054 P0031703....................................................................................408 6220-00054 Control valve ( Other functions ) [2013-11-25]..............................................409 6220-00055 P0032549....................................................................................410 6220-00055 Control valve ( Other functions ) [2013-05-23]..............................................411 6220-00059 P0032663....................................................................................412 6220-00059 Control valve ( Other functions ) [2013-11-25]..............................................413 6220-00062 P0033047....................................................................................414 6220-00062 Control valve ( Other functions ) [2013-11-25]..............................................415 6220-00076 P0044042....................................................................................416 6220-00076 Control valve ( Other functions ) [2013-11-25]..............................................417 6230-00240 P0032675....................................................................................418 6230-00240 Hydraulic lines chassis [2013-11-25]........................................................419 6230-00279 P0035193....................................................................................420 6230-00279 Hydraulic lines chassis [2015-04-13]........................................................421 6320-00439 P0031705....................................................................................422 6320-00439 Mast hydraulic lines [2013-11-25]...........................................................423 6320-00493 P0033680....................................................................................424 6320-00493 Mast hydraulic lines [2011-03-08]...........................................................425 6320-00570 P0034858....................................................................................426 6320-00570 Mast hydraulic lines [2011-03-08]...........................................................427 6320-00676 P0037362....................................................................................428 6320-00676 Mast hydraulic lines [2011-03-08]...........................................................429 6320-00685 P0037503....................................................................................430 6320-00685 Mast hydraulic lines [2014-01-23]...........................................................431 6320-00686 P0037504....................................................................................434 6320-00686 Mast hydraulic lines [2014-01-23]...........................................................435 6320-00832 P0040036....................................................................................440 6320-00832 Mast hydraulic lines [2013-11-25]...........................................................441 6320-00841 P0040233....................................................................................442 6320-00841 Mast hydraulic lines [2013-10-22]...........................................................443 6320-00974 P0042040....................................................................................444 6320-00974 Mast hydraulic lines [2013-11-25]...........................................................445 6320-00975 P0042041....................................................................................448 6320-00975 Mast hydraulic lines [2013-11-25]...........................................................449 6320-01187 P0045584....................................................................................454 6320-01187 Mast hydraulic lines [2014-05-21]...........................................................455 6320-01188 P0045574....................................................................................458 6320-01188 Mast hydraulic lines [2014-05-21]...........................................................459 6320-01240 P0046399....................................................................................464 6320-01240 Mast hydraulic lines [2014-05-21]...........................................................465 6320-01241 P0046401....................................................................................468 6320-01241 Mast hydraulic lines [2014-05-21]...........................................................469 6370-00133 P0039920....................................................................................474 6370-00133 Mast hose reel/swivel joint [2015-04-22]....................................................475 6370-00146 P0041096....................................................................................478 6370-00146 Mast hose reel/swivel joint [2013-11-25]....................................................479 6370-00147 P0041098....................................................................................482 6370-00147 Mast hose reel/swivel joint [2013-11-25]....................................................483 6370-00148 P0041099....................................................................................486 6370-00148 Mast hose reel/swivel joint [2013-11-25]....................................................487 6370-00217 P0048940....................................................................................490 6370-00217 Mast hose reel/swivel joint [2015-04-22]....................................................491 6610-00412 P0035543....................................................................................494 6610-00412 Main lift cylinders [2011-03-08]............................................................495 6610-00413 P0035544....................................................................................496 6610-00413 Main lift cylinders [2014-11-10]............................................................497 6620-00413 P0042988....................................................................................498 6620-00413 Free lift cylinders [2014-02-20]............................................................499 6620-00525 P0045779....................................................................................500 6620-00525 Free lift cylinders [2014-11-20]............................................................501 6620-00588 P0047550....................................................................................502 6620-00588 Free lift cylinders [2014-11-20]............................................................503 6650-00013 P0039381....................................................................................504 6650-00013 Reach/telescopic cylinders [2014-08-21].....................................................505 6650-00023 P0046754....................................................................................506 6650-00023 Reach/telescopic cylinders [2014-08-21].....................................................507 6660-00015 P0024168....................................................................................508 6660-00015 Tilt cylinders [2014-06-09].................................................................509 6660-00019 P0032555....................................................................................510 6660-00019 Tilt cylinders [2015-04-20].................................................................511 6660-00022 P0036761....................................................................................512 6660-00022 Tilt cylinders [2014-06-09].................................................................513 6670-00042 P0040037....................................................................................514 6670-00042 Other hydraulic cylinders [2014-09-04]......................................................515 6670-00053 P0046757....................................................................................516 6670-00053 Other hydraulic cylinders [2015-03-25]......................................................517 6670-00057 P0048660....................................................................................518 6670-00057 Other hydraulic cylinders [2015-03-25]......................................................519 7100-00130 P0031143....................................................................................520 7100-00130 Main mast [2013-08-16]......................................................................521 7120-01087 P0042989....................................................................................522 7120-01087 Main lift chain system [2015-08-27].........................................................523 7120-01089 P0042993....................................................................................526 7120-01089 Main lift chain system [2015-08-27].........................................................527 7120-01319 P0049716....................................................................................530 7120-01319 Main lift chain system [2015-08-27].........................................................531 7120-01320 P0049717....................................................................................534 7120-01320 Main lift chain system [2015-08-27].........................................................535 7130-00293 P0031701....................................................................................538 7130-00293 Main mast fork carriage [2011-03-08]........................................................539 7130-00295 P0031707....................................................................................542 7130-00295 Main mast fork carriage [2014-08-21]........................................................543 7130-00296 P0031708....................................................................................544 7130-00296 Main mast fork carriage [2014-08-21]........................................................545 7130-00427 P0040033....................................................................................546 7130-00427 Main mast fork carriage [2014-04-01]........................................................547 7130-00532 P0045776....................................................................................550 7130-00532 Main mast fork carriage [2014-02-20]........................................................551 7130-00552 P0046747....................................................................................554 7130-00552 Main mast fork carriage [2014-08-21]........................................................555 7130-00553 P0046748....................................................................................556 7130-00553 Main mast fork carriage [2014-08-21]........................................................557 7150-00040 P0032510....................................................................................558 7150-00040 Main mast guidance/dampers [2013-11-25].....................................................559 7190-00086 P0033650....................................................................................560 7190-00086 Main mast suspension [2013-11-25]...........................................................561 7190-00127 P0041062....................................................................................562 7190-00127 Main mast suspension [2014-02-20]...........................................................563 7190-00139 P0044729....................................................................................566 7190-00139 Main mast suspension [2014-02-20]...........................................................567 7410-00425 P0033674....................................................................................570 7410-00425 Fork, carpet boom, lift hook [2011-03-08]...................................................571 7410-00462 P0035456....................................................................................572 7410-00462 Fork, carpet boom, lift hook [2011-03-08]...................................................573 7410-00466 P0035759....................................................................................574 7410-00466 Fork, carpet boom, lift hook [2011-03-08]...................................................575 7410-00490 P0037524....................................................................................576 7410-00490 Fork, carpet boom, lift hook [2014-06-09]...................................................577 7410-00537 P0040435....................................................................................578 7410-00537 Fork, carpet boom, lift hook [2012-04-18]...................................................579 9170-00484 P0043015....................................................................................580 9170-00484 Separate sideshift/forkspread [2015-03-25]..................................................581 9170-00485 P0043016....................................................................................582 9170-00485 Separate sideshift/forkspread [2015-03-25]..................................................583 9170-00488 P0043019....................................................................................586 9170-00488 Separate sideshift/forkspread [2014-09-25]..................................................587 9170-00489 P0043020....................................................................................590 9170-00489 Separate sideshift/forkspread [2014-09-25]..................................................591 9170-00490 P0043021....................................................................................594 9170-00490 Separate sideshift/forkspread [2014-09-25]..................................................595 9170-00500 P0043667....................................................................................598 9170-00500 Separate sideshift/forkspread [2015-03-25]..................................................599 9170-00501 P0043668....................................................................................602 9170-00501 Separate sideshift/forkspread [2015-03-25]..................................................603 9170-00502 P0043864....................................................................................606 9170-00502 Separate sideshift/forkspread [2015-03-25]..................................................607 9170-00554 P0046994....................................................................................610 9170-00554 Separate sideshift/forkspread [2014-09-25]..................................................611 9170-00555 P0046995....................................................................................614 9170-00555 Separate sideshift/forkspread [2014-09-25]..................................................615 9170-00556 P0046996....................................................................................618 9170-00556 Separate sideshift/forkspread [2014-09-25]..................................................619 9170-00588 P0048670....................................................................................622 9170-00588 Separate sideshift/forkspread [2015-03-25]..................................................623 9170-00589 P0048671....................................................................................624 9170-00589 Separate sideshift/forkspread [2015-03-25]..................................................625 9170-00592 P0048676....................................................................................628 9170-00592 Separate sideshift/forkspread [2015-03-25]..................................................629 9170-00593 P0048678....................................................................................632 9170-00593 Separate sideshift/forkspread [2015-03-25]..................................................633 9170-00594 P0048685....................................................................................636 9170-00594 Separate sideshift/forkspread [2015-03-25]..................................................637 9180-00069 P0036811....................................................................................640 9180-00069 Fork extensions [2014-06-09]................................................................641 9300-00126 P0033340....................................................................................642 9300-00126 Extra electrical equipment [2014-11-26].....................................................643 9300-00133 P0035614....................................................................................644 9300-00133 Extra electrical equipment [2013-11-25].....................................................645 9330-00058 P0033572....................................................................................646 9330-00058 Radio/recorder [2014-04-14].................................................................647 9330-00090 P0043954....................................................................................648 9330-00090 Radio/recorder [2015-05-22].................................................................649 9330-00102 P0049152....................................................................................650 9330-00102 Radio/recorder [2015-05-22].................................................................651 9360-00084 P0032084....................................................................................652 9360-00084 Extra lighting [2015-02-19].................................................................653 9360-00130 P0048368....................................................................................654 9360-00130 Extra lighting [2015-05-26].................................................................655 9370-00122 P0030370....................................................................................656 9370-00122 Extra warning lights/alarm [2013-11-25].....................................................657 9370-00134 P0032235....................................................................................658 9370-00134 Extra warning lights/alarm [2013-11-25].....................................................659 9370-00155 P0036628....................................................................................660 9370-00155 Extra warning lights/alarm [2014-05-21].....................................................661 9370-00267 P0049147....................................................................................662 9370-00267 Extra warning lights/alarm [2015-05-21].....................................................663 9380-00021 P0032673....................................................................................664 9380-00021 Charger attachment [2013-11-25].............................................................665 9380-00030 P0040524....................................................................................666 9380-00030 Charger attachment [2015-01-20].............................................................667 9390-00122 P0036637....................................................................................668 9390-00122 Positioning/TV equip., height preselector [2013-04-24]......................................669 9390-00184 P0043951....................................................................................670 9390-00184 Positioning/TV equip., height preselector [2015-08-27]......................................671 9390-00237 P0049707....................................................................................672 9390-00237 Positioning/TV equip., height preselector [2015-08-27]......................................673 9400-00476 P0037985....................................................................................674 9400-00476 Extra electrical equipment [2013-11-25].....................................................675 9400-00541 P0040501....................................................................................676 9400-00541 Extra electrical equipment [2014-11-20].....................................................677 9400-00717 P0047554....................................................................................678 9400-00717 Extra electrical equipment [2014-11-20].....................................................679 9420-00143 P0033808....................................................................................680 9420-00143 Truck log device, code locking device [2015-02-11]..........................................681 9420-00148 P0034496....................................................................................684 9420-00148 Truck log device, code locking device [2013-11-25]..........................................685 9420-00188 P0040894....................................................................................686 9420-00188 Truck log device, code locking device [2013-11-25]..........................................687 9420-00223 P0045196....................................................................................688 9420-00223 Truck log device, code locking device [2013-11-25]..........................................689 9500-00441 P0017239....................................................................................692 9500-00441 Other extra equipment [2011-03-10]..........................................................693 9500-00868 P0027876....................................................................................694 9500-00868 Other extra equipment [2014-02-20]..........................................................695 9500-01073 P0031109....................................................................................696 9500-01073 Other extra equipment [2014-06-09]..........................................................697 9500-01174 P0032556....................................................................................698 9500-01174 Other extra equipment [2015-01-13]..........................................................699 9500-01273 P0034821....................................................................................700 9500-01273 Other extra equipment [2014-10-23]..........................................................701 9500-01274 P0034860....................................................................................704 9500-01274 Other extra equipment [2011-03-09]..........................................................705 9500-01337 P0036107....................................................................................706 9500-01337 Other extra equipment [2013-11-25]..........................................................707 9500-01363 P0036879....................................................................................708 9500-01363 Other extra equipment [2011-11-07]..........................................................709 9500-01364 P0037269....................................................................................710 9500-01364 Other extra equipment [2011-03-09]..........................................................711 9500-01380 P0037224....................................................................................712 9500-01380 Other extra equipment [2013-11-25]..........................................................713 9500-01383 P0037268....................................................................................714 9500-01383 Other extra equipment [2015-07-07]..........................................................715 9500-01427 P0037922....................................................................................716 9500-01427 Other extra equipment [2014-04-09]..........................................................717 9500-01569 P0040235....................................................................................718 9500-01569 Other extra equipment [2013-07-25]..........................................................719 9500-01854 P0044321....................................................................................720 9500-01854 Other extra equipment [2013-06-13]..........................................................721 9500-01949 P0045589....................................................................................722 9500-01949 Other extra equipment [2014-06-10]..........................................................723 9500-01967 P0045821....................................................................................724 9500-01967 Other extra equipment [2014-02-20]..........................................................725 9500-02049 P0047307....................................................................................726 9500-02049 Other extra equipment [2014-10-23]..........................................................727 9500-02105 P0047986....................................................................................730 9500-02105 Other extra equipment [2015-08-26]..........................................................731 9550-00045 P0037989....................................................................................732 9550-00045 Battery changing equipment [2013-11-25].....................................................733 9550-00046 P0038245....................................................................................734 9550-00046 Battery changing equipment [2011-03-09].....................................................735
