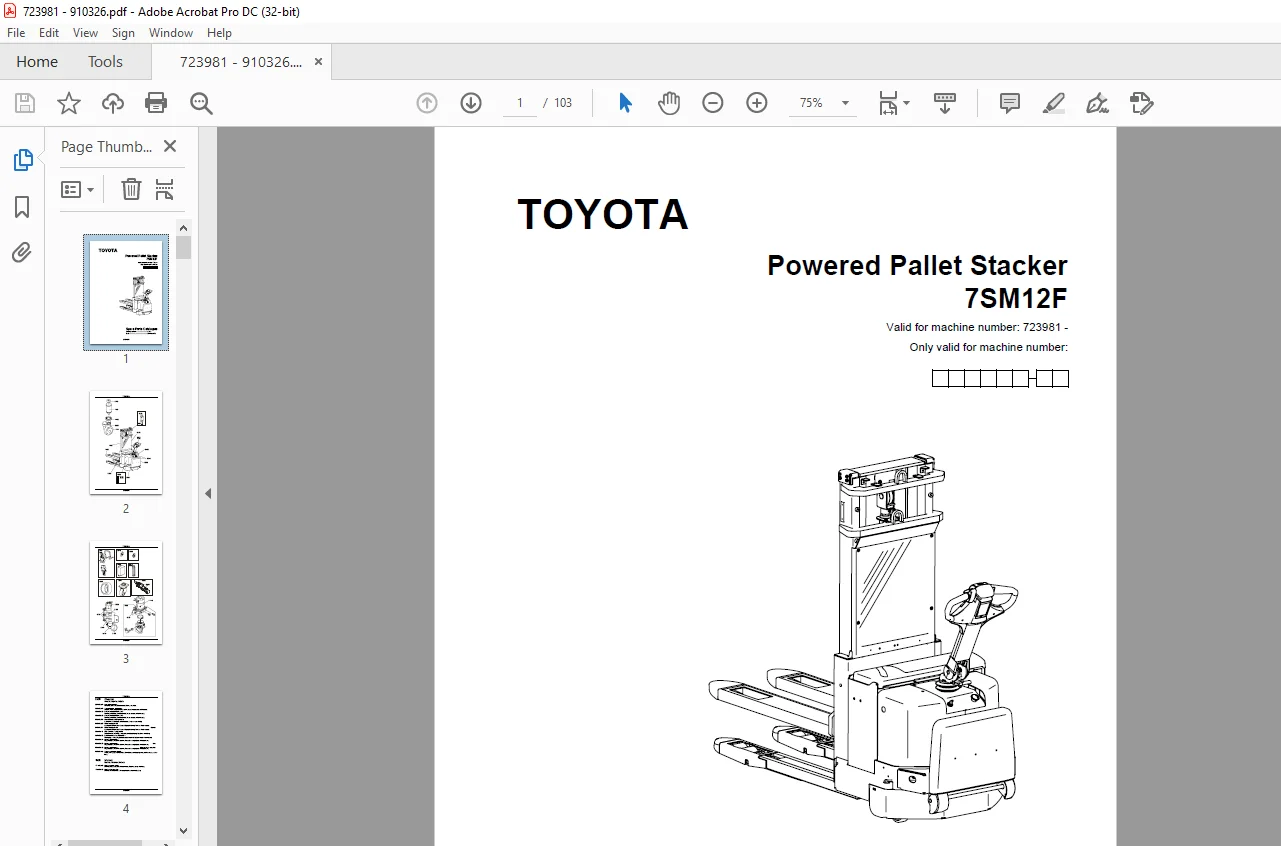

Toyota Forklift 7 SM12F Powered Pallet Stacker Parts Catalogue Manual 723981 – PDF DOWNLOAD

Description

Toyota Forklift 7 SM12F Powered Pallet Stacker Parts Catalogue Manual 723981 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7 SM12F Powered Pallet Stacker Parts Catalogue Manual 723981 – PDF DOWNLOAD

Language : English
Pages : 103
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7 SM12F Powered Pallet Stacker Parts Catalogue Manual 723981 – PDF DOWNLOAD

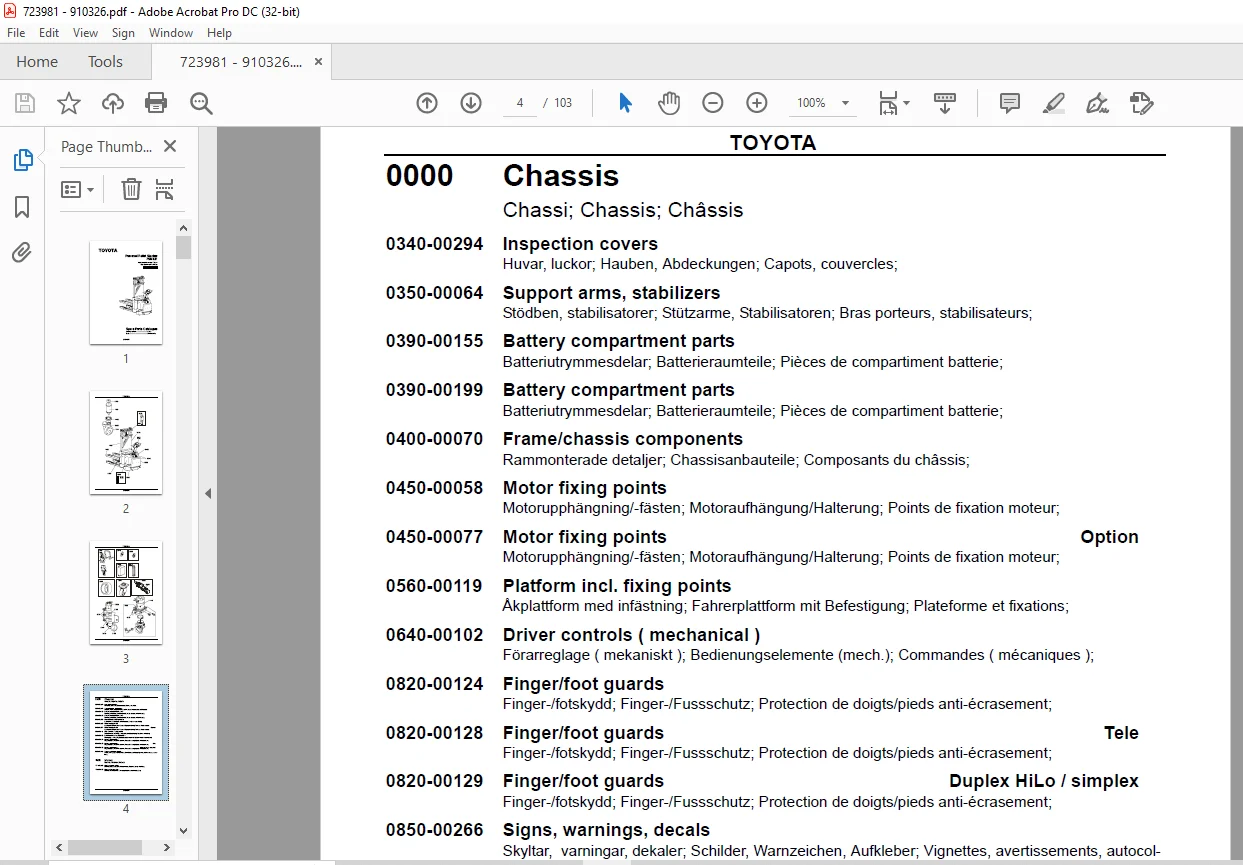

0000 Chassis...........................................................................................  4
	Chassi; Chassis; Châssis...........................................................................  4
1000 Motors............................................................................................  4
	Motorer; Motoren; Moteurs..........................................................................  4
2000 Transmission/Drive gear...........................................................................  5
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  5
3000 Brake/Wheel/Caterpillar system....................................................................  5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  5
4000 Steering system...................................................................................  5
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  5
5000 Electrical system.................................................................................  6
	Elektriskt system; Elektroanlage; Système électrique...............................................  6
6000 Hydraulic/pneumatic system........................................................................  6
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  6
7000 Work function - lifting masts.....................................................................  7
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  7
9000 Options/attachments...............................................................................  7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.............  7
0340-00294 P0015810....................................................................................  8
0340-00294 Inspection covers [2002-03-08]..............................................................  9
0350-00064 P0020789.................................................................................... 10
0350-00064 Support arms, stabilizers [2004-06-16]...................................................... 11
0390-00155 P0015903.................................................................................... 12
0390-00155 Battery compartment parts [2002-03-08]...................................................... 13
0390-00199 P0017725.................................................................................... 14
0390-00199 Battery compartment parts [2003-01-29]...................................................... 15
0400-00070 P0022166.................................................................................... 16
0400-00070 Frame/chassis components [2004-09-30]....................................................... 17

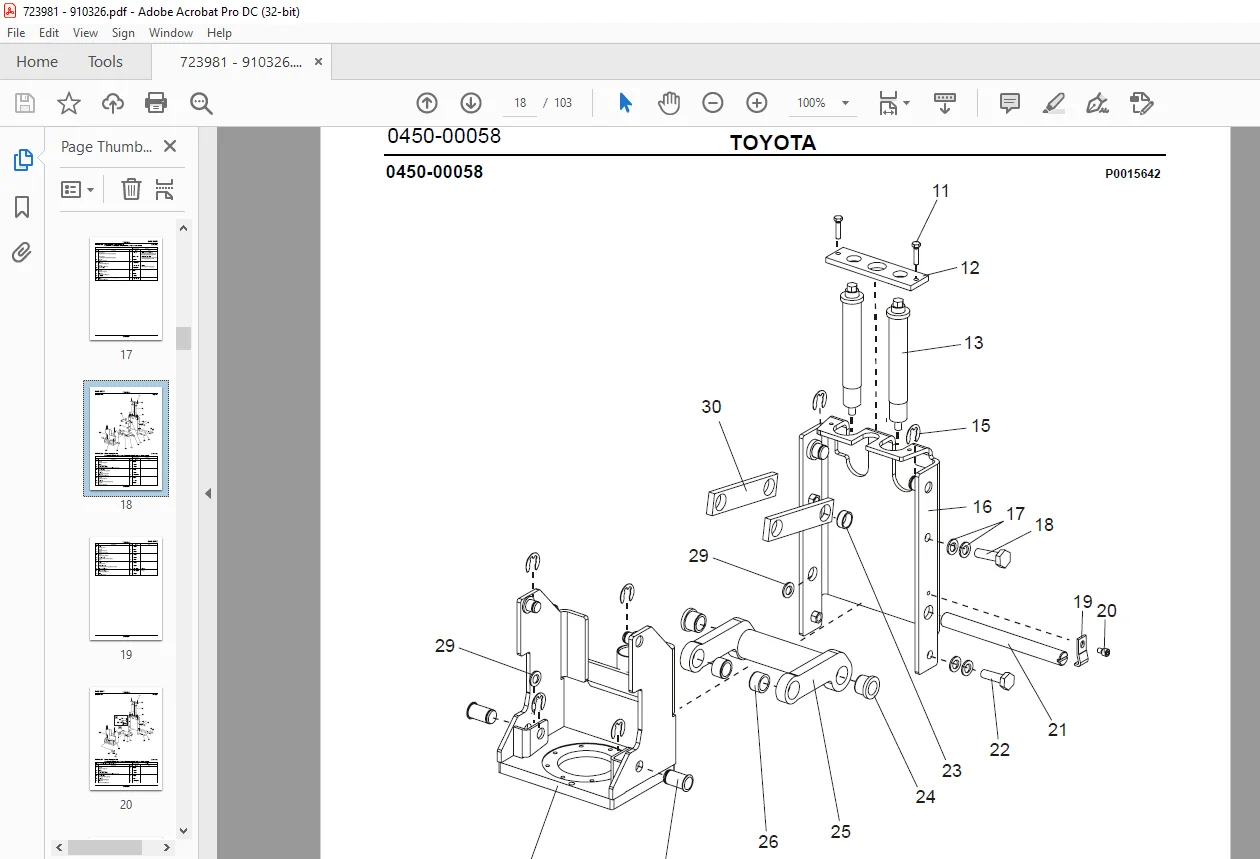

0450-00058 P0015642.................................................................................... 18
0450-00058 Motor fixing points [2004-06-16]............................................................ 18
0450-00077 P0020780.................................................................................... 20
0450-00077 Motor fixing points [2004-06-16]............................................................ 20
0560-00119 P0020456.................................................................................... 22
0560-00119 Platform incl. fixing points [2004-06-16]................................................... 23
0640-00102 P0015760.................................................................................... 24
0640-00102 Driver controls ( mechanical ) [2004-06-16]................................................. 25
0820-00124 P0015757.................................................................................... 26
0820-00124 Finger/foot guards [2004-06-16]............................................................. 26
0820-00128 P0015879.................................................................................... 27
0820-00128 Finger/foot guards [2004-06-16]............................................................. 27
0820-00129 P0015880.................................................................................... 28
0820-00129 Finger/foot guards [2004-06-16]............................................................. 28
0850-00266 P0017706.................................................................................... 30
0850-00266 Signs, warnings, decals [2003-02-03]........................................................ 31
1710-00049 P0015822.................................................................................... 32
1710-00049 Electric pump motor [2004-06-28]............................................................ 32
1760-00105 P0020441.................................................................................... 34
1760-00105 Electric drive motor [2004-06-16]........................................................... 35
2550-00050 P0015644.................................................................................... 36
2550-00050 Mechanical drive gear unit [2004-06-16]..................................................... 37
3370-00026 P0017735.................................................................................... 40
3370-00026 Electromagnetic parking brake [2004-08-26].................................................. 40
3530-00100 P0020790.................................................................................... 41
3530-00100 Drive wheel [2004-06-16].................................................................... 41
3540-00065 P0015651.................................................................................... 42
3540-00065 Support/castor wheels [2004-06-16].......................................................... 43
3550-00207 P0015729.................................................................................... 44
3550-00207 Fork/support arm wheels [2004-06-16]........................................................ 44
3550-00208 P0015730.................................................................................... 45
3550-00208 Fork/support arm wheels [2004-06-16]........................................................ 45
4110-00350 P0021688.................................................................................... 46
4110-00350 Steering arm/wheel/lever [2004-10-01]....................................................... 47
4110-00352 P0021692.................................................................................... 50
4110-00352 Steering arm/wheel/lever [2004-10-01]....................................................... 51
4180-00019 P0013829.................................................................................... 54
4180-00019 Steering bearings, radial bearing [2004-08-24].............................................. 54
5160-00078 P0017660.................................................................................... 56
5160-00078 General alarm signals (audible/visual) [2004-06-16]......................................... 56
5190-00029 P0012438.................................................................................... 57
5190-00029 Battery cut out connector/contactor [2004-08-26]............................................ 57
5190-00059 P0015846.................................................................................... 58
5190-00059 Battery cut out connector/contactor [2004-06-16]............................................ 59
5190-00070 P0017732.................................................................................... 60
5190-00070 Battery cut out connector/contactor [2004-06-16]............................................ 61
5310-00096 P0015763.................................................................................... 62
5310-00096 Start/stop switch [2004-06-16].............................................................. 62
5460-00046 P0015764.................................................................................... 63
5460-00046 Transistor panel [2004-09-09]............................................................... 63
5590-00184 P0021570.................................................................................... 64
5590-00184 Work function harnesses/fuse [2004-10-01]................................................... 65
5610-00021 P0016866.................................................................................... 66
5610-00021 Pump contactor [2004-08-26]................................................................. 66
5820-00067 P0015851.................................................................................... 67
5820-00067 Lift/lowering/reach movement probes/sensors [2004-06-16].................................... 67
5830-00067 P0012445.................................................................................... 68
5830-00067 Safety probes/sensors [2004-08-24].......................................................... 68
5830-00148 P0022182.................................................................................... 69
5830-00148 Safety probes/sensors [2004-10-01].......................................................... 69
6100-00180 P0020819.................................................................................... 70
6100-00180 Hydraulic unit [2004-06-16]................................................................. 71
6230-00065 P0015856.................................................................................... 72
6230-00065 Hydraulic lines chassis [2004-06-16]........................................................ 72
6230-00066 P0015857.................................................................................... 74
6230-00066 Hydraulic lines chassis [2004-06-16]........................................................ 75
6610-00086 P0015861.................................................................................... 76
6610-00086 Main lift cylinders [2004-06-16]............................................................ 76
6610-00087 P0015861.................................................................................... 77
6610-00087 Main lift cylinders [2004-06-16]............................................................ 77
6610-00089 P0015866.................................................................................... 78
6610-00089 Main lift cylinders [2004-06-16]............................................................ 78
6630-00009 P0015833.................................................................................... 79
6630-00009 Support arm/initial lift cylinders [2004-06-16]............................................. 79
7120-00175 P0015881.................................................................................... 80
7120-00175 Main lift chain system [2004-06-16]......................................................... 80
7120-00176 P0015882.................................................................................... 82
7120-00176 Main lift chain system [2004-06-16]......................................................... 83
7120-00177 P0015883.................................................................................... 86
7120-00177 Main lift chain system [2004-06-16]......................................................... 87
7150-00022 P0015870.................................................................................... 88
7150-00022 Main mast guidance/dampers [2004-06-16]..................................................... 88
7420-00321 P0020834.................................................................................... 89
7420-00321 Fork carriage unit, integrated sideshift, fork spread [2004-06-16].......................... 89
9380-00004 P0017729.................................................................................... 90
9380-00004 Charger attachment [2004-08-26]............................................................. 90
9380-00005 P0017731.................................................................................... 91
9380-00005 Charger attachment [2004-08-26]............................................................. 91
9380-00011 P0020457.................................................................................... 91
9380-00011 Charger attachment [2004-08-26]............................................................. 91
9400-00054 P0013124.................................................................................... 92
9400-00054 Extra electrical equipment [2002-03-12]..................................................... 93
9400-00055 P0013126.................................................................................... 94
9400-00055 Extra electrical equipment [2002-03-12]..................................................... 95
9400-00078 P0015420.................................................................................... 96
9400-00078 Extra electrical equipment [2004-08-26]..................................................... 97
9420-00015 P0012396.................................................................................... 98
9420-00015 Truck log device, code locking device [2004-08-26].......................................... 98
9420-00064 P0022173....................................................................................100
9420-00064 Truck log device, code locking device [2004-10-01]..........................................101
9500-00382 P0015897....................................................................................102
9500-00382 Other extra equipment [2004-06-16]..........................................................102
