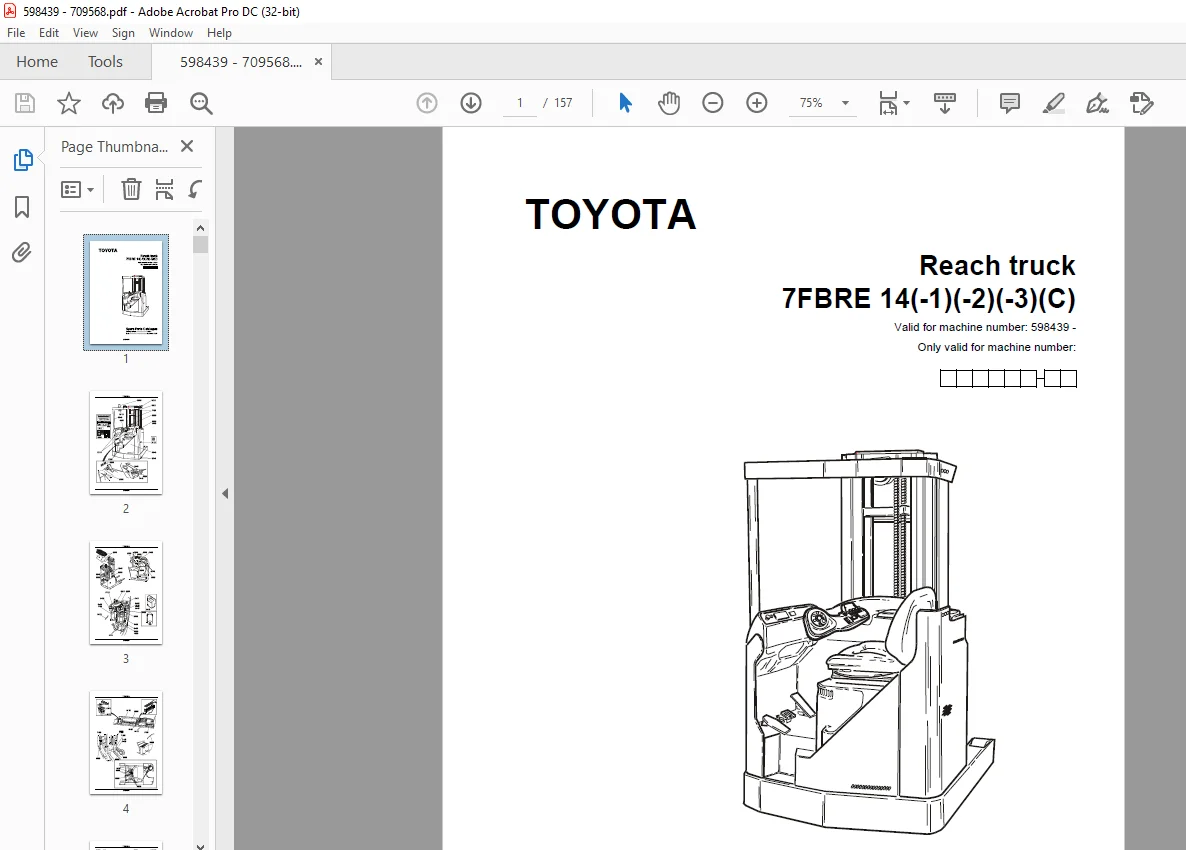

Toyota Forklift 7FBRE 14(-1)(-2)(-3)(C) Reach truck Spare Parts Catalogue Manual 598439 – DOWNLOAD

Description

Toyota Forklift 7FBRE 14(-1)(-2)(-3)(C) Reach truck Spare Parts Catalogue Manual 598439 – DOWNLOAD

FILE DETAILS:

Toyota Forklift 7FBRE 14(-1)(-2)(-3)(C) Reach truck Spare Parts Catalogue Manual 598439 – DOWNLOAD

Language : English
Pages : 157
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7FBRE 14(-1)(-2)(-3)(C) Reach truck Spare Parts Catalogue Manual 598439 – DOWNLOAD

0000 Chassis...........................................................................................  6
	Chassi; Chassis; Châssis...........................................................................  6
1000 Motors............................................................................................  7
	Motorer; Motoren; Moteurs..........................................................................  7
2000 Transmission/Drive gear...........................................................................  7
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  7
3000 Brake/Wheel/Caterpillar system....................................................................  7
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  7
4000 Steering system...................................................................................  7
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  7
5000 Electrical system.................................................................................  8
	Elektriskt system; Elektroanlage; Système électrique...............................................  8
6000 Hydraulic/pneumatic system........................................................................  9
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  9
7000 Work function - lifting masts..................................................................... 10
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage.... 10
9000 Options/attachments............................................................................... 11
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options............. 11
0340-00127 P0010775.................................................................................... 12
0340-00127 Inspection covers [2003-11-25].............................................................. 12
0340-00272 P0014893.................................................................................... 13
0340-00272 Inspection covers [2002-02-12].............................................................. 13

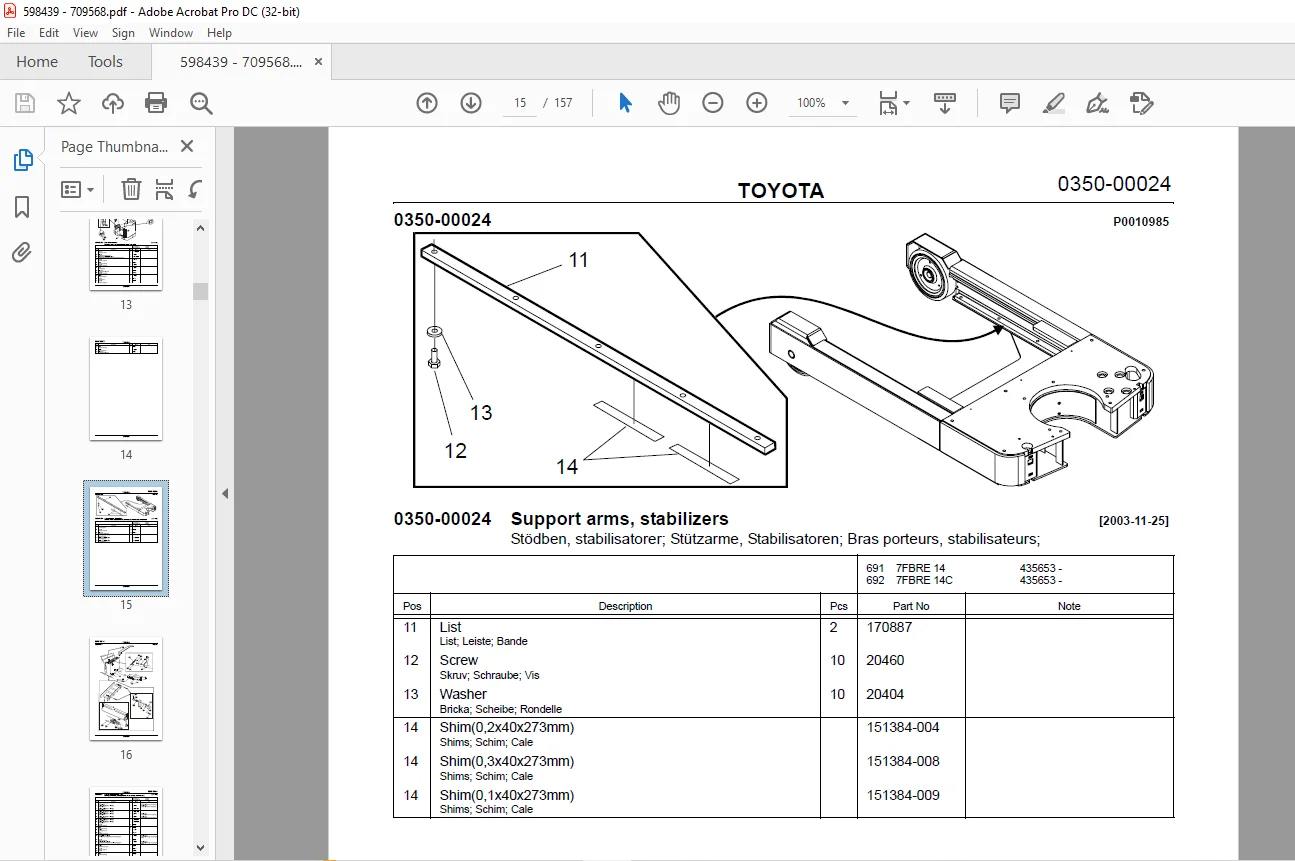

0350-00024 P0010985.................................................................................... 15
0350-00024 Support arms, stabilizers [2003-11-25]...................................................... 15
0390-00141 P0015346.................................................................................... 16
0390-00141 Battery compartment parts [2003-11-25]...................................................... 17
0450-00033 P0011450.................................................................................... 19
0450-00033 Motor fixing points [2003-11-25]............................................................ 19
0620-00040 P0015676.................................................................................... 20
0620-00040 Seat, cushions [2002-11-12]................................................................. 21
0640-00034 P0007590.................................................................................... 22
0640-00034 Driver controls ( mechanical ) [2003-11-25]................................................. 23
0640-00035 P0007591.................................................................................... 26
0640-00035 Driver controls ( mechanical ) [2003-11-25]................................................. 27
0680-00113 P0014927.................................................................................... 30
0680-00113 Internal fittings [2003-01-29].............................................................. 30
0740-00004 P0015452.................................................................................... 32
0740-00004 Mirrors [2002-02-12]........................................................................ 32

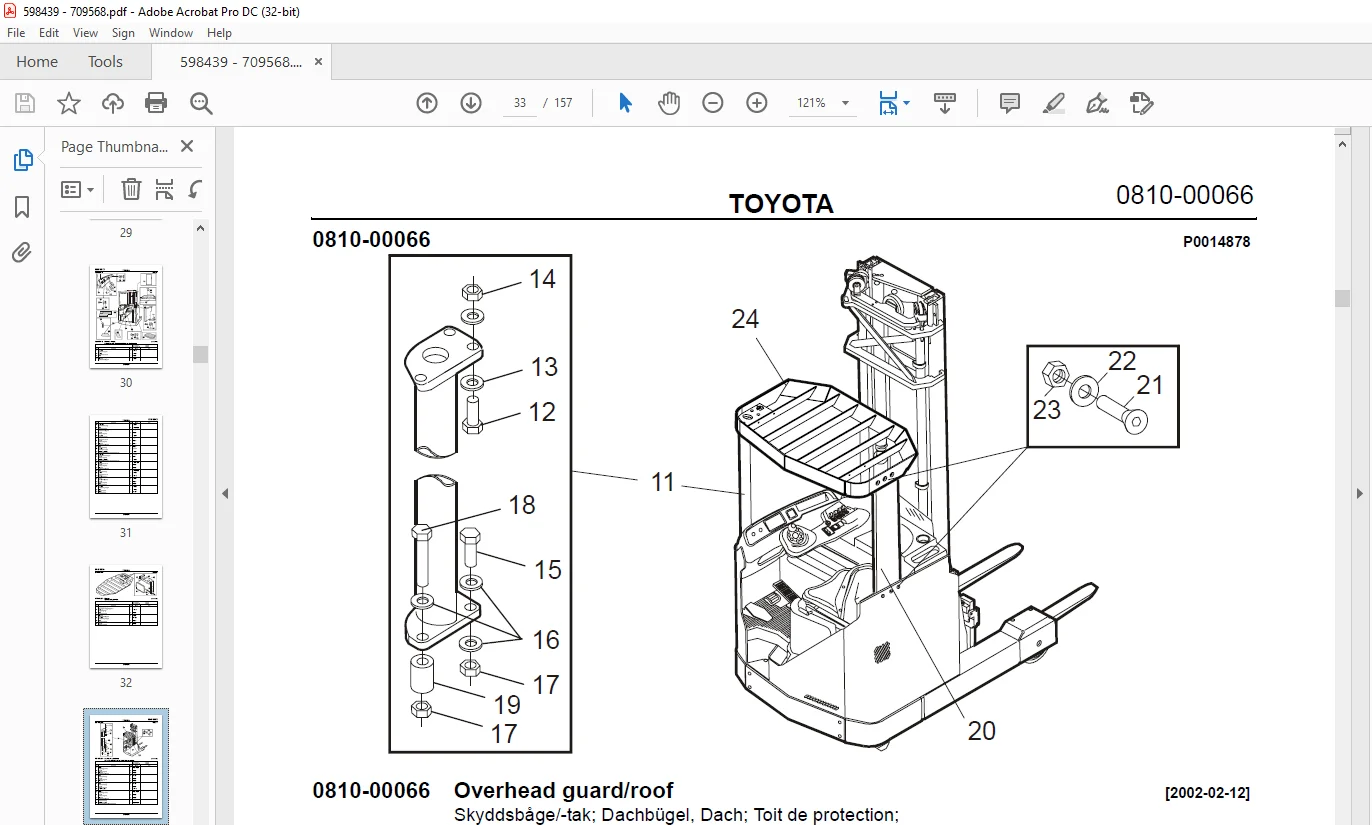

0810-00066 P0014878.................................................................................... 33
0810-00066 Overhead guard/roof [2002-02-12]............................................................ 33
0810-00070 P0015406.................................................................................... 34
0810-00070 Overhead guard/roof [2002-02-12]............................................................ 34
0810-00072 P0015454.................................................................................... 35
0810-00072 Overhead guard/roof [2002-02-12]............................................................ 35
0810-00074 P0015538.................................................................................... 36
0810-00074 Overhead guard/roof [2002-02-12]............................................................ 36
0820-00010 P0000297.................................................................................... 37
0820-00010 Finger/foot guards [2003-11-25]............................................................. 37
0840-00043 P0011572.................................................................................... 38
0840-00043 Driver protection [2003-11-25].............................................................. 38
0850-00286 P0018385.................................................................................... 40
0850-00286 Signs, warnings, decals [2003-12-03]........................................................ 41
1710-00036 P0012991.................................................................................... 42
1710-00036 Electric pump motor [2003-11-25]............................................................ 43
1730-00028 P0019556.................................................................................... 45
1730-00028 Electric steering motor [2003-12-03]........................................................ 45
1740-00003 P0009593.................................................................................... 46
1740-00003 Electric fan motor, electric fan [2003-11-25]............................................... 46
1740-00005 P0011293.................................................................................... 47
1740-00005 Electric fan motor, electric fan [2003-11-25]............................................... 47
1760-00080 P0018952.................................................................................... 48
1760-00080 Electric drive motor [2003-12-03]........................................................... 49
2550-00051 P0015708.................................................................................... 52
2550-00051 Mechanical drive gear unit [2003-04-02]..................................................... 53
3110-00006 P0007232.................................................................................... 56
3110-00006 Travel brake controls [2003-11-25].......................................................... 56
3180-00002 P0009607.................................................................................... 57
3180-00002 Electrically controlled travel brake [2003-11-25]........................................... 57
3530-00013 P0005710.................................................................................... 58
3530-00013 Drive wheel [2003-11-25].................................................................... 58
3550-00081 P0010771.................................................................................... 59
3550-00081 Fork/support arm wheels [2003-11-25]........................................................ 59
4310-00026 P0014913.................................................................................... 60
4310-00026 Electric steering wheel/lever [2003-04-01].................................................. 61
4350-00002 P0009627.................................................................................... 63
4350-00002 Steering angle sensor [2003-11-25].......................................................... 63
4380-00003 P0016555.................................................................................... 64
4380-00003 Steering bearings [2003-11-25].............................................................. 64
5160-00102 P0019213.................................................................................... 66
5160-00102 General alarm signals (audible/visual) [2003-12-03]......................................... 66
5190-00016 P0007571.................................................................................... 67
5190-00016 Battery cut out connector/contactor [2003-11-25]............................................ 67
5200-00005 P0007136.................................................................................... 68
5200-00005 Instrument panel, display [2003-11-25]...................................................... 68
5310-00003 P0000151.................................................................................... 68
5310-00003 Start/stop switch [2003-11-25].............................................................. 68
5310-00021 P0004631.................................................................................... 69
5310-00021 Start/stop switch [2003-11-25].............................................................. 69
5320-00004 P0000257.................................................................................... 69
5320-00004 Travel direction switch (separate) [2003-11-25]............................................. 69
5320-00009 P0004694.................................................................................... 70
5320-00009 Travel direction switch (separate) [2003-11-25]............................................. 70
5330-00021 P0007232.................................................................................... 71
5330-00021 Speed control [2003-11-25].................................................................. 71
5390-00232 P0019660.................................................................................... 72
5390-00232 Driving function harnesses/fuse [2003-12-03]................................................ 73
5430-00081 P0014005.................................................................................... 74
5430-00081 Drive motor cables/resistors/fuses [2003-11-25]............................................. 74
5460-00043 P0014006.................................................................................... 75
5460-00043 Transistor panel [2003-11-25]............................................................... 75
5460-00058 P0019649.................................................................................... 76
5460-00058 Transistor panel [2003-12-03]............................................................... 76
5510-00083 P0015571.................................................................................... 77
5510-00083 Work function micro switches, potentiometers [2003-11-25]................................... 77
5590-00038 P0015276.................................................................................... 78
5590-00038 Work function harnesses/fuse [2003-11-25]................................................... 79
5590-00045 P0015690.................................................................................... 81
5590-00045 Work function harnesses/fuse [2002-02-12]................................................... 81
5680-00058 P0011658.................................................................................... 82
5680-00058 Battery/motor cables, fuse [2003-11-25]..................................................... 83
5710-00080 P0015526.................................................................................... 85
5710-00080 Drive/multi-function PCBs [2003-03-25]...................................................... 85
5790-00012 P0007058.................................................................................... 86
5790-00012 Safety electronics harnesses, fuse [2003-11-25]............................................. 86
5820-00110 P0019366.................................................................................... 87
5820-00110 Lift/lowering/reach movement probes/sensors [2003-12-03].................................... 87
5820-00112 P0019368.................................................................................... 88
5820-00112 Lift/lowering/reach movement probes/sensors [2003-12-03].................................... 88
5830-00024 P0009598.................................................................................... 88
5830-00024 Safety probes/sensors [2003-11-25].......................................................... 88
5830-00026 P0009634.................................................................................... 89
5830-00026 Safety probes/sensors [2003-11-25].......................................................... 89
5830-00027 P0009651.................................................................................... 90
5830-00027 Safety probes/sensors [2003-11-25].......................................................... 90
6110-00018 P0010770.................................................................................... 92
6110-00018 Hydraulic tank [2003-11-25]................................................................. 92
6120-00131 P0008950.................................................................................... 94
6120-00131 Hydraulic tank lines [2003-11-25]........................................................... 95
6120-00157 P0011482.................................................................................... 96
6120-00157 Hydraulic tank lines [2003-11-25]........................................................... 96
6130-00017 P0010610.................................................................................... 97
6130-00017 Filters and housing [2003-11-25]............................................................ 97
6140-00030 P0019207.................................................................................... 98
6140-00030 Hydraulic pump [2003-12-03]................................................................. 98
6210-00016 P0004679....................................................................................100
6210-00016 Main valve unit lift/reach/tilt [2003-11-25]................................................100
6210-00017 P0004680....................................................................................101
6210-00017 Main valve unit lift/reach/tilt [2003-11-25]................................................101
6220-00011 P0015280....................................................................................102
6220-00011 Control valve ( Other functions ) [2003-11-25]..............................................102
6230-00032 P0011484....................................................................................104
6230-00032 Hydraulic lines chassis [2003-11-25]........................................................105
6320-00016 P0009646....................................................................................107
6320-00016 Mast hydraulic lines [2003-11-25]...........................................................107
6320-00133 P0015333....................................................................................108
6320-00133 Mast hydraulic lines [2003-11-25]...........................................................109
6320-00167 P0016868....................................................................................110
6320-00167 Mast hydraulic lines [2003-11-25]...........................................................110
6320-00219 P0019844....................................................................................112
6320-00219 Mast hydraulic lines [2003-12-03]...........................................................113
6320-00226 P0019851....................................................................................116
6320-00226 Mast hydraulic lines [2003-12-03]...........................................................116
6370-00033 P0019859....................................................................................118
6370-00033 Mast hose reel/swivel joint [2003-12-03]....................................................119
6610-00032 P0011051....................................................................................122
6610-00032 Main lift cylinders [2003-11-25]............................................................123
6620-00018 P0011052....................................................................................126
6620-00018 Free lift cylinders [2003-11-25]............................................................127
6650-00005 P0016867....................................................................................128
6650-00005 Reach/telescopic cylinders [2003-11-25].....................................................128
6660-00002 P0009605....................................................................................130
6660-00002 Tilt cylinders [2003-11-25].................................................................130
6660-00003 P0009633....................................................................................131
6660-00003 Tilt cylinders [2003-11-25].................................................................131
6670-00017 P0018033....................................................................................132
6670-00017 Other hydraulic cylinders [2003-11-25]......................................................132
7100-00022 P0011053....................................................................................134
7100-00022 Main mast [2003-11-25]......................................................................134
7120-00077 P0011054....................................................................................136
7120-00077 Main lift chain system [2003-11-25].........................................................136
7120-00169 P0015336....................................................................................138
7120-00169 Main lift chain system [2003-11-25].........................................................138
7130-00053 P0011553....................................................................................140
7130-00053 Main mast fork carriage [2003-11-25]........................................................140
7130-00163 P0019857....................................................................................142
7130-00163 Main mast fork carriage [2003-12-03]........................................................143
7150-00001 P0000171....................................................................................145
7150-00001 Main mast guidance/dampers [2003-11-25].....................................................145
7150-00021 P0015208....................................................................................145
7150-00021 Main mast guidance/dampers [2003-11-25].....................................................145
7190-00028 P0011448....................................................................................146
7190-00028 Main mast suspension [2003-11-25]...........................................................146
7410-00001 P0000186....................................................................................148
7410-00001 Fork, carpet boom, lift hook [2003-11-25]...................................................148
9180-00001 P0002899....................................................................................150
9180-00001 Fork extensions [2003-11-25]................................................................150
9360-00016 P0015540....................................................................................151
9360-00016 Extra lighting [2002-02-12].................................................................151
9360-00017 P0015559....................................................................................152
9360-00017 Extra lighting [2002-02-12].................................................................152
9370-00064 P0019574....................................................................................153
9370-00064 Extra warning lights/alarm [2003-12-03].....................................................153
9380-00001 P0011102....................................................................................153
9380-00001 Charger attachment [2003-12-03].............................................................153
9500-00020 P0005120....................................................................................154
9500-00020 Other extra equipment [2003-11-25]..........................................................154
9500-00071 P0008971....................................................................................155
9500-00071 Other extra equipment [2003-11-25]..........................................................155
9500-00441 P0017239....................................................................................156
9500-00441 Other extra equipment [2003-11-25]..........................................................156
9550-00023 P0018045....................................................................................157
9550-00023 Battery changing equipment [2003-12-03].....................................................157

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
