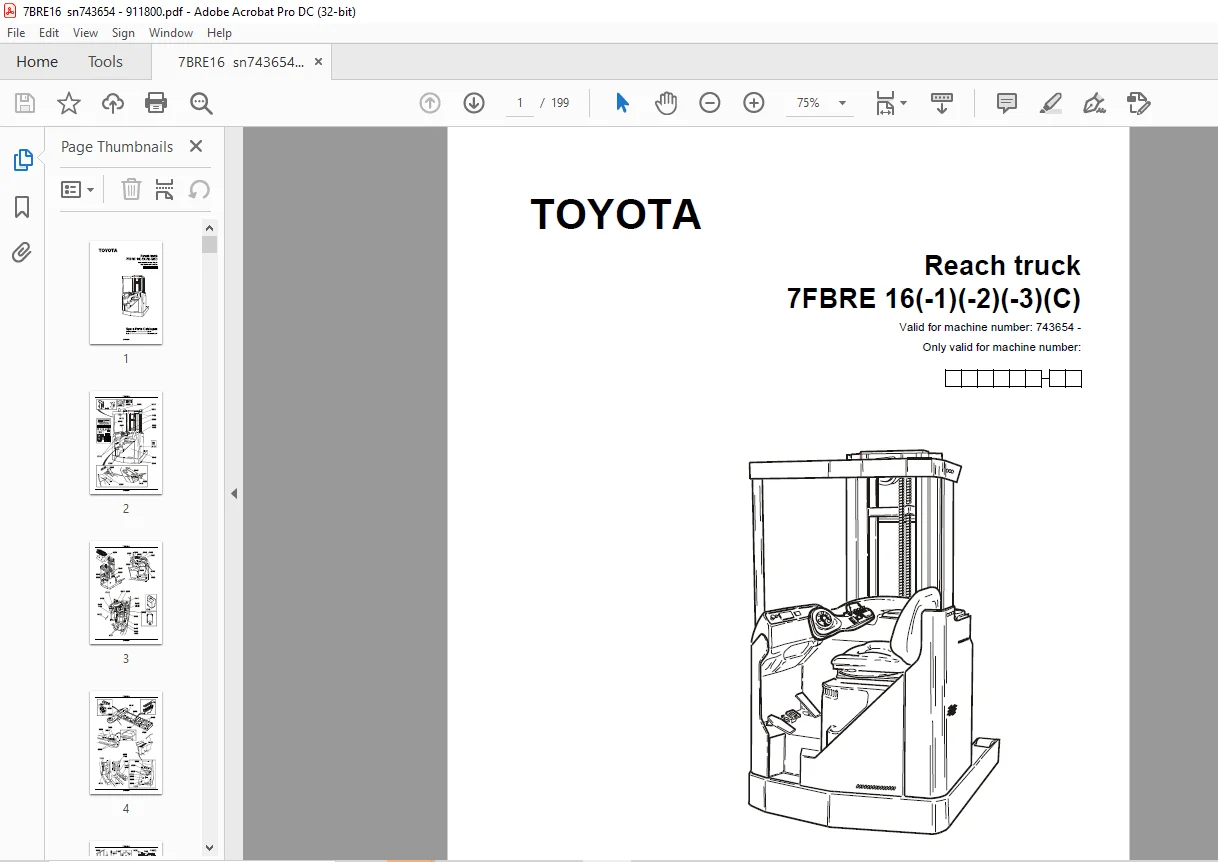

Toyota Forklift 7FBRE 16(-1)(-2)(-3)(C) Reach truck Parts Catalogue Manual SN 743654 – PDF DOWNLOAD

Description

Toyota Forklift 7FBRE 16(-1)(-2)(-3)(C) Reach truck Parts Catalogue Manual SN 743654 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7FBRE 16(-1)(-2)(-3)(C) Reach truck Parts Catalogue Manual SN 743654 – PDF DOWNLOAD

Language : English
Pages : 199
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7FBRE 16(-1)(-2)(-3)(C) Reach truck Parts Catalogue Manual SN 743654 – PDF DOWNLOAD

0000 Chassis...........................................................................................  6
	Chassi; Chassis; Châssis...........................................................................  6
1000 Motors............................................................................................  7
	Motorer; Motoren; Moteurs..........................................................................  7
2000 Transmission/Drive gear...........................................................................  7
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  7
3000 Brake/Wheel/Caterpillar system....................................................................  7
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  7
4000 Steering system...................................................................................  8
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  8
5000 Electrical system.................................................................................  8
	Elektriskt system; Elektroanlage; Système électrique...............................................  8
6000 Hydraulic/pneumatic system........................................................................  9
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  9
7000 Work function - lifting masts..................................................................... 11
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage.... 11
9000 Options/attachments............................................................................... 11
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options............. 11
0340-00008 P0000288.................................................................................... 14

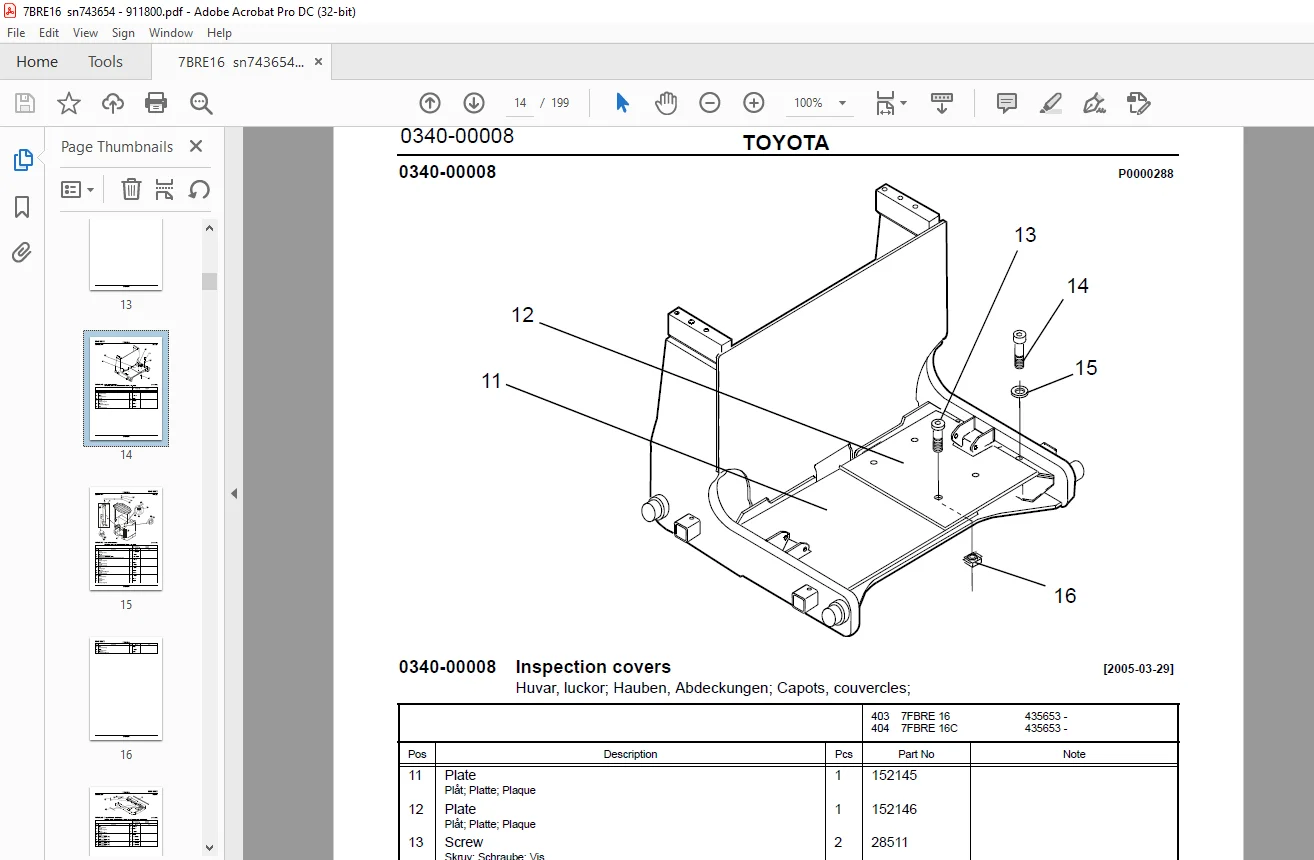

0340-00008 Inspection covers [2005-03-29].............................................................. 14
0340-00272 P0014893.................................................................................... 15
0340-00272 Inspection covers [2002-02-12].............................................................. 15
0350-00055 P0017918.................................................................................... 17
0350-00055 Support arms, stabilizers [2005-03-29]...................................................... 17
0390-00136 P0015303.................................................................................... 18
0390-00136 Battery compartment parts [2005-03-29]...................................................... 19

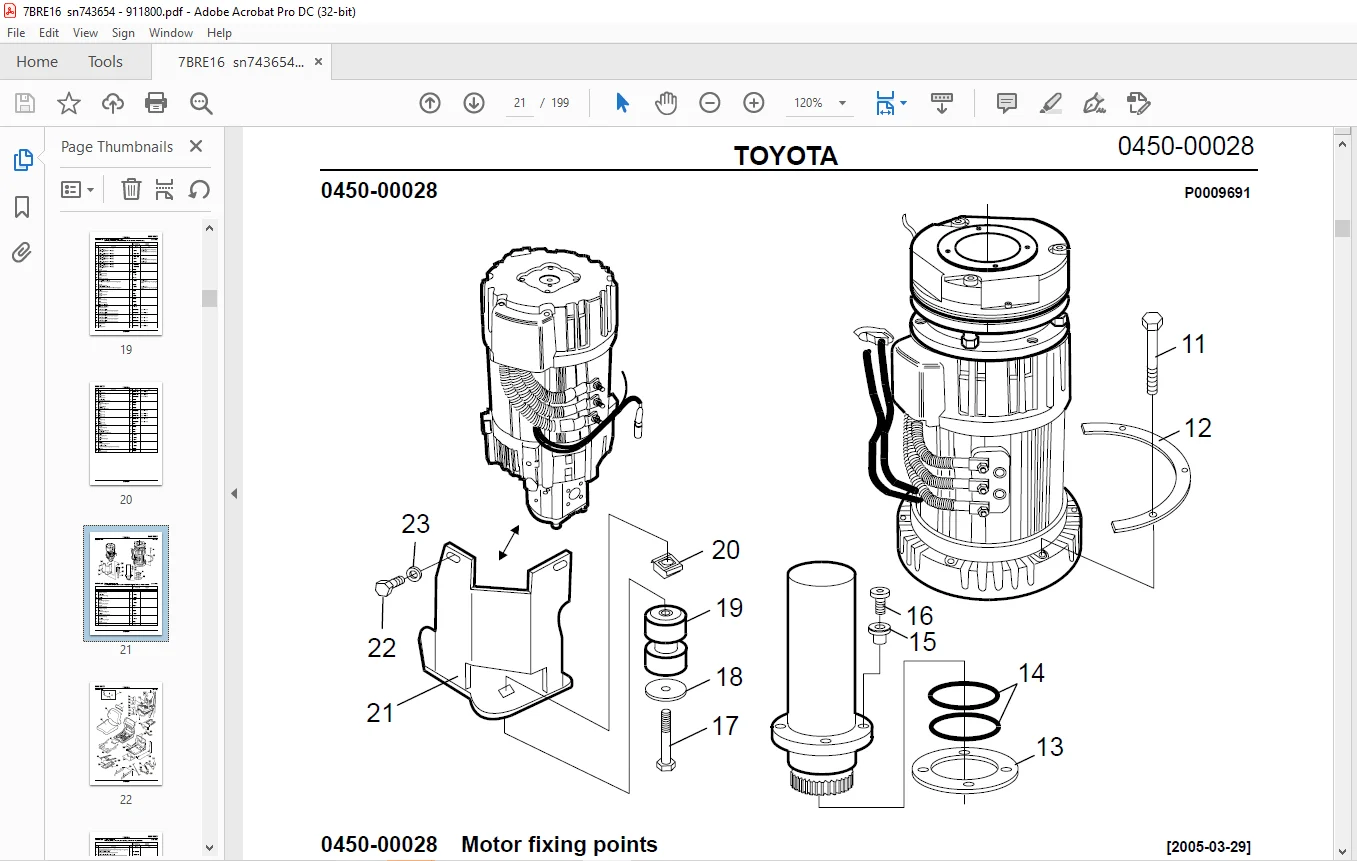

0450-00028 P0009691.................................................................................... 21
0450-00028 Motor fixing points [2005-03-29]............................................................ 21
0620-00090 P0022354.................................................................................... 22
0620-00090 Seat, cushions [2004-10-20]................................................................. 23
0640-00033 P0006552.................................................................................... 24
0640-00033 Driver controls ( mechanical ) [2005-03-29]................................................. 25
0640-00115 P0019264.................................................................................... 28
0640-00115 Driver controls ( mechanical ) [2005-03-29]................................................. 29
0680-00207 P0022799.................................................................................... 32
0680-00207 Internal fittings [2005-03-29].............................................................. 32
0740-00004 P0015452.................................................................................... 34
0740-00004 Mirrors [2002-02-12]........................................................................ 34
0810-00067 P0014879.................................................................................... 35
0810-00067 Overhead guard/roof [2002-02-12]............................................................ 35
0810-00071 P0015408.................................................................................... 36
0810-00071 Overhead guard/roof [2002-02-12]............................................................ 36
0810-00073 P0015536.................................................................................... 37
0810-00073 Overhead guard/roof [2002-02-12]............................................................ 37
0810-00074 P0015538.................................................................................... 38
0810-00074 Overhead guard/roof [2002-02-12]............................................................ 38
0820-00010 P0000297.................................................................................... 39
0820-00010 Finger/foot guards [2004-09-22]............................................................. 39
0820-00029 P0005321.................................................................................... 40
0820-00029 Finger/foot guards [2005-03-29]............................................................. 40
0820-00030 P0005322.................................................................................... 40
0820-00030 Finger/foot guards [2005-03-29]............................................................. 40
0840-00094 P0018102.................................................................................... 41
0840-00094 Driver protection [2003-04-01].............................................................. 41
0850-00270 P0017763.................................................................................... 42
0850-00270 Signs, warnings, decals [2003-04-01]........................................................ 43
1710-00107 P0020722.................................................................................... 44
1710-00107 Electric pump motor [2005-03-29]............................................................ 45
1730-00037 P0022836.................................................................................... 46
1730-00037 Electric steering motor [2005-03-29]........................................................ 46
1740-00003 P0009593.................................................................................... 47
1740-00003 Electric fan motor, electric fan [2005-03-29]............................................... 47
1740-00005 P0011293.................................................................................... 48
1740-00005 Electric fan motor, electric fan [2005-03-29]............................................... 48
1760-00108 P0020720.................................................................................... 50
1760-00108 Electric drive motor [2005-03-29]........................................................... 51
2550-00051 P0015708.................................................................................... 54
2550-00051 Mechanical drive gear unit [2005-03-29]..................................................... 55
3110-00006 P0007232.................................................................................... 58
3110-00006 Travel brake controls [2005-03-29].......................................................... 58
3180-00002 P0009607.................................................................................... 59
3180-00002 Electrically controlled travel brake [2005-03-29]........................................... 59
3180-00013 P0012894.................................................................................... 60
3180-00013 Electrically controlled travel brake [2005-03-29]........................................... 60
3530-00013 P0005710.................................................................................... 61
3530-00013 Drive wheel [2005-03-29].................................................................... 61
3550-00284 P0020405.................................................................................... 62
3550-00284 Fork/support arm wheels [2005-03-30]........................................................ 62
3550-00303 P0021313.................................................................................... 63
3550-00303 Fork/support arm wheels [2005-03-29]........................................................ 63
3550-00304 P0021314.................................................................................... 64
3550-00304 Fork/support arm wheels [2005-03-29]........................................................ 64
4310-00026 P0014913.................................................................................... 66
4310-00026 Electric steering wheel/lever [2003-04-01].................................................. 67
4350-00002 P0009627.................................................................................... 69
4350-00002 Steering angle sensor [2005-03-29].......................................................... 69
4380-00003 P0016555.................................................................................... 70
4380-00003 Steering bearings [2005-03-29].............................................................. 70
5160-00102 P0019213.................................................................................... 72
5160-00102 General alarm signals (audible/visual) [2005-03-29]......................................... 72
5190-00016 P0007571.................................................................................... 73
5190-00016 Battery cut out connector/contactor [2005-03-29]............................................ 73
5200-00005 P0007136.................................................................................... 74
5200-00005 Instrument panel, display [2005-03-29]...................................................... 74
5280-00073 P0021598.................................................................................... 76
5280-00073 Level/position transducers/lamps [2005-01-18]............................................... 77
5310-00003 P0000151.................................................................................... 79
5310-00003 Start/stop switch [2004-09-23].............................................................. 79
5310-00021 P0004631.................................................................................... 79
5310-00021 Start/stop switch [2004-09-23].............................................................. 79
5320-00004 P0000257.................................................................................... 80
5320-00004 Travel direction switch (separate) [2005-03-29]............................................. 80
5320-00009 P0004694.................................................................................... 81
5320-00009 Travel direction switch (separate) [2004-09-23]............................................. 81
5330-00021 P0007232.................................................................................... 82
5330-00021 Speed control [2005-03-29].................................................................. 82
5390-00231 P0019654.................................................................................... 84
5390-00231 Driving function harnesses/fuse [2004-09-23]................................................ 85
5430-00079 P0014001.................................................................................... 87
5430-00079 Drive motor cables/resistors/fuses [2005-03-29]............................................. 87
5460-00056 P0019647.................................................................................... 88
5460-00056 Transistor panel [2005-03-29]............................................................... 88
5510-00011 P0002932.................................................................................... 89
5510-00011 Work function micro switches, potentiometers [2004-09-23]................................... 89
5510-00026 P0006520.................................................................................... 90
5510-00026 Work function micro switches, potentiometers [2004-09-29]................................... 90
5510-00083 P0015571.................................................................................... 91
5510-00083 Work function micro switches, potentiometers [2004-09-23]................................... 91
5590-00079 P0016886.................................................................................... 92
5590-00079 Work function harnesses/fuse [2005-03-29]................................................... 93
5590-00193 P0022051.................................................................................... 96
5590-00193 Work function harnesses/fuse [2004-09-23]................................................... 96
5680-00087 P0014002.................................................................................... 98
5680-00087 Battery/motor cables, fuse [2005-03-29]..................................................... 99
5710-00098 P0018286....................................................................................101
5710-00098 Drive/multi-function PCBs [2003-04-01]......................................................101
5790-00012 P0007058....................................................................................102
5790-00012 Safety electronics harnesses, fuse [2005-03-30].............................................102
5820-00107 P0019341....................................................................................103
5820-00107 Lift/lowering/reach movement probes/sensors [2005-03-29]....................................103
5830-00024 P0009598....................................................................................104
5830-00024 Safety probes/sensors [2004-09-23]..........................................................104
5830-00026 P0009634....................................................................................104
5830-00026 Safety probes/sensors [2005-03-29]..........................................................104
5830-00027 P0009651....................................................................................105
5830-00027 Safety probes/sensors [2005-03-29]..........................................................105
6110-00017 P0010441....................................................................................106
6110-00017 Hydraulic tank [2005-03-29].................................................................106
6120-00156 P0010609....................................................................................107
6120-00156 Hydraulic tank lines [2005-03-29]...........................................................107
6120-00219 P0022362....................................................................................108
6120-00219 Hydraulic tank lines [2005-03-30]...........................................................109
6130-00017 P0010610....................................................................................110
6130-00017 Filters and housing [2005-03-29]............................................................110
6140-00031 P0019208....................................................................................111
6140-00031 Hydraulic pump [2005-03-29].................................................................111
6210-00049 P0022152....................................................................................112
6210-00049 Main valve unit lift/reach/tilt [2005-03-29]................................................112
6210-00050 P0022153....................................................................................113
6210-00050 Main valve unit lift/reach/tilt [2005-03-29]................................................113
6220-00004 P0004689....................................................................................114
6220-00004 Control valve ( Other functions ) [2004-09-23]..............................................114
6220-00011 P0015280....................................................................................115
6220-00011 Control valve ( Other functions ) [2005-03-29]..............................................115
6230-00059 P0015339....................................................................................116
6230-00059 Hydraulic lines chassis [2004-09-23]........................................................117
6320-00016 P0009646....................................................................................119
6320-00016 Mast hydraulic lines [2005-03-29]...........................................................119
6320-00133 P0015333....................................................................................120
6320-00133 Mast hydraulic lines [2005-03-29]...........................................................121
6320-00135 P0015381....................................................................................122
6320-00135 Mast hydraulic lines [2005-03-29]...........................................................122
6320-00168 P0016869....................................................................................123
6320-00168 Mast hydraulic lines [2005-03-29]...........................................................123
6320-00222 P0019847....................................................................................124
6320-00222 Mast hydraulic lines [2005-03-29]...........................................................124
6320-00223 P0019848....................................................................................126
6320-00223 Mast hydraulic lines [2004-09-23]...........................................................127
6320-00283 P0021935....................................................................................128
6320-00283 Mast hydraulic lines [2005-03-29]...........................................................129
6370-00049 P0023123....................................................................................134
6370-00049 Mast hose reel/swivel joint [2005-03-29]....................................................135
6370-00050 P0023165....................................................................................136
6370-00050 Mast hose reel/swivel joint [2005-03-29]....................................................137
6370-00051 P0023166....................................................................................138
6370-00051 Mast hose reel/swivel joint [2005-03-29]....................................................139
6370-00052 P0023167....................................................................................140
6370-00052 Mast hose reel/swivel joint [2005-03-29]....................................................141
6370-00057 P0023164....................................................................................142
6370-00057 Mast hose reel/swivel joint [2005-03-29]....................................................143
6610-00138 P0020324....................................................................................144
6610-00138 Main lift cylinders [2005-03-29]............................................................145
6620-00086 P0017801....................................................................................146
6620-00086 Free lift cylinders [2005-03-29]............................................................147
6650-00001 P0009604....................................................................................149
6650-00001 Reach/telescopic cylinders [2005-03-29].....................................................149
6660-00002 P0009605....................................................................................150
6660-00002 Tilt cylinders [2005-03-29].................................................................150
6660-00003 P0009633....................................................................................151
6660-00003 Tilt cylinders [2005-03-29].................................................................151
6670-00002 P0009711....................................................................................152
6670-00002 Other hydraulic cylinders [2005-03-29]......................................................152
7100-00064 P0015626....................................................................................154
7100-00064 Main mast [2005-03-29]......................................................................154
7120-00169 P0015336....................................................................................156
7120-00169 Main lift chain system [2005-03-29].........................................................156
7120-00223 P0017839....................................................................................158
7120-00223 Main lift chain system [2005-03-29].........................................................158
7130-00116 P0015629....................................................................................160
7130-00116 Main mast fork carriage [2005-03-29]........................................................160
7130-00171 P0020304....................................................................................164
7130-00171 Main mast fork carriage [2005-03-29]........................................................165
7130-00208 P0023423....................................................................................168
7130-00208 Main mast fork carriage [2005-03-30]........................................................168
7130-00209 P0023424....................................................................................169
7130-00209 Main mast fork carriage [2005-03-30]........................................................169
7150-00001 P0000171....................................................................................170
7150-00001 Main mast guidance/dampers [2005-03-29].....................................................170
7150-00021 P0015208....................................................................................171
7150-00021 Main mast guidance/dampers [2005-03-29].....................................................171
7190-00041 P0013841....................................................................................172
7190-00041 Main mast suspension [2005-03-29]...........................................................173
7410-00001 P0000186....................................................................................174
7410-00001 Fork, carpet boom, lift hook [2004-06-29]...................................................174
9170-00207 P0023380....................................................................................176
9170-00207 Separate sideshift/forkspread [2005-03-30]..................................................177
9180-00001 P0002899....................................................................................179
9180-00001 Fork extensions [2004-06-29]................................................................179
9330-00012 P0015652....................................................................................180
9330-00012 Radio/recorder [2004-11-30].................................................................181
9360-00016 P0015540....................................................................................182
9360-00016 Extra lighting [2002-02-12].................................................................182
9360-00017 P0015559....................................................................................183
9360-00017 Extra lighting [2002-02-12].................................................................183
9370-00064 P0019574....................................................................................184
9370-00064 Extra warning lights/alarm [2003-12-03].....................................................184
9380-00001 P0011102....................................................................................185
9380-00001 Charger attachment [2005-03-29].............................................................185
9390-00054 P0022797....................................................................................186
9390-00054 Positioning/TV equip., height preselector [2005-03-29]......................................187
9400-00041 P0011315....................................................................................188
9400-00041 Extra electrical equipment [2005-03-29].....................................................188
9420-00077 P0023051....................................................................................190
9420-00077 Truck log device, code locking device [2005-03-29]..........................................191
9420-00080 P0023061....................................................................................192
9420-00080 Truck log device, code locking device [2005-03-29]..........................................193
9500-00071 P0008971....................................................................................195
9500-00071 Other extra equipment [2005-03-29]..........................................................195
9500-00233 P0013043....................................................................................196
9500-00233 Other extra equipment [2005-03-29]..........................................................196
9500-00441 P0017239....................................................................................198
9500-00441 Other extra equipment [2004-06-29]..........................................................198
9550-00023 P0018045....................................................................................199
9550-00023 Battery changing equipment [2005-03-29].....................................................199

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
