Toyota Forklift 7FBRE 20(-1)(-2)(C) Reach Truck Parts Catalogue Manual 598439 – PDF DOWNLOAD

Description

Toyota Forklift 7FBRE 20(-1)(-2)(C) Reach Truck Parts Catalogue Manual 598439 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7FBRE 20(-1)(-2)(C) Reach Truck Parts Catalogue Manual 598439 – PDF DOWNLOAD

Language : English
Pages : 195
Downloadable : Yes
File Type : PDF

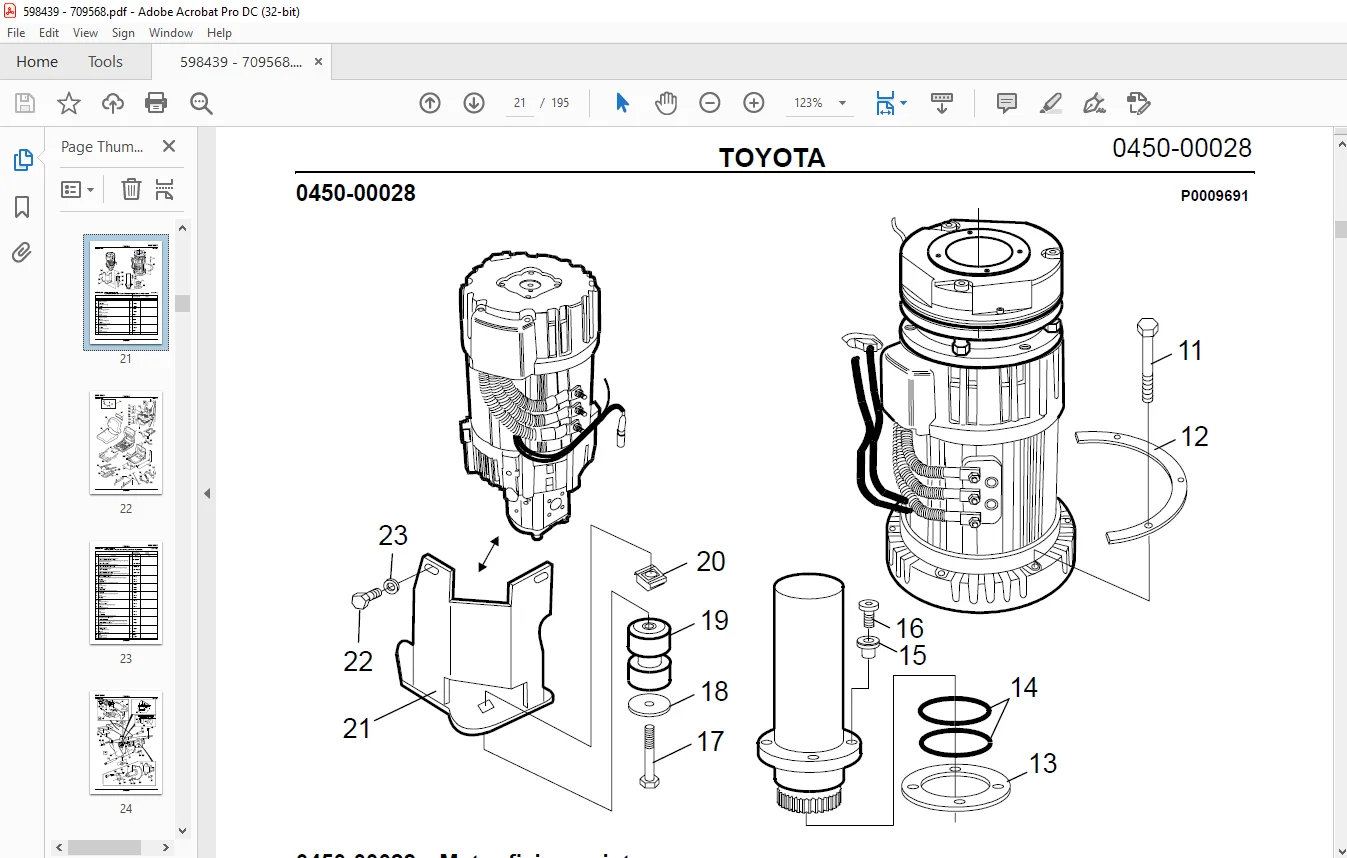

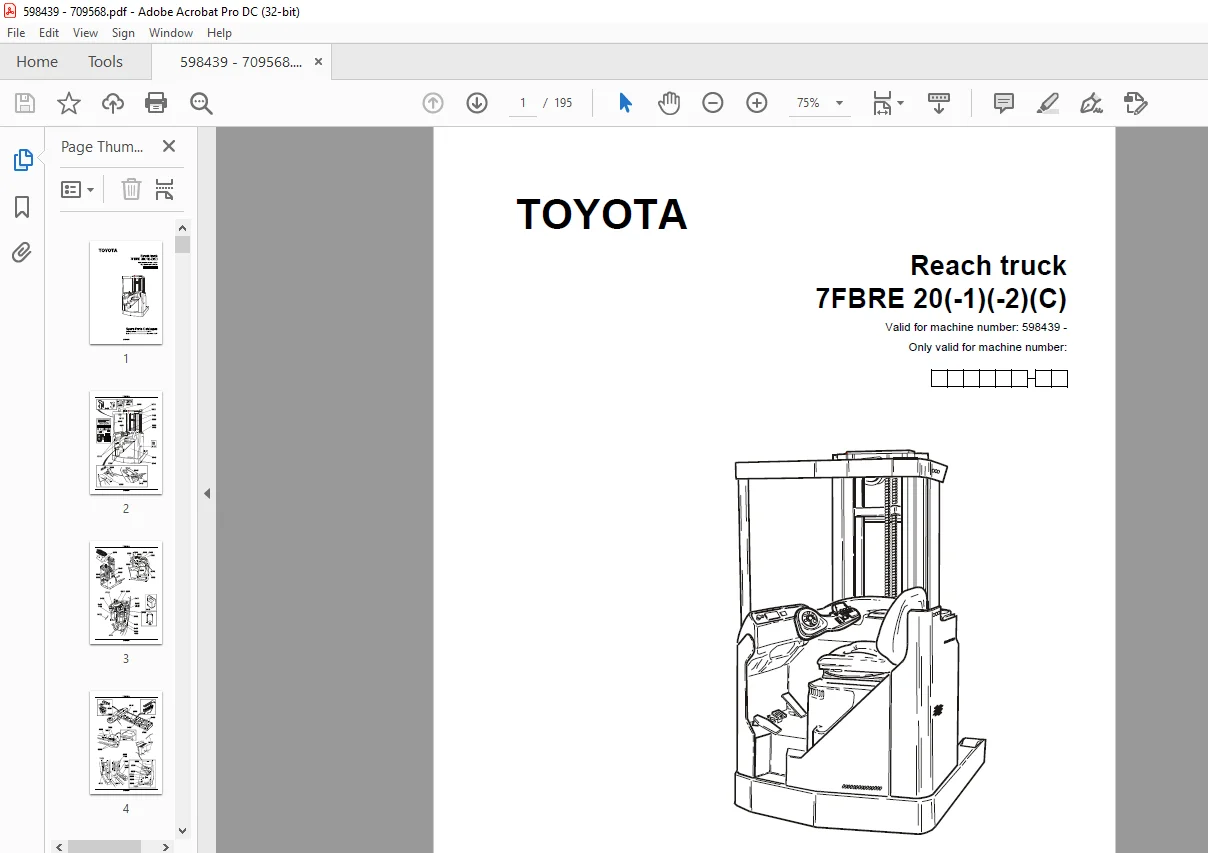

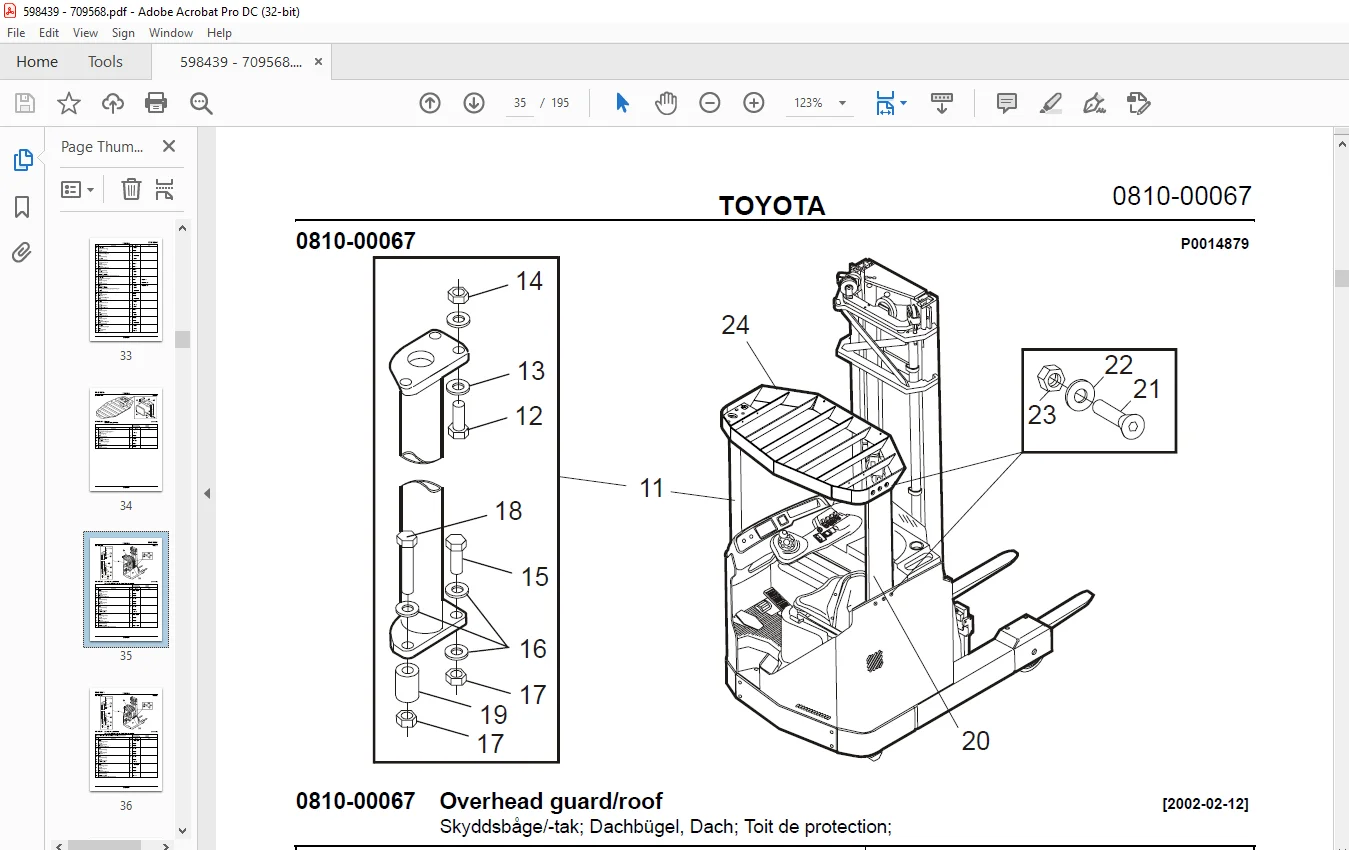

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7FBRE 20(-1)(-2)(C) Reach Truck Parts Catalogue Manual 598439 – PDF DOWNLOAD

0000 Chassis...........................................................................................  6
	Chassi; Chassis; Châssis...........................................................................  6
1000 Motors............................................................................................  7
	Motorer; Motoren; Moteurs..........................................................................  7
2000 Transmission/Drive gear...........................................................................  7
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  7
3000 Brake/Wheel/Caterpillar system....................................................................  7
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  7
4000 Steering system...................................................................................  8
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  8
5000 Electrical system.................................................................................  8
	Elektriskt system; Elektroanlage; Système électrique...............................................  8
6000 Hydraulic/pneumatic system........................................................................  9
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  9
7000 Work function - lifting masts..................................................................... 11
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage.... 11
9000 Options/attachments............................................................................... 11
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options............. 11
0340-00008 P0000288.................................................................................... 14
0340-00008 Inspection covers [2003-04-01].............................................................. 14
0340-00272 P0014893.................................................................................... 15
0340-00272 Inspection covers [2002-02-12].............................................................. 15
0350-00056 P0017919.................................................................................... 17
0350-00056 Support arms, stabilizers [2003-04-01]...................................................... 17
0390-00138 P0015343.................................................................................... 18
0390-00138 Battery compartment parts [2002-05-29]...................................................... 19
0450-00028 P0009691.................................................................................... 21
0450-00028 Motor fixing points [2003-04-01]............................................................ 21
0620-00040 P0015676.................................................................................... 22
0620-00040 Seat, cushions [2002-11-12]................................................................. 23
0640-00033 P0006552.................................................................................... 24
0640-00033 Driver controls ( mechanical ) [2003-06-13]................................................. 25
0640-00115 P0019264.................................................................................... 28
0640-00115 Driver controls ( mechanical ) [2003-12-03]................................................. 29
0680-00116 P0015403.................................................................................... 32
0680-00116 Internal fittings [2003-03-24].............................................................. 32
0740-00004 P0015452.................................................................................... 34
0740-00004 Mirrors [2002-02-12]........................................................................ 34
0810-00067 P0014879.................................................................................... 35
0810-00067 Overhead guard/roof [2002-02-12]............................................................ 35
0810-00071 P0015408.................................................................................... 36
0810-00071 Overhead guard/roof [2002-02-12]............................................................ 36
0810-00073 P0015536.................................................................................... 37
0810-00073 Overhead guard/roof [2002-02-12]............................................................ 37
0810-00074 P0015538.................................................................................... 38
0810-00074 Overhead guard/roof [2002-02-12]............................................................ 38
0820-00010 P0000297.................................................................................... 39
0820-00010 Finger/foot guards [2003-11-25]............................................................. 39
0820-00027 P0005319.................................................................................... 40
0820-00027 Finger/foot guards [2003-04-01]............................................................. 40
0820-00028 P0005320.................................................................................... 40
0820-00028 Finger/foot guards [2003-04-01]............................................................. 40
0840-00095 P0018103.................................................................................... 41
0840-00095 Driver protection [2003-04-01].............................................................. 41
0850-00270 P0017763.................................................................................... 42
0850-00270 Signs, warnings, decals [2003-04-01]........................................................ 43
1710-00088 P0019217.................................................................................... 44
1710-00088 Electric pump motor [2003-12-03]............................................................ 45
1730-00028 P0019556.................................................................................... 46
1730-00028 Electric steering motor [2003-12-03]........................................................ 46
1740-00003 P0009593.................................................................................... 47
1740-00003 Electric fan motor, electric fan [2003-11-25]............................................... 47
1740-00005 P0011293.................................................................................... 48
1740-00005 Electric fan motor, electric fan [2003-11-25]............................................... 48
1760-00086 P0019214.................................................................................... 50
1760-00086 Electric drive motor [2003-12-03]........................................................... 51
2550-00052 P0015709.................................................................................... 54
2550-00052 Mechanical drive gear unit [2003-04-02]..................................................... 55
3110-00006 P0007232.................................................................................... 58
3110-00006 Travel brake controls [2003-11-25].......................................................... 58
3180-00002 P0009607.................................................................................... 59
3180-00002 Electrically controlled travel brake [2003-11-25]........................................... 59
3180-00014 P0012895.................................................................................... 60
3180-00014 Electrically controlled travel brake [2003-04-01]........................................... 60
3530-00005 P0000249.................................................................................... 61
3530-00005 Drive wheel [2003-04-01].................................................................... 61
3550-00035 P0006505.................................................................................... 62
3550-00035 Fork/support arm wheels [2003-04-01]........................................................ 62
3550-00131 P0012093.................................................................................... 63
3550-00131 Fork/support arm wheels [2003-04-01]........................................................ 63
4310-00026 P0014913.................................................................................... 64
4310-00026 Electric steering wheel/lever [2003-04-01].................................................. 65
4350-00002 P0009627.................................................................................... 67
4350-00002 Steering angle sensor [2003-11-25].......................................................... 67
4380-00003 P0016555.................................................................................... 68
4380-00003 Steering bearings [2003-11-25].............................................................. 68
5160-00102 P0019213.................................................................................... 70
5160-00102 General alarm signals (audible/visual) [2003-12-03]......................................... 70
5190-00016 P0007571.................................................................................... 71
5190-00016 Battery cut out connector/contactor [2003-11-25]............................................ 71
5200-00005 P0007136.................................................................................... 72
5200-00005 Instrument panel, display [2003-11-25]...................................................... 72
5280-00043 P0015572.................................................................................... 74
5280-00043 Level/position transducers/lamps [2003-10-16]............................................... 75
5310-00003 P0000151.................................................................................... 77
5310-00003 Start/stop switch [2003-11-25].............................................................. 77
5310-00021 P0004631.................................................................................... 77
5310-00021 Start/stop switch [2003-11-25].............................................................. 77
5320-00004 P0000257.................................................................................... 78
5320-00004 Travel direction switch (separate) [2003-11-25]............................................. 78
5320-00009 P0004694.................................................................................... 79
5320-00009 Travel direction switch (separate) [2003-11-25]............................................. 79
5330-00021 P0007232.................................................................................... 80
5330-00021 Speed control [2003-11-25].................................................................. 80
5390-00167 P0013366.................................................................................... 82
5390-00167 Driving function harnesses/fuse [2003-10-20]................................................ 83
5430-00080 P0014003.................................................................................... 85
5430-00080 Drive motor cables/resistors/fuses [2003-04-01]............................................. 85
5460-00057 P0019648.................................................................................... 86
5460-00057 Transistor panel [2003-12-03]............................................................... 86
5510-00011 P0002932.................................................................................... 87
5510-00011 Work function micro switches, potentiometers [2003-11-25]................................... 87
5510-00026 P0006520.................................................................................... 88
5510-00026 Work function micro switches, potentiometers [2003-04-01]................................... 88
5510-00083 P0015571.................................................................................... 89
5510-00083 Work function micro switches, potentiometers [2003-11-25]................................... 89
5590-00078 P0016885.................................................................................... 90
5590-00078 Work function harnesses/fuse [2003-06-10]................................................... 91
5590-00126 P0019640.................................................................................... 94
5590-00126 Work function harnesses/fuse [2003-12-03]................................................... 94
5680-00088 P0014004.................................................................................... 96
5680-00088 Battery/motor cables, fuse [2003-04-01]..................................................... 97
5710-00098 P0018286.................................................................................... 99
5710-00098 Drive/multi-function PCBs [2003-04-01]...................................................... 99
5790-00012 P0007058....................................................................................100
5790-00012 Safety electronics harnesses, fuse [2003-11-25].............................................100
5820-00108 P0019363....................................................................................101
5820-00108 Lift/lowering/reach movement probes/sensors [2003-12-03]....................................101
5830-00024 P0009598....................................................................................102
5830-00024 Safety probes/sensors [2003-11-25]..........................................................102
5830-00026 P0009634....................................................................................102
5830-00026 Safety probes/sensors [2003-11-25]..........................................................102
5830-00027 P0009651....................................................................................103
5830-00027 Safety probes/sensors [2003-11-25]..........................................................103
6110-00017 P0010441....................................................................................104
6110-00017 Hydraulic tank [2003-04-01].................................................................104
6120-00131 P0008950....................................................................................106
6120-00131 Hydraulic tank lines [2003-11-25]...........................................................107
6120-00156 P0010609....................................................................................108
6120-00156 Hydraulic tank lines [2003-04-01]...........................................................108
6130-00017 P0010610....................................................................................109
6130-00017 Filters and housing [2003-11-25]............................................................109
6140-00031 P0019208....................................................................................110
6140-00031 Hydraulic pump [2003-12-03].................................................................110
6210-00016 P0004679....................................................................................112
6210-00016 Main valve unit lift/reach/tilt [2003-11-25]................................................112
6210-00017 P0004680....................................................................................113
6210-00017 Main valve unit lift/reach/tilt [2003-11-25]................................................113
6220-00004 P0004689....................................................................................114
6220-00004 Control valve ( Other functions ) [2003-11-25]..............................................114
6220-00011 P0015280....................................................................................115
6220-00011 Control valve ( Other functions ) [2003-11-25]..............................................115
6230-00059 P0015339....................................................................................116
6230-00059 Hydraulic lines chassis [2003-12-03]........................................................117
6320-00016 P0009646....................................................................................119
6320-00016 Mast hydraulic lines [2003-11-25]...........................................................119
6320-00130 P0015315....................................................................................120
6320-00130 Mast hydraulic lines [2003-04-01]...........................................................121
6320-00135 P0015381....................................................................................122
6320-00135 Mast hydraulic lines [2003-04-01]...........................................................122
6320-00168 P0016869....................................................................................123
6320-00168 Mast hydraulic lines [2003-04-01]...........................................................123
6320-00206 P0019560....................................................................................124
6320-00206 Mast hydraulic lines [2003-12-03]...........................................................125
6320-00207 P0019559....................................................................................126
6320-00207 Mast hydraulic lines [2003-12-03]...........................................................127
6320-00218 P0019843....................................................................................128
6320-00218 Mast hydraulic lines [2003-12-03]...........................................................129
6320-00222 P0019847....................................................................................132
6320-00222 Mast hydraulic lines [2003-12-03]...........................................................132
6320-00223 P0019848....................................................................................134
6320-00223 Mast hydraulic lines [2003-12-03]...........................................................135
6370-00033 P0019859....................................................................................136
6370-00033 Mast hose reel/swivel joint [2003-12-03]....................................................137
6370-00034 P0019860....................................................................................140
6370-00034 Mast hose reel/swivel joint [2003-12-03]....................................................141
6610-00118 P0017804....................................................................................144
6610-00118 Main lift cylinders [2003-04-01]............................................................145
6620-00088 P0017807....................................................................................148
6620-00088 Free lift cylinders [2003-04-01]............................................................149
6650-00001 P0009604....................................................................................151
6650-00001 Reach/telescopic cylinders [2003-04-01].....................................................151
6660-00002 P0009605....................................................................................152
6660-00002 Tilt cylinders [2003-11-25].................................................................152
6660-00003 P0009633....................................................................................153
6660-00003 Tilt cylinders [2003-11-25].................................................................153
6670-00002 P0009711....................................................................................154
6670-00002 Other hydraulic cylinders [2003-04-01]......................................................154
7100-00014 P0009820....................................................................................156
7100-00014 Main mast [2003-04-01]......................................................................156
7120-00168 P0015335....................................................................................158
7120-00168 Main lift chain system [2003-04-01].........................................................159
7130-00018 P0005419....................................................................................162
7130-00018 Main mast fork carriage [2003-04-01]........................................................162
7130-00160 P0019854....................................................................................164
7130-00160 Main mast fork carriage [2003-12-03]........................................................165
7150-00001 P0000171....................................................................................167
7150-00001 Main mast guidance/dampers [2003-11-25].....................................................167
7150-00021 P0015208....................................................................................167
7150-00021 Main mast guidance/dampers [2003-11-25].....................................................167
7190-00041 P0013841....................................................................................168
7190-00041 Main mast suspension [2003-04-01]...........................................................169
7410-00025 P0009796....................................................................................170
7410-00025 Fork, carpet boom, lift hook [2003-06-17]...................................................170
9170-00024 P0013021....................................................................................172
9170-00024 Separate sideshift/forkspread [2003-04-01]..................................................172
9180-00002 P0002900....................................................................................174
9180-00002 Fork extensions [2003-04-01]................................................................174
9330-00012 P0015652....................................................................................176
9330-00012 Radio/recorder [2003-03-25].................................................................177
9360-00016 P0015540....................................................................................178
9360-00016 Extra lighting [2002-02-12].................................................................178
9360-00017 P0015559....................................................................................179
9360-00017 Extra lighting [2002-02-12].................................................................179
9370-00064 P0019574....................................................................................180
9370-00064 Extra warning lights/alarm [2003-12-03].....................................................180
9380-00001 P0011102....................................................................................181
9380-00001 Charger attachment [2003-12-03].............................................................181
9390-00034 P0018003....................................................................................182
9390-00034 Positioning/TV equip., height preselector [2003-04-01]......................................183
9400-00041 P0011315....................................................................................184
9400-00041 Extra electrical equipment [2003-04-01].....................................................184
9420-00018 P0012876....................................................................................186
9420-00018 Truck log device, code locking device [2002-08-20]..........................................187
9420-00039 P0016873....................................................................................188
9420-00039 Truck log device, code locking device [2002-12-05]..........................................189
9500-00071 P0008971....................................................................................191
9500-00071 Other extra equipment [2003-11-25]..........................................................191
9500-00233 P0013043....................................................................................192
9500-00233 Other extra equipment [2003-04-01]..........................................................192
9500-00443 P0017242....................................................................................194
9500-00443 Other extra equipment [2003-04-01]..........................................................194
9550-00023 P0018045....................................................................................195
9550-00023 Battery changing equipment [2003-12-03].....................................................195

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
