Toyota Forklift 7FBRE 20CC (-1)(-2) Reach truck Parts Catalogue Manual 930971 – PDF DOWNLOAD

Description

Toyota Forklift 7FBRE 20CC (-1)(-2) Reach truck Parts Catalogue Manual 930971 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7FBRE 20CC (-1)(-2) Reach truck Parts Catalogue Manual 930971 – PDF DOWNLOAD

Language : English
Pages : 187
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Toyota Forklift 7FBRE 20CC (-1)(-2) Reach truck Parts Catalogue Manual 930971 – PDF DOWNLOAD

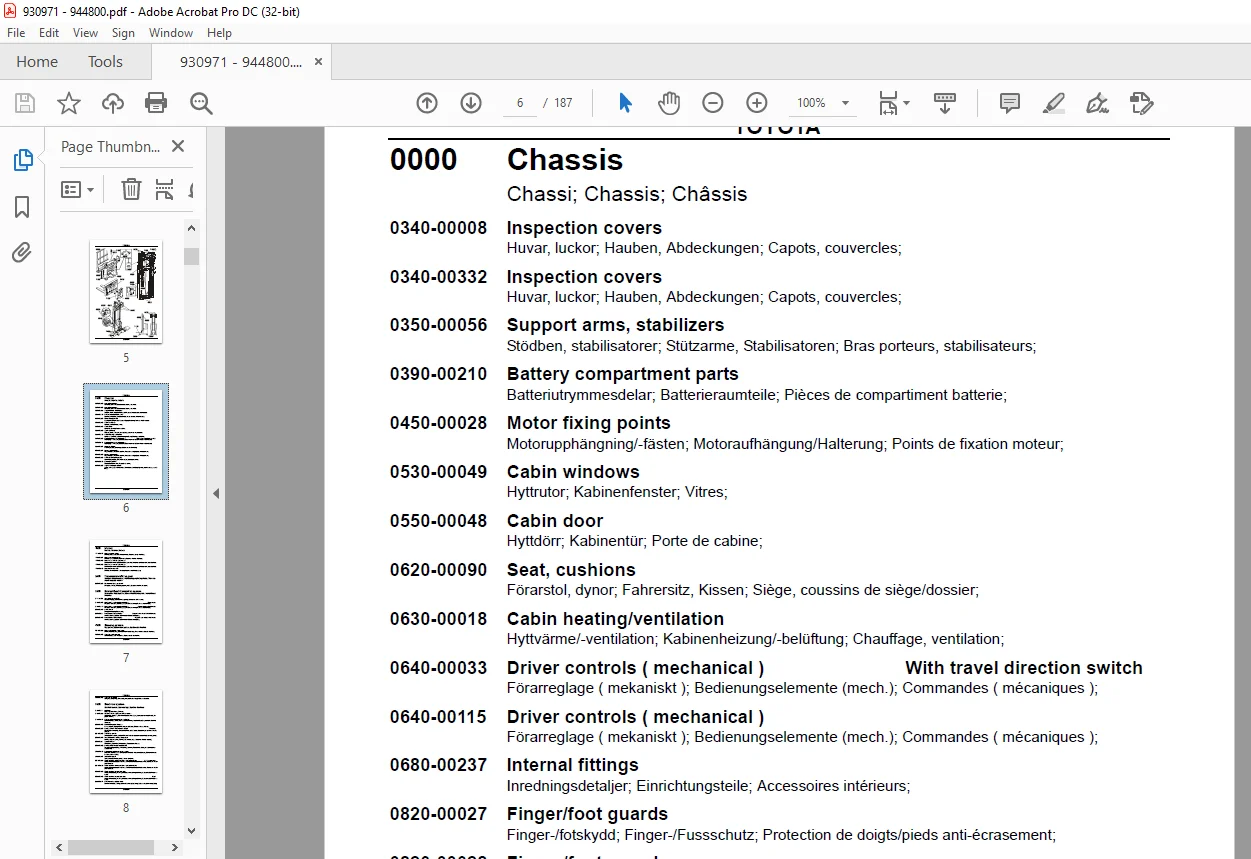

0000 Chassis...........................................................................................  6
	Chassi; Chassis; Châssis...........................................................................  6
1000 Motors............................................................................................  7
	Motorer; Motoren; Moteurs..........................................................................  7
2000 Transmission/Drive gear...........................................................................  7
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  7
3000 Brake/Wheel/Caterpillar system....................................................................  7
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  7
4000 Steering system...................................................................................  7
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  7
5000 Electrical system.................................................................................  8
	Elektriskt system; Elektroanlage; Système électrique...............................................  8
6000 Hydraulic/pneumatic system........................................................................  9
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  9
7000 Work function - lifting masts..................................................................... 10
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage.... 10
9000 Options/attachments............................................................................... 11
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options............. 11
0340-00008 P0000288.................................................................................... 14
0340-00008 Inspection covers [2005-05-24].............................................................. 14
0340-00332 P0017318.................................................................................... 15
0340-00332 Inspection covers [2003-04-01].............................................................. 15
0350-00056 P0017919.................................................................................... 16
0350-00056 Support arms, stabilizers [2005-03-29]...................................................... 16
0390-00210 P0018272.................................................................................... 18
0390-00210 Battery compartment parts [2003-04-01]...................................................... 19

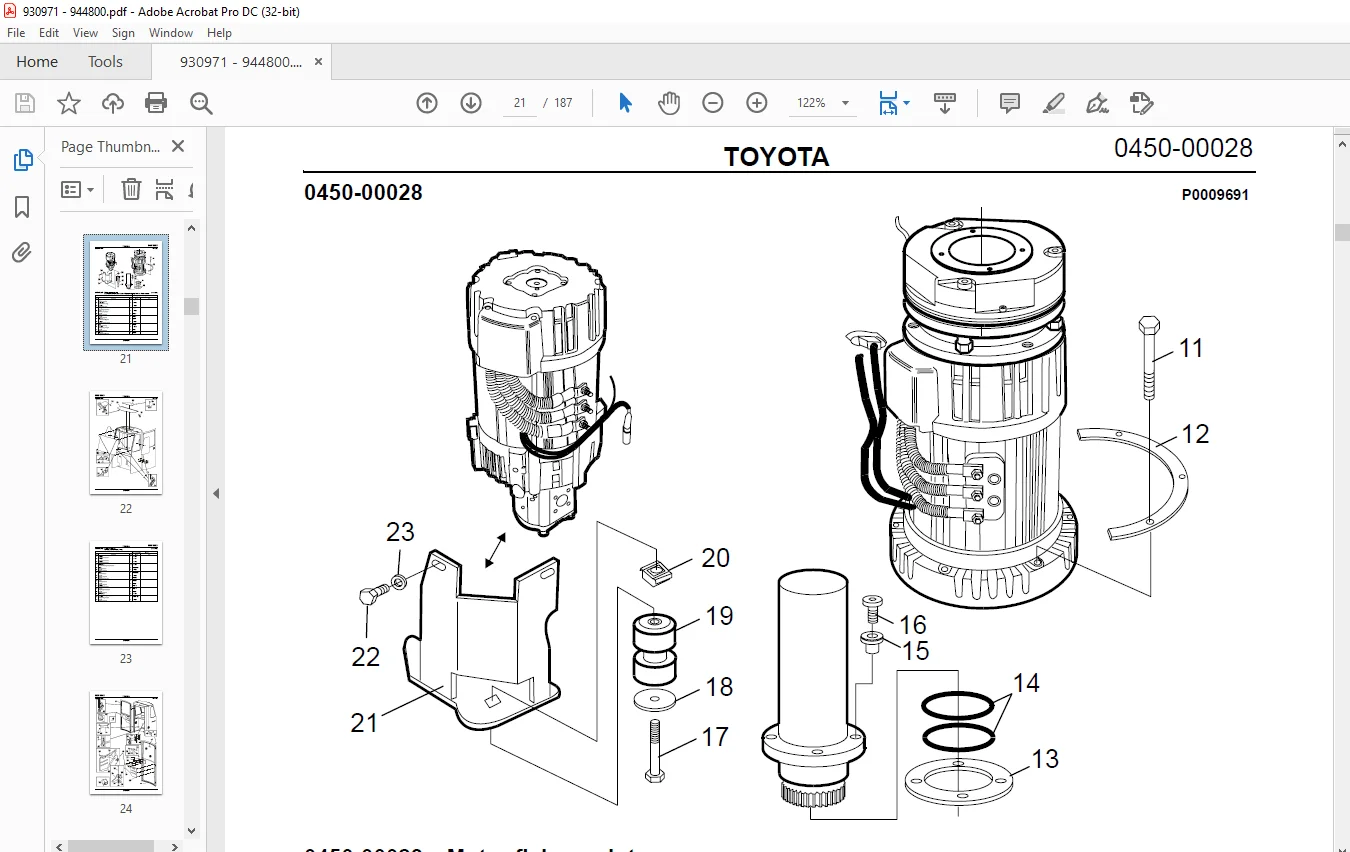

0450-00028 P0009691.................................................................................... 21
0450-00028 Motor fixing points [2005-03-29]............................................................ 21
0530-00049 P0025821.................................................................................... 22
0530-00049 Cabin windows [2006-01-26].................................................................. 23
0550-00048 P0020840.................................................................................... 24
0550-00048 Cabin door [2004-04-15]..................................................................... 25
0620-00090 P0022354.................................................................................... 28
0620-00090 Seat, cushions [2004-10-20]................................................................. 29
0630-00018 P0018100.................................................................................... 30
0630-00018 Cabin heating/ventilation [2003-04-01]...................................................... 31
0640-00033 P0006552.................................................................................... 32
0640-00033 Driver controls ( mechanical ) [2005-03-29]................................................. 33
0640-00115 P0019264.................................................................................... 36
0640-00115 Driver controls ( mechanical ) [2005-03-29]................................................. 37
0680-00237 P0025441.................................................................................... 40
0680-00237 Internal fittings [2006-01-26].............................................................. 41
0820-00027 P0005319.................................................................................... 42
0820-00027 Finger/foot guards [2005-03-29]............................................................. 42
0820-00028 P0005320.................................................................................... 42
0820-00028 Finger/foot guards [2005-03-29]............................................................. 42
0830-00029 P0018134.................................................................................... 43
0830-00029 Collision bumper/guards [2003-04-01]........................................................ 43
0840-00152 P0024591.................................................................................... 44
0840-00152 Driver protection [2005-08-29].............................................................. 44
0850-00282 P0018275.................................................................................... 46
0850-00282 Signs, warnings, decals [2003-04-01]........................................................ 47
1710-00107 P0020722.................................................................................... 48
1710-00107 Electric pump motor [2005-06-02]............................................................ 49
1730-00037 P0022836.................................................................................... 50
1730-00037 Electric steering motor [2005-05-03]........................................................ 50
1740-00003 P0009593.................................................................................... 51
1740-00003 Electric fan motor, electric fan [2005-03-29]............................................... 51
1740-00005 P0011293.................................................................................... 52
1740-00005 Electric fan motor, electric fan [2005-03-29]............................................... 52
1760-00109 P0020721.................................................................................... 54
1760-00109 Electric drive motor [2005-03-29]........................................................... 55
2550-00052 P0015709.................................................................................... 58
2550-00052 Mechanical drive gear unit [2005-03-29]..................................................... 59
3110-00006 P0007232.................................................................................... 62
3110-00006 Travel brake controls [2005-03-29].......................................................... 62
3180-00002 P0009607.................................................................................... 63
3180-00002 Electrically controlled travel brake [2005-03-29]........................................... 63
3180-00014 P0012895.................................................................................... 64
3180-00014 Electrically controlled travel brake [2005-03-29]........................................... 64
3530-00005 P0000249.................................................................................... 65
3530-00005 Drive wheel [2005-03-29].................................................................... 65
3550-00131 P0012093.................................................................................... 66
3550-00131 Fork/support arm wheels [2005-03-29]........................................................ 66
3550-00305 P0021315.................................................................................... 67
3550-00305 Fork/support arm wheels [2005-03-29]........................................................ 67
4310-00026 P0014913.................................................................................... 68
4310-00026 Electric steering wheel/lever [2003-04-01].................................................. 69
4350-00002 P0009627.................................................................................... 71
4350-00002 Steering angle sensor [2005-03-29].......................................................... 71
4380-00003 P0016555.................................................................................... 72
4380-00003 Steering bearings [2005-03-29].............................................................. 72
5120-00011 P0018104.................................................................................... 74
5120-00011 Lighting [2003-04-01]....................................................................... 74
5160-00086 P0018107.................................................................................... 75
5160-00086 General alarm signals (audible/visual) [2005-03-15]......................................... 75
5190-00107 P0026036.................................................................................... 76
5190-00107 Battery cut out connector/contactor [2006-01-26]............................................ 76
5200-00005 P0007136.................................................................................... 77
5200-00005 Instrument panel, display [2005-03-29]...................................................... 77
5280-00088 P0025483.................................................................................... 78
5280-00088 Level/position transducers/lamps [2006-01-26]............................................... 79
5310-00003 P0000151.................................................................................... 81
5310-00003 Start/stop switch [2004-09-23].............................................................. 81
5320-00004 P0000257.................................................................................... 81
5320-00004 Travel direction switch (separate) [2005-03-29]............................................. 81
5330-00021 P0007232.................................................................................... 82
5330-00021 Speed control [2005-03-29].................................................................. 82
5390-00265 P0025408.................................................................................... 84
5390-00265 Driving function harnesses/fuse [2006-01-26]................................................ 85
5430-00123 P0025396.................................................................................... 87
5430-00123 Drive motor cables/resistors/fuses [2006-01-26]............................................. 87
5460-00067 P0025295.................................................................................... 88
5460-00067 Transistor panel [2006-01-26]............................................................... 88
5510-00096 P0018109.................................................................................... 89
5510-00096 Work function micro switches, potentiometers [2003-04-01]................................... 89
5510-00136 P0025291.................................................................................... 90
5510-00136 Work function micro switches, potentiometers [2006-01-26]................................... 90
5590-00259 P0025402.................................................................................... 91
5590-00259 Work function harnesses/fuse [2006-01-26]................................................... 91
5590-00263 P0025568.................................................................................... 92
5590-00263 Work function harnesses/fuse [2006-01-26]................................................... 93
5680-00127 P0025423.................................................................................... 96
5680-00127 Battery/motor cables, fuse [2006-01-26]..................................................... 97
5710-00116 P0025435.................................................................................... 99
5710-00116 Drive/multi-function PCBs [2006-01-26]...................................................... 99
5790-00012 P0007058....................................................................................100
5790-00012 Safety electronics harnesses, fuse [2005-03-30].............................................100
5820-00108 P0019363....................................................................................101
5820-00108 Lift/lowering/reach movement probes/sensors [2005-03-29]....................................101
5830-00024 P0009598....................................................................................102
5830-00024 Safety probes/sensors [2004-09-23]..........................................................102
5830-00026 P0009634....................................................................................102
5830-00026 Safety probes/sensors [2005-03-29]..........................................................102
5830-00027 P0009651....................................................................................103
5830-00027 Safety probes/sensors [2005-03-29]..........................................................103
6110-00023 P0024602....................................................................................104
6110-00023 Hydraulic tank [2005-08-29].................................................................104
6120-00156 P0010609....................................................................................105
6120-00156 Hydraulic tank lines [2005-03-29]...........................................................105
6120-00219 P0022362....................................................................................106
6120-00219 Hydraulic tank lines [2005-03-30]...........................................................107
6130-00017 P0010610....................................................................................108
6130-00017 Filters and housing [2005-03-29]............................................................108
6140-00031 P0019208....................................................................................109
6140-00031 Hydraulic pump [2005-03-29].................................................................109
6210-00049 P0022152....................................................................................110
6210-00049 Main valve unit lift/reach/tilt [2005-03-29]................................................110
6210-00050 P0022153....................................................................................111
6210-00050 Main valve unit lift/reach/tilt [2005-03-29]................................................111
6220-00041 P0025573....................................................................................112
6220-00041 Control valve ( Other functions ) [2006-01-26]..............................................112
6220-00043 P0025575....................................................................................113
6220-00043 Control valve ( Other functions ) [2006-01-26]..............................................113
6230-00059 P0015339....................................................................................114
6230-00059 Hydraulic lines chassis [2004-09-23]........................................................115
6320-00016 P0009646....................................................................................117
6320-00016 Mast hydraulic lines [2005-03-29]...........................................................117
6320-00130 P0015315....................................................................................118
6320-00130 Mast hydraulic lines [2006-01-31]...........................................................119
6320-00135 P0015381....................................................................................120
6320-00135 Mast hydraulic lines [2005-03-29]...........................................................120
6320-00168 P0016869....................................................................................121
6320-00168 Mast hydraulic lines [2005-03-29]...........................................................121
6320-00222 P0019847....................................................................................122
6320-00222 Mast hydraulic lines [2005-03-29]...........................................................122
6320-00223 P0019848....................................................................................124
6320-00223 Mast hydraulic lines [2004-09-23]...........................................................125
6320-00236 P0020312....................................................................................126
6320-00236 Mast hydraulic lines [2004-04-15]...........................................................127
6370-00049 P0023123....................................................................................130
6370-00049 Mast hose reel/swivel joint [2005-03-29]....................................................131
6370-00050 P0023165....................................................................................132
6370-00050 Mast hose reel/swivel joint [2005-03-29]....................................................133
6370-00051 P0023166....................................................................................134
6370-00051 Mast hose reel/swivel joint [2005-03-29]....................................................135
6370-00052 P0023167....................................................................................136
6370-00052 Mast hose reel/swivel joint [2005-03-29]....................................................137
6370-00057 P0023164....................................................................................138
6370-00057 Mast hose reel/swivel joint [2005-03-29]....................................................139
6610-00140 P0020327....................................................................................140
6610-00140 Main lift cylinders [2005-08-22]............................................................141
6620-00088 P0017807....................................................................................142
6620-00088 Free lift cylinders [2003-04-01]............................................................143
6650-00001 P0009604....................................................................................145
6650-00001 Reach/telescopic cylinders [2005-03-29].....................................................145
6660-00014 P0024167....................................................................................146
6660-00014 Tilt cylinders [2005-08-29].................................................................146
6660-00015 P0024168....................................................................................146
6660-00015 Tilt cylinders [2005-08-29].................................................................146
6670-00002 P0009711....................................................................................147
6670-00002 Other hydraulic cylinders [2005-03-29]......................................................147
7100-00014 P0009820....................................................................................148
7100-00014 Main mast [2005-03-29]......................................................................148
7120-00168 P0015335....................................................................................150
7120-00168 Main lift chain system [2006-01-31].........................................................151
7130-00018 P0005419....................................................................................154
7130-00018 Main mast fork carriage [2005-03-29]........................................................154
7130-00172 P0020305....................................................................................156
7130-00172 Main mast fork carriage [2005-03-29]........................................................157
7130-00212 P0023426....................................................................................159
7130-00212 Main mast fork carriage [2005-08-29]........................................................159
7150-00001 P0000171....................................................................................160
7150-00001 Main mast guidance/dampers [2005-03-29].....................................................160
7150-00021 P0015208....................................................................................161
7150-00021 Main mast guidance/dampers [2005-03-29].....................................................161
7190-00041 P0013841....................................................................................162
7190-00041 Main mast suspension [2005-04-12]...........................................................163
7410-00025 P0009796....................................................................................164
7410-00025 Fork, carpet boom, lift hook [2005-10-19]...................................................164
9170-00279 P0025814....................................................................................166
9170-00279 Separate sideshift/forkspread [2006-01-26]..................................................167
9180-00002 P0002900....................................................................................169
9180-00002 Fork extensions [2003-04-01]................................................................169
9330-00017 P0018296....................................................................................170
9330-00017 Radio/recorder [2004-11-30].................................................................171
9360-00030 P0018298....................................................................................172
9360-00030 Extra lighting [2004-09-29].................................................................172
9370-00062 P0019572....................................................................................173
9370-00062 Extra warning lights/alarm [2004-02-02].....................................................173
9380-00001 P0011102....................................................................................173
9380-00001 Charger attachment [2005-10-19].............................................................173
9390-00059 P0023438....................................................................................174
9390-00059 Positioning/TV equip., height preselector [2005-03-29]......................................175
9400-00041 P0011315....................................................................................176
9400-00041 Extra electrical equipment [2005-12-15].....................................................176
9400-00182 P0025491....................................................................................177
9400-00182 Extra electrical equipment [2006-01-26].....................................................177
9420-00079 P0023055....................................................................................178
9420-00079 Truck log device, code locking device [2005-03-29]..........................................179
9420-00081 P0023074....................................................................................180
9420-00081 Truck log device, code locking device [2005-03-29]..........................................181
9500-00071 P0008971....................................................................................183
9500-00071 Other extra equipment [2005-12-21]..........................................................183
9500-00233 P0013043....................................................................................184
9500-00233 Other extra equipment [2005-03-29]..........................................................184
9500-00443 P0017242....................................................................................186
9500-00443 Other extra equipment [2003-04-01]..........................................................186
9550-00023 P0018045....................................................................................187
9550-00023 Battery changing equipment [2005-03-29].....................................................187

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
