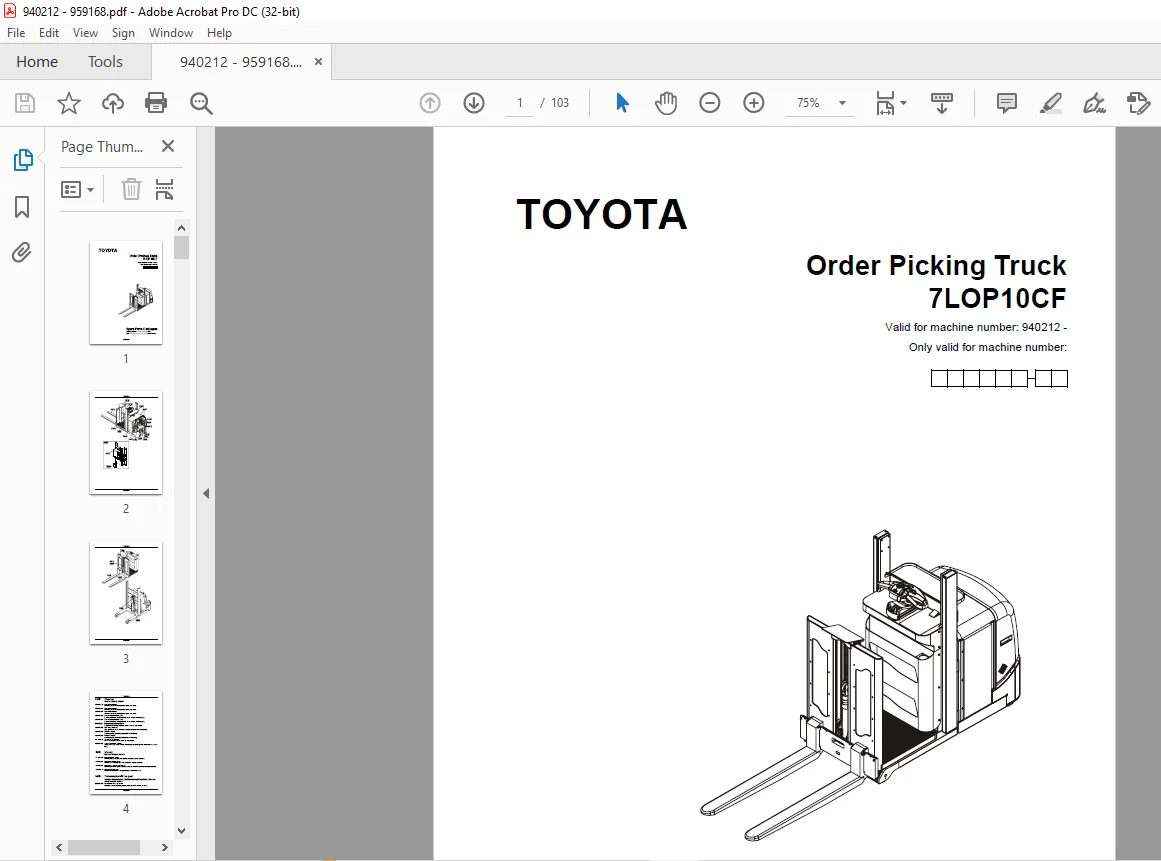

Toyota Forklift 7LOP10CF Order Picking Truck Parts Catalogue Manual 940212 – PDF DOWNLOAD

Description

Toyota Forklift 7LOP10CF Order Picking Truck Parts Catalogue Manual 940212 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7LOP10CF Order Picking Truck Parts Catalogue Manual 940212 – PDF DOWNLOAD

Language : English
Pages : 103
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Toyota Forklift 7LOP10CF Order Picking Truck Parts Catalogue Manual 940212 – PDF DOWNLOAD

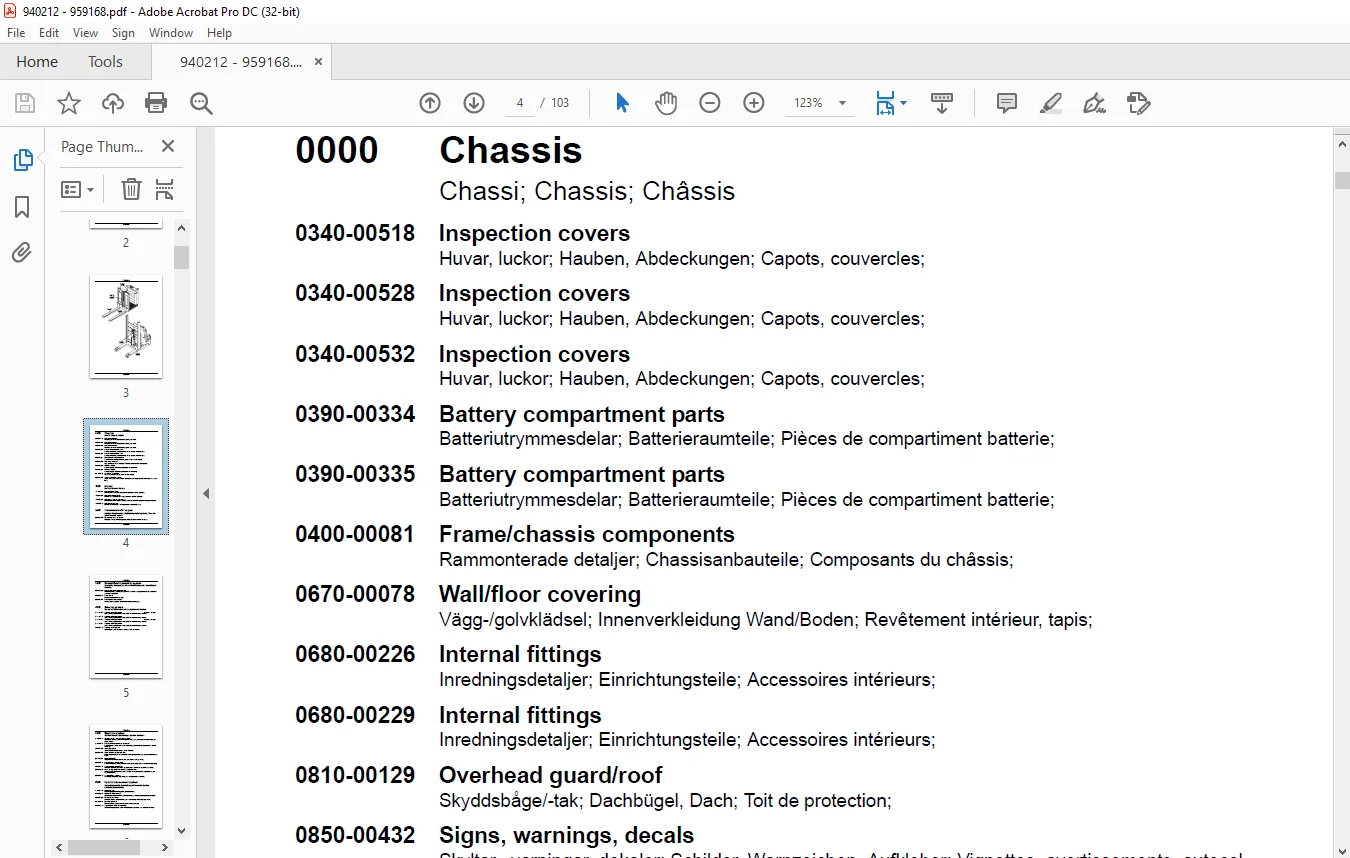

0000 Chassis...........................................................................................  4
	Chassi; Chassis; Châssis...........................................................................  4
1000 Motors............................................................................................  4
	Motorer; Motoren; Moteurs..........................................................................  4
2000 Transmission/Drive gear...........................................................................  4
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  4
3000 Brake/Wheel/Caterpillar system....................................................................  5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  5
4000 Steering system...................................................................................  5
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  5
5000 Electrical system.................................................................................  6
	Elektriskt system; Elektroanlage; Système électrique...............................................  6
6000 Hydraulic/pneumatic system........................................................................  6
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  6
7000 Work function - lifting masts.....................................................................  7
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  7
9000 Options/attachments...............................................................................  7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.............  7
0340-00518 P0026677....................................................................................  8

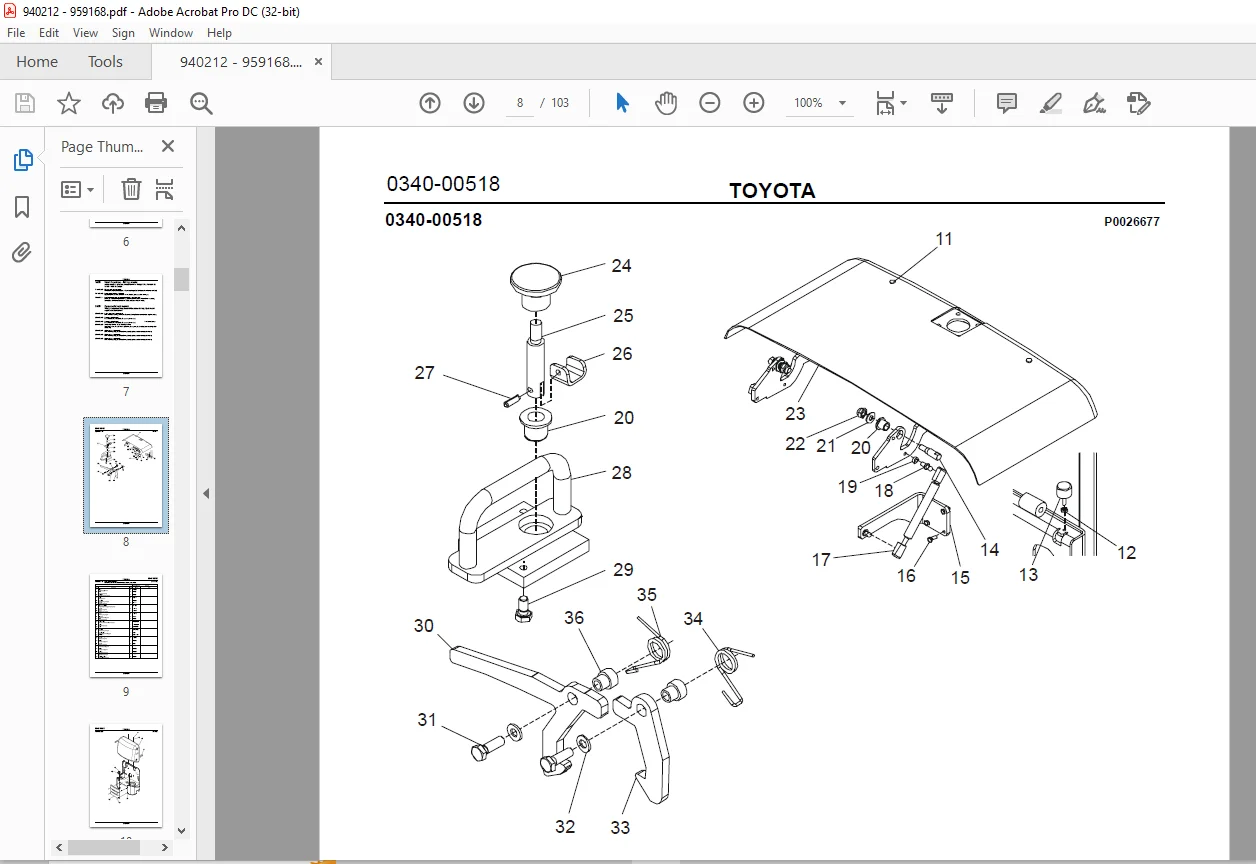

0340-00518 Inspection covers [2006-04-10]..............................................................  9
0340-00528 P0026739.................................................................................... 10
0340-00528 Inspection covers [2006-04-07].............................................................. 11
0340-00532 P0026734.................................................................................... 12
0340-00532 Inspection covers [2006-04-07].............................................................. 13
0390-00334 P0026611.................................................................................... 14
0390-00334 Battery compartment parts [2006-04-07]...................................................... 14
0390-00335 P0026628.................................................................................... 16
0390-00335 Battery compartment parts [2006-04-10]...................................................... 17
0400-00081 P0025082.................................................................................... 18
0400-00081 Frame/chassis components [2006-04-07]....................................................... 19
0670-00078 P0024358.................................................................................... 20
0670-00078 Wall/floor covering [2006-04-07]............................................................ 21
0680-00226 P0024492.................................................................................... 22
0680-00226 Internal fittings [2006-04-07].............................................................. 23
0680-00229 P0025086.................................................................................... 24
0680-00229 Internal fittings [2006-04-07].............................................................. 25
0810-00129 P0024498.................................................................................... 26
0810-00129 Overhead guard/roof [2006-04-07]............................................................ 27
0850-00432 P0026722.................................................................................... 28
0850-00432 Signs, warnings, decals [2006-04-07]........................................................ 29
1710-00049 P0015822.................................................................................... 30
1710-00049 Electric pump motor [2006-04-07]............................................................ 30
1730-00038 P0023038.................................................................................... 31
1730-00038 Electric steering motor [2006-04-10]........................................................ 31
1740-00032 P0024499.................................................................................... 32
1740-00032 Electric fan motor, electric fan [2006-04-07]............................................... 32
1760-00119 P0023036.................................................................................... 34
1760-00119 Electric drive motor [2006-04-10]........................................................... 35
2550-00060 P0017824.................................................................................... 38
2550-00060 Mechanical drive gear unit [2006-04-10]..................................................... 39
3370-00035 P0025083.................................................................................... 42
3370-00035 Electromagnetic parking brake [2006-04-07].................................................. 42
3530-00113 P0018088.................................................................................... 43
3530-00113 Drive wheel [2006-04-07].................................................................... 43
3550-00357 P0023871.................................................................................... 44
3550-00357 Fork/support arm wheels [2006-04-07]........................................................ 45
4110-00373 P0023065.................................................................................... 46
4110-00373 Steering arm/wheel/lever [2006-04-10]....................................................... 46
4110-00419 P0025037.................................................................................... 48
4110-00419 Steering arm/wheel/lever [2006-04-10]....................................................... 49
4110-00434 P0026636.................................................................................... 52
4110-00434 Steering arm/wheel/lever [2006-04-10]....................................................... 53
4110-00441 P0026735.................................................................................... 56
4110-00441 Steering arm/wheel/lever [2006-04-07]....................................................... 57
4350-00013 P0023308.................................................................................... 60
4350-00013 Steering angle sensor [2006-04-07].......................................................... 60
5160-00116 P0023309.................................................................................... 62
5160-00116 General alarm signals (audible/visual) [2006-04-07]......................................... 62
5190-00116 P0026676.................................................................................... 64
5190-00116 Battery cut out connector/contactor [2006-04-10]............................................ 65
5460-00062 P0022472.................................................................................... 66
5460-00062 Transistor panel [2006-04-10]............................................................... 66
5590-00240 P0024500.................................................................................... 68
5590-00240 Work function harnesses/fuse [2006-04-07]................................................... 69
5610-00027 P0026651.................................................................................... 70
5610-00027 Pump contactor [2006-04-10]................................................................. 70
5680-00118 P0023059.................................................................................... 71
5680-00118 Battery/motor cables, fuse [2006-04-10]..................................................... 71
5700-00010 P0024363.................................................................................... 72
5700-00010 Control/safety electronics [2006-04-07]..................................................... 72
5820-00182 P0024497.................................................................................... 74
5820-00182 Lift/lowering/reach movement probes/sensors [2006-04-07].................................... 75
5830-00173 P0024366.................................................................................... 76
5830-00173 Safety probes/sensors [2006-04-07].......................................................... 76
6100-00210 P0024997.................................................................................... 78
6100-00210 Hydraulic unit [2006-04-07]................................................................. 79
6230-00137 P0024369.................................................................................... 80
6230-00137 Hydraulic lines chassis [2006-04-07]........................................................ 80
6320-00323 P0024503.................................................................................... 82
6320-00323 Mast hydraulic lines [2006-04-07]........................................................... 83
6610-00196 P0024523.................................................................................... 86
6610-00196 Main lift cylinders [2006-04-07]............................................................ 86
6630-00013 P0026731.................................................................................... 88
6630-00013 Support arm/initial lift cylinders [2006-04-07]............................................. 89
7130-00223 P0024505.................................................................................... 90
7130-00223 Main mast fork carriage [2006-04-07]........................................................ 91
7410-00263 P0024506.................................................................................... 92
7410-00263 Fork, carpet boom, lift hook [2006-04-07]................................................... 92
7420-00511 P0026615.................................................................................... 93
7420-00511 Fork carriage unit, integrated sideshift, fork spread [2006-04-07].......................... 93
9300-00096 P0026730.................................................................................... 94
9300-00096 Extra electrical equipment [2006-04-07]..................................................... 94
9380-00003 P0014865.................................................................................... 95
9380-00003 Charger attachment [2006-04-10]............................................................. 95
9380-00009 P0019044.................................................................................... 96
9380-00009 Charger attachment [2006-04-10]............................................................. 96
9420-00099 P0026635.................................................................................... 97
9420-00099 Truck log device, code locking device [2006-04-10].......................................... 97
9500-00697 P0024510.................................................................................... 98
9500-00697 Other extra equipment [2006-04-07].......................................................... 98
9500-00698 P0024511....................................................................................100
9500-00698 Other extra equipment [2006-04-07]..........................................................101
9500-00699 P0024512....................................................................................102
9500-00699 Other extra equipment [2006-04-07]..........................................................102
