Toyota Forklift 7LOP12 7LOP12P Order Picking Truck Parts Catalogue Manual 959169 – PDF DOWNLOAD

Description

Toyota Forklift 7LOP12 7LOP12P Order Picking Truck Parts Catalogue Manual 959169 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7LOP12 7LOP12P Order Picking Truck Parts Catalogue Manual 959169 – PDF DOWNLOAD

Language : English
Pages : 131
Downloadable : Yes
File Type : PDF

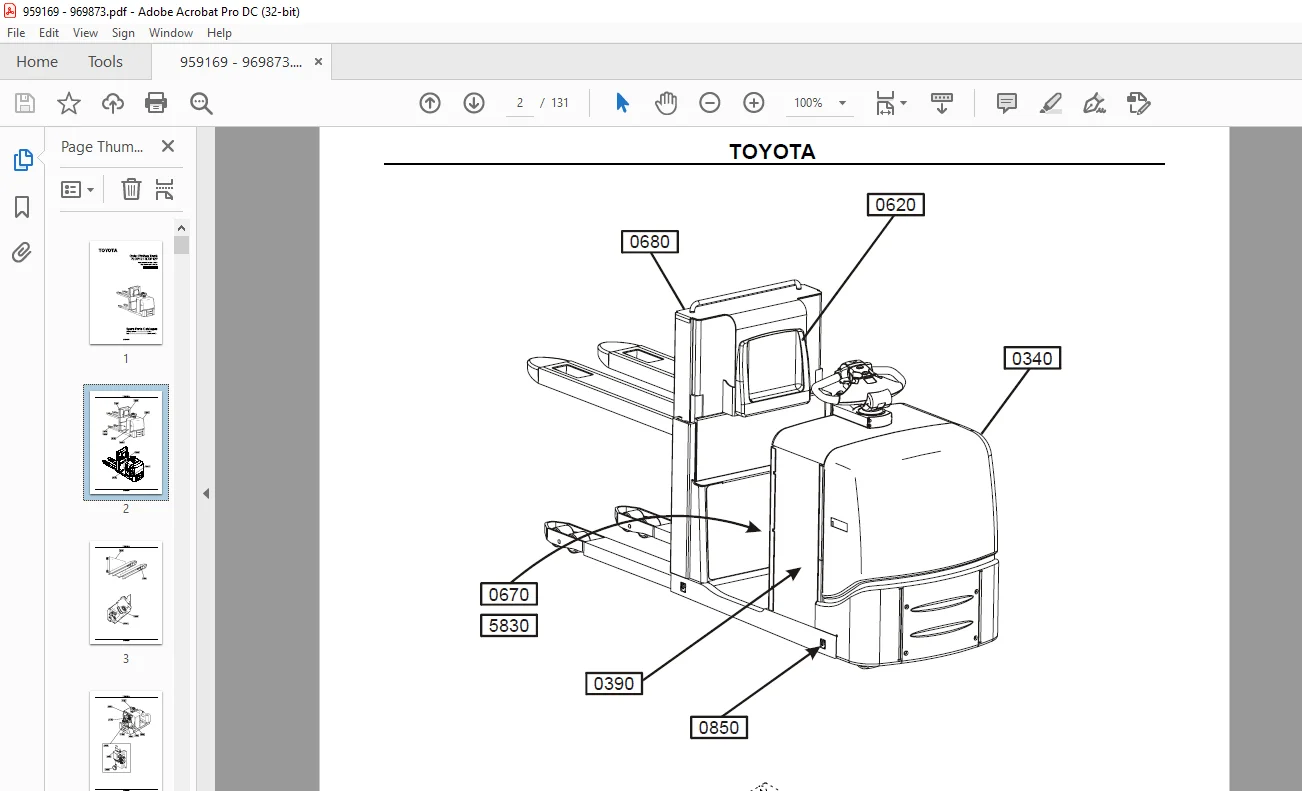

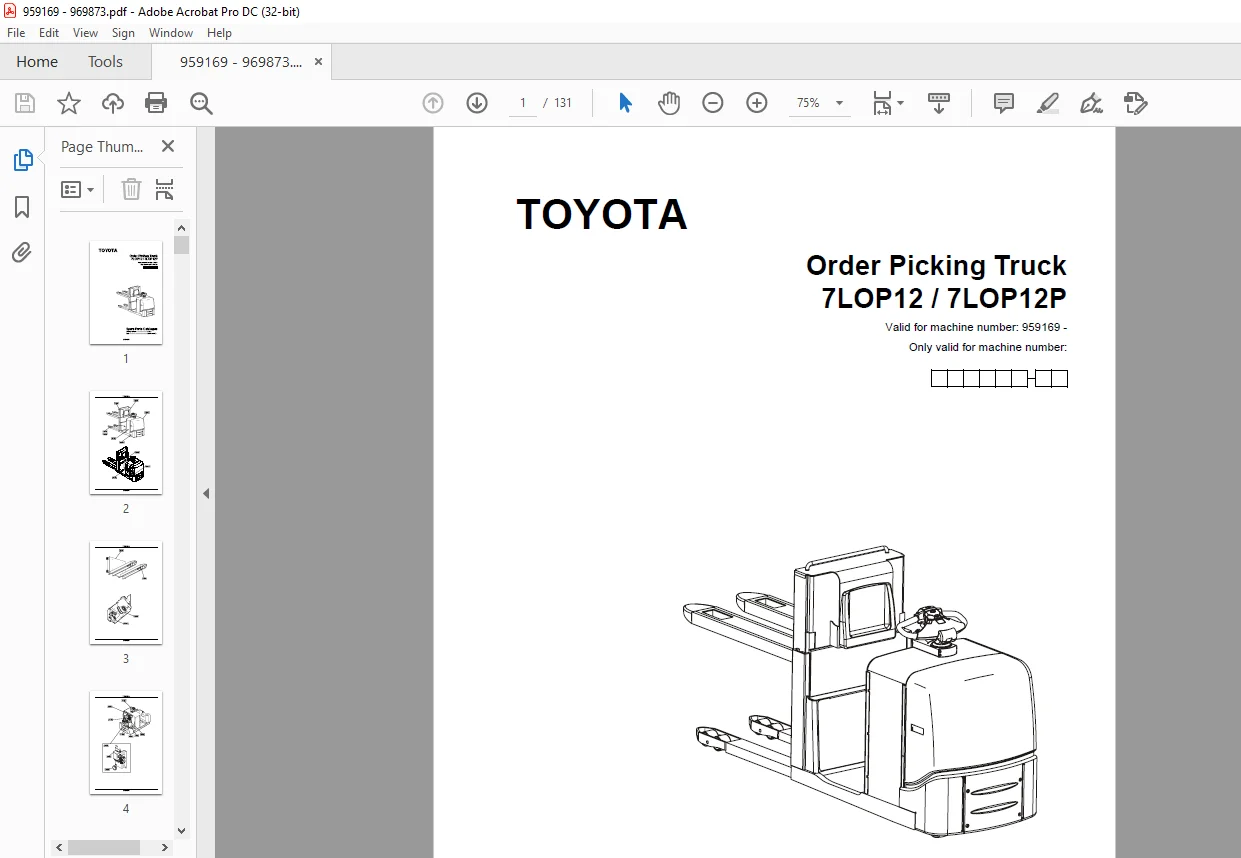

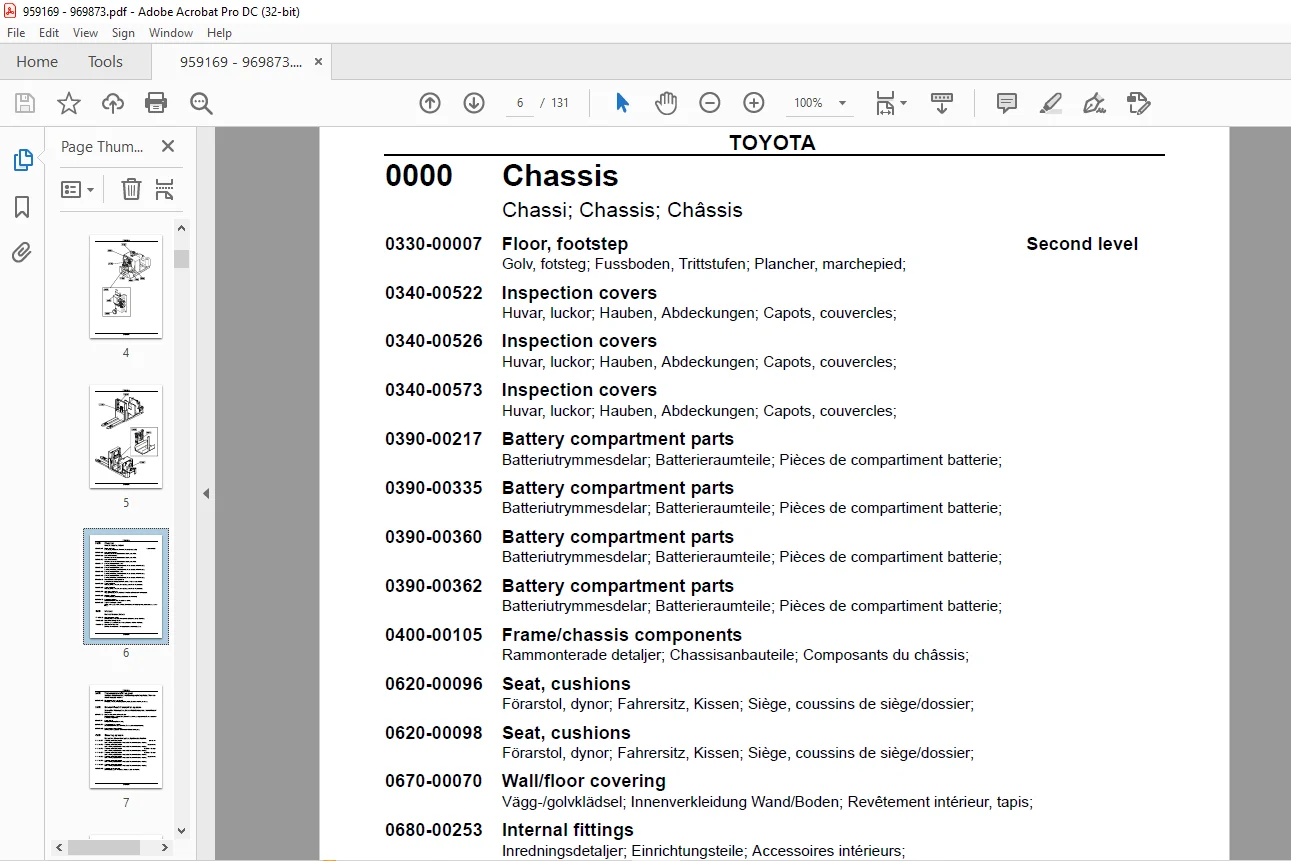

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

TABLE OF CONTENTS:

Toyota Forklift 7LOP12 7LOP12P Order Picking Truck Parts Catalogue Manual 959169 – PDF DOWNLOAD

0000 Chassis...........................................................................................  6
	Chassi; Chassis; Châssis...........................................................................  6
1000 Motors............................................................................................  6
	Motorer; Motoren; Moteurs..........................................................................  6
2000 Transmission/Drive gear...........................................................................  7
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  7
3000 Brake/Wheel/Caterpillar system....................................................................  7
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  7
4000 Steering system...................................................................................  7
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  7
5000 Electrical system.................................................................................  8
	Elektriskt system; Elektroanlage; Système électrique...............................................  8
6000 Hydraulic/pneumatic system........................................................................  8
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  8
7000 Work function - lifting masts.....................................................................  9
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  9
9000 Options/attachments...............................................................................  9
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.............  9
0330-00007 P0023171.................................................................................... 10
0330-00007 Floor, footstep [2006-09-21]................................................................ 10
0340-00522 P0026687.................................................................................... 12
0340-00522 Inspection covers [2006-04-10].............................................................. 13
0340-00526 P0026710.................................................................................... 14
0340-00526 Inspection covers [2006-04-10].............................................................. 14
0340-00573 P0027931.................................................................................... 16
0340-00573 Inspection covers [2006-10-19].............................................................. 17
0390-00217 P0018737.................................................................................... 18
0390-00217 Battery compartment parts [2006-04-10]...................................................... 18
0390-00335 P0026628.................................................................................... 20
0390-00335 Battery compartment parts [2006-04-10]...................................................... 21
0390-00360 P0027916.................................................................................... 22
0390-00360 Battery compartment parts [2006-10-19]...................................................... 23
0390-00362 P0027971.................................................................................... 24
0390-00362 Battery compartment parts [2006-10-19]...................................................... 24
0400-00105 P0025020.................................................................................... 25
0400-00105 Frame/chassis components [2006-04-10]....................................................... 25
0620-00096 P0023116.................................................................................... 26
0620-00096 Seat, cushions [2006-04-10]................................................................. 26
0620-00098 P0023148.................................................................................... 28
0620-00098 Seat, cushions [2006-04-10]................................................................. 29
0670-00070 P0022470.................................................................................... 30
0670-00070 Wall/floor covering [2006-04-10]............................................................ 31
0680-00253 P0026685.................................................................................... 32
0680-00253 Internal fittings [2006-04-10].............................................................. 32
0840-00170 P0026691.................................................................................... 34
0840-00170 Driver protection [2006-04-10].............................................................. 35
0850-00429 P0026702.................................................................................... 36
0850-00429 Signs, warnings, decals [2006-04-10]........................................................ 37
1710-00120 P0023122.................................................................................... 38
1710-00120 Electric pump motor [2006-04-10]............................................................ 38
1730-00038 P0023038.................................................................................... 39
1730-00038 Electric steering motor [2006-04-10]........................................................ 39
1760-00119 P0023036.................................................................................... 40
1760-00119 Electric drive motor [2006-04-13]........................................................... 41
2550-00060 P0017824.................................................................................... 44
2550-00060 Mechanical drive gear unit [2006-04-13]..................................................... 45
3370-00012 P0012474.................................................................................... 48
3370-00012 Electromagnetic parking brake [2006-04-13].................................................. 49
3530-00071 P0018088.................................................................................... 50
3530-00071 Drive wheel [2006-04-10].................................................................... 50
3540-00076 P0018517.................................................................................... 52
3540-00076 Support/castor wheels [2006-04-10].......................................................... 53
3550-00335 P0023170.................................................................................... 56
3550-00335 Fork/support arm wheels [2006-04-10]........................................................ 57
4110-00357 P0021909.................................................................................... 58
4110-00357 Steering arm/wheel/lever [2006-04-10]....................................................... 59
4110-00372 P0023064.................................................................................... 62
4110-00372 Steering arm/wheel/lever [2006-04-10]....................................................... 62
4110-00373 P0023065.................................................................................... 63
4110-00373 Steering arm/wheel/lever [2006-04-10]....................................................... 63
4110-00434 P0026636.................................................................................... 64
4110-00434 Steering arm/wheel/lever [2006-04-10]....................................................... 65
4110-00435 P0026637.................................................................................... 68
4110-00435 Steering arm/wheel/lever [2006-04-10]....................................................... 69
4110-00440 P0026715.................................................................................... 72
4110-00440 Steering arm/wheel/lever [2006-04-10]....................................................... 73
4110-00460 P0027918.................................................................................... 76
4110-00460 Steering arm/wheel/lever [2006-10-19]....................................................... 77
4350-00008 P0018130.................................................................................... 80
4350-00008 Steering angle sensor [2006-04-10].......................................................... 80
5160-00085 P0018093.................................................................................... 82
5160-00085 General alarm signals (audible/visual) [2006-04-10]......................................... 82
5190-00115 P0026647.................................................................................... 84
5190-00115 Battery cut out connector/contactor [2006-04-10]............................................ 85
5460-00062 P0022472.................................................................................... 86
5460-00062 Transistor panel [2006-04-10]............................................................... 86
5590-00324 P0027919.................................................................................... 87
5590-00324 Work function harnesses/fuse [2006-10-19]................................................... 87
5610-00027 P0026651.................................................................................... 88
5610-00027 Pump contactor [2006-04-10]................................................................. 88
5680-00118 P0023059.................................................................................... 89
5680-00118 Battery/motor cables, fuse [2006-04-10]..................................................... 89
5820-00169 P0023418.................................................................................... 90
5820-00169 Lift/lowering/reach movement probes/sensors [2006-04-10].................................... 90
5820-00170 P0023482.................................................................................... 92
5820-00170 Lift/lowering/reach movement probes/sensors [2006-04-10].................................... 93
5820-00231 P0027979.................................................................................... 94
5820-00231 Lift/lowering/reach movement probes/sensors [2006-10-19].................................... 95
5830-00150 P0022533.................................................................................... 96
5830-00150 Safety probes/sensors [2006-04-10].......................................................... 96
6100-00233 P0027940.................................................................................... 98
6100-00233 Hydraulic unit [2006-10-19]................................................................. 99
6230-00124 P0023128....................................................................................100
6230-00124 Hydraulic lines chassis [2006-04-10]........................................................101
6230-00125 P0023129....................................................................................102
6230-00125 Hydraulic lines chassis [2006-04-10]........................................................102
6610-00183 P0023172....................................................................................103
6610-00183 Main lift cylinders [2006-04-10]............................................................103
6610-00227 P0027986....................................................................................104
6610-00227 Main lift cylinders [2006-10-19]............................................................104
7120-00340 P0023187....................................................................................106
7120-00340 Main lift chain system [2006-04-10].........................................................107
7190-00066 P0023203....................................................................................108
7190-00066 Main mast suspension [2006-04-10]...........................................................109
7420-00394 P0023180....................................................................................110
7420-00394 Fork carriage unit, integrated sideshift, fork spread [2006-04-10]..........................110
9130-00071 P0027924....................................................................................112
9130-00071 Working cage [2006-10-19]...................................................................113
9130-00073 P0027930....................................................................................116
9130-00073 Working cage [2006-10-19]...................................................................117
9380-00003 P0014865....................................................................................118
9380-00003 Charger attachment [2006-04-10].............................................................118
9380-00009 P0019044....................................................................................119
9380-00009 Charger attachment [2006-06-08].............................................................119
9420-00096 P0025017....................................................................................120
9420-00096 Truck log device, code locking device [2006-04-10]..........................................121
9420-00099 P0026635....................................................................................122
9420-00099 Truck log device, code locking device [2006-04-10]..........................................122
9500-00532 P0018900....................................................................................124
9500-00532 Other extra equipment [2006-04-10]..........................................................125
9500-00534 P0018907....................................................................................126
9500-00534 Other extra equipment [2006-04-10]..........................................................126
9500-00558 P0019443....................................................................................127
9500-00558 Other extra equipment [2006-04-10]..........................................................127
9500-00806 P0026738....................................................................................128
9500-00806 Other extra equipment [2006-04-18]..........................................................128
9500-00872 P0027926....................................................................................129
9500-00872 Other extra equipment [2006-10-19]..........................................................129
9550-00013 P0012468....................................................................................130
9550-00013 Battery changing equipment [2006-04-13].....................................................131
