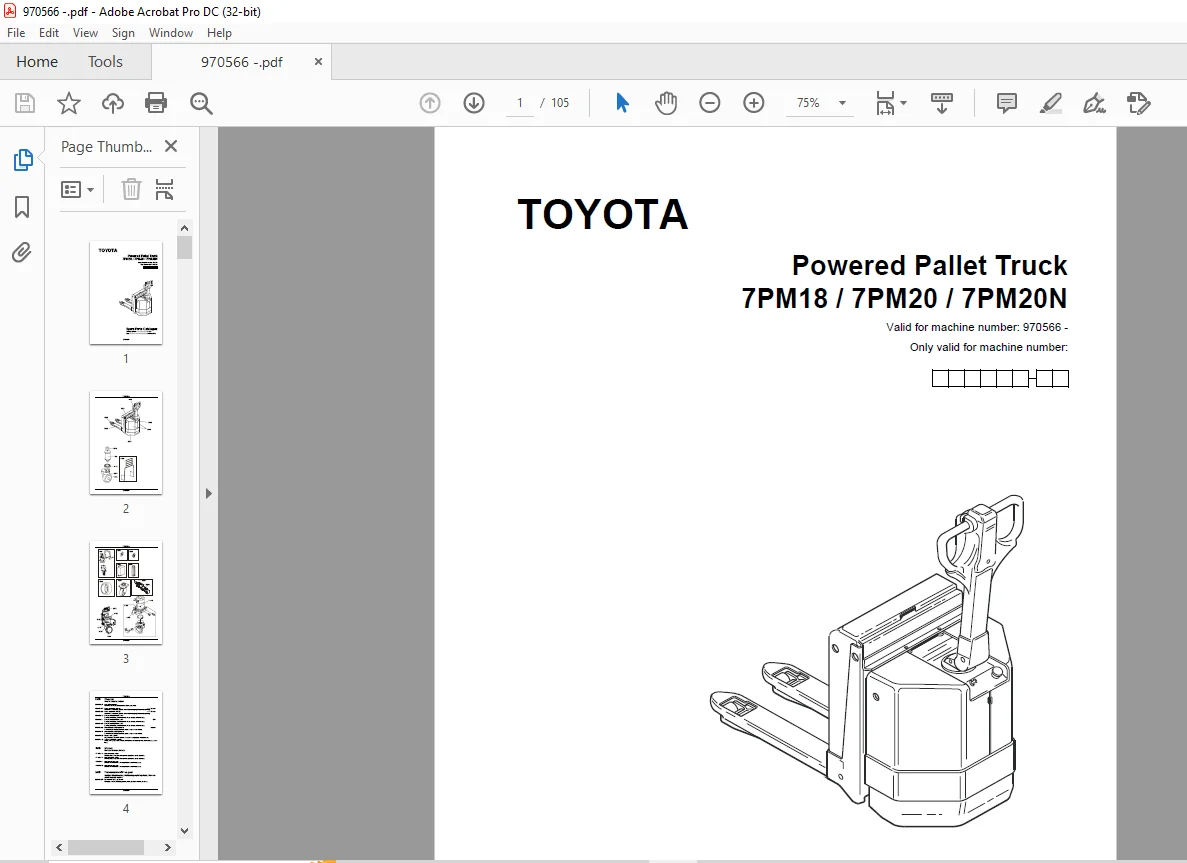

Toyota Forklift 7PM18 7PM20 7PM20N Powered Pallet Truck Parts Catalogue Manual 970566 – PDF DOWNLOAD

Description

Toyota Forklift 7PM18 7PM20 7PM20N Powered Pallet Truck Parts Catalogue Manual 970566 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7PM18 7PM20 7PM20N Powered Pallet Truck Parts Catalogue Manual 970566 – PDF DOWNLOAD

Language : English
Pages : 105
Downloadable : Yes
File Type : PDF

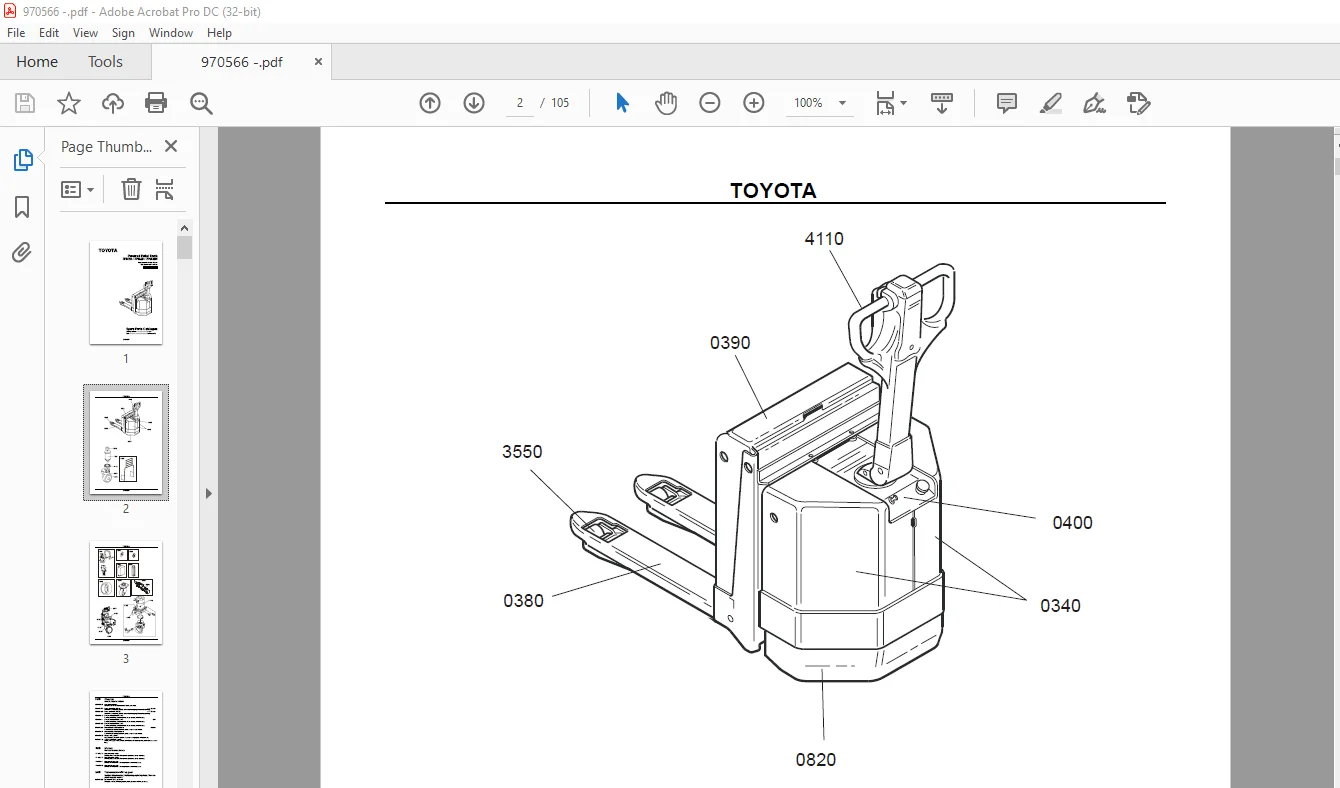

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

TABLE OF CONTENTS:

Toyota Forklift 7PM18 7PM20 7PM20N Powered Pallet Truck Parts Catalogue Manual 970566 – PDF DOWNLOAD

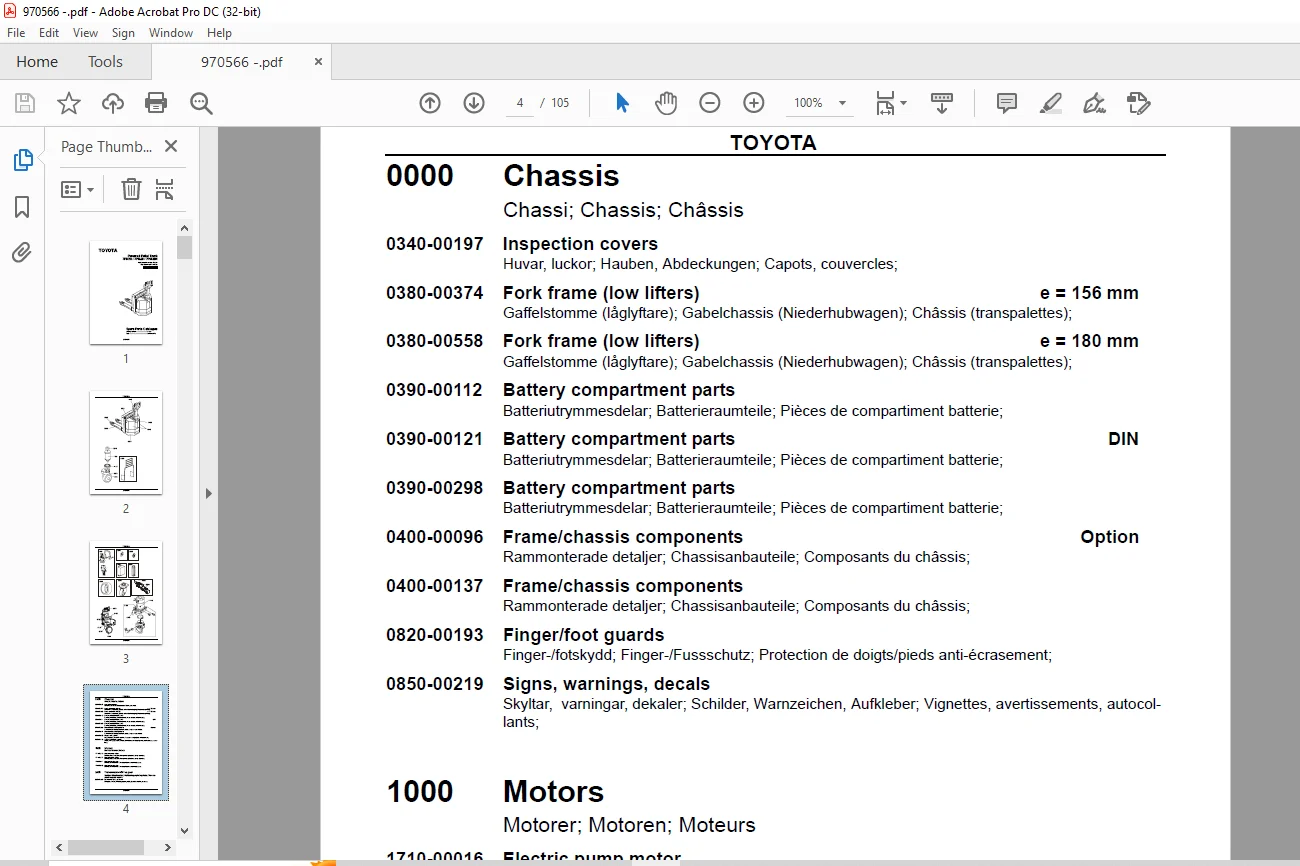

0000 Chassis.....................................................................................  4
	Chassi; Chassis; Châssis.....................................................................  4
1000 Motors......................................................................................  4
	Motorer; Motoren; Moteurs....................................................................  4
2000 Transmission/Drive gear.....................................................................  4
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction....  4
3000 Brake/Wheel/Caterpillar system..............................................................  5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles.....................  5
4000 Steering system.............................................................................  5
	Styrsystem; Steuer-/Lenksystem; Système de direction.........................................  5
5000 Electrical system...........................................................................  6
	Elektriskt system; Elektroanlage; Système électrique.........................................  6
6000 Hydraulic/pneumatic system..................................................................  6
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique..............  6
9000 Options/attachments.........................................................................  7
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.......  7
0340-00197 P0013095..............................................................................  8
0340-00197 Inspection covers [2001-08-24]........................................................  9
0380-00374 P0018565.............................................................................. 10
0380-00374 Fork frame (low lifters) [2004-08-26]................................................. 10
0380-00558 P0026854.............................................................................. 14
0380-00558 Fork frame (low lifters) [2006-11-03]................................................. 15
0390-00112 P0013834.............................................................................. 18
0390-00112 Battery compartment parts [2002-05-15]................................................ 19
0390-00121 P0014196.............................................................................. 20
0390-00121 Battery compartment parts [2004-05-13]................................................ 21
0390-00298 P0024046.............................................................................. 22
0390-00298 Battery compartment parts [2005-08-11]................................................ 22
0400-00096 P0024325.............................................................................. 23
0400-00096 Frame/chassis components [2005-08-11]................................................. 23
0400-00137 P0028514.............................................................................. 24
0400-00137 Frame/chassis components [2007-01-04]................................................. 25
0820-00193 P0022179.............................................................................. 26
0820-00193 Finger/foot guards [2004-10-01]....................................................... 27
0850-00219 P0016879.............................................................................. 28
0850-00219 Signs, warnings, decals [2002-09-24].................................................. 29
1710-00016 P0011277.............................................................................. 30
1710-00016 Electric pump motor [2004-08-26]...................................................... 30
1710-00017 P0011299.............................................................................. 31
1710-00017 Electric pump motor [2004-08-26]...................................................... 31
1760-00101 P0020436.............................................................................. 32
1760-00101 Electric drive motor [2007-01-03]..................................................... 33
1760-00102 P0020437.............................................................................. 34
1760-00102 Electric drive motor [2007-01-03]..................................................... 35
2550-00080 P0027237.............................................................................. 36
2550-00080 Mechanical drive gear unit [2006-09-21]............................................... 37
3370-00026 P0017735.............................................................................. 40
3370-00026 Electromagnetic parking brake [2006-04-10]............................................ 40
3530-00026 P0011304.............................................................................. 41
3530-00026 Drive wheel [2006-08-31].............................................................. 41
3540-00032 P0011305.............................................................................. 42
3540-00032 Support/castor wheels [2004-08-26].................................................... 43
3550-00094 P0016331.............................................................................. 44
3550-00094 Fork/support arm wheels [2004-08-26].................................................. 45
3550-00364 P0024114.............................................................................. 46
3550-00364 Fork/support arm wheels [2005-08-11].................................................. 47
3570-00061 P0013828.............................................................................. 48
3570-00061 Wheel locating points [2004-08-26].................................................... 49
3580-00052 P0028573.............................................................................. 50
3580-00052 Guide rollers/wheels [2007-01-04]..................................................... 51
4110-00395 P0024158.............................................................................. 52
4110-00395 Steering arm/wheel/lever [2005-08-11]................................................. 53
4180-00020 P0013830.............................................................................. 56
4180-00020 Steering bearings, radial bearing [2004-08-26]........................................ 57
5160-00079 P0017661.............................................................................. 58
5160-00079 General alarm signals (audible/visual) [2004-08-26]................................... 58
5190-00029 P0012438.............................................................................. 59
5190-00029 Battery cut out connector/contactor [2006-04-10]...................................... 59
5190-00039 P0012722.............................................................................. 60
5190-00039 Battery cut out connector/contactor [2004-08-26]...................................... 61
5190-00100 P0024053.............................................................................. 62
5190-00100 Battery cut out connector/contactor [2005-08-11]...................................... 63
5310-00045 P0014206.............................................................................. 64
5310-00045 Start/stop switch [2004-08-26]........................................................ 64
5460-00032 P0012482.............................................................................. 65
5460-00032 Transistor panel [2006-12-18]......................................................... 65
5590-00237 P0024124.............................................................................. 66
5590-00237 Work function harnesses/fuse [2005-08-11]............................................. 67
5610-00021 P0016866.............................................................................. 68
5610-00021 Pump contactor [2006-05-17]........................................................... 68
5820-00181 P0024304.............................................................................. 70
5820-00181 Lift/lowering/reach movement probes/sensors [2005-10-03].............................. 71
5830-00043 P0011357.............................................................................. 72
5830-00043 Safety probes/sensors [2004-08-26].................................................... 72
5830-00169 P0024299.............................................................................. 73
5830-00169 Safety probes/sensors [2005-08-11].................................................... 73
6100-00242 P0028056.............................................................................. 74
6100-00242 Hydraulic unit [2006-11-08]........................................................... 75
6100-00243 P0028059.............................................................................. 76
6100-00243 Hydraulic unit [2006-11-08]........................................................... 77
6120-00165 P0012435.............................................................................. 78
6120-00165 Hydraulic tank lines [2004-08-26]..................................................... 78
6120-00195 P0016861.............................................................................. 78
6120-00195 Hydraulic tank lines [2004-08-26]..................................................... 78
6610-00036 P0011252.............................................................................. 79
6610-00036 Main lift cylinders [2006-01-19]...................................................... 79
9380-00004 P0017729.............................................................................. 80
9380-00004 Charger attachment [2006-04-10]....................................................... 80
9380-00005 P0017731.............................................................................. 81
9380-00005 Charger attachment [2006-04-10]....................................................... 81
9380-00011 P0020457.............................................................................. 81
9380-00011 Charger attachment [2006-04-10]....................................................... 81
9400-00077 P0015416.............................................................................. 82
9400-00077 Extra electrical equipment [2005-05-04]............................................... 83
9400-00078 P0015420.............................................................................. 84
9400-00078 Extra electrical equipment [2006-04-10]............................................... 85
9400-00245 P0028556.............................................................................. 86
9400-00245 Extra electrical equipment [2007-01-04]............................................... 87
9400-00246 P0028557.............................................................................. 88
9400-00246 Extra electrical equipment [2007-01-04]............................................... 89
9400-00247 P0028559.............................................................................. 90
9400-00247 Extra electrical equipment [2007-01-04]............................................... 91
9420-00015 P0012396.............................................................................. 92
9420-00015 Truck log device, code locking device [2006-09-29].................................... 92
9420-00065 P0022181.............................................................................. 94
9420-00065 Truck log device, code locking device [2004-10-01].................................... 95
9420-00098 P0026077.............................................................................. 96
9420-00098 Truck log device, code locking device [2006-09-29].................................... 96
9500-00208 P0012488.............................................................................. 98
9500-00208 Other extra equipment [2005-12-14].................................................... 99
9500-00219 P0012481..............................................................................100
9500-00219 Other extra equipment [2004-08-26]....................................................100
9500-00524 P0018662..............................................................................101
9500-00524 Other extra equipment [2004-08-26]....................................................101
9500-00712 P0024329..............................................................................102
9500-00712 Other extra equipment [2006-04-10]....................................................102
9550-00014 P0012487..............................................................................104
9550-00014 Battery changing equipment [2004-08-26]...............................................105
