Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 910327

Description

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 910327 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 910327 – PDF DOWNLOAD

Language : English
Pages : 103
Downloadable : Yes
File Type : PDF

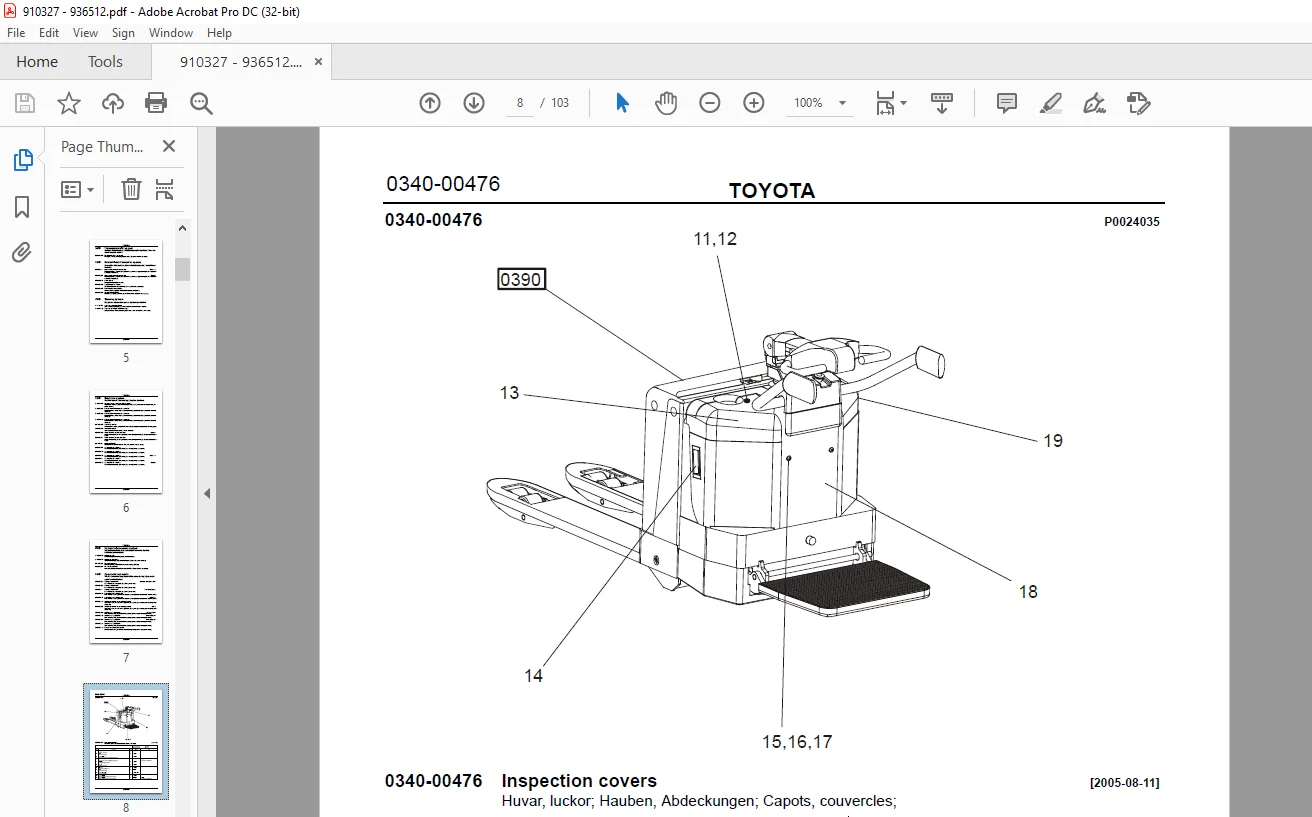

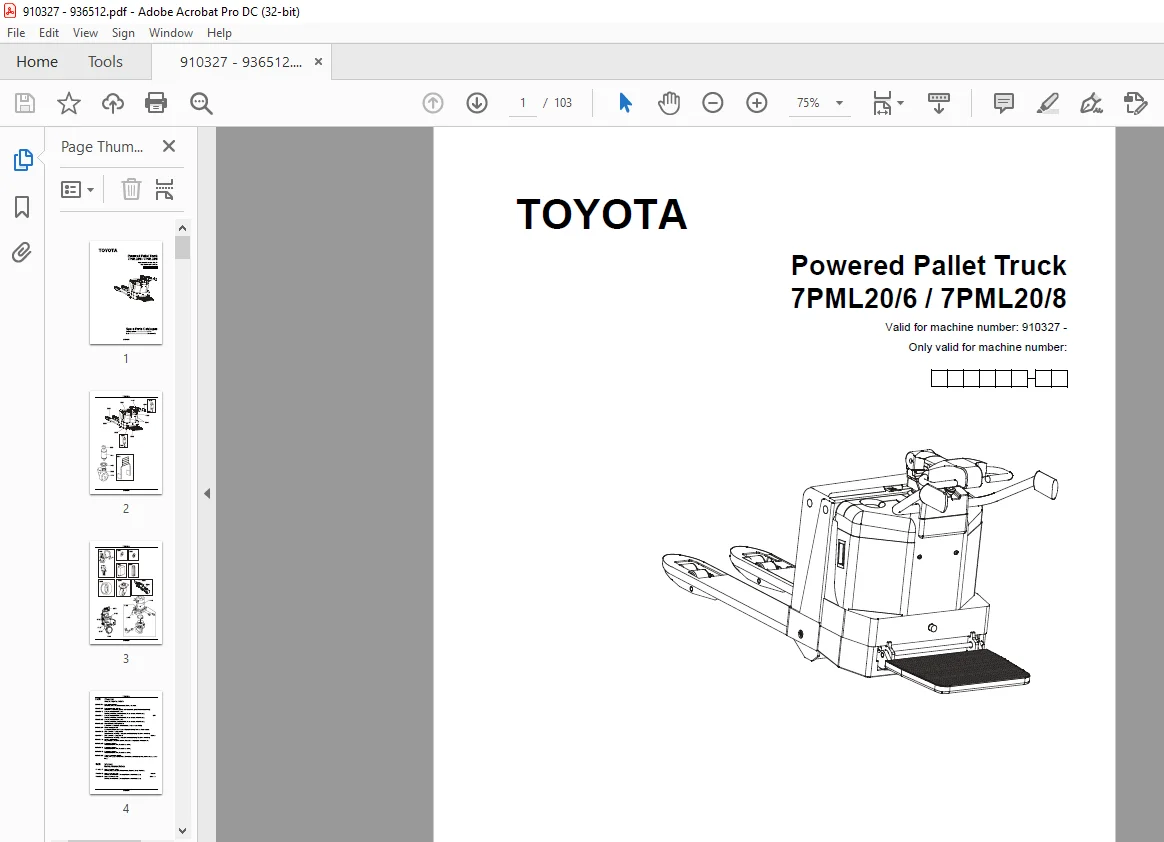

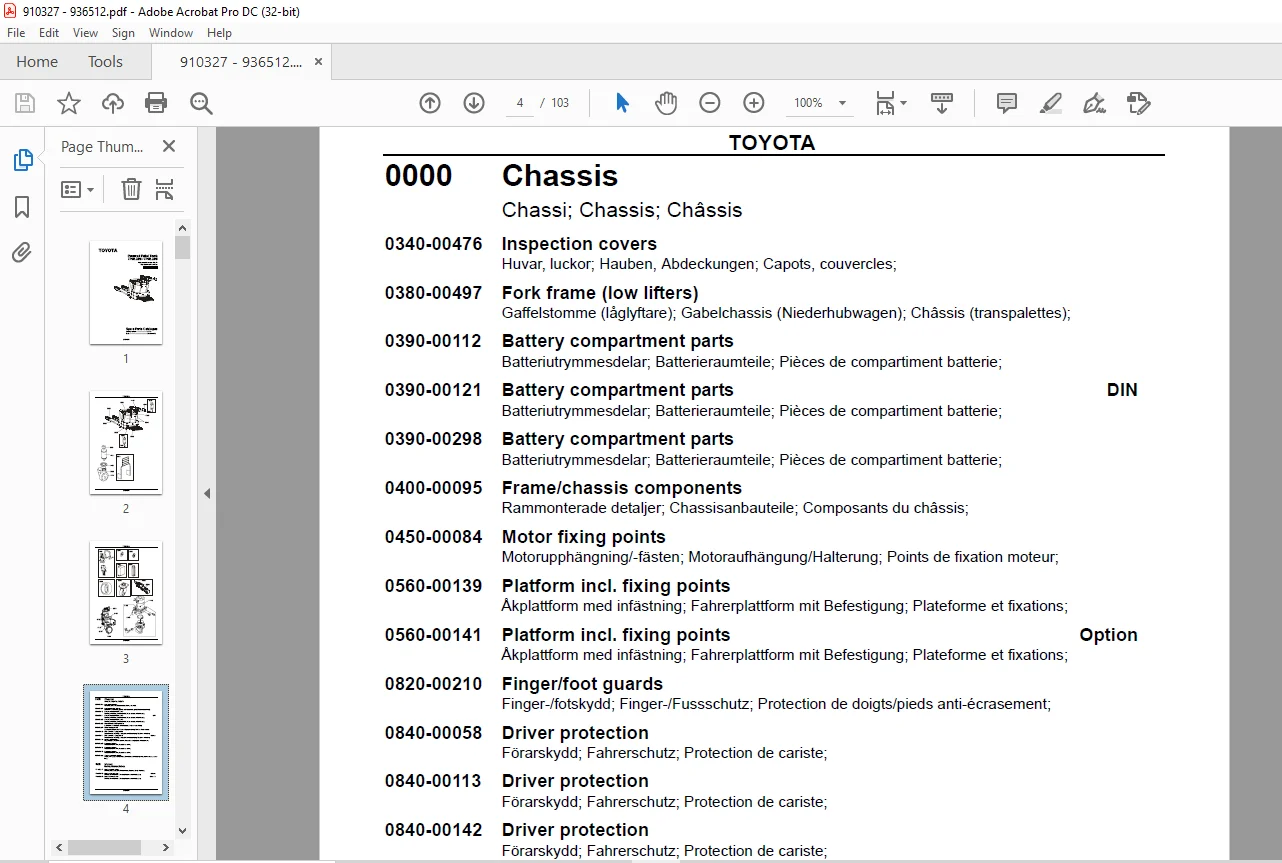

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7PML20/6 / 7PML20/8 Pallet Truck Parts Manual 910327 – PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 4
Motorer; Motoren; Moteurs 4
2000 Transmission/Drive gear 5
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 5
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 5
Styrsystem; Steuer-/Lenksystem; Système de direction 5
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 7
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 7
9000 Options/attachments 7
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 7
0340-00476 P0024035 8
0340-00476 Inspection covers [2005-08-11] 8
0380-00497 P0024103 10
0380-00497 Fork frame (low lifters) [2005-08-11] 11
0390-00112 P0013834 14
0390-00112 Battery compartment parts [2002-05-15] 15
0390-00121 P0014196 16
0390-00121 Battery compartment parts [2004-05-13] 17
0390-00298 P0024046 18
0390-00298 Battery compartment parts [2005-08-11] 18
0400-00095 P0024323 20
0400-00095 Frame/chassis components [2005-08-11] 21
0450-00084 P0024338 22
0450-00084 Motor fixing points [2005-08-11] 23
0560-00139 P0024305 24
0560-00139 Platform incl fixing points [2005-08-11] 25
0560-00141 P0024307 26
0560-00141 Platform incl fixing points [2005-08-11] 27
0820-00210 P0024023 28
0820-00210 Finger/foot guards [2005-08-11] 28
0840-00058 P0013150 29
0840-00058 Driver protection [2001-08-24] 29
0840-00113 P0021125 30
0840-00113 Driver protection [2004-08-23] 30
0840-00142 P0024031 32
0840-00142 Driver protection [2005-08-11] 33
0850-00226 P0016905 34
0850-00226 Signs, warnings, decals [2002-09-30] 35
1710-00017 P0011299 36
1710-00017 Electric pump motor [2004-08-26] 36
1760-00103 P0020439 38
1760-00103 Electric drive motor [2004-08-24] 39
1760-00104 P0020440 40
1760-00104 Electric drive motor [2004-08-24] 40
2550-00070 P0024003 42
2550-00070 Mechanical drive gear unit [2005-08-11] 43
3370-00011 P0011271 46
3370-00011 Electromagnetic parking brake [2004-08-24] 47
3370-00027 P0017736 48
3370-00027 Electromagnetic parking brake [2004-08-24] 48
3530-00102 P0021057 49
3530-00102 Drive wheel [2004-08-24] 49
3540-00040 P0012388 50
3540-00040 Support/castor wheels [2004-08-24] 51
3550-00363 P0024106 52
3550-00363 Fork/support arm wheels [2005-08-11] 53
3580-00039 P0021072 54
3580-00039 Guide rollers/wheels [2004-09-23] 55
4110-00397 P0024195 56
4110-00397 Steering arm/wheel/lever [2005-08-11] 57
4180-00019 P0013829 60
4180-00019 Steering bearings, radial bearing [2005-04-06] 60
5160-00079 P0017661 62
5160-00079 General alarm signals (audible/visual) [2004-08-26] 62
5190-00029 P0012438 63
5190-00029 Battery cut out connector/contactor [2005-04-06] 63
5190-00039 P0012722 64
5190-00039 Battery cut out connector/contactor [2004-08-26] 65
5190-00100 P0024053 66
5190-00100 Battery cut out connector/contactor [2005-08-11] 67
5310-00060 P0017055 68
5310-00060 Start/stop switch [2004-08-24] 68
5460-00040 P0013153 69
5460-00040 Transistor panel [2004-09-09] 69
5590-00236 P0024123 70
5590-00236 Work function harnesses/fuse [2005-08-11] 70
5590-00241 P0024301 72
5590-00241 Work function harnesses/fuse [2005-08-11] 73
5610-00021 P0016866 74
5610-00021 Pump contactor [2005-04-11] 74
5830-00067 P0012445 75
5830-00067 Safety probes/sensors [2005-04-06] 75
5830-00148 P0022182 76
5830-00148 Safety probes/sensors [2005-08-12] 76
5830-00170 P0024300 77
5830-00170 Safety probes/sensors [2005-08-11] 77
5830-00171 P0024309 78
5830-00171 Safety probes/sensors [2005-08-11] 79
5830-00172 P0024310 80
5830-00172 Safety probes/sensors [2005-08-11] 80
6100-00190 P0022214 82
6100-00190 Hydraulic unit [2004-10-01] 83
6120-00194 P0016859 84
6120-00194 Hydraulic tank lines [2004-08-24] 84
6610-00053 P0012390 85
6610-00053 Main lift cylinders [2004-08-24] 85
6680-00034 P0018043 86
6680-00034 Powertrak cylinder [2004-08-24] 87
9380-00004 P0017729 88
9380-00004 Charger attachment [2005-05-04] 88
9380-00005 P0017731 89
9380-00005 Charger attachment [2005-05-04] 89
9380-00011 P0020457 89
9380-00011 Charger attachment [2005-05-04] 89
9400-00166 P0024038 90
9400-00166 Extra electrical equipment [2005-08-11] 91
9400-00167 P0024039 92
9400-00167 Extra electrical equipment [2005-08-11] 93
9420-00015 P0012396 94
9420-00015 Truck log device, code locking device [2005-05-04] 94
9420-00092 P0024042 96
9420-00092 Truck log device, code locking device [2005-08-11] 97
9500-00208 P0012488 98
9500-00208 Other extra equipment [2005-05-04] 98
9500-00219 P0012481 99
9500-00219 Other extra equipment [2004-08-26] 99
9500-00524 P0018662 100
9500-00524 Other extra equipment [2004-08-26] 100
9500-00712 P0024329 101
9500-00712 Other extra equipment [2005-08-12] 101
9550-00013 P0012468 102
9550-00013 Battery changing equipment [2005-03-03] 102
